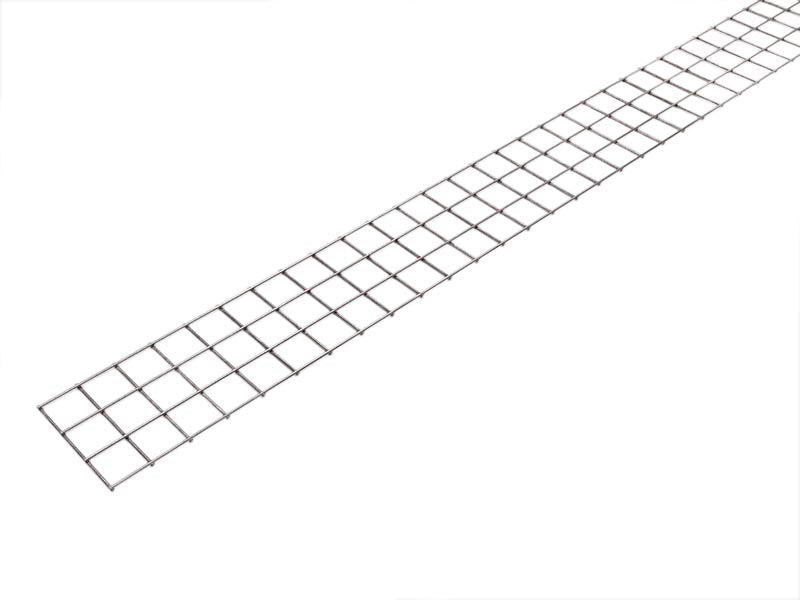

Gabionen-Abdeckung universal 154 mm, Gitterstreifen

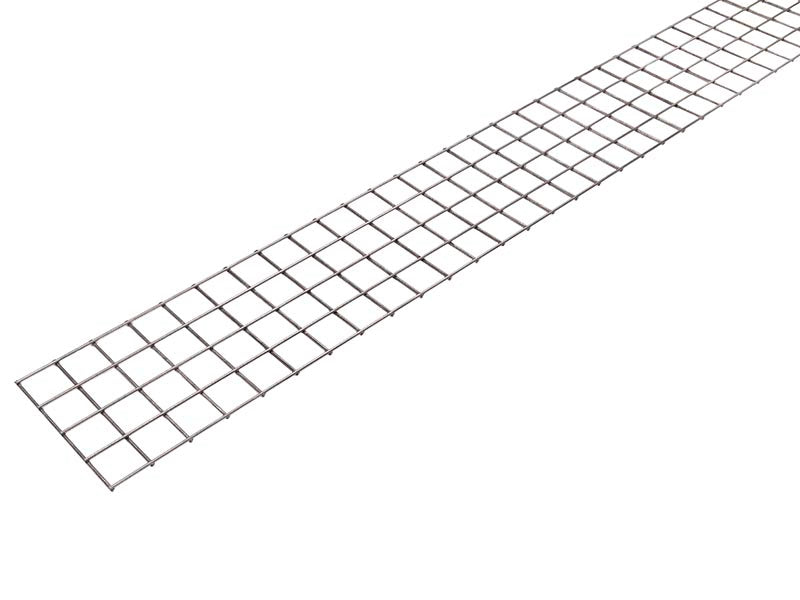

Gabionen-Abdeckung universal 204 mm, Gitterstreifen

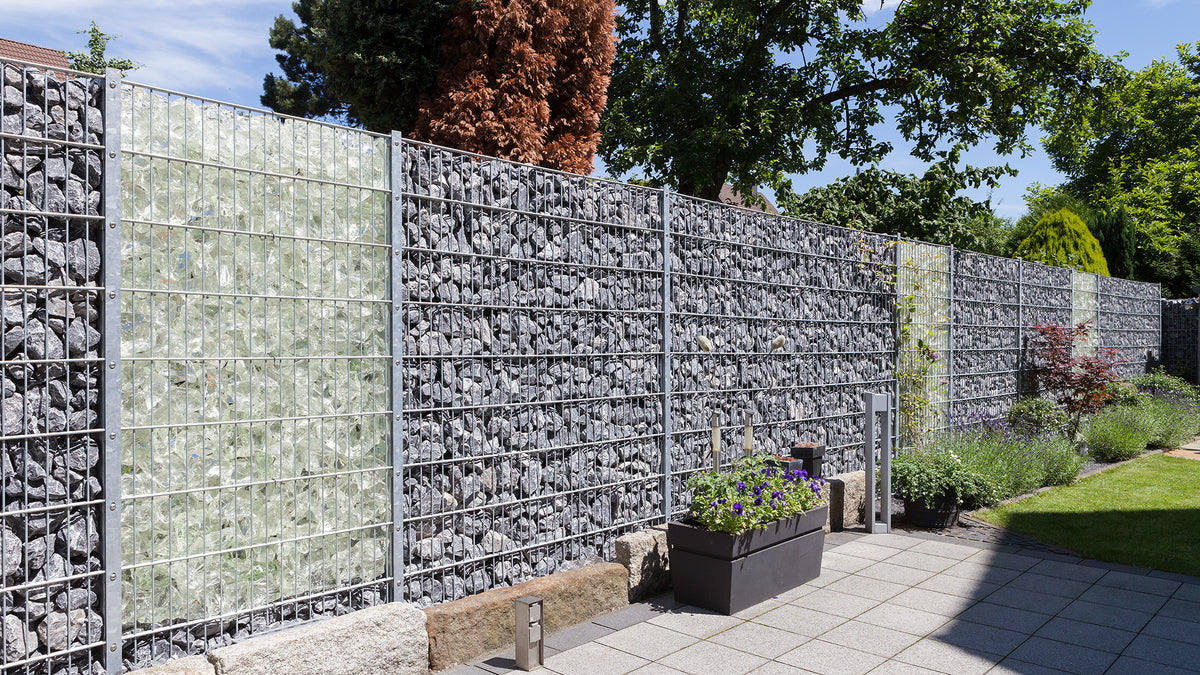

Gabionenzaun aus Doppelstabmatten mit Steinfüllung an einer Terrasse

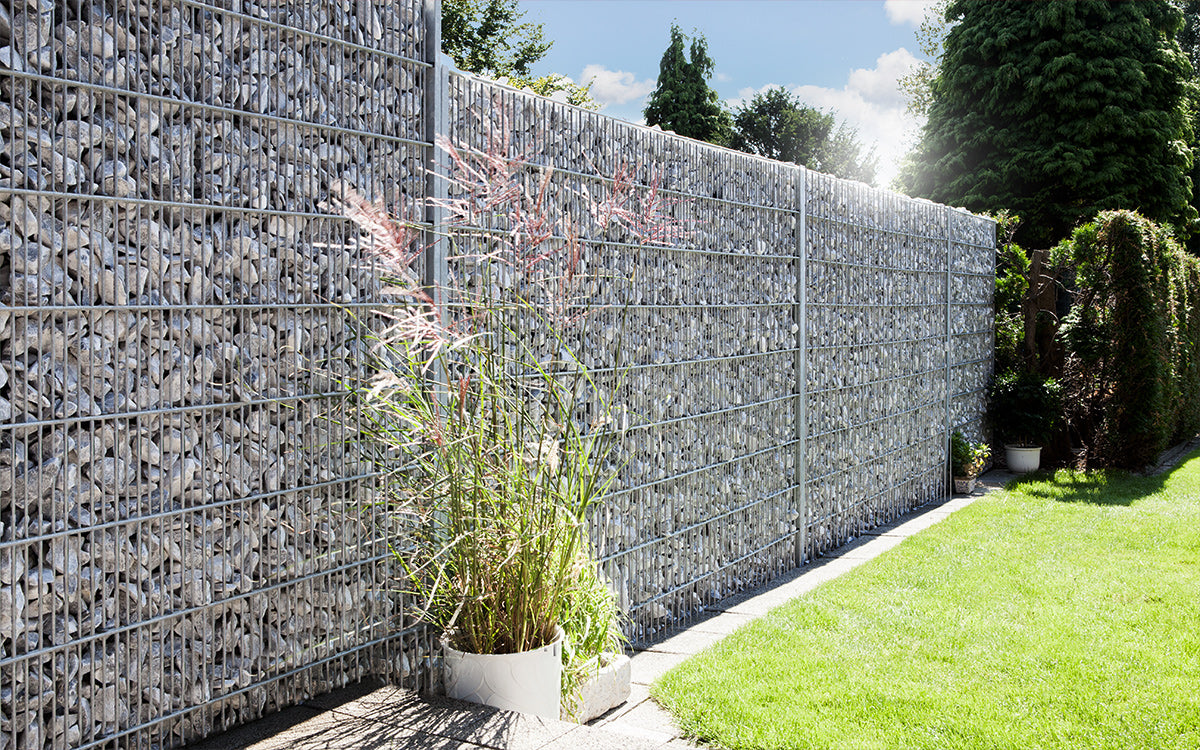

Steinzaun SAPHIR mit Bruchsteinfüllung im Garten

Universal Gabion Cover – Mesh 2504 mm Long, 154 or 204 mm Wide, Mesh Size 50 x 50 mm, Galfan

Black Weeks bis 30.11.: bis zu 400 € Rabatt ab 500 € Warenwert Stufen
SKU: GB-GZUBABD154

Completes the stone filling at the top

Length 2504 mm, width 154 or 204 mm

Mesh size 50 x 50 mm, rod 4 mm

For double posts, SAPHIR and gabion baskets

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Für Gewerbe und Kommunen: Bis 18.12. bestellen – auf Wunsch stellen wir die Rechnung noch 2026. Eine kurze Nachricht an shop@kirchberger-metall.de genügt.

Width:

Width
Quantity:
49,41 €inkl. MwSt.

Parcel or freight item: plus shipping, free shipping within Germany from €1,000 Shipping info

Lieferzeit: 2 to 3 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Satispay Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Universal Gabion Cover: A Clean Finish at the Top

The cover is a strip of mesh that closes off the stone fill of a gabion at the top. The manufacturer specifies it for gabion fences with double posts, for the C-profile SAPHIR and for continuing between gabion baskets with a gap of 3 mesh openings.

Technical Data

  • Length 2504 mm
  • Width 154 mm or 204 mm
  • Mesh size 50 x 50 mm, bar thickness 4/4 mm
  • Material: Galfan wire

Which Width Fits?

Tell us the gabion system you are building and we will confirm the matching width before you order.

Matching systems: Double post 120/40 and C-profile SAPHIR. More accessories under Gabions.

Questions and Answers

For the JUMBO basket 1000 x 1008 mm the manufacturer states a fill volume of approx. 0.266 m³ and around 400 kg of stones, depending on the grain size. A basket 2000 x 2008 mm holds four times that by calculation, around 1.06 m³ and approx. 1,600 kg. The actual weight depends on the type of stone.

No. Baskets, columns and posts are delivered without filling. You buy the stones locally from a building materials supplier or a quarry, which saves expensive transport.

The baskets have a mesh size of 50 x 200 mm. Finer fillings fall through. For those, line the inside of the basket with the 12.7 x 12.7 mm mesh roll.

Both are possible. The JUMBO gabion is available with posts for setting in concrete or with welded-on base plates for bolting down. Gabion columns are set in concrete or bolted to a foundation with the universal base plate. For setting in concrete the manufacturer recommends an embedment depth of 60 cm for the columns.

The JUMBO stone basket is a ready-welded basket with a depth of 266 mm. In a gabion fence two rows of double-rod mesh are mounted on 120/40 mm double posts, giving a fill width of approx. 145 mm. The fence is slimmer, while the basket arrives ready-welded.

For the hot-dip galvanized gabion columns the manufacturer expects about 30 years under normal weather conditions before the zinc layer is worn away. Baskets and columns are hot-dip galvanized to EN ISO 1461.
