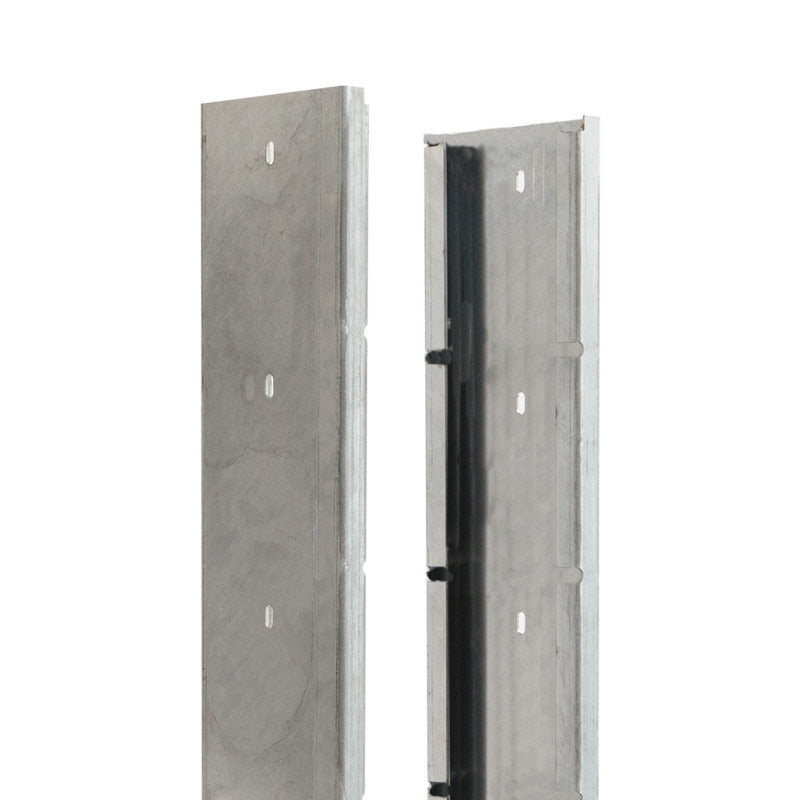

C-Profil SAPHIR feuerverzinkt, zwei Profile als Paar

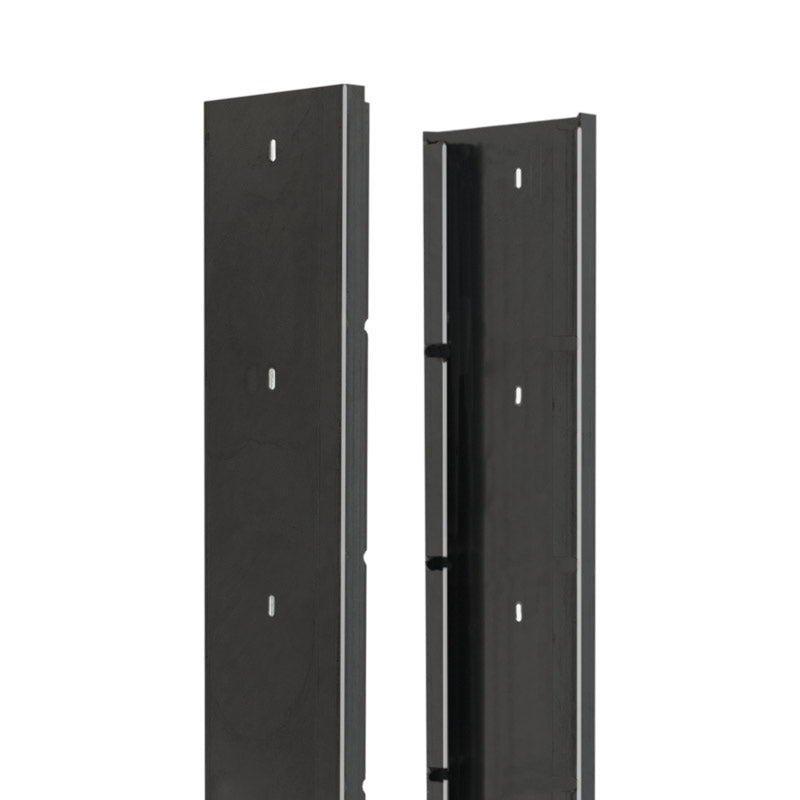

C-Profil SAPHIR in Anthrazitgrau RAL 7016, zwei Profile als Paar

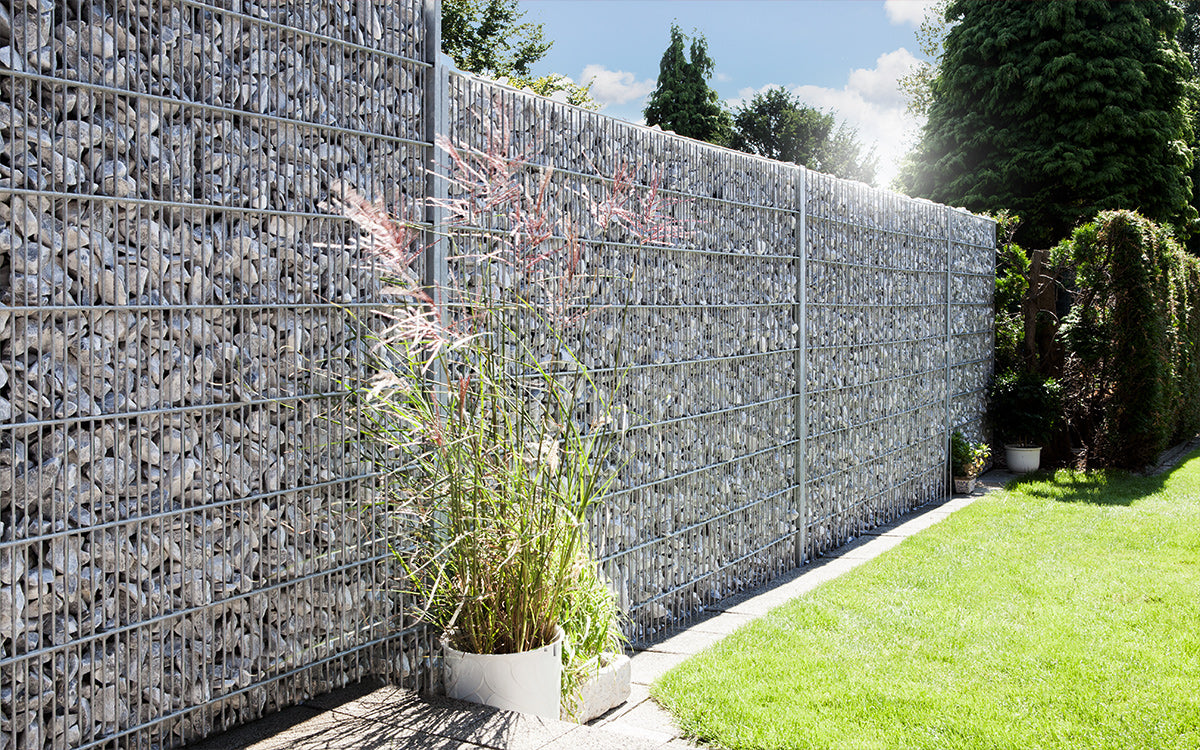

Steinzaun SAPHIR mit Bruchsteinfüllung und Gräsern im Garten

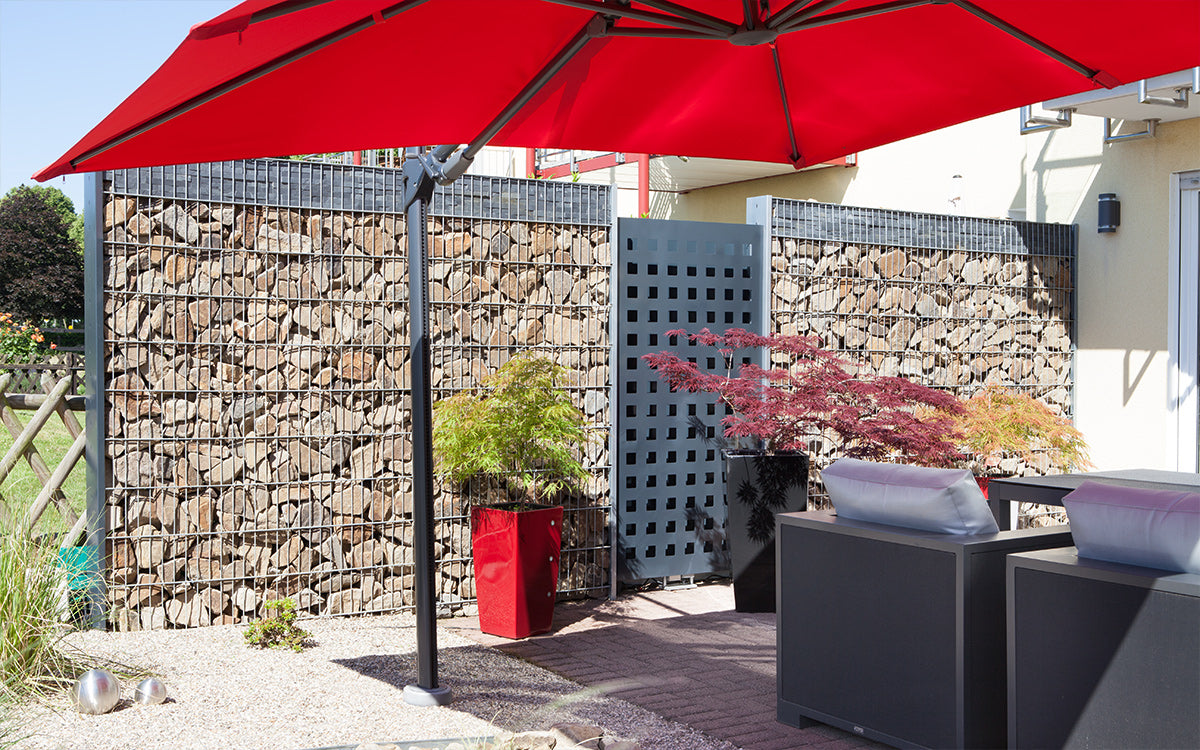

Steinzaun SAPHIR als Sichtschutz an einer Terrasse mit Sonnenschirm

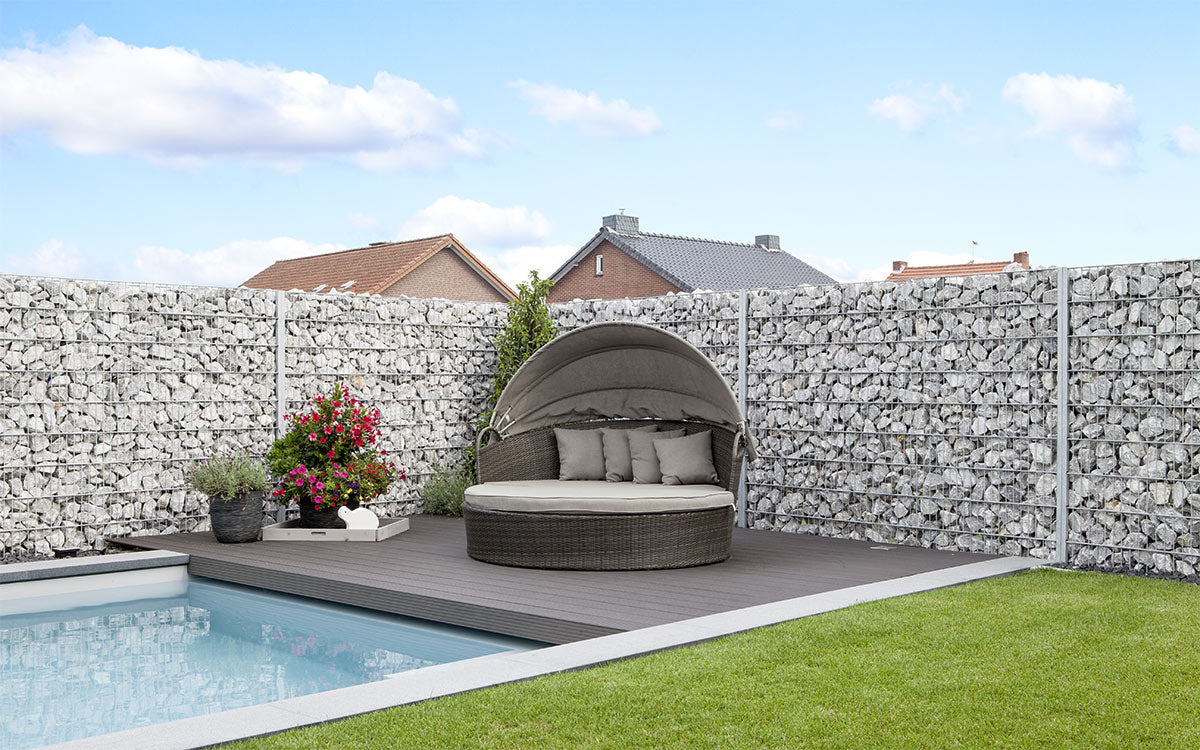

Steinzaun SAPHIR an einem Pool mit Liegeinsel

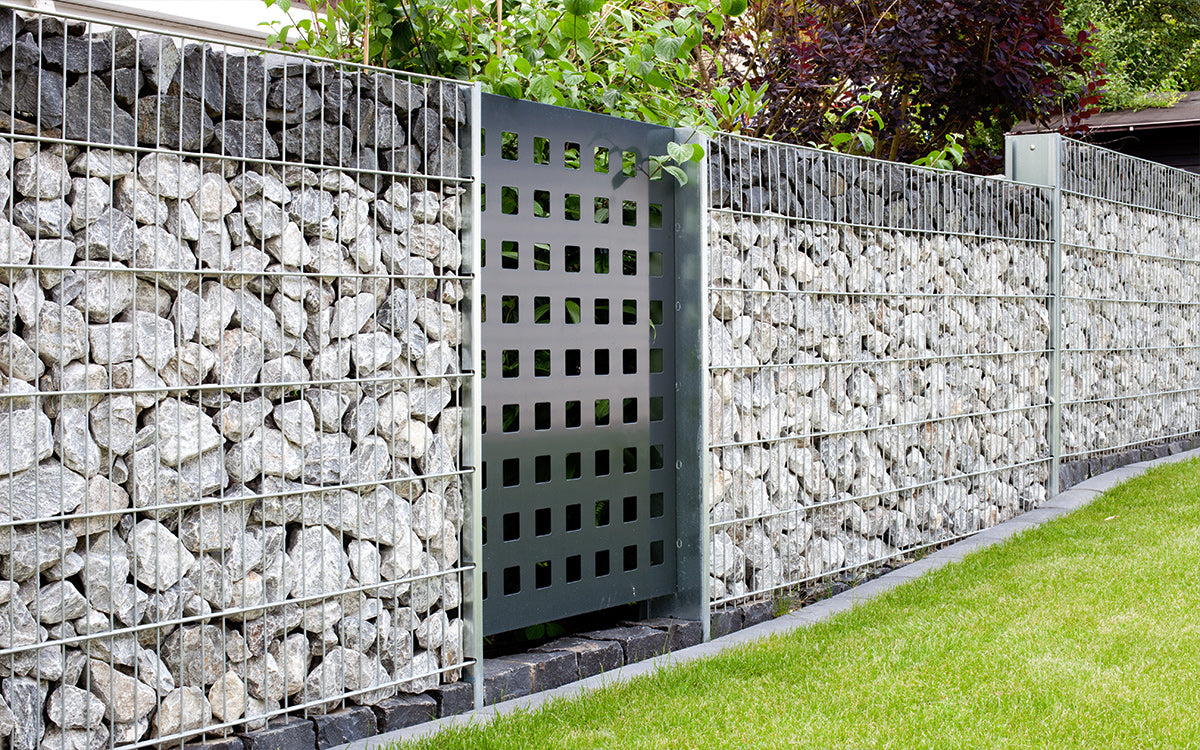

Steinzaun SAPHIR mit Gartentor und Rasenkante

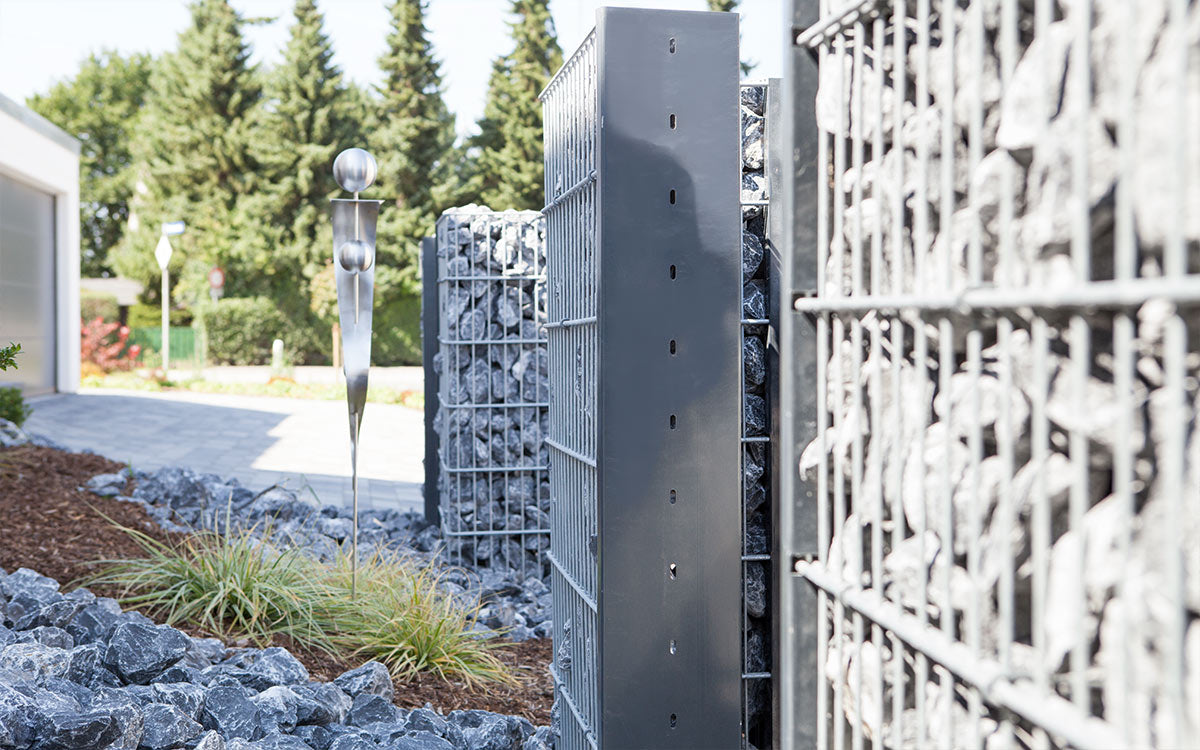

C-Profile SAPHIR mit Steinfüllung, Nahansicht

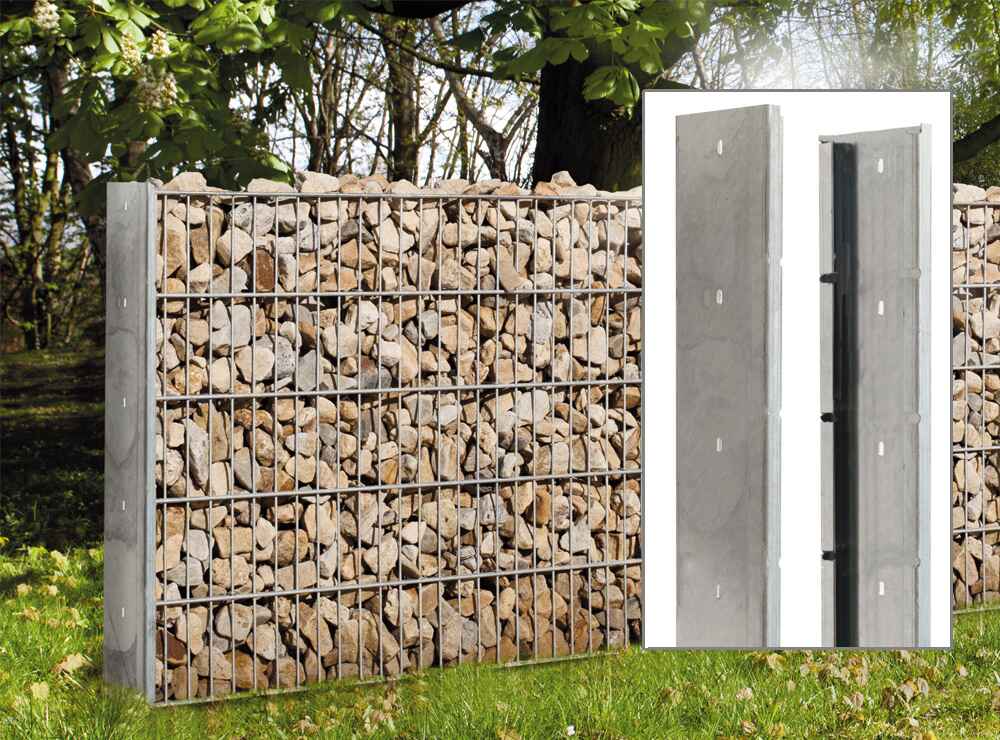

Steinzaun SAPHIR mit Profilpaar in verzinkt

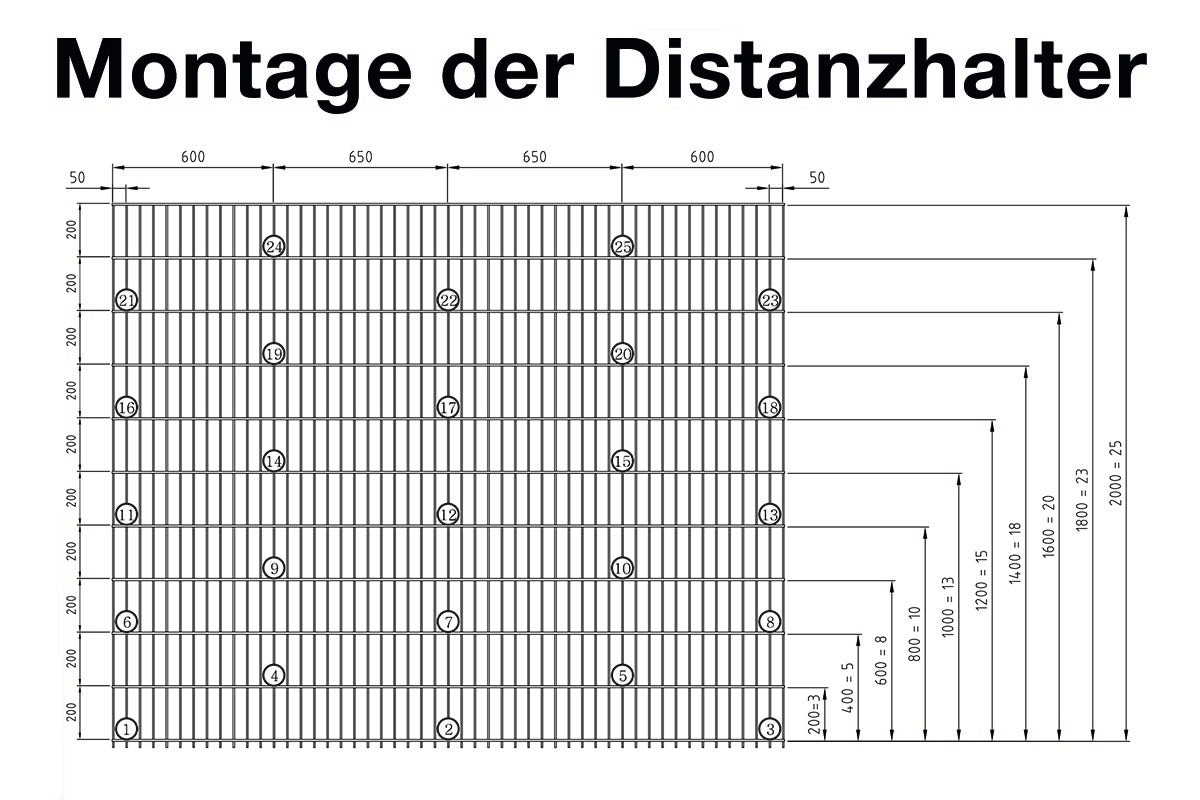

Schaubild: Montage der Distanzhalter im Steinzaun

C-Profile SAPHIR for the Gabion Stone Fence from Double-Rod Mesh Panels – Length 1045 to 2645 mm, Hot-Dip Galvanized or Anthracite Grey

Black Weeks bis 30.11.: bis zu 400 € Rabatt ab 500 € Warenwert Stufen
SKU: GB-GSASCP10VZ

Stone fence made of two rows of double-wire mesh panels

Filling depth approx. 17 cm

For setting in concrete or bolting down

Hot-dip galvanized according to DIN EN ISO 1461

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Für Gewerbe und Kommunen: Bis 18.12. bestellen – auf Wunsch stellen wir die Rechnung noch 2026. Eine kurze Nachricht an shop@kirchberger-metall.de genügt.

Length:

Length
Color:

Color
Quantity:
108,39 €inkl. MwSt.

Parcel or freight item: plus shipping, free shipping within Germany from €1,000 Shipping info

Lieferzeit: 2 to 3 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Satispay Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

C-Profile SAPHIR: Post for the Stone Fence from Two Rows of Panels

With SAPHIR you build a stone wall from two rows of double-rod mesh panels. The C-profiles hold the mesh by means of locking lugs; there is no visible bolted connection on the mesh. Between the panels a fill depth of approx. 17 cm remains for the stones. According to the manufacturer, the profile fits all double-rod mesh panels.

The manufacturer supplies the steel posts in pairs. If the stone wall runs across several bays, the profiles can, according to the manufacturer, be bolted back to back. Screws and nuts are included.

Technical Data

  • C-profile 194 mm wide, 2 mm material thickness
  • Lengths 1045 to 2645 mm for setting in concrete, 1045 to 1845 mm for bolting down
  • Fill depth approx. 17 cm
  • Hot-dip galvanized to DIN EN ISO 1461, in 1645, 2045, 2445 and 2645 mm additionally powder-coated in anthracite grey RAL 7016
  • Including screws and nuts

Which Length Do You Need?

The figure given is the profile length. Which length suits your fence height and your installation method is something we clarify with you before ordering. Please send us the fence height, the length of the run and whether you are setting the posts in concrete or bolting them down.

What You Also Need

You will find more stone baskets, columns and posts under Gabions.

Questions and Answers

For the JUMBO basket 1000 x 1008 mm the manufacturer states a fill volume of approx. 0.266 m³ and around 400 kg of stones, depending on the grain size. A basket 2000 x 2008 mm holds four times that by calculation, around 1.06 m³ and approx. 1,600 kg. The actual weight depends on the type of stone.

No. Baskets, columns and posts are delivered without filling. You buy the stones locally from a building materials supplier or a quarry, which saves expensive transport.

The baskets have a mesh size of 50 x 200 mm. Finer fillings fall through. For those, line the inside of the basket with the 12.7 x 12.7 mm mesh roll.

Both are possible. The JUMBO gabion is available with posts for setting in concrete or with welded-on base plates for bolting down. Gabion columns are set in concrete or bolted to a foundation with the universal base plate. For setting in concrete the manufacturer recommends an embedment depth of 60 cm for the columns.

The JUMBO stone basket is a ready-welded basket with a depth of 266 mm. In a gabion fence two rows of double-rod mesh are mounted on 120/40 mm double posts, giving a fill width of approx. 145 mm. The fence is slimmer, while the basket arrives ready-welded.

For the hot-dip galvanized gabion columns the manufacturer expects about 30 years under normal weather conditions before the zinc layer is worn away. Baskets and columns are hot-dip galvanized to EN ISO 1461.
