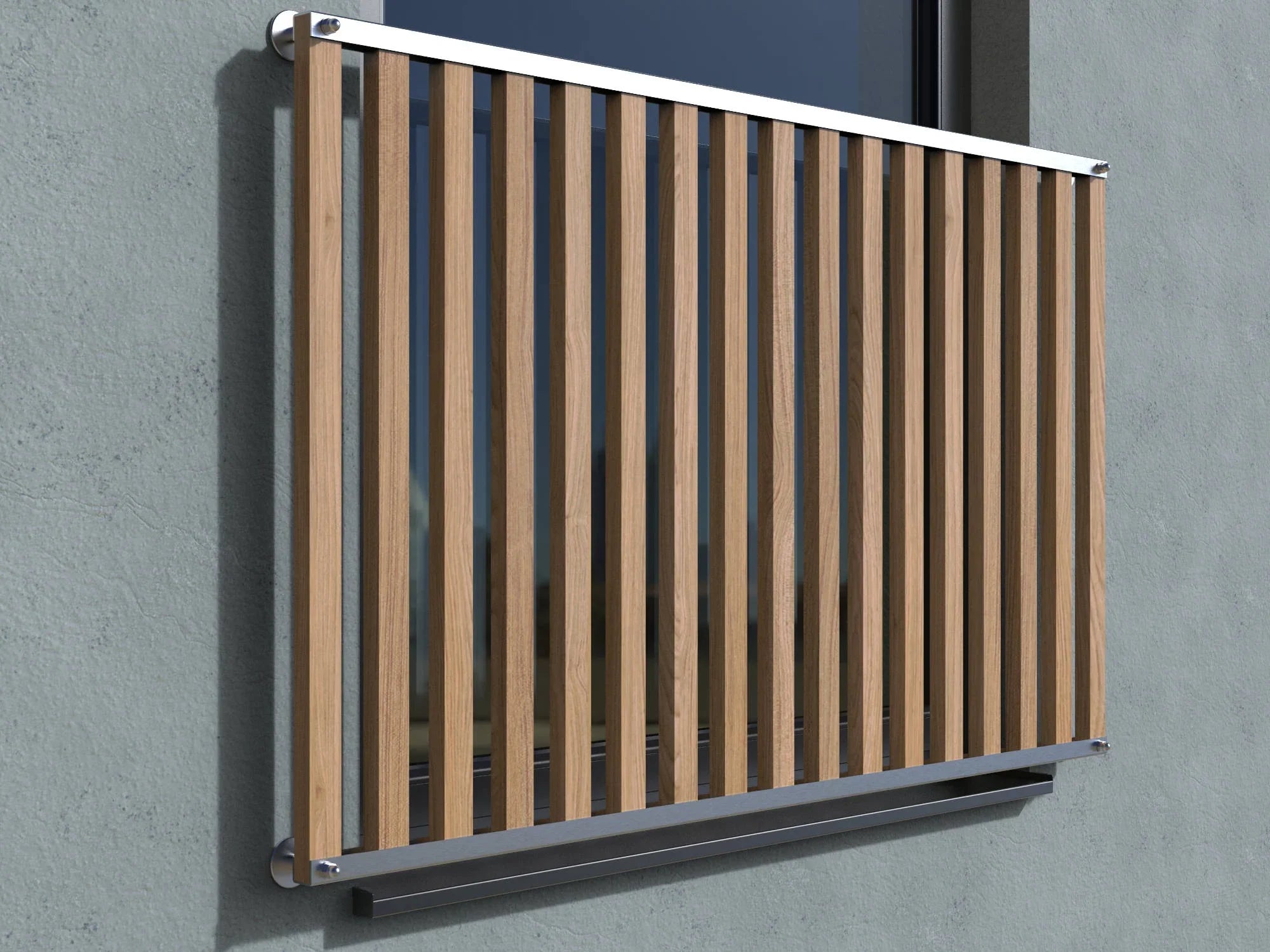

French balcony, wood and stainless steel - model "Tirol"

French balcony wood / fall protection / window grille - model "Tirol" stainless steel with wood infill

High-quality French balcony made of wood & stainless steel - MADE IN GERMANY - directly from the manufacturer.
Concealed screw connections, no visible wood screw joints visible from the front
Modern, simple design with a sturdy stainless steel frame and larch wood filling.

• Delivered fully assembled
• Modern, high-quality, stable, rust-free
• Frame material: Stainless steel V2A - 3 mm wall thickness
• Surface: sanded, 240 grit
• Material wood filling: planed larch AB grade, profile: 30 x 45 mm,
• Spacing between the wooden profiles: 55 mm
• Height: 1000 mm (other heights available on request)
• Stainless steel wall mounting elements included.

Hole spacing = mounting distance
Total length = hole spacing + 45mm


Example mounting distance for surface wall mounting:
A minimum distance of 100 mm on each side from the edge of the wall.
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Mounting kit - Mounting material:
Depending on the condition of the wall, different mounting materials are required for the French balcony.

• Fastening in masonry on brick, aerated concrete
• Fastening in masonry - brick, aerated concrete with thermal insulation ETICS
• Mounting on wooden stand

In the configurator, you can add the fastening material depending on the type of wall.

For proper installation, please observe the applicable building regulations. Please check with the relevant building authority beforehand. The installer on site assumes liability for selecting the correct mounting materials and ensuring proper fastening.
