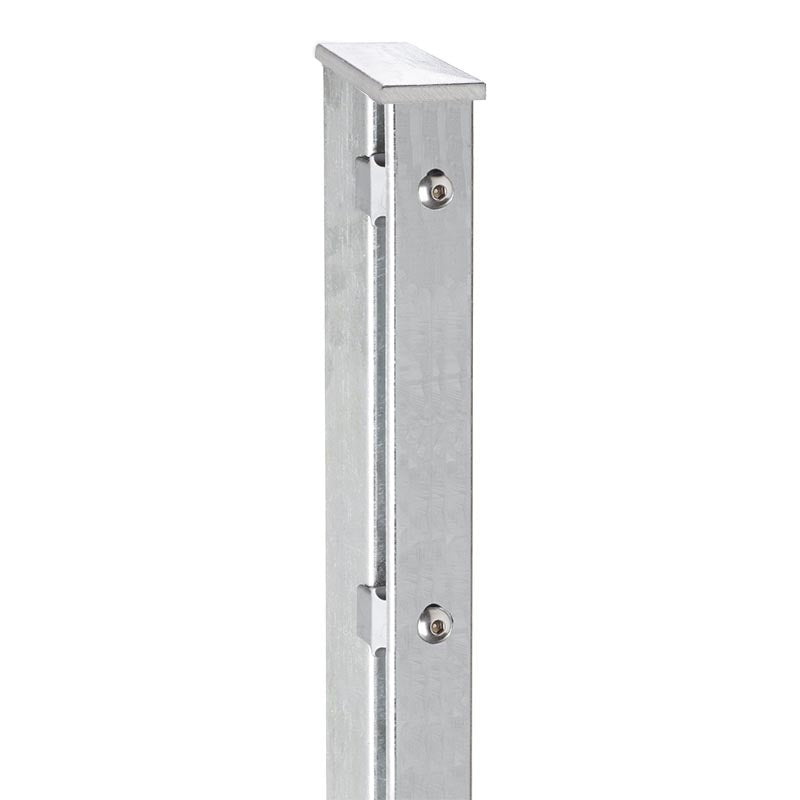

Zaunpfosten Typ VAAP verzinkt mit profilierter Abdeckleiste und Alu-Abdeckkappe

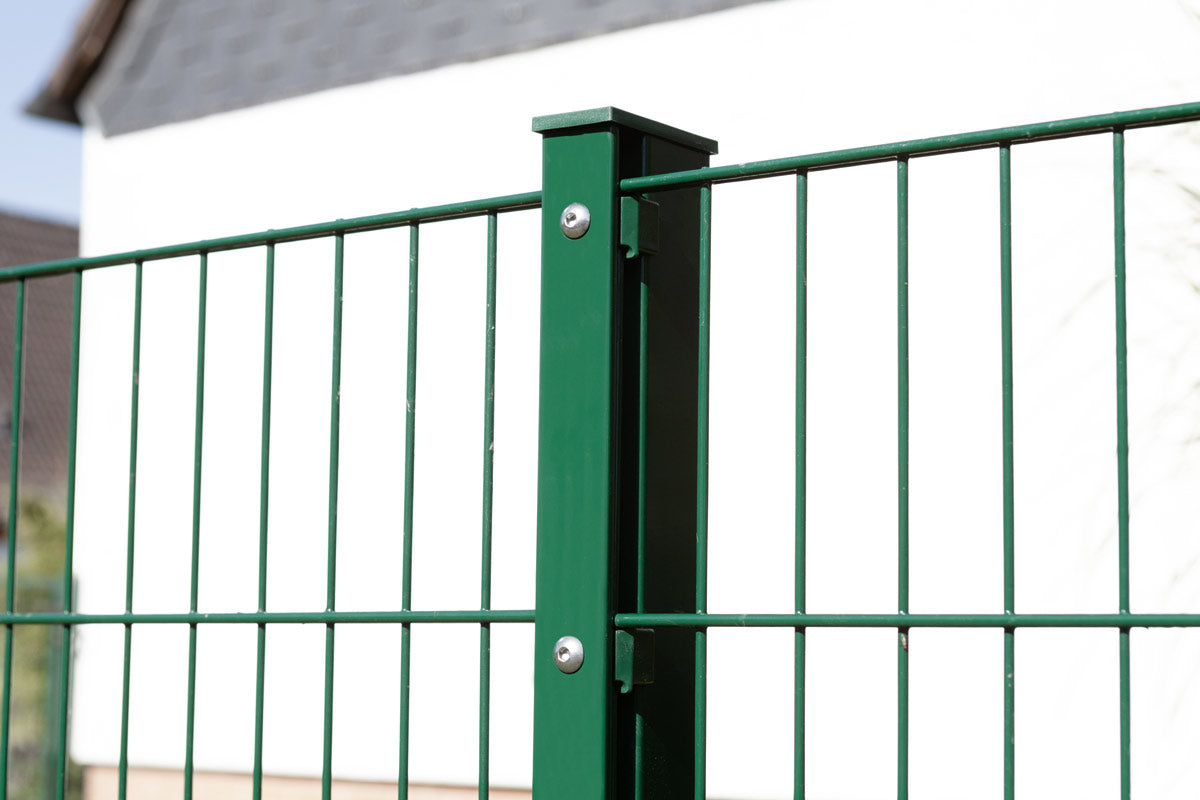

Zaunpfosten Typ VAAP in Moosgrün RAL 6005 an einem Doppelstabmattenzaun

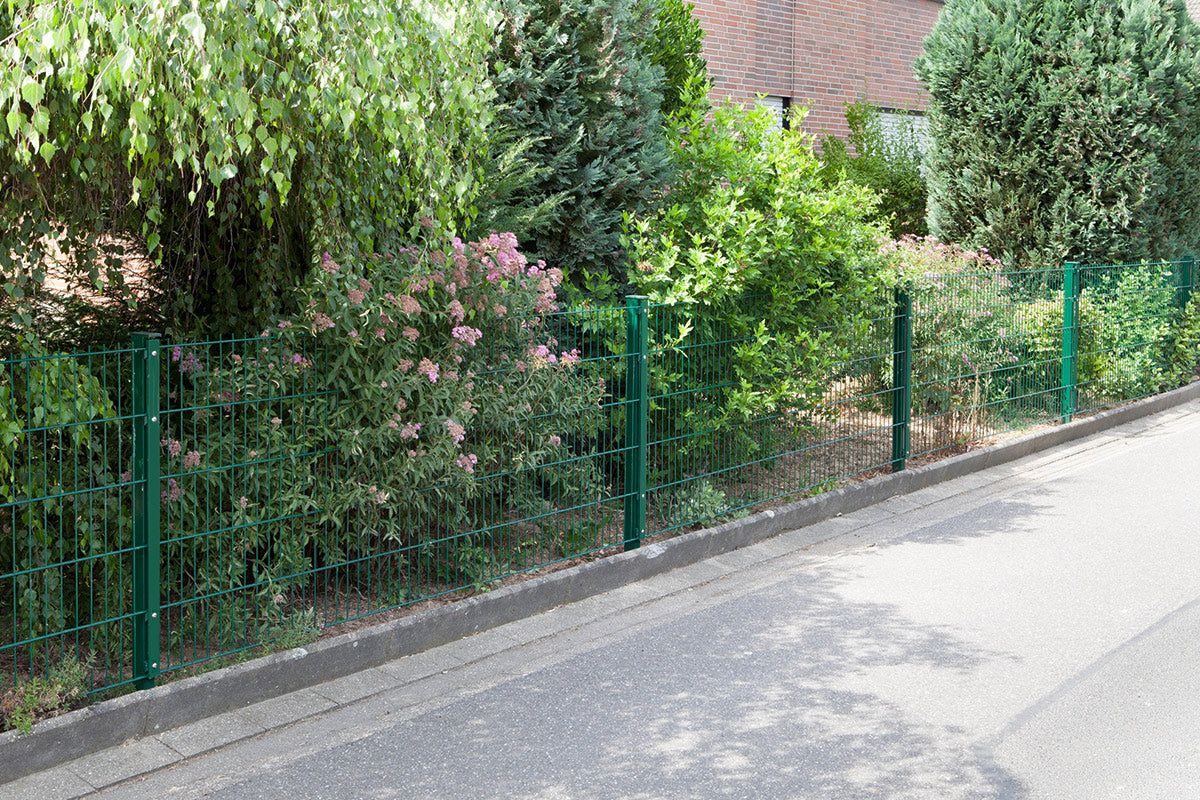

Doppelstabmattenzaun mit Zaunpfosten Typ VAAP in Moosgrün entlang eines Gehwegs

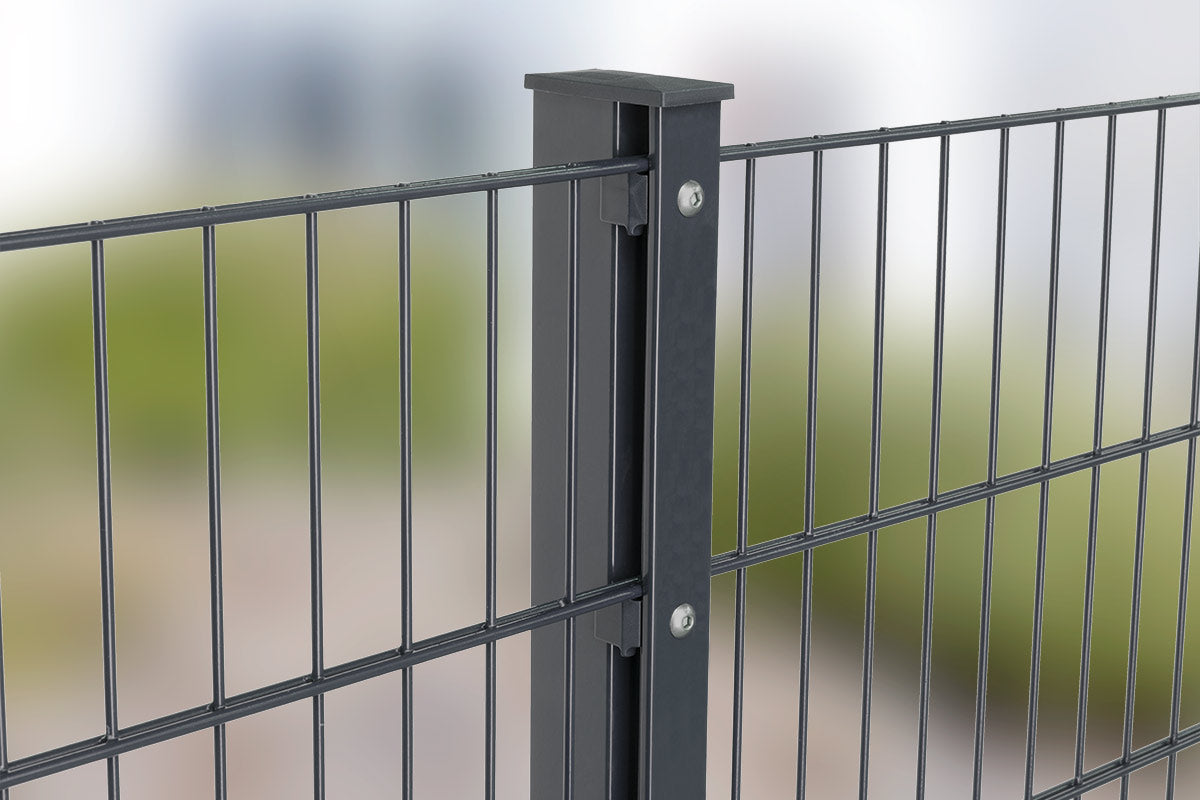

Zaunpfosten Typ VAAP in Anthrazitgrau RAL 7016 mit Profil-Abdeckleiste, Detailansicht

Type VAAP Fence Post with Profiled Cover Strip and Aluminum Cap - Galvanized, Moss Green or Anthracite Gray

SKU: VAAP-ZP13VAAP

Profiled cover strip, appears slimmer than the flat version

Aluminum cover cap with overhang instead of plastic cap

Wall thickness 1.5 mm, reinforced to 2 mm for post lengths from 2200 mm

Stainless steel screws included in delivery

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Color:

Color
Height:

Height
Quantity:
28,99 €inkl. MwSt.

Parcel or freight item: plus shipping, free shipping within Germany from €1,000 Shipping info

Lieferzeit: 2 to 3 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Type VAAP Fence Post with Profiled Cover Strip

The VAAP differs from the Type A in two places, and both are visible. The cover strip is not flat but profiled. The profile breaks the light, which makes the strip look narrower and the post slimmer. On top sits an aluminum cap with an overhang that reaches over the edges.

The wall thickness changes with the length: up to a post length of 2000 mm it is 1.5 mm, from 2200 mm it is 2 mm. On the tall fences this is necessary, because the leverage forces at the foundation increase disproportionately with height.

Technical data

  • Rectangular tube 60 x 40 x 1.5 mm, from a post length of 2200 mm 60 x 40 x 2 mm
  • Post lengths 1300 to 2600 mm, for setting in concrete
  • Fence heights 830 to 2030 mm
  • Profiled cover strip with stainless steel bolts
  • Aluminum cap with overhang
  • Hot-dip galvanized, RAL versions additionally powder-coated in RAL 6005 moss green or RAL 7016 anthracite gray

The height in the selection field is the fence height

What you select is the height of the double-rod mesh panel. The post is correspondingly longer because it is set in concrete. At a fence height of 2030 mm that means a 2600 mm post, of which around 570 mm sits in the foundation.

Your advantages

  • Profiled cover strip, looks slimmer than the flat version
  • Aluminum cap with overhang instead of a plastic cap
  • Reinforced wall thickness of 2 mm from a post length of 2200 mm
  • Stainless steel bolts included

Questions and Answers

For all posts in this series except the privacy screen post Type A80, the figure is the fence height, meaning the height of the double-rod mesh panel. The post itself is longer because it is set in concrete. For the Type A80, the selection shows the overall length of the post instead, and the matching fence height is stated right next to it.

One post per fence bay, plus one extra at the end of the run. The bay width is stated with each double-rod mesh panel. Every change of direction adds a corner post, and a gate adds a gate post. Measure the run before ordering, not from the plan but on the property itself.

On a post with a cover strip, a flat steel bar runs the full height of the post and conceals the joint between two panels. With clamping plates, each panel is clamped individually with a small stainless steel plate and the joint stays visible. The cover strip gives a calmer fence line, while the clamping plate is quicker to install.

The short post Type A without a ground section, together with a base plate. It is anchored onto L-shaped retaining blocks, paving, asphalt surfaces or a concrete wall. The base plate is not included in delivery and is ordered separately. Alternatively, the fence post Type U is available with a base plate as an option.

Hot-dip galvanized means the finished post is immersed in a zinc bath, where the zinc bonds metallurgically with the steel. Sendzimir galvanized means the steel strip was already galvanized before it was processed. The bare posts are hot-dip galvanized in an immersion bath to EN ISO 1461. The powder-coated posts are Sendzimir galvanized and additionally carry the powder layer, which increases corrosion protection further.

Yes. Once the strips are woven in, the air-permeable mesh becomes a closed surface and the wind pushes against it instead of passing through. That load ends up in the post and in the foundation. This is what the privacy screen post Type A80 is for, made from 80 x 40 x 2 mm tube and set in concrete over a greater length, so it meets the structural requirements.
