Zürich Canopy System – Versatility in a Familiar Form

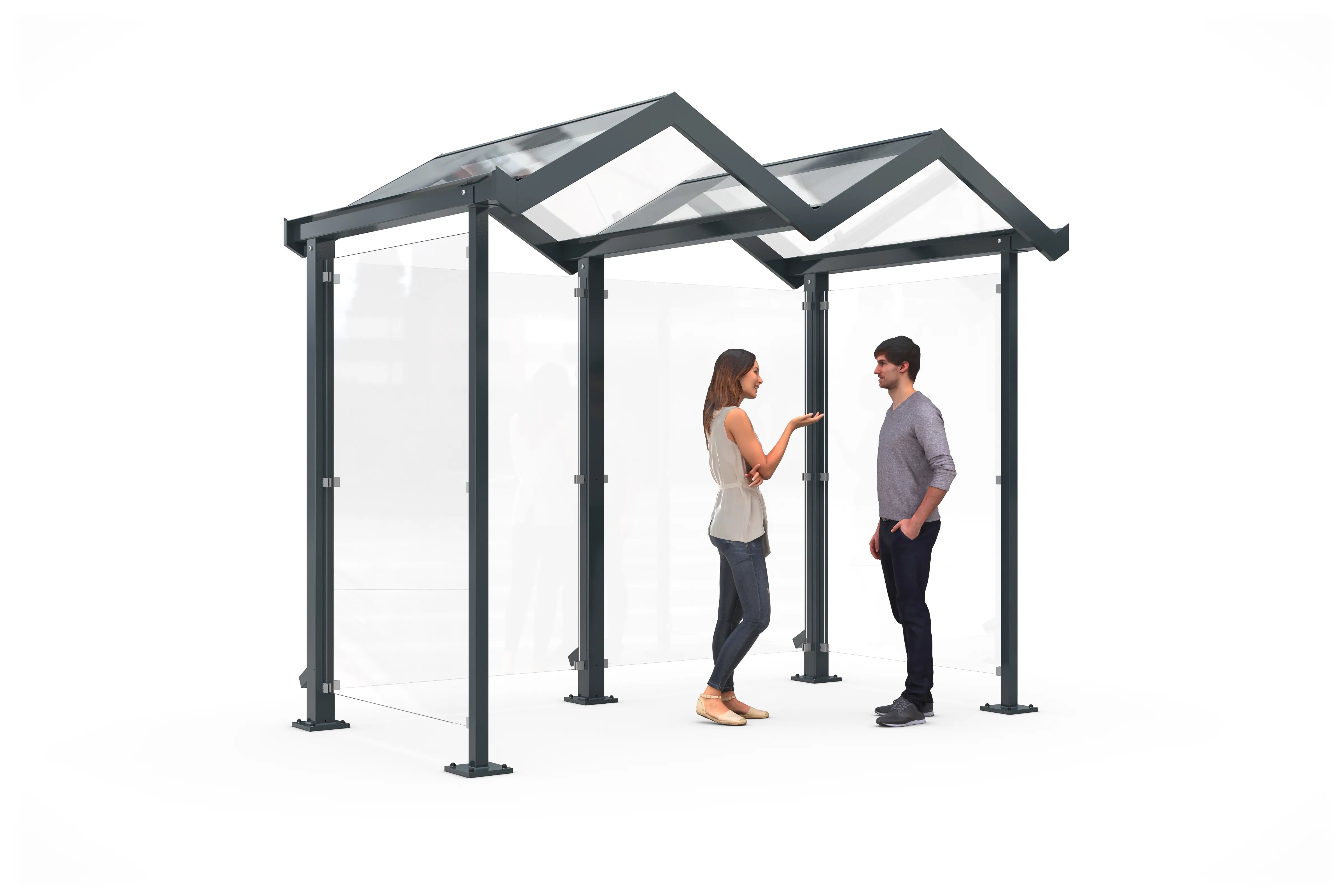

The "Zürich" model impresses with its surprising versatility in a classic design. The distinctive feature of this series is the transparent gable roof – a form proven over centuries that reliably and evenly drains snow and rain. The flexibly adaptable canopy is ideal as a passenger shelter, bicycle parking facility, carport, or as weather protection for shopping carts.

Materials and Construction

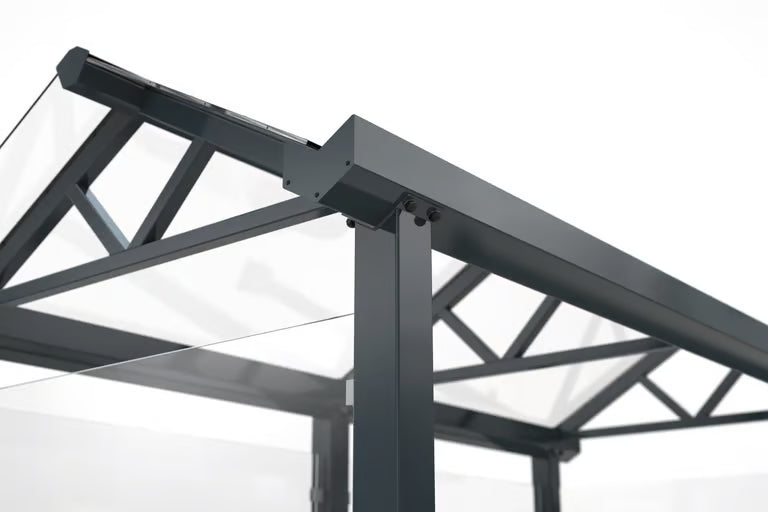

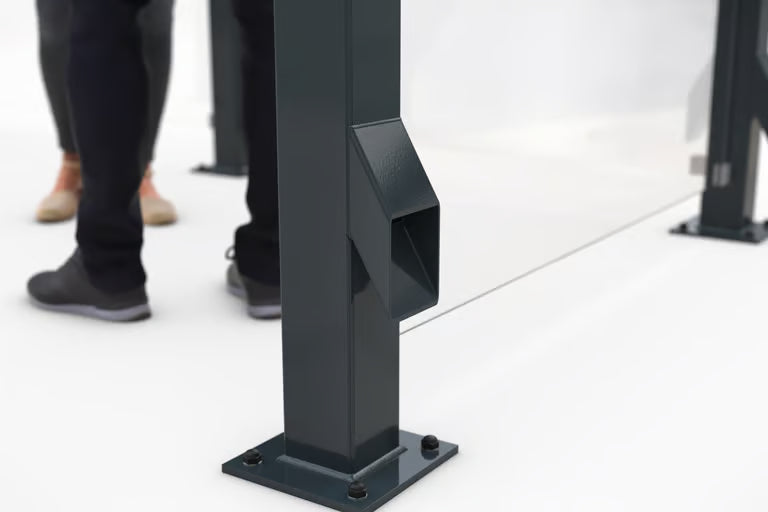

  • Structure: Corrosion-protected, individually manufactured, and hot-dip galvanized steel construction. The steel beams can be arranged variably, allowing for cantilevered designs if desired.

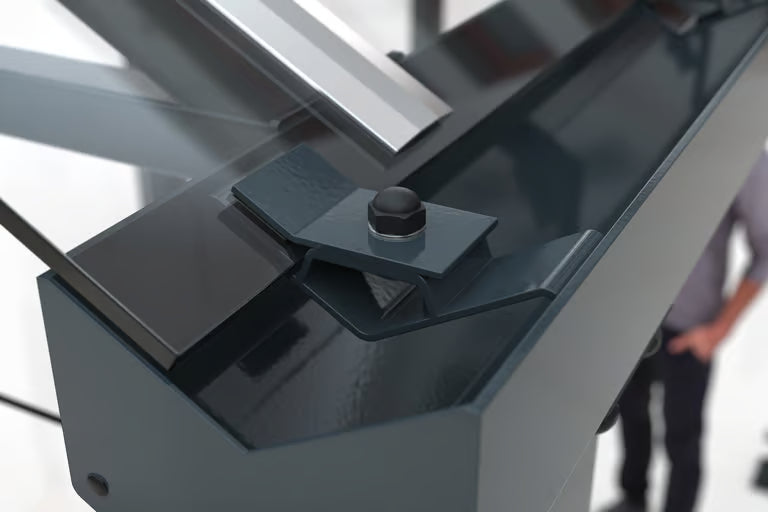

  • Roof Shape: Classic gable roof (selectable in transverse or longitudinal direction) with high-quality roofing made of durable laminated safety glass (VSG).

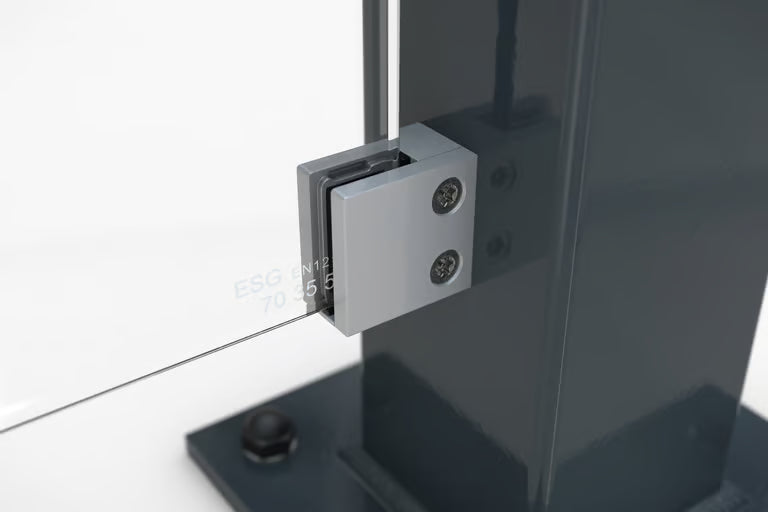

  • Side Walls: Standardly equipped with side walls made of robust toughened safety glass (ESG). Alternative materials are available upon request.
  • Paintwork: The standard finish is in RAL 7016 (Anthracite Grey). Individual color schemes in other RAL colors are easily possible.
  • Load Capacity & Installation: The solid construction is designed for a snow load of 0.93 kN/m². The system is standardly designed for ground mounting, but all other fastening methods can be implemented upon request.

Model Overview

The "Zürich" series is available in various widths to optimally adapt to your individual space requirements. All variants listed here have a uniform total height of 2765 mm (clearance height: 2200 mm) and a total depth of 2000 mm (clearance depth: 1830 mm).

  • Zürich Z2 (Article No. 102001924):
    Width: 3000 mm (clear width: 2900 mm) | Floor area: 5.30 m²

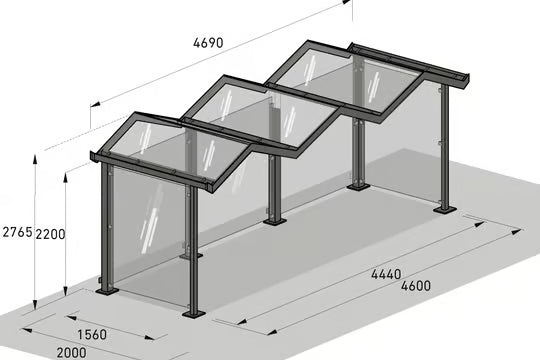

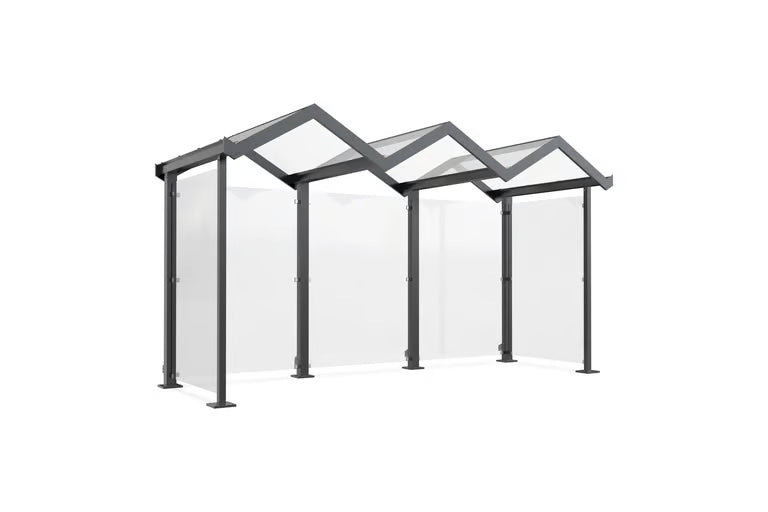

  • Zürich Z3 (Article No. 102001926):
    Width: 4500 mm (clear width: 4400 mm) | Floor area: 8.00 m²

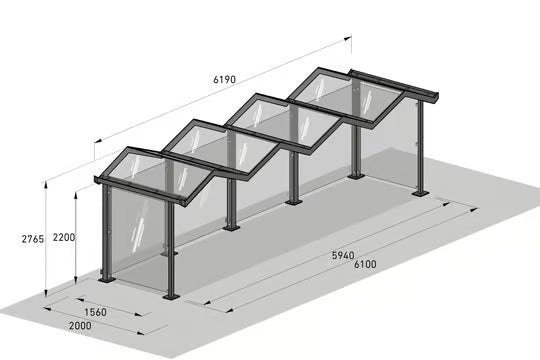

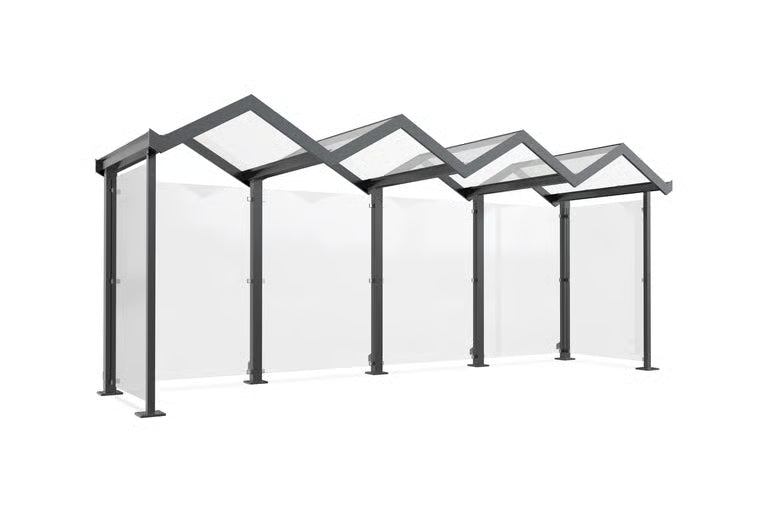

  • Zürich Z4 (Article No. 102001928):
    Width: 6000 mm (clear width: 5900 mm) | Floor area: 10.70 m²
