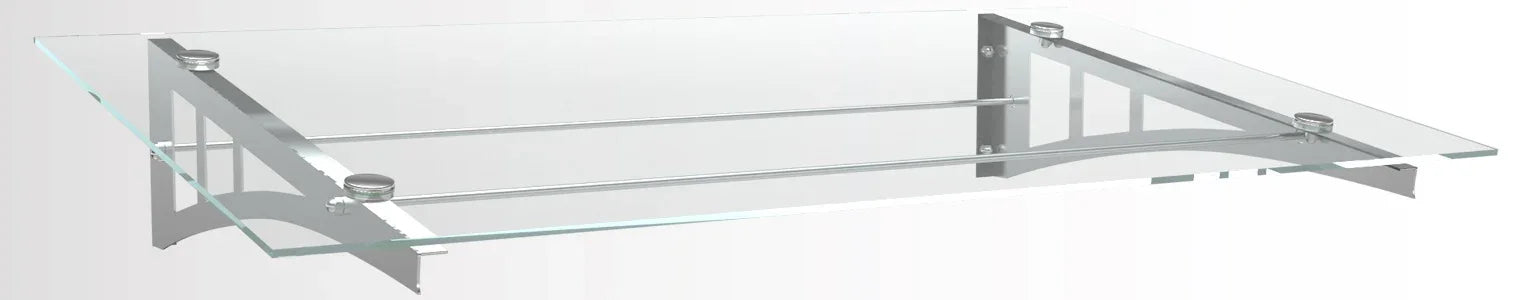

Modernes Vordach aus Edelstahl mit Klarglas und seitlichen Halterungen
Skizze von Vordach aus Edelstahl mit VSG-Glas und integrierter Regenrinne

Vesta VSG glass canopy - stainless steel real glass canopy

SKU: 80028-B1600-T0900-OHNE

Stainless steel construction with 12 mm clear laminated/toughened safety glass

Two cantilever arms made of 3 mm V2A, only 260 mm overall height, 10° inclination

Two fixed sizes: 1,600 or 2,000 mm width, 900 mm projection

Stainless steel rain gutter as an option, surcharge included in the variant price

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Width:

Width
rain gutter:

rain gutter
Quantity:
2.007,53 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Vesta VSG stainless steel glass canopy – compact cantilever canopy in two fixed sizes

The Vesta canopy is a compact stainless steel mono-pitch roof with 12 mm clear laminated safety glass. Two cantilever arms made of 3 mm V2A sheet carry the pane, without tie rods and without supports under the glass. The roof comes in two fixed sizes – the right choice for side and basement entrances or a narrow front door.

Features and technical details

  • Stainless steel support structure, profiles and turned parts made by hand
  • 2 cantilever arms made of 3 mm V2A
  • VSG/TVG glazing 12 mm, clear
  • 10° roof pitch
  • U-profile for the wall connection included in delivery
  • Load assumption 75 kg/m²

Sizes

Two fixed sizes: 1,600 × 900 mm or 2,000 × 900 mm (width × projection), overall height 260 mm. Intermediate sizes are not possible with this model.

Rain gutter

You select the stainless steel rain gutter directly in the dropdown. Without a gutter the water runs off over the front edge; with a gutter it is collected and drained off to the side. The surcharge depends on the roof width and is already included in the variant price shown.

What to look out for when choosing

At an overall height of 260 mm, the roof also fits above doors with little wall space up to the window above. Measure the width of the area above the door that is free of lights and downpipes; 1,600 mm covers a single door, 2,000 mm a door with a side panel. The cantilever arms need load-bearing masonry or concrete; if you have an external thermal insulation composite system, please talk to us before ordering.

Options at extra charge

  • matte film on the glass (privacy screening from below)

Delivery and installation

The canopy comes complete with the matching glass pane, shipping free. Professional installation by our team is available on request.

Note: load assumption 75 kg/m²; additional loads according to DIN EN 1991 are not taken into account.

Questions and Answers

Stainless steel construction with 12 mm VSG/TVG glazing and a 10° roof pitch. Carried by 2 cantilever arms; alternatively available with a stainless steel gutter.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
