Vordach aus Edelstahl mit Klarglas, modernes Design, Wandmontage, für Hauseingang
Tabelle mit Edelstahl Vordach Uranus Maßen, Angaben zu Höhe, Breite, Tiefe und Stützbügeln

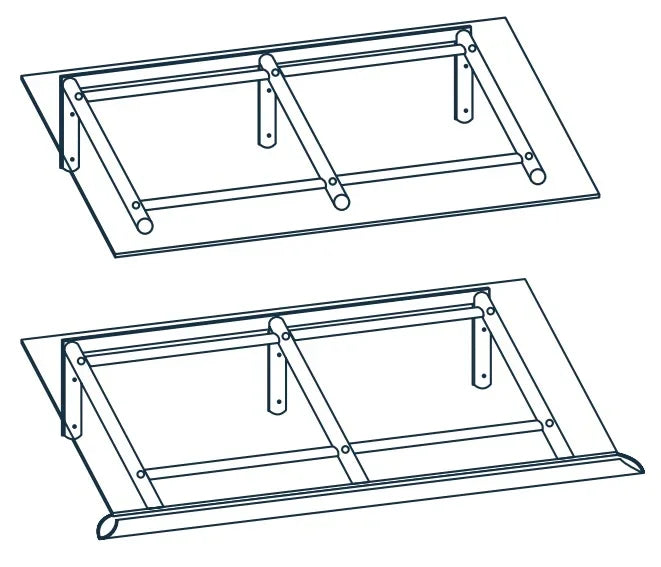

Zeichnung eines Vordachs aus Edelstahl mit VSG Glas, Ansicht von zwei Varianten.

Uranus canopy: Laminated safety glass - stainless steel, real glass canopy

SKU: 80021-B1400-T0800-OHNE

Stainless steel construction with 12 mm clear laminated/toughened safety glass

Two or three support brackets, 20° roof pitch, mounting rail included

24 standard sizes: width 1,400 to 2,400 mm, projection 800 to 1,200 mm

Stainless steel rain gutter as an option, surcharge included in the variant price

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Width:

Width
Depth:

Depth
rain gutter:

rain gutter
Quantity:
3.217,76 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Uranus VSG stainless steel glass canopy – mono-pitch roof with two or three support brackets

The Uranus canopy is a stainless steel mono-pitch roof with 12 mm clear laminated safety glass. In the smaller widths it manages with two support brackets, which makes it look lighter than the Comet and Sirius with three or four brackets. With a 20° pitch, the water runs off quickly towards the front.

Features and technical details

  • Stainless steel support structure, profiles and turned parts made by hand
  • VSG/TVG glazing 12 mm, clear
  • 20° roof pitch
  • Support brackets depending on width: 2 up to 1,600 mm, 3 from 1,800 mm
  • Mounting rail and U-profile for the wall connection included in delivery
  • Load assumption 75 kg/m²

Sizes

24 standard sizes: width 1,400 to 2,400 mm in 200 mm increments, projection 800, 900, 1,000 or 1,200 mm. The overall height follows from the projection:

Projection (depth) Height
800 mm 340 mm
900 mm 360 mm
1,000 mm 404 mm
1,200 mm 468 mm

Rain gutter

You select the stainless steel rain gutter (round, Ø 60 mm) directly in the dropdown. Without a gutter the water runs off over the front edge; with a gutter it is collected and drained off to the side. The surcharge depends on the roof width and is already included in the variant price shown.

What to look out for when choosing

Measure the width of the area above the door that is free of window sills, lights and downpipes. The projection should cover the top step; if there is a landing in front of the door, 1,000 mm or more makes sense. From 1,800 mm width a third bracket sits in the middle, so no window and no light may be in the way there. Below the mounting rail the brackets need load-bearing masonry or concrete. If you have an external thermal insulation composite system, please talk to us before ordering.

Options at extra charge

  • matte film on the glass (privacy screening from below)

Delivery and installation

The canopy comes complete with the matching glass pane, shipping free. Professional installation by our team is available on request.

Note: load assumption 75 kg/m²; additional loads according to DIN EN 1991 are not taken into account.

Questions and Answers

Stainless steel construction with 12 mm VSG/TVG glazing and a 20° roof pitch. Carried by 2-3 support brackets; mounting rail included, optionally with a rain gutter.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
