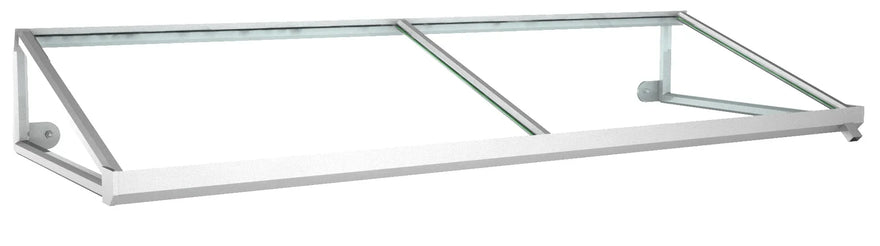

Vordach aus Aluminium mit Glas, modernes Haustürvordach, stabile Konstruktion

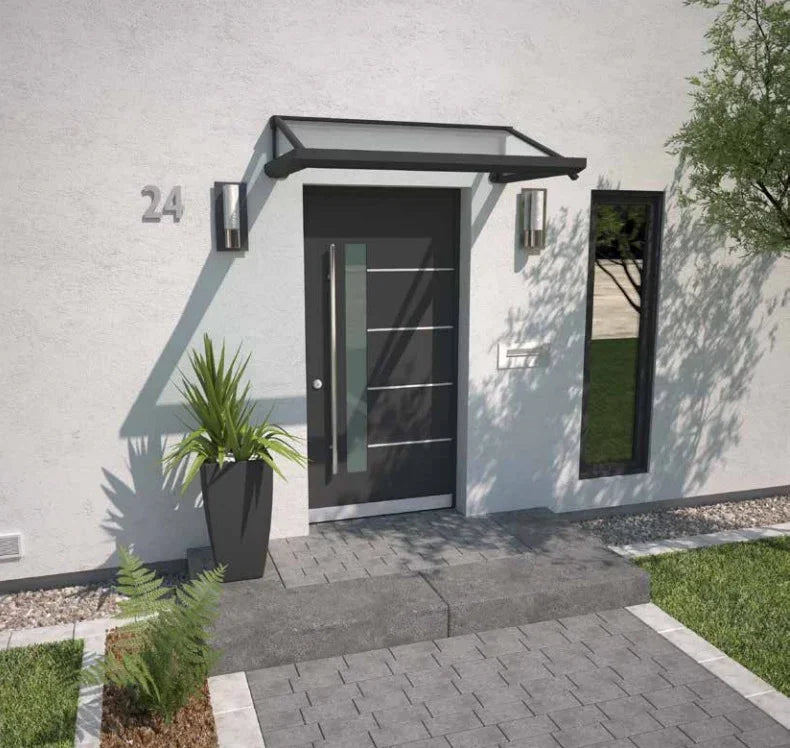

Modernes Aluminium Vordach über Haustür, Glasdach, Eingangsbereich mit Pflanzkasten
Tabelle mit Maßen für Vordach aus Aluminium mit VSG Glas, Breite, Höhe, Tiefe und Glasfelder.
Vergleich von Aluminium-Vordachfarben: RAL 9016 Weiß, RAL 7016 Anthrazit matt, Edelstahloptik
Skizze Wasseraustritt Modell Diamant, Position und Anschlussstellen nummeriert

Topas canopy with laminated safety glass - aluminum and real glass canopy

SKU: 80013-B1400-T0800-F9016

Aluminum construction with 8 mm laminated safety glass, front gutter

Drainage via spout, no water on the facade

28 standard sizes: width 1,400 to 2,600 mm, projection 800 to 1,100 mm

RAL 9016, RAL 7016, RAL 9007 and DB 703 matte at no extra charge, fine structure and stainless steel look at an additional charge

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Width:

Width
Depth:

Depth
Color:

Color
Quantity:
1.802,85 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Topas VSG aluminum glass canopy – gutter at the front, open at the sides

The Topas VSG canopy is an aluminum mono-pitch roof with laminated safety glass, the basic version of the Topas range with real glass. The gutter sits along the front edge, the sides stay open. The water drains off in a controlled way through the water spout instead of running down the facade. If you also need protection from the side, the Topas 1 VSG is the version with a three-sided gutter and side glazing.

Features and technical details

  • Aluminum support structure, roofing in 8 mm clear laminated safety glass (VSG)
  • Gutter at the front, sides open (without gutter, without glazing)
  • Drainage via one water spout (standard position 6); from 2,400 mm width two spouts at positions 5 and 6
  • 20° roof pitch
  • Glass panels: one panel up to 2,000 mm width, two panels from 2,200 mm
  • Load assumption 75 kg/m²

Sizes and colors

28 standard sizes: width 1,400 to 2,600 mm in 200 mm increments, projection 800 to 1,100 mm in 100 mm increments. The overall height of the roof follows from the projection:

Projection (depth) Height
800 mm 314 mm
900 mm 351 mm
1,000 mm 387 mm
1,100 mm 423 mm

We manufacture intermediate sizes and special shapes on request.

Available at no extra charge in RAL 9016 white, RAL 7016 anthracite matte, RAL 9007 gray aluminum matte and DB 703 iron mica matte. The fine-texture finishes in RAL 7016 anthracite and DB 703 iron mica as well as the stainless steel look version are available at an extra charge; the surcharge is already included in the variant price shown. Further RAL shades on request.

What to look out for when choosing

Measure the width of the area above the door that is free of window sills, lights and downpipes. The projection should cover the top step; if there is a landing in front of the door, 1,000 mm or more makes sense. The brackets need a load-bearing base of masonry or concrete. If you have an external thermal insulation composite system, please talk to us before ordering.

Options at extra charge

  • Lighting available on request
  • matte film on the glass (privacy screening from below)

Delivery and installation

The canopy comes complete with the matching glass pane, shipping free. Professional installation by our team is available on request.

Note: load assumption 75 kg/m²; additional loads according to DIN EN 1991 are not taken into account.

Questions and Answers

Aluminum construction with 8 mm VSG laminated safety glass and a 20° roof pitch, open at the sides (no gutter, no glazing). Drainage via a water spout at position 6, from 2,400 mm width at position 5/6. Three standard colors, RAL at extra cost.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
