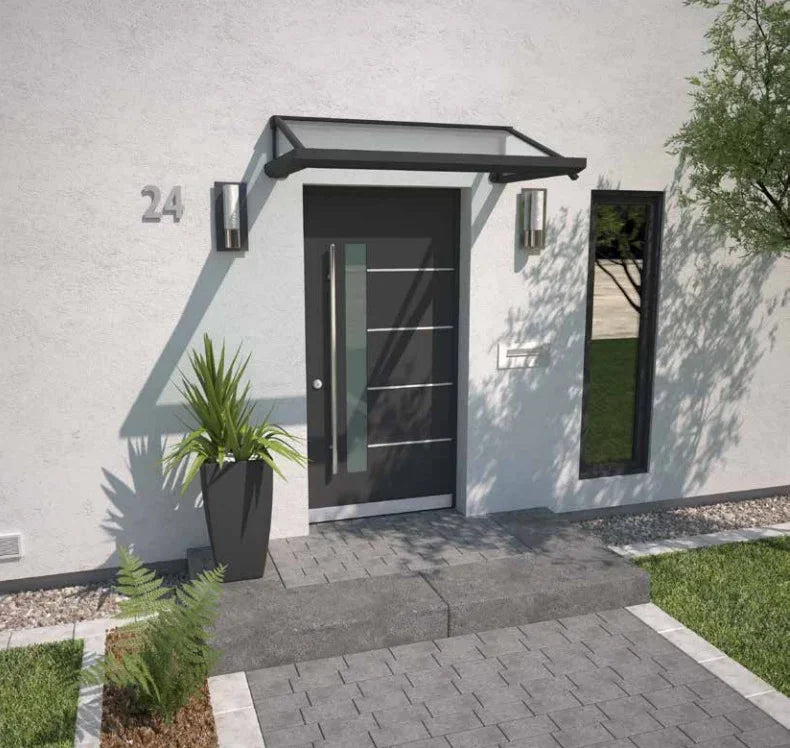

Modernes Aluminium Vordach mit Glas über Haustür an weißer Hausfassade

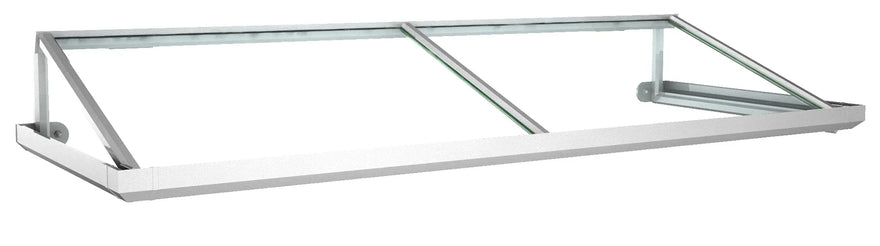

Modernes Vordach aus Aluminium mit Glasfüllung, minimalistisches Design für Eingangsbereich
Tabelle mit Maßen für Aluminium Vordach Topas, Breite, Höhe, Tiefe, Glasfelder seitlich.
Vergleich Aluminiumfarben: RAL 9016 weiß, RAL 7016 anthrazit matt, Edelstahloptik
Schema Position Wasseraustritt Modell Corall III, nummerierte Anschlussstellen links und rechts

Topas 1 canopy with laminated safety glass - aluminum and real glass canopy

SKU: 80015-B1400-T0800-F9016

Modern aluminum canopy – durable & rustproof

Robust 8 mm laminated safety glass for high security

Integrated aluminum gutter at the front and sides

Stable construction with high load capacity up to 75 kg/m²

Free shipping directly to your home

1. Topas VSG canopy dimensions - width x depth x height in mm:

1. Topas VSG canopy dimensions - width x depth x height in mm
Tiefe:

Tiefe
Color:

Color
Quantity:
2.197,93 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Aluminium-Glass Canopy Topas 1 VSG

The Topas 1 canopy is a high-quality aluminium canopy with laminated safety glass. It provides effective protection from wind and weather and at the same time enhances the character of your house – creating a stylish, cohesive unit.

Features & Technical Details

  • Aluminium support structure
  • 8 mm laminated safety glass (VSG)
  • Front aluminium gutter
  • Side with gutter and glazing
  • Drainage via gargoyles (standard position 11; from 2,400 mm width two gargoyles at positions 8/11)
  • 20° roof pitch
  • Load assumption 75 kg/m² (higher loads available upon request)

Colours

Available in three standard colours at no extra charge. Numerous RAL colours and textured surfaces are available at an additional cost.

Delivery & Installation

The canopy is delivered including the matching glass pane – shipping is free. Different model sizes and special constructions are available subject to technical possibilities; professional installation by us is possible upon request.

Optional extras at additional cost

  • Frosted glass film
  • Self-cleaning effect (Pilkington Activ)

Note: Load assumption 75 kg/m²; additional loads according to DIN EN 1991 are not considered.

Questions and Answers

Aluminum construction with 8 mm VSG laminated safety glass and a 20° roof pitch. On the Topas 1, the sides feature a gutter and glazing (the Topas model is open at the sides). Drainage via a water spout at position 11, from 2,400 mm width at position 8/11. Three standard colors, RAL at extra cost.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
