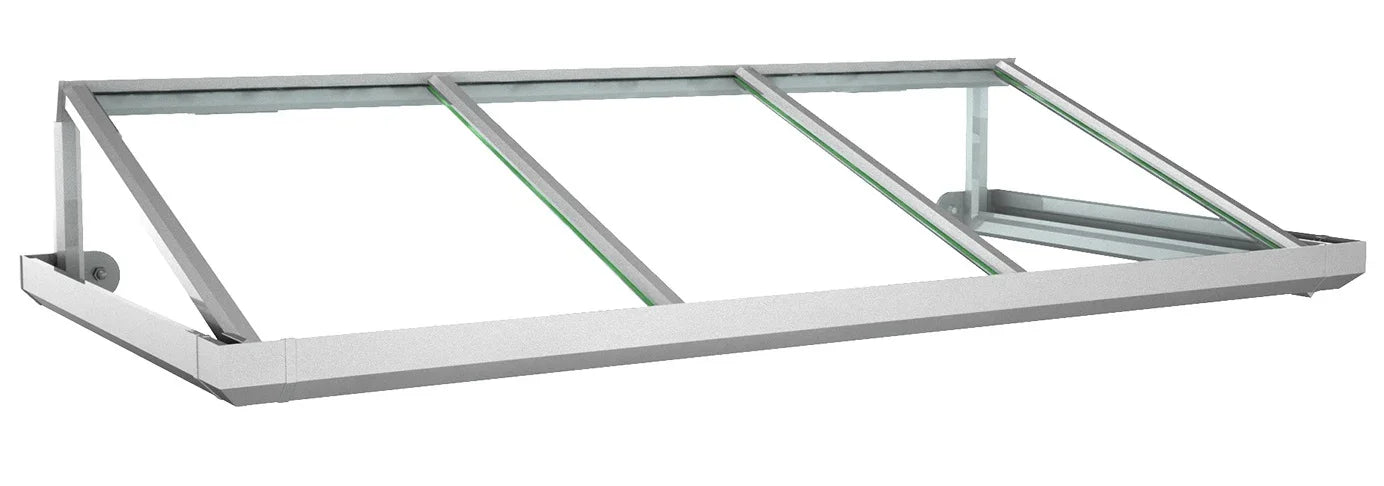

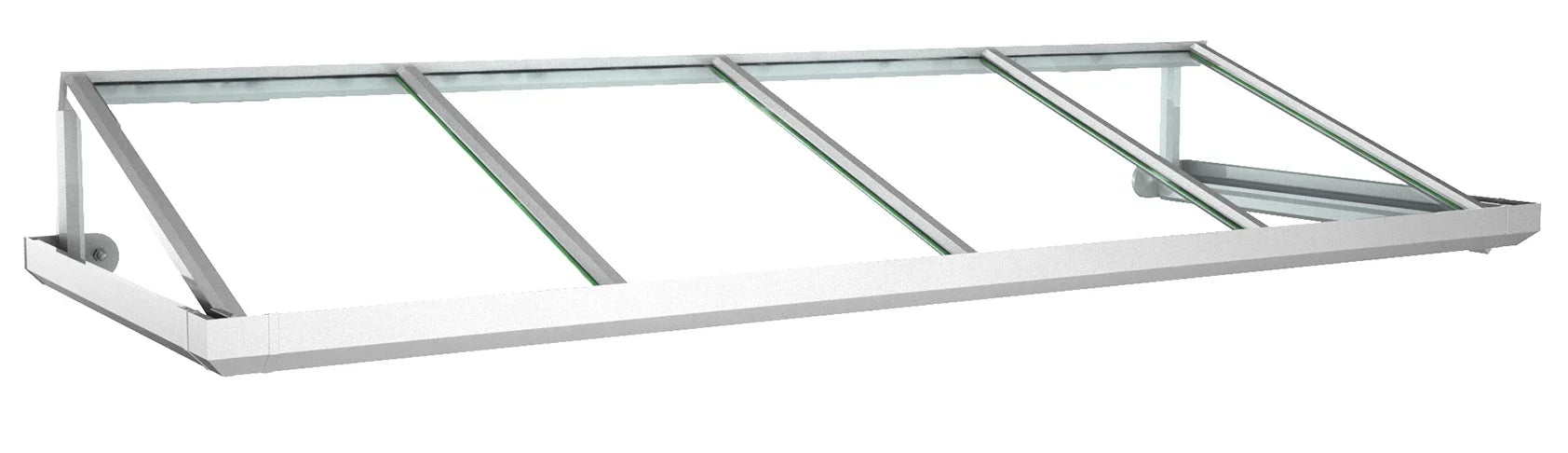

Modernes Aluminium Vordach mit Acrylglas, seitliche Streben, Wetterschutz für Hauseingang

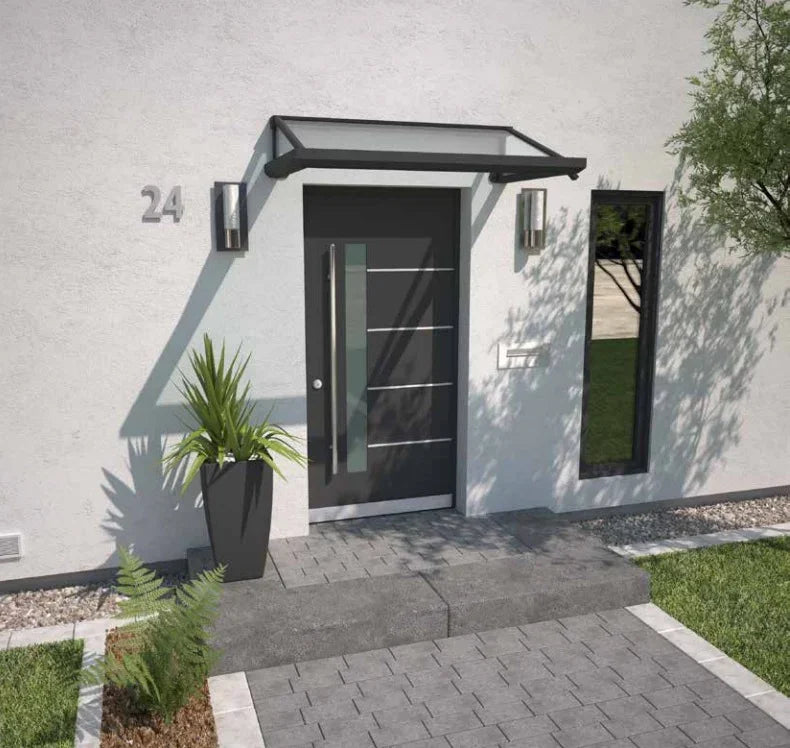

Modernes Vordach aus Aluminium über Haustür, Glasüberdachung, Eingangsbereich Haus
Modernes Aluminium Vordach mit Acrylglas, stabiles Flachdach für Hauseingang

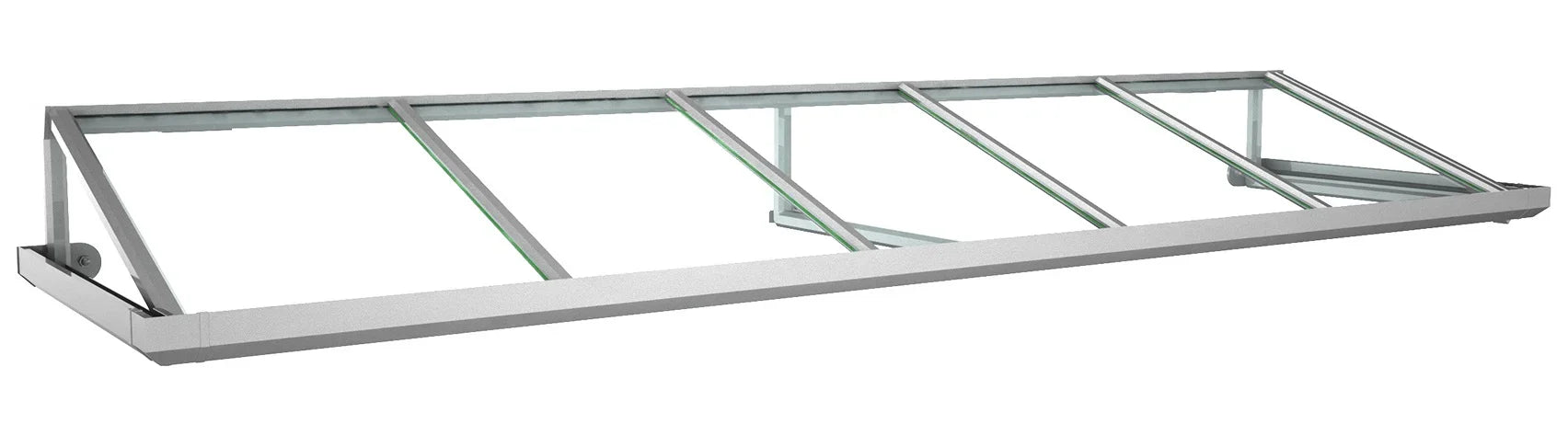

Modernes Aluminium Vordach mit Acrylglas, stabile Konstruktion, 3 Meter breit
Tabelle mit Maßen und Glasfelder-Anzahl für Vordach Aluminium Topas Acryl, Breite, Tiefe, Höhe.
Vergleich von Vordach Aluminium Farben: RAL 9016 weiß, RAL 7016 matt, Edelstahloptik.

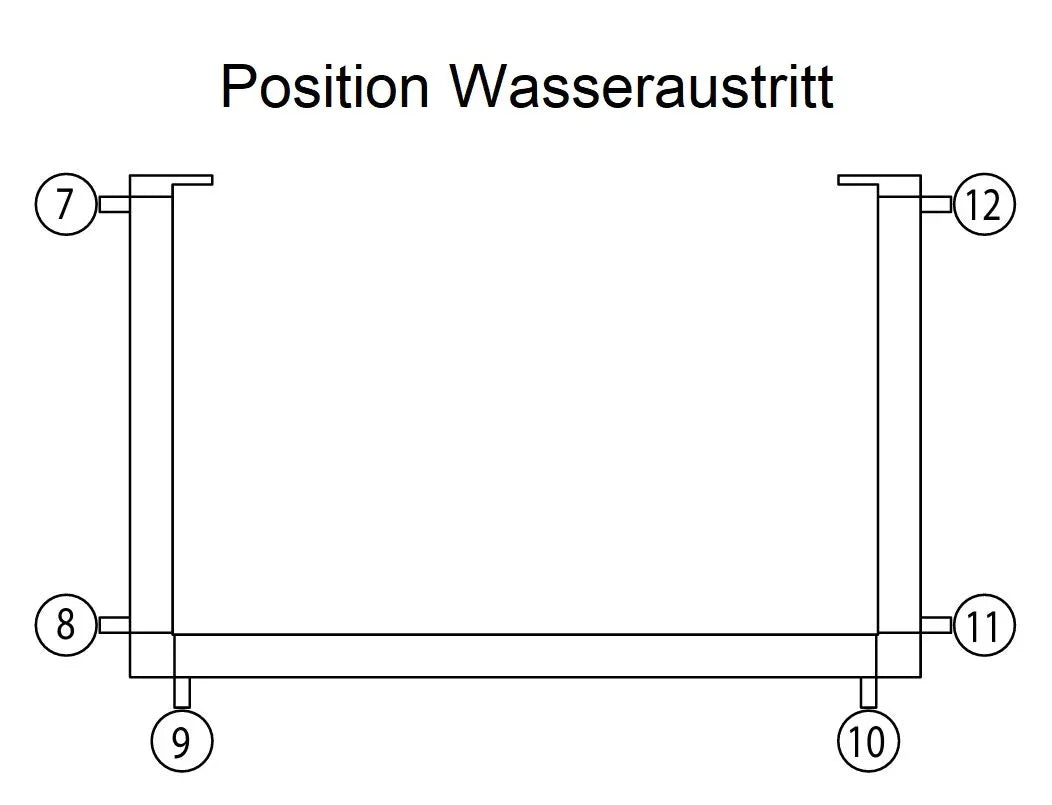

Skizze mit Positionen für Wasseraustritt an Metallkonstruktion, nummeriert 7 bis 12

Topas 1 canopy, acrylic glass - aluminum

SKU: 80016-B1400-T0800-F9016

Modern aluminum canopy – durable & rust-free

Integrated aluminum gutter front and sides

Reliable water drainage via integrated gargoyles

Stable construction with high load capacity up to 75 kg/m²

Free shipping directly to your home

1. Topas Acrylic Canopy Dimensions - Width x Depth x Height in mm:

1. Topas Acrylic Canopy Dimensions - Width x Depth x Height in mm
Tiefe:

Tiefe
Color:

Color
Quantity:
2.125,34 €inkl. MwSt.
Bestseller

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Aluminum Canopy Topaz 1 Acrylic Glass

The Topaz 1 canopy is a practical, compact aluminum canopy with acrylic glass glazing. It effectively protects your entrance from wind and weather and at the same time emphasizes the character of your house – for a stylish, cohesive unit.

Features & Technical Details

  • Aluminum support structure
  • Acrylic glass glazing
  • Aluminum gutter at the front
  • Gutter and glazing on the sides
  • Drainage via gargoyle (standard position 11; two gargoyles at position 8/11 for widths from 2,400 mm)
  • 20° roof pitch
  • Load assumption 75 kg/m² (higher loads available on request)

Colors

Available in three standard colors at no extra charge. Numerous RAL colors and textured surfaces are available for an extra charge.

Delivery & Installation

The canopy is delivered including a suitable glass pane – shipping is free. Deviating model sizes and special constructions are available according to technical possibilities; professional installation by us is possible on request.

Optional extras

  • Matte glass film
  • Self-cleaning effect (Pilkington Activ)
  • Acrylic glass variants: satin or clear textured

Note: Load assumption 75 kg/m²; additional loads according to DIN EN 1991 are not taken into account.

Questions and Answers

Aluminum construction with acrylic glass and a 20° roof pitch. On the Topas 1, the sides are fitted with a gutter and glazing (the Topas Acryl is open at the sides). Drainage via a water spout at position 11, from 2,400 mm at positions 8/11. Three standard colors; acrylic glass optionally satin-finished or clear textured.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
