Vordach aus Edelstahl mit Klarglas, modernes Design, robust für Eingangstüren

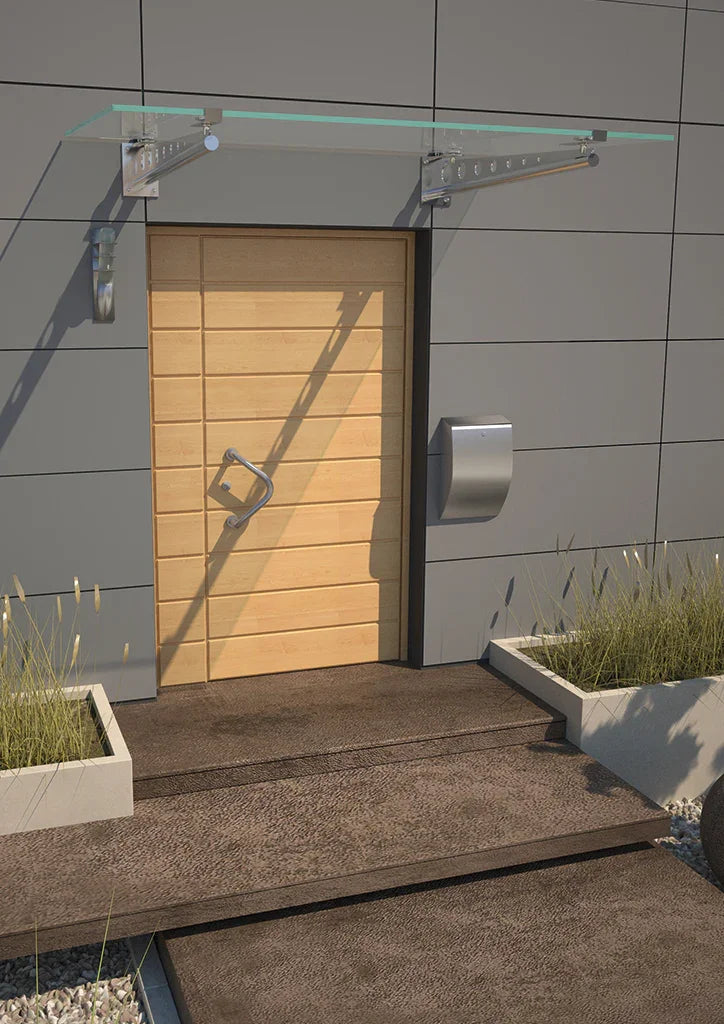

Modernes Vordach aus Edelstahl und Glas, montiert über einer Holzeingangstür.
Tabelle zu Vordach Edelstahl Titan VSG mit Maßen für Breite, Tiefe und Anzahl Träger.

Titanium laminated safety glass canopy - stainless steel real glass canopy

SKU: 80027-B1400-T1000

High-quality stainless steel canopy – durable & rustproof

Robust 16 mm laminated/toughened safety glass for maximum security

Stable cantilever construction for an exceptionally firm hold

Stable construction with a high load capacity of up to 75 kg/m²

Free shipping directly to your home

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Width:

Width
Depth:

Depth
Quantity:
2.873,85 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Titan VSG Stainless Steel Glass Canopy

The Titan canopy is a high-quality stainless steel canopy crafted by hand. Elegantly shaped stainless steel profiles and turned parts form a transparent unit together with the laminated safety glass (VSG/TVG) glazing, which as an elegant eye-catcher enhances any building and reliably protects your entrance from rain and snow.

Features & technical details

  • Stainless steel support structure (profiles and turned parts)
  • 16 mm VSG/TVG glazing
  • 2–3 cantilever arms
  • 4.5° roof pitch (particularly shallow)
  • Load assumption 75 kg/m²

Delivery & installation

The canopy is supplied including a matching glass pane – shipping is free of charge. Different model sizes and special constructions are available within the technical possibilities; professional installation by us is possible on request.

Options at a surcharge

  • Matte glass film

Note: Load assumption 75 kg/m²; additional loads according to DIN EN 1991 are not considered.

Questions and Answers

Stainless steel construction with 16 mm VSG/TVG glazing and a particularly shallow 4.5° roof pitch. Carried by 2-3 cantilever arms.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
