Emerald canopy with laminated safety glass - aluminum and real glass canopy

SKU: 80007-B1400-T0800-F9016

Aluminum construction with 8 mm laminated safety glass in one panel

Drainage via scupper, no water on the facade

28 standard sizes: width 1,400 to 2,600 mm, projection 800 to 1,100 mm

RAL 9016, RAL 7016, RAL 9007 and DB 703 matte at no extra charge, fine structure and stainless steel look at an additional charge

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Width:

Width
Depth:

Depth
Color:

Color
Quantity:
1.858,78 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Smaragd VSG Aluminum Glass Canopy – Mono-Pitch Roof with Rain Gutter at the Front

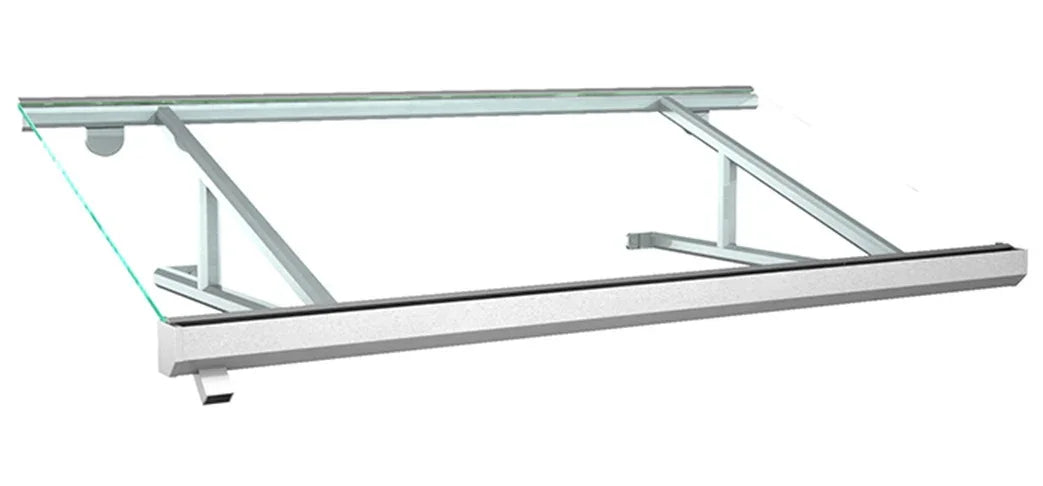

The Smaragd canopy is a mono-pitch roof made of aluminum with laminated safety glass in a single panel, without glazing bars. The rain gutter sits at the front edge; the water drains off in a controlled way via the spout instead of running down the facade. The continuous pane looks calm and suits front doors with clean lines.

Features and technical details

  • Aluminum support structure, roofing of 8 mm clear laminated safety glass (VSG)
  • Rain gutter at the front, sides open (no gutter, no glazing)

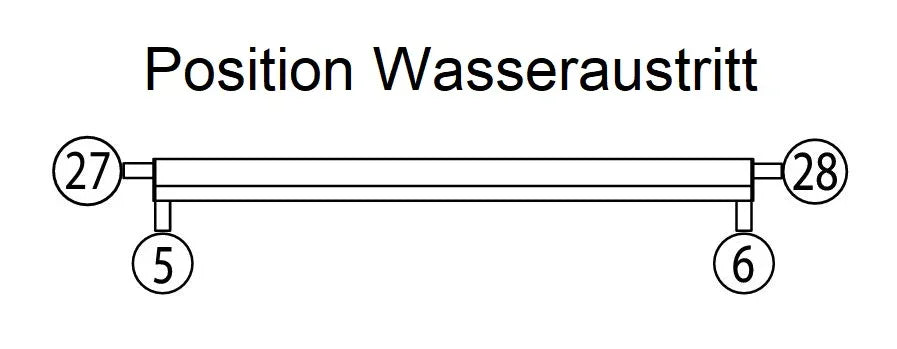

  • Drainage via one water spout (standard position 6); from 2,400 mm width two spouts at positions 5 and 6
  • 20° roof pitch
  • Glazing in a single panel across the entire width
  • Load assumption 75 kg/m²

Sizes and colors

28 standard sizes: width 1,400 to 2,600 mm in steps of 200 mm, projection 800 to 1,100 mm in steps of 100 mm. The overall height of the roof results from the projection:

Projection (depth) Height
800 mm 332 mm
900 mm 369 mm
1,000 mm 405 mm
1,100 mm 442 mm

We manufacture intermediate sizes and special shapes on request.

Available at no surcharge in RAL 9016 white, RAL 7016 anthracite matt, RAL 9007 grey aluminum matt and DB 703 iron mica matt. The fine-texture surfaces in RAL 7016 anthracite and DB 703 iron mica as well as the stainless steel look version are available at a surcharge; the surcharge is already included in the variant price shown. Further RAL shades on request.

What to look out for when choosing

Measure the width of the area above the door that is free of window sills, lights and downpipes. The projection should cover the top step; with a landing in front of the door, 1,000 mm or more makes sense. The brackets need a load-bearing substrate of masonry or concrete. With external thermal insulation composite systems, please contact us before ordering.

Options at a surcharge

  • Matte film on the glass (privacy screening from below)

Delivery and installation

The canopy comes complete with a matching glass pane, shipping free of charge. Professional installation by our team is available on request.

Note: Load assumption 75 kg/m²; additional loads according to DIN EN 1991 are not considered.

Questions and Answers

Aluminum construction with 8 mm VSG laminated safety glass and a 20° roof pitch. Front aluminum rain gutter (alternatively a stainless steel gutter); drainage via a water spout at position 6, from 2,400 mm width at position 5/6. Three standard colors, RAL at extra cost.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
