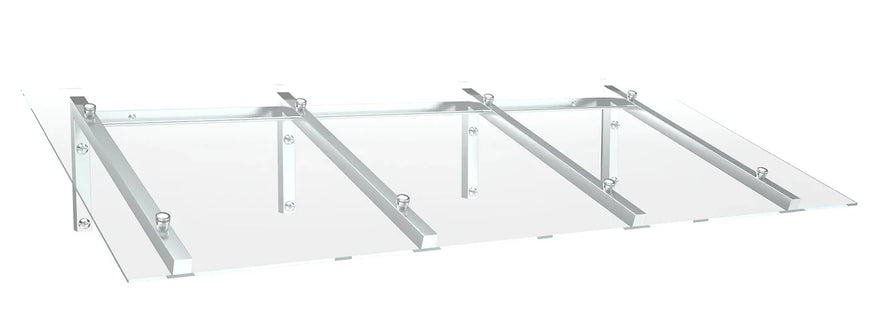

Vordach aus Edelstahl mit Klarglas, moderne Überdachung für Eingangsbereich
Tabelle mit Maßen für Vordach Edelstahl Sirius, Angaben zu Höhe, Tiefe, Breite und Stützbügeln.
Zeichnung eines Vordachs aus Edelstahl mit VSG-Glas und integrierter Regenrinne

Sirius canopy with laminated safety glass - stainless steel and real glass canopy

SKU: 80026-B1400-T0800-OHNE

Stainless steel construction with 12 mm laminated/toughened safety glass

Support brackets made of 40 × 40 mm square tubing, 20° roof pitch, mounting rail included

18 standard sizes: width 1,400 to 2,400 mm, projection 800 to 1,000 mm

Stainless steel rain gutter as an option, surcharge included in variant price

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Width:

Width
Depth:

Depth
rain gutter:

rain gutter
Quantity:
3.743,74 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Sirius VSG Stainless Steel Glass Canopy – Mono-Pitch Roof with Square Tube Brackets

The Sirius canopy is a mono-pitch roof made of stainless steel with 12 mm laminated safety glass. The support brackets are made of 40 × 40 mm square tube rather than round tube: this looks more angular and suits facades with straight lines, such as front doors with rectangular glass cut-outs. With a 20° pitch the water runs off quickly towards the front.

Features and technical details

  • Stainless steel support structure, profiles and turned parts crafted by hand
  • Support brackets made of 40 × 40 mm square tube
  • 12 mm VSG/TVG glazing
  • 20° roof pitch
  • Support brackets depending on the width: 3 up to 1,800 mm, 4 from 2,000 mm
  • Mounting rail and U-profile for the wall connection included in delivery
  • Load assumption 75 kg/m²

Sizes

18 standard sizes: width 1,400 to 2,400 mm in steps of 200 mm, projection 800, 900 or 1,000 mm. The overall height results from the projection:

Projection (depth) Height
800 mm 340 mm
900 mm 360 mm
1,000 mm 404 mm

Rain gutter

You select the stainless steel rain gutter (rectangular, 70 × 70 mm, bolted to the beams) directly in the dropdown. Without a gutter the water runs off over the front edge; with a gutter it is collected and drained off to the side. The surcharge depends on the roof width and is already included in the variant price shown.

What to look out for when choosing

Measure the width of the area above the door that is free of window sills, lights and downpipes. The projection should cover the top step; with a landing in front of the door, 1,000 mm makes sense. Below the mounting rail the support brackets need load-bearing masonry or concrete for the wall anchors. With external thermal insulation composite systems, please contact us before ordering.

Options at a surcharge

  • Matte film on the glass (privacy screening from below)

Delivery and installation

The canopy comes complete with a matching glass pane, shipping free of charge. Professional installation by our team is available on request.

Note: Load assumption 75 kg/m²; additional loads according to DIN EN 1991 are not considered.

Questions and Answers

Stainless steel construction with 12 mm VSG/TVG glazing and a 20° roof pitch. Carried by 3-4 support brackets made of 40 x 40 mm square tubing; mounting rail included, alternatively with a stainless steel gutter.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
