Modernes Edelstahl Vordach mit Klarglas, flache Dachkonstruktion, wetterfest
Tabelle mit Maßen für Vordach Edelstahl Saturn: Breite, Höhe und Tiefe in Millimetern.

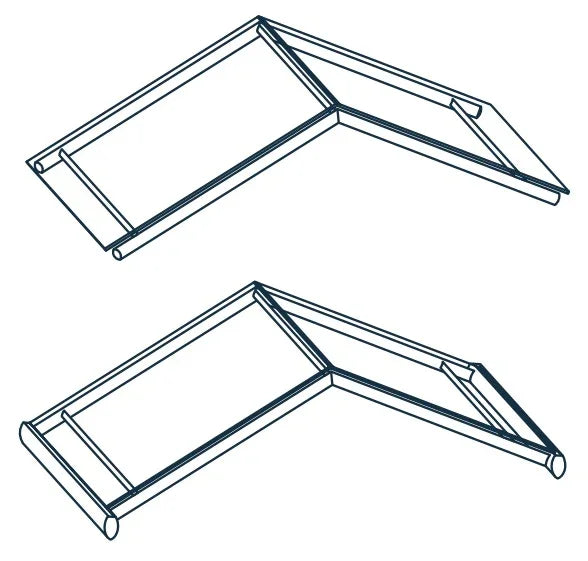

Zeichnung eines Vordachs aus Edelstahl mit VSG-Glas und integrierter Regenrinne, Eckform.

Saturn canopy, laminated safety glass - stainless steel, real glass canopy

SKU: 80025-B1400-T0800-OHNE

Stainless steel construction with 12 mm laminated/toughened safety glass

Steep 22.5° roof pitch, mounting rail included

12 standard sizes: width 1,400 to 2,000 mm, projection 800 to 1,000 mm

Stainless steel rain gutter as an option, surcharge included in the variant price

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Width:

Width
Depth:

Depth
rain gutter:

rain gutter
Quantity:
3.808,00 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Saturn VSG Stainless Steel Glass Canopy – Mono-Pitch Roof with 22.5° Pitch

The Saturn canopy is a mono-pitch roof made of stainless steel with 12 mm laminated safety glass. At 22.5° it has a steeper pitch than the 20° models Comet, Sirius and Uranus: leaves and snow slide off and the glass stays clean longer. On this model the overall height depends on the width, not on the projection (see table).

Features and technical details

  • Stainless steel support structure, profiles and turned parts crafted by hand
  • 12 mm VSG/TVG glazing
  • 22.5° roof pitch
  • Mounting rail included in delivery
  • Load assumption 75 kg/m²

Sizes

12 standard sizes: width 1,400, 1,600, 1,800 or 2,000 mm, projection 800, 900 or 1,000 mm. The overall height results from the width:

Width Height
1,400 mm 345 mm
1,600 mm 395 mm
1,800 mm 445 mm
2,000 mm 495 mm

Rain gutter

You select the stainless steel rain gutter (rectangular, 70 × 70 mm) directly in the dropdown. Without a gutter the water runs off over the front edge; with a gutter it is collected and drained off to the side. The surcharge depends on the projection and is already included in the variant price shown.

What to look out for when choosing

Add the overall height to the door height: with a width of 2,000 mm the Saturn needs 495 mm of wall space above the lintel. Measure the width of the area above the door that is free of window sills, lights and downpipes. The projection should cover the top step. The fastening needs load-bearing masonry or concrete; with external thermal insulation composite systems, please contact us before ordering.

Options at a surcharge

  • Matte film on the glass (privacy screening from below)

Delivery and installation

The canopy comes complete with a matching glass pane, shipping free of charge. Professional installation by our team is available on request.

Note: Load assumption 75 kg/m²; additional loads according to DIN EN 1991 are not considered.

Questions and Answers

Stainless steel construction with 12 mm VSG/TVG glazing and a 22.5° roof pitch. The mounting rail is included; alternatively, a lateral stainless steel gutter is available.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
