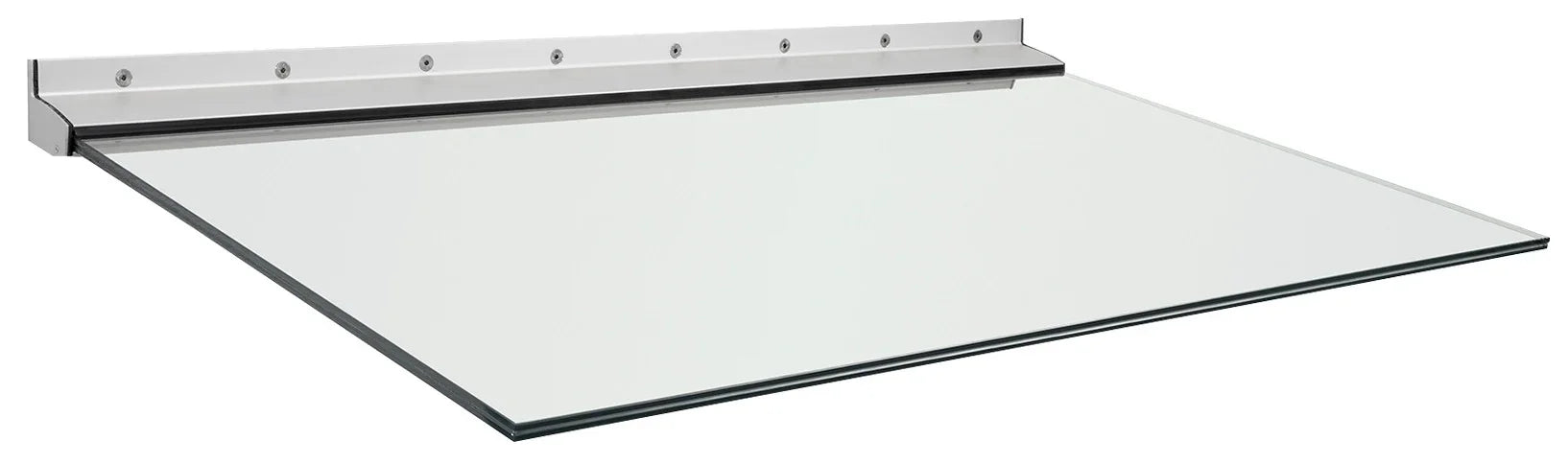

Modernes Aluminium Vordach mit Klarglas, wandmontiert, wetterfest für Eingangstüren

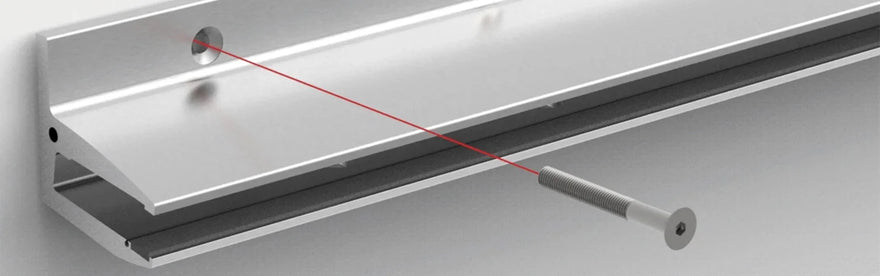

Detailaufnahme Aluminium Vordachprofil mit Montageschraube, Wandbefestigung, modern

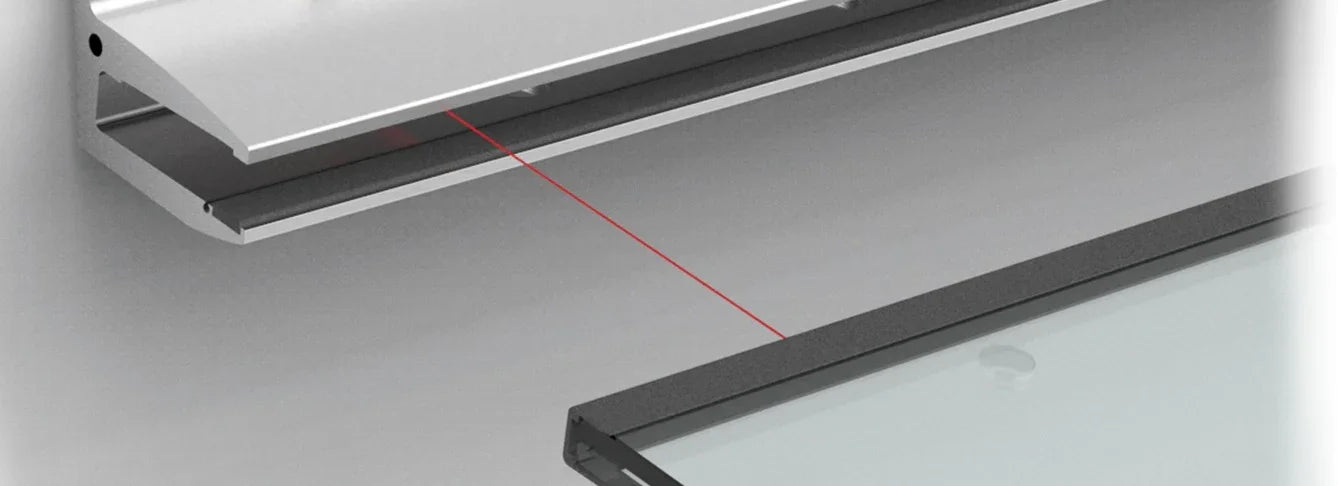

Detailaufnahme Vordach Aluminium mit Verbundsicherheitsglas, Wandmontage

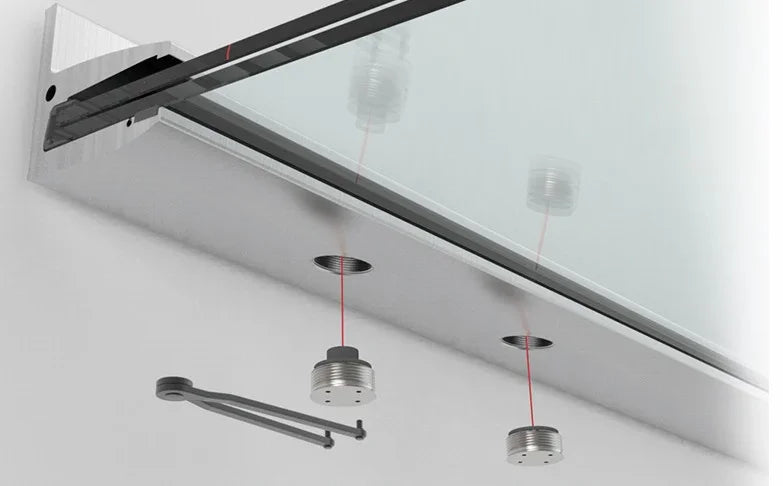

Vordach aus Aluminium mit Glas, moderne Edelstahl-Halterungen, Detailansicht Montage

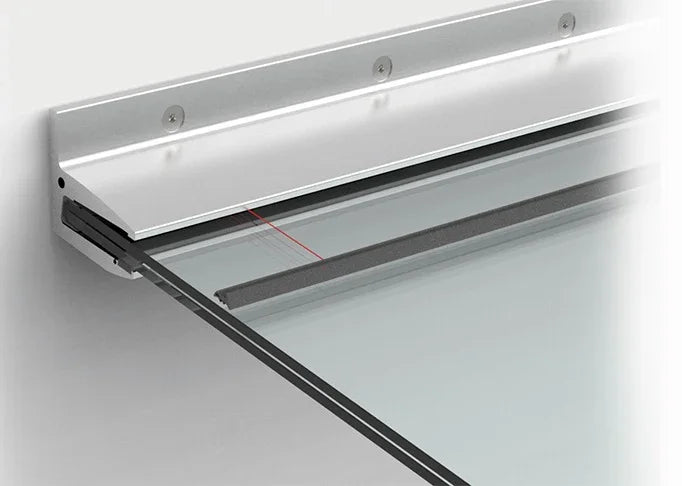

Modernes Vordach aus Aluminium und Glas, seitlich montiert, mit klarer Linienführung.

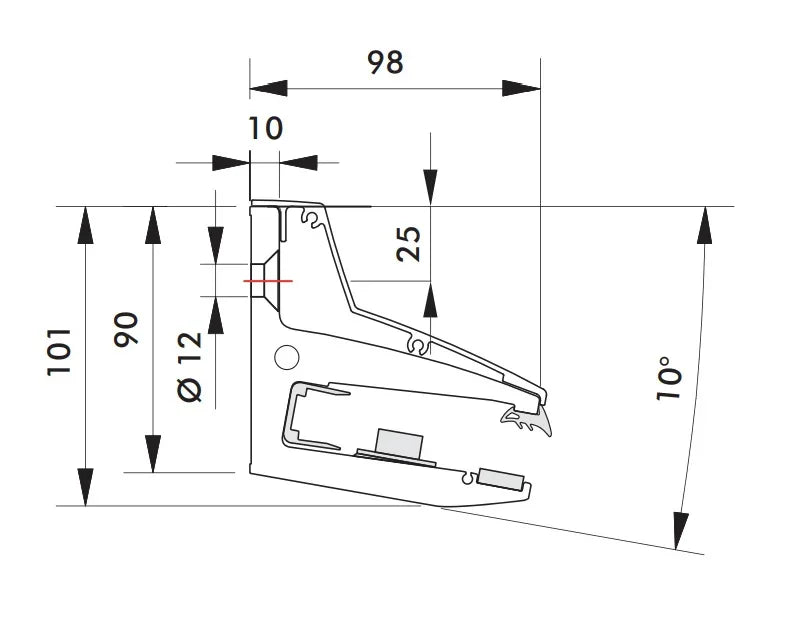

Technische Zeichnung eines Aluminium Vordach-Profils mit Maßangaben und Winkeln

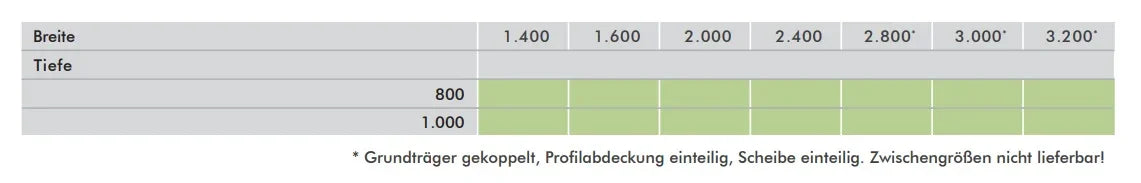

Tabelle mit Maßen für Vordach Aluminium Phoenix VSG, Breite und Tiefe in Millimeter angegeben.

Phoenix VSG Glass Canopy - Aluminum Real Glass Canopy

SKU: 80005-1400X800MM

Modern aluminum canopy – durable & rust-proof

Robust 16 mm laminated/tempered safety glass with Sentry film

Includes official building approval for tested safety

Stable construction with high load capacity up to 75 kg/m²

Free shipping directly to your home

Phoenix canopy dimensions - width x depth in mm:

Phoenix canopy dimensions - width x depth in mm
Quantity:
1.721,93 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Aluminium and Glass Canopy Phönix VSG

The Phönix canopy is a high-quality, compact aluminium canopy with laminated safety glass and building authority approval. It reliably protects your entrance from wind and weather and impresses with its clear design and shallow projection.

Features & Technical Details

  • Aluminium support structure in E6/EV1 (only standard colour – no RAL available)
  • VSG/TVG glazing 16 mm with 1.52 mm Sentry film
  • Incl. building authority approval
  • Without gutter – free draining
  • Visible screwing with profile cover (concealed fastening)
  • Max. projection 1,000 mm
  • Available widths: 1400, 1600, 2000, 2400, 2800*, 3000*, 3200 mm* (* base support coupled, pane in one piece)
  • Intermediate sizes not available
  • Load assumption 75 kg/m² (higher load on request)

Delivery & Installation

The canopy is delivered including the matching glass pane – shipping is free. Deviating model sizes and special constructions are available according to technical possibilities; professional installation by us is possible on request.

Options for an extra charge

  • Matte glass film
  • Self-cleaning effect (Pilkington Activ)

Note: Load assumption 75 kg/m²; additional loads according to DIN EN 1991 are not taken into account.

Questions and Answers

Aluminum porch roof in E6/EV1 (the only standard color, no RAL) with 16 mm VSG/TVG glass and 1.52 mm Sentry interlayer - including building authority approval. Drainage by free dripping (no rain gutter), max. projection 1,000 mm. Available widths: 1400, 1600, 2000, 2400, 2800*, 3000* and 3200 mm* (* base beam coupled, glass pane in one piece); intermediate sizes are not available.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
