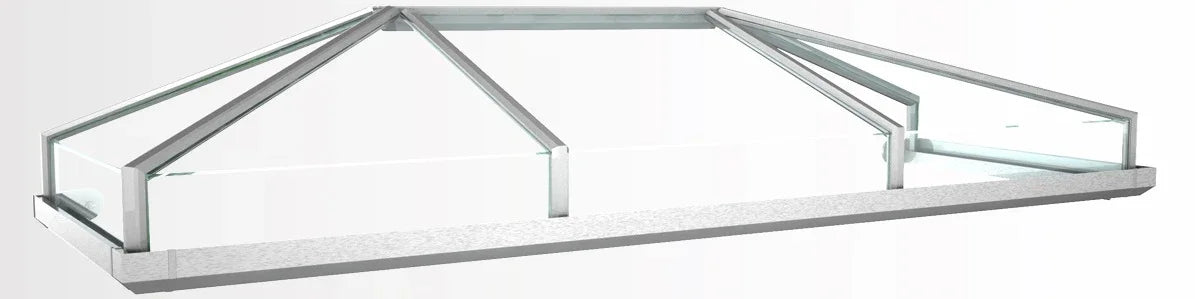

Modernes Vordach aus Aluminium mit Acrylglas, flache Bauweise, Glasüberdachung für Eingang

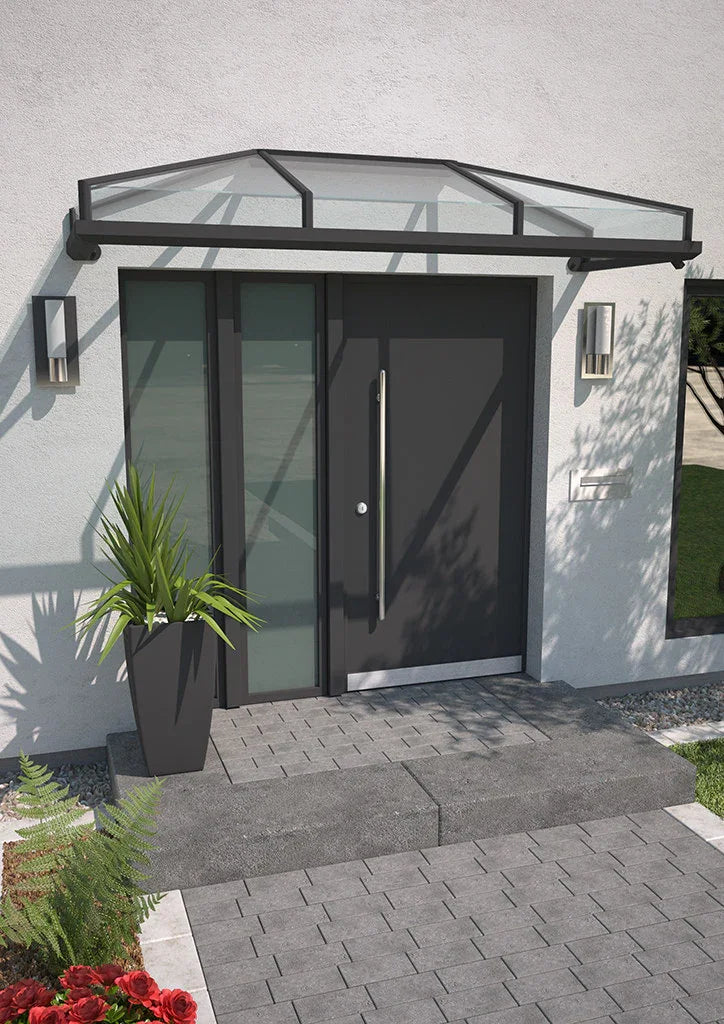

Modernes Aluminium Vordach mit Acrylglas über einer Haustür, schlichte Eingangsgestaltung
Tabelle mit Maßen für Aluminium Vordach Kristall 2 aus Acryl, Glasfelder, Breite, Höhe und Tiefe
Vergleich von Aluminium Vordach Farben: RAL 9016 Weiß, RAL 7016 Matt, Edelstahloptik

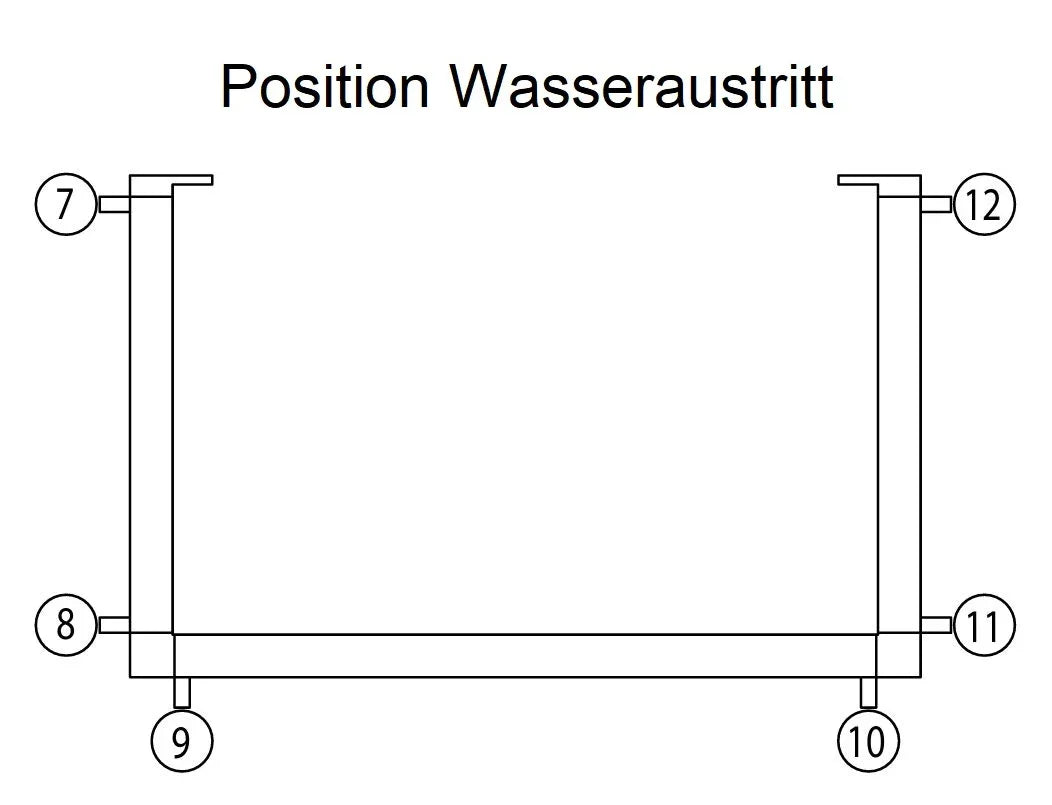

Diagramm zeigt Positionen für Wasseraustritt am Modell Corall III, nummerierte Eckpunkte

Crystal 2 canopy, acrylic glass - aluminum

SKU: 80031-B2000-T0825-F9016

Aluminum pent roof with clear acrylic glass covering, 20° pitch

Rain gutter on three sides, drainage via gargoyle

33 standard sizes: width 2,000 to 3,600 mm, projection 825 to 1,125 mm

Seven colors, four of which at no extra charge; surcharge included in variant price

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Width:

Width
Depth:

Depth
Color:

Color
Quantity:
3.291,54 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Kristall 2 Aluminum Canopy with Acrylic Glass – Mono-Pitch Roof with Rain Gutter on Three Sides

The Kristall 2 canopy is a mono-pitch roof made of aluminum with clear acrylic glass roofing. The rain gutter runs around the roof at the front and on both sides, and the water is drained off in a controlled way via the spout. With widths up to 3,600 mm it also covers a double door or an entrance with side panels and a landing. On request we supply the roof with lighting.

Features and technical details

  • Aluminum support structure, clear acrylic glass roofing
  • Aluminum rain gutter on three sides
  • Drainage via one water spout (standard position 11); from 2,400 mm width two spouts at positions 8 and 11
  • 20° roof pitch
  • Glass panels depending on the width: 5 panels up to 2,400 mm, 6 panels up to 3,000 mm, 7 panels from 3,200 mm
  • Available with lighting
  • Load assumption 75 kg/m²

Sizes and colors

33 standard sizes: width 2,000 to 3,600 mm in steps of 200 mm, projection 825, 925, 1,025 or 1,125 mm. The overall height of the roof results from the projection:

Projection (depth) Height
825 mm 491 mm
925 mm 527 mm
1,025 mm 563 mm
1,125 mm 599 mm

The 1,025 mm projection is available from 2,200 mm width, the 1,125 mm projection from 2,400 mm width. In the sizes 2,000 × 925, 2,200 × 1,025 and 2,400 × 1,125 mm the middle glass panel is only around 200 mm wide. We manufacture intermediate sizes and special shapes on request.

Available at no surcharge in RAL 9016 white, RAL 7016 anthracite matt, RAL 9007 grey aluminum matt and DB 703 iron mica matt. The fine-texture surfaces in RAL 7016 anthracite and DB 703 iron mica as well as the stainless steel look version are available at a surcharge; the surcharge is already included in the variant price shown. Further RAL shades on request.

What to look out for when choosing

Measure the width of the area above the door that is free of window sills, lights and downpipes. The projection should cover the top step; with a landing in front of the door, 1,025 mm or more makes sense. Plan the water spout so that the water does not drip onto the path or the steps; from 2,400 mm width the roof has two spouts. The brackets need a load-bearing substrate of masonry or concrete. With external thermal insulation composite systems, please contact us before ordering.

Options at a surcharge

  • Lighting on request
  • Special infills instead of clear acrylic glass on request

Delivery and installation

The canopy comes complete with the roofing, shipping free of charge. Professional installation by our team is available on request.

Note: Load assumption 75 kg/m²; additional loads according to DIN EN 1991 are not considered.

Questions and Answers

Aluminum construction with acrylic glass and a 20° roof pitch, with a 3-sided aluminum rain gutter. Drainage via a water spout at position 11, from 2,400 mm at positions 8/11. Optionally available with lighting. Three standard colors; acrylic glass optionally satin-finished or clear textured.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
