Karat 1 canopy, acrylic glass - aluminum

SKU: 80010-B1800-T0825-F9016

Aluminum construction with clear acrylic glass, rain gutter on three sides

For wide entrances: width from 1,800 mm, double door and front door with side panel

40 standard sizes: width 1,800 to 3,200 mm, projection 825 to 1,225 mm

RAL 9016, RAL 7016, RAL 9007 and DB 703 matte at no extra charge, fine structure and stainless steel look available for an additional charge

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Width:

Width
Depth:

Depth
Color:

Color
Quantity:
2.282,42 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

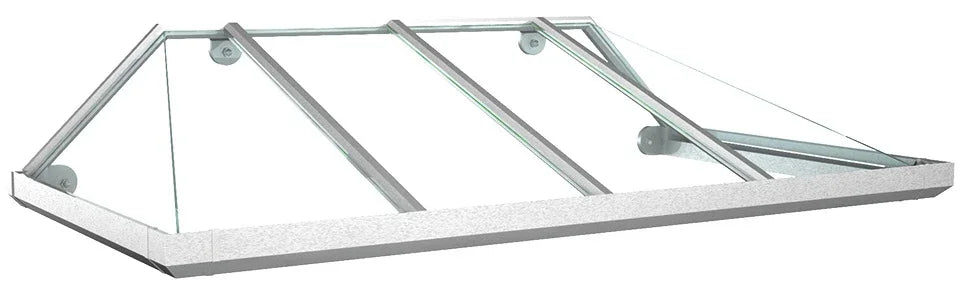

Karat 1 Aluminum Canopy with Acrylic Glass – Mono-Pitch Roof for Wide Entrances

The Karat 1 canopy is a mono-pitch roof made of aluminum with clear acrylic glass roofing. It starts only at 1,800 mm width and is therefore designed for front doors with a side panel, double doors and wide entrance areas. The rain gutter catches the water and drains it off via the spout instead of letting it run down the facade.

Features and technical details

  • Aluminum support structure, clear acrylic glass roofing
  • Rain gutter on three sides (front, left, right)

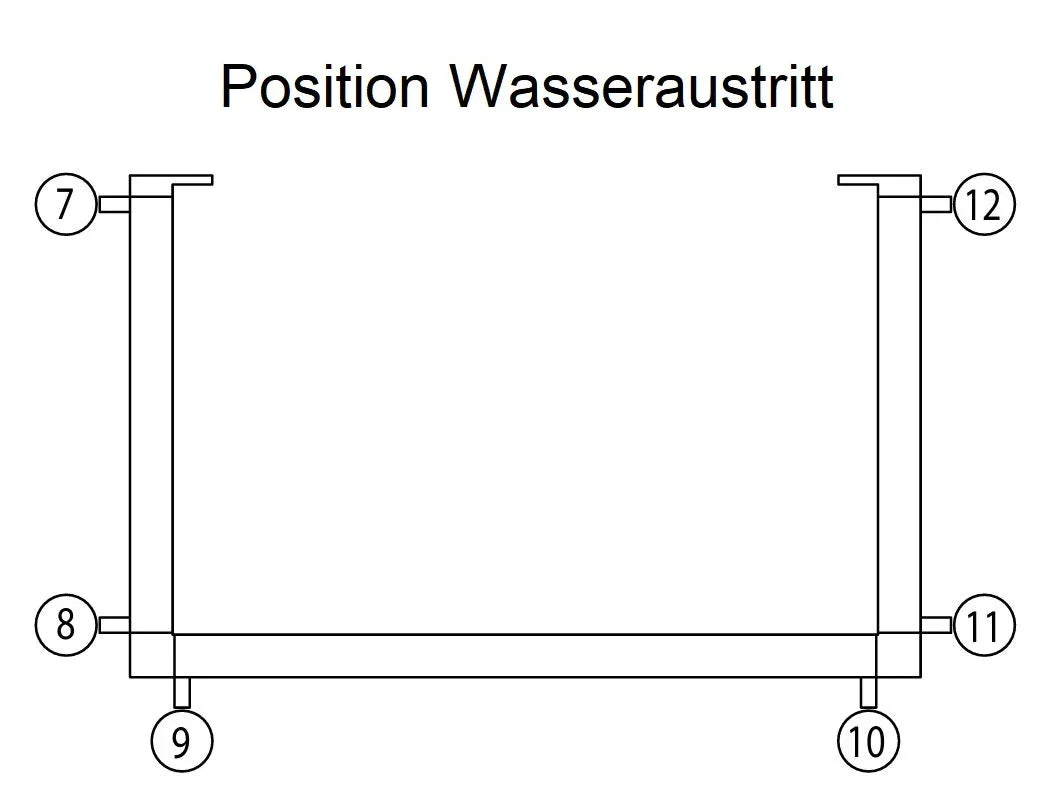

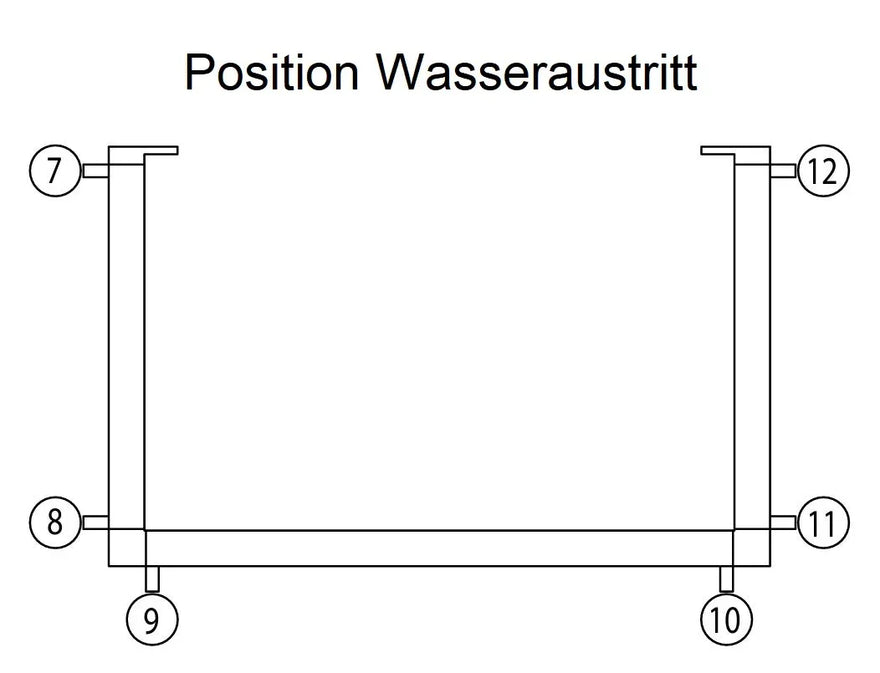

  • Drainage via one water spout (standard position 11); from 2,400 mm width two spouts at positions 8 and 11
  • 20° roof pitch
  • Glass panels depending on the width: 4 to 6 panels
  • Load assumption 75 kg/m²

Sizes and colors

40 standard sizes: width 1,800 to 3,200 mm in steps of 200 mm, projection 825 to 1,225 mm in steps of 100 mm. The overall height of the roof results from the projection:

Projection (depth) Height
825 mm 336 mm
925 mm 395 mm
1,025 mm 409 mm
1,125 mm 443 mm
1,225 mm 481 mm

We manufacture intermediate sizes and special shapes on request.

Available at no surcharge in RAL 9016 white, RAL 7016 anthracite matt, RAL 9007 grey aluminum matt and DB 703 iron mica matt. The fine-texture surfaces in RAL 7016 anthracite and DB 703 iron mica as well as the stainless steel look version are available at a surcharge; the surcharge is already included in the variant price shown. Further RAL shades on request.

What to look out for when choosing

Measure the width of the area above the door that is free of window sills, lights and downpipes. The projection should cover the top step; with a landing in front of the door, 1,025 mm or more makes sense. The brackets need a load-bearing substrate of masonry or concrete. With external thermal insulation composite systems, please contact us before ordering.

Options at a surcharge

  • Special infills instead of clear acrylic glass on request

Delivery and installation

The canopy comes complete with the roofing, shipping free of charge. Professional installation by our team is available on request.

Note: Load assumption 75 kg/m²; additional loads according to DIN EN 1991 are not considered.

Questions and Answers

Aluminum construction with acrylic glass and a 20° roof pitch, with a 3-sided aluminum rain gutter. Drainage via a water spout at position 11, from 2,400 mm at positions 8/11. Three standard colors; acrylic glass optionally satin-finished or clear textured.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
