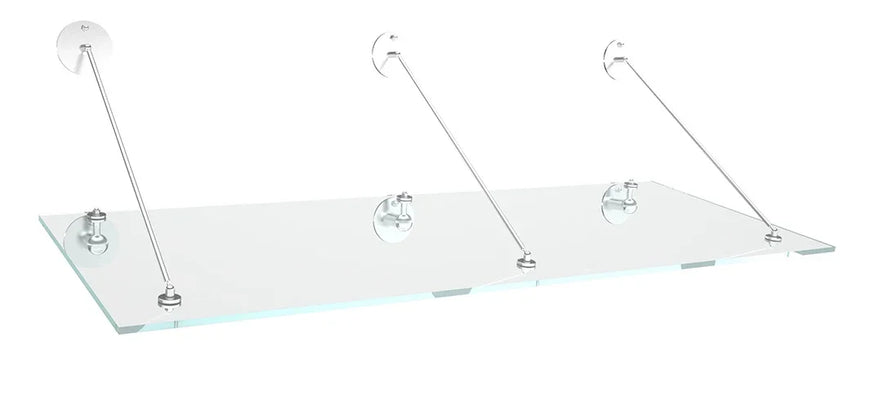

Vordach aus VSG Glas mit Edelstahlhalterungen, modernes Design, Überdachung für Eingangsbereich

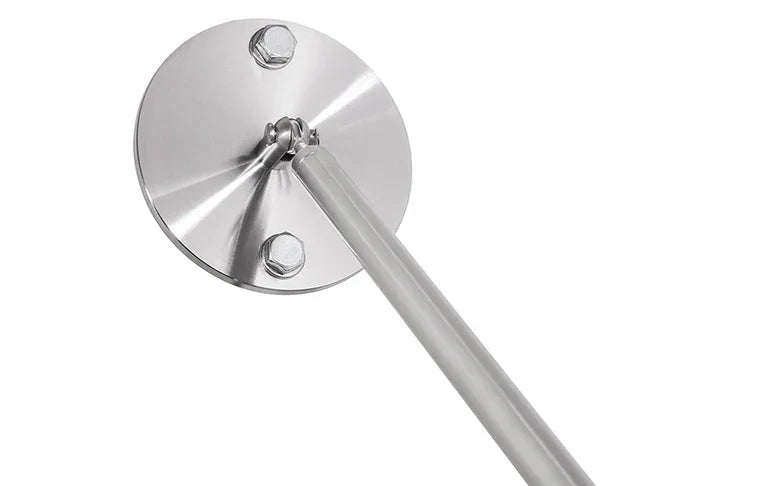

Edelstahl Wandhalterung für Vordach mit Rundrohr und Befestigungsschrauben
Edelstahl Wandhalterung für Vordach mit Glasplatte, modernes Design, Detailansicht
Modernes Vordach aus Glas und Edelstahl über einer Haustür mit seitlichem Fenster
Maßtabelle für Vordach Edelstahl Juwel VSG mit Breite, Tiefe, Höhe und Anzahl der Zugstangen.

Jewel canopy with laminated safety glass - stainless steel and real glass canopy

SKU: 80023-B1400-T1000-OHNE

Stainless steel construction with 16 mm laminated/toughened safety glass, 20 or 24 mm on request

Tie-rod design with wall brackets, 10° pitch, load capacity 85 kg/m²

34 standard sizes: width 1,400 to 3,600 mm, projection 1,000 to 1,400 mm

Stainless steel rain gutter as an option, surcharge included in the variant price

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Width:

Width
Depth:

Depth
rain gutter:

rain gutter
Quantity:
2.695,35 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Juwel VSG Stainless Steel Glass Canopy – Tie-Rod Canopy up to 3,600 mm Wide

The Juwel canopy is a mono-pitch roof made of stainless steel with 16 mm laminated safety glass that hangs from tie rods instead of resting on brackets. The rods run diagonally upwards from the front edge to wall brackets, leaving the space beneath the glass clear. This is the classic design for business entrances and prestigious front doors, up to 3,600 mm wide and 1,400 mm projection.

Features and technical details

  • Stainless steel support structure, profiles and turned parts crafted by hand
  • 16 mm VSG/TVG glazing; for higher loads available on request with 20 or 24 mm glass
  • 10° roof pitch
  • Tie rods depending on the width: 2 up to 2,000 mm, 3 up to 3,000 mm, 4 from 3,200 mm, each with wall brackets
  • Load assumption 85 kg/m², higher loads on request

Sizes

34 standard sizes: width 1,400 to 3,600 mm in steps of 200 mm, projection 1,000, 1,200 or 1,400 mm. The overall height (upper edge of the wall bracket to lower edge of the glass) results from the projection:

Projection (depth) Height
1,000 mm 780 mm
1,200 mm 915 mm
1,400 mm 1,050 mm

We offer the sizes 2,800 and 3,000 mm width with 1,400 mm projection on request.

Rain gutter

You select the stainless steel rain gutter directly in the dropdown. Without a gutter the water runs off over the front edge; with a gutter it is collected and drained off to the side. The surcharge depends on the roof width and is already included in the variant price shown.

What to look out for when choosing

The tie rods need wall space above the roof: with a 1,400 mm projection the upper brackets sit around 1,050 mm above the lower edge of the glass. Check that there is no window there. Measure the width of the area above the door that is free of window sills, lights and downpipes. The brackets need load-bearing masonry or concrete; with external thermal insulation composite systems, please contact us before ordering.

Options at a surcharge

  • Matte film on the glass (privacy screening from below)

Delivery and installation

The canopy comes complete with a matching glass pane, shipping free of charge. Professional installation by our team is available on request.

Note: Load assumption 85 kg/m², higher loads on request; additional loads according to DIN EN 1991 are not considered.

Questions and Answers

A handcrafted load-bearing structure made of stainless steel (profiles and turned parts) with glazing made of laminated safety glass (VSG/TVG) in 16, 20 or 24 mm.

The roof is carried by 2-3 tie rods and 2-3 cantilever arms and has a 10° roof pitch - a transparent, delicate unit that acts as an eye-catcher.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
