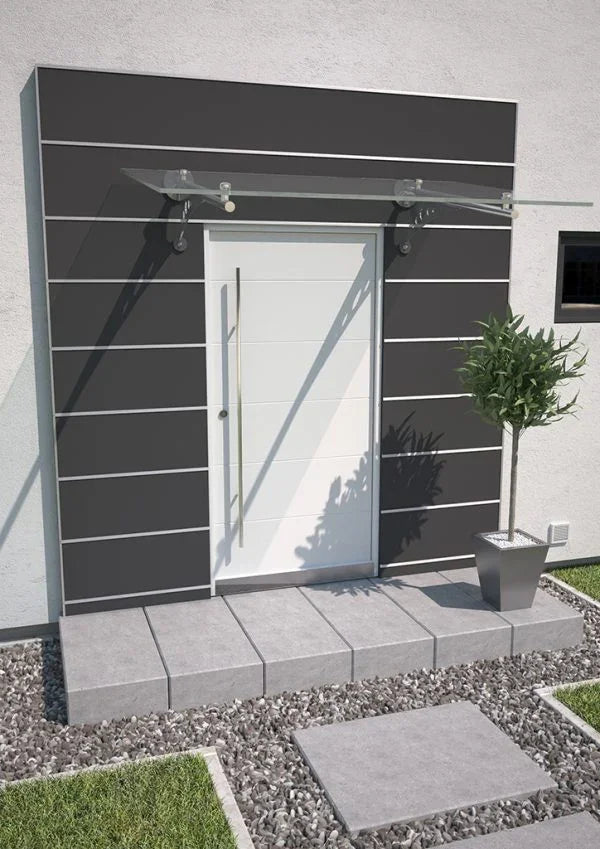

Modernes Vordach aus Edelstahl und Glas über weißer Haustür an Hausfassade

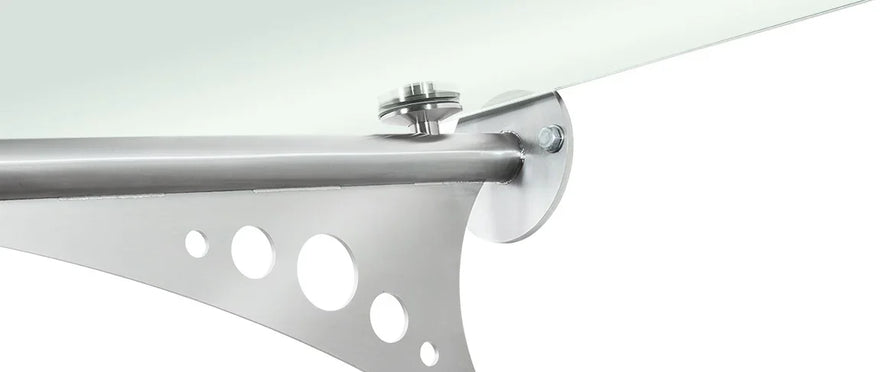

Vordach aus Edelstahl mit Glas, moderne Halterung, Detailansicht Wandbefestigung
Vordach-Befestigung aus Edelstahl mit satiniertem Glas, modern und witterungsbeständig
Tabelle mit Maßen für Vordach Edelstahl Galaxy VSG: Breite, Tiefe, Höhe, Trägeranzahl.

Galaxy VSG Glass Canopy - Stainless Steel Real Glass Canopy

SKU: 80022-B1400-T1000-OHNE

Stainless steel construction with 16 mm laminated safety glass (LSG/TSG)

Shallow 10° pitch, only 395 mm overall height

24 standard sizes: width 1,400 to 3,600 mm, projection 1,000 or 1,200 mm

Optional stainless steel gutter, surcharge included in the variant price

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Width:

Width
Depth:

Depth
rain gutter:

rain gutter
Quantity:
3.013,08 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Galaxy VSG Stainless Steel Glass Canopy – Flat Mono-Pitch Roof up to 3,600 mm Wide

The Galaxy canopy is a flat mono-pitch roof made of stainless steel with 16 mm laminated safety glass. With only 10° pitch and 395 mm overall height it fits under low lintels and above front doors with a transom window. The widths go up to 3,600 mm, so it also covers double doors and entrances with side panels.

Features and technical details

  • Stainless steel support structure, profiles and turned parts crafted by hand
  • 16 mm VSG/TVG glazing
  • 10° roof pitch
  • Beams depending on the width: 2 up to 2,000 mm, 3 up to 3,000 mm, 4 from 3,200 mm
  • Load assumption 75 kg/m²

Sizes

24 standard sizes: width 1,400 to 3,600 mm in steps of 200 mm, projection 1,000 or 1,200 mm. The overall height is 395 mm for all sizes.

Rain gutter

You select the stainless steel rain gutter directly in the dropdown. Without a gutter the water runs off over the front edge; with a gutter it is collected and drained off to the side. The surcharge depends on the roof width and is already included in the variant price shown.

What to look out for when choosing

Measure the width of the area above the door that is free of window sills, lights and downpipes. From 2,200 mm width there is a third beam, from 3,200 mm a fourth; the beam positions must sit on load-bearing masonry or concrete. The 1,200 mm projection is the right choice if there is a landing in front of the door. With external thermal insulation composite systems, please contact us before ordering.

Options at a surcharge

  • Matte film on the glass (privacy screening from below)

Delivery and installation

The canopy comes complete with a matching glass pane, shipping free of charge. Professional installation by our team is available on request.

Note: Load assumption 75 kg/m²; additional loads according to DIN EN 1991 are not considered.

Questions and Answers

Stainless steel construction with 16 mm VSG/TVG glazing and a 10° roof pitch. Carried by 2-3 support brackets; alternatively available with a stainless steel gutter.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
