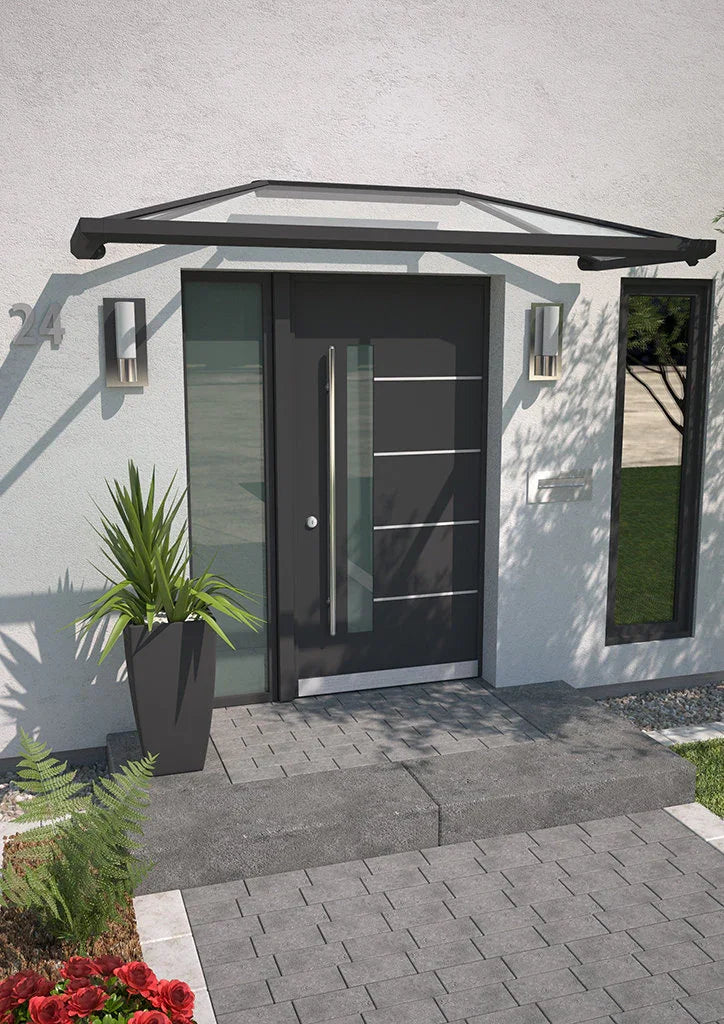

Modernes Vordach aus Aluminium und Glas über einer Haustür, seitlich Pflanze im Topf

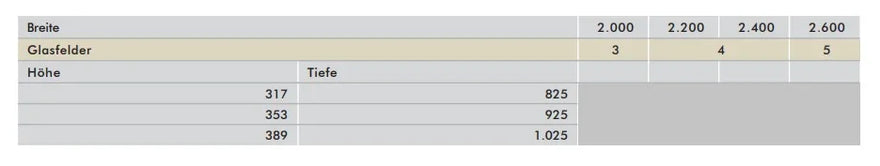

Tabelle mit Maßen und Glasfeldern für Vordach aus Aluminium Corall 3, Breite, Höhe und Tiefe.
Skizze eines modernen Aluminium Vordachs mit Glas, pyramidenförmige Konstruktion
Farbauswahl für Aluminium-Vordach: RAL 9016 Weiß, RAL 7016 Matt, Edelstahloptik
Positionsschema Wasseraustritt Modell Corall III mit markierten Anschlussstellen

Corall 3 laminated safety glass canopy - aluminum real glass canopy

SKU: 80030-B2000-T0825-F9016

Pyramid canopy made of aluminum with 8 mm laminated safety glass

Rain gutter on three sides, drainage via gargoyle, 20° pitch

11 standard sizes: width 2,000 to 2,600 mm, projection 825 to 1,025 mm

Seven colors, four of which at no extra charge; surcharge included in the variant price

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Width:

Width
Depth:

Depth
Color:

Color
Quantity:
3.127,32 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Corall 3 VSG Aluminum Canopy – Pyramid Canopy with Rain Gutter on Three Sides

The Corall 3 canopy is a pyramid canopy made of aluminum with 8 mm laminated safety glass. The glass panels rise towards the wall from every side, and the rain gutter runs around the roof on three sides. This way no water drips down at any edge, neither at the front nor at the sides next to the door. It is the right choice for entrances where you also stand under the roof at the sides, for example at doors with a side panel or a landing.

Features and technical details

  • Aluminum support structure, 8 mm laminated safety glass (VSG)
  • Aluminum rain gutter on three sides
  • Drainage via one water spout (standard position 11); from 2,400 mm width two spouts at positions 8 and 11
  • 20° roof pitch
  • Glass panels depending on the width: 3 panels at 2,000 mm, 4 panels at 2,200 and 2,400 mm, 5 panels at 2,600 mm
  • Load assumption 75 kg/m²

Sizes and colors

11 standard sizes: width 2,000, 2,200, 2,400 or 2,600 mm, projection 825, 925 or 1,025 mm. The overall height of the roof results from the projection:

Projection (depth) Height
825 mm 317 mm
925 mm 353 mm
1,025 mm 389 mm

The 1,025 mm projection is available from 2,200 mm width. We manufacture intermediate sizes and special shapes on request.

Available at no surcharge in RAL 9016 white, RAL 7016 anthracite matt, RAL 9007 grey aluminum matt and DB 703 iron mica matt. The fine-texture surfaces in RAL 7016 anthracite and DB 703 iron mica as well as the stainless steel look version are available at a surcharge; the surcharge is already included in the variant price shown. Further RAL shades on request.

What to look out for when choosing

Measure the width of the area above the door that is free of window sills, lights and downpipes. The projection should cover the top step; with a landing in front of the door, 1,025 mm or more makes sense. Plan the water spout so that the water does not drip onto the path or the steps; from 2,400 mm width the roof has two spouts. The brackets need a load-bearing substrate of masonry or concrete. With external thermal insulation composite systems, please contact us before ordering.

Options at a surcharge

  • Matte film on the glass (privacy screening from below)

Delivery and installation

The canopy comes complete with a matching glass pane, shipping free of charge. Professional installation by our team is available on request.

Note: Load assumption 75 kg/m²; additional loads according to DIN EN 1991 are not considered.

Questions and Answers

An aluminum porch roof in a striking pyramid shape with 8 mm VSG laminated safety glass and a 20° roof pitch. It has a 3-sided aluminum rain gutter; drainage is via a water spout at position 11, from 2,400 mm width at position 8/11. Three standard colors, RAL at extra cost.

The assumed load is 75 kg/m². Higher loads - for example for snowy regions - are possible on request. Additional loads according to DIN EN 1991 are not included in the standard assumption.

Yes. The porch roof is delivered including the matching glass pane - shipping is free.

Yes. Deviating model sizes and special constructions to suit your on-site situation are available within the technical possibilities. Just get in touch with us.

By default, we deliver the porch roof for self-assembly. If you would like professional installation by us, please contact us separately by e-mail - we will be happy to prepare a quote for you.

On request and at extra cost, a matte glass film and a self-cleaning effect (Pilkington Activ) are available. For acrylic glass models, additional versions such as satin finish or clear textured are possible.

A small front door porch roof is exempt from permits in most federal states. In the case of listed buildings or if the porch roof extends into the public street space, the building authority should be contacted in advance.
