WSM Cologne K2 b/b shelter (2.2 x 2.2m) - for smokers, garbage cans, bicycles, equipment

✔ Universal Shelter - Waiting area, for smokers, waste bins or bicycles

✔ High-quality industrial grade - Manufactured according to DIN 1090, type static analysis available

✔ Cladding可选 in glass, perforated sheet metal or wood

✔ Best Price Guarantee

✔ 5 years extended manufacturer's warranty!

✔ Configure online - receive instant price & offer!

✔ No risk - CAD plan/drawing for fine-tuning before production begins

SKU: 102001713
Ab
2.945,00 €

Tax included. Shipping calculated at checkout

Delivery time: 3 - 5 weeks

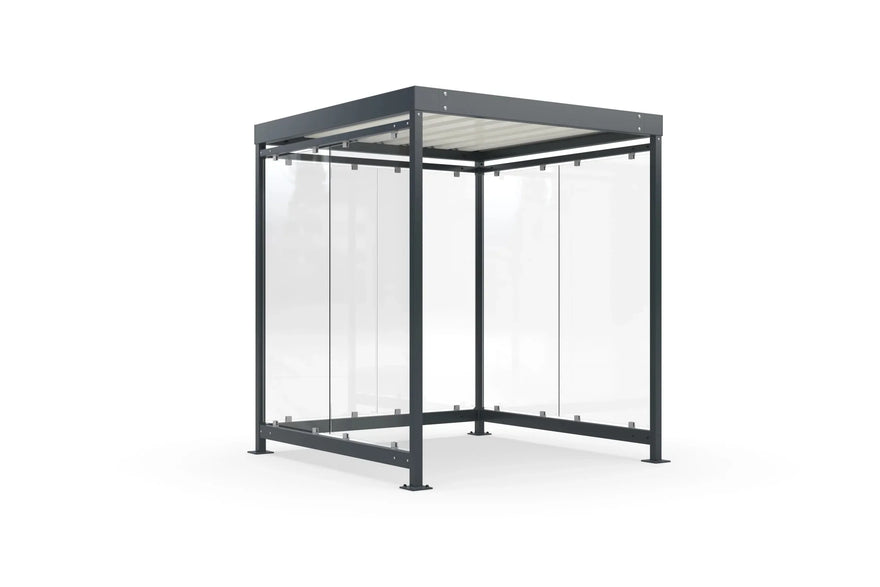

Canopy WSM Cologne K2 b/b (2.2 × 2.2 m)

For smokers, garbage cans, bicycles, equipment

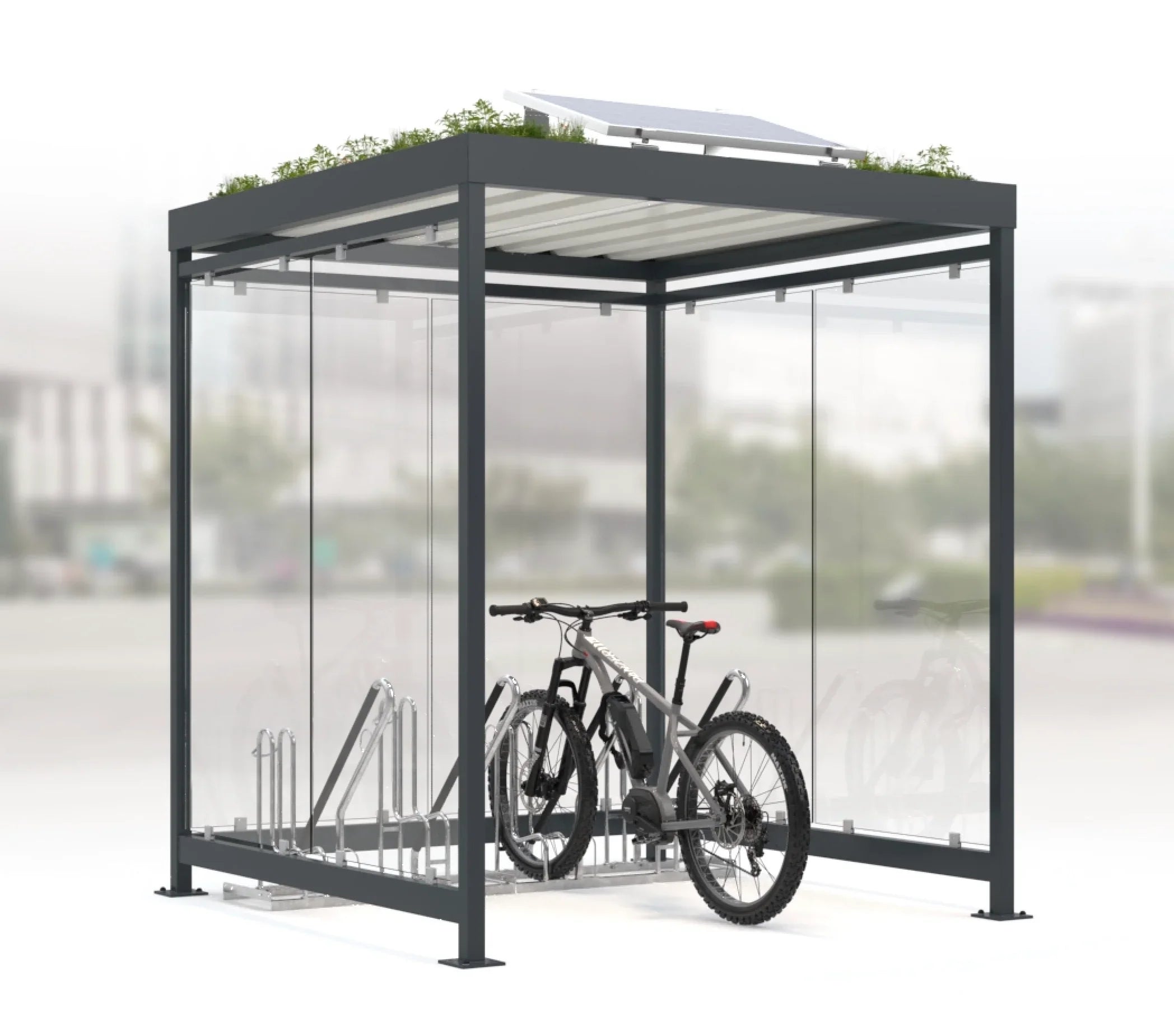

High-quality, stable flat roof canopy. Universally applicable as a waiting area, smoking shelter, bicycle garage, equipment shed, or garbage can enclosure/canopy.

Dimensions

  • Width: 2,165 mm
  • Depth: 2,165 mm
  • Height: 2,510 mm
  • Clearance Height: 2,360 mm

Technical Data

  • Roof Type: Trapezoidal sheet metal
  • Drainage: Via gargoyle on the rear corner post
  • Surface: Hot-dip galvanized and color-coated – RAL color of choice
  • Pipe Diameter: 60 mm
  • Snow Load: 1.90 kN/m² (Kit Sk = 1.45 kN/m²)
  • Weight: approx. 600 kg
  • Wind Load Zone: Zone 1 to 3
  • Warranty: 5 years

Corrosion Protection

The entire structure is galvanized, primed, and color-coated, or painted with environmentally friendly two-component paint.

  • Corrosivity Category: C4 medium (in accordance with DIN EN ISO 12944-2)
  • Steel Structure (Frame): RAL or DB color of choice
  • Roof Sheet (Underside): RAL 9002 Grey White

Wind and Snow Load

  • Snow Loads: Sk = 1.9 kN/m² (Kit Sk = 1.45 kN/m²)
  • Suitable for Wind Load Zones I–III, approved nationwide
  • Static Type Certificate available

Cladding (optional)

  • ESG glass, clear transparent glass
  • ESG glass with ceramic screen print, motif of choice
  • Perforated aluminum sheet, in frame color
  • Wood cladding made of high-quality Douglas fir (European larch)

Execution

  • Fully assembled:
    Fully assembled at the manufacturer's factory, delivery and positioning by crane truck at the installation site.
  • Kit delivery:
    Suitable for restricted access or self-assembly. Assembly instructions will be provided.

Delivery, Unloading, Assembly

  • Self-collection ex works
  • Delivery with self-unloading (forklift or crane provided by customer)
  • Delivery and unloading by crane truck, without assembly
  • Delivery and unloading by crane truck including on-site assembly and ground anchoring

Foundation & Ground Anchoring

  • Fastening on existing foundation (OKF ± 0 cm)
  • Paved Substrate (OKF –20 cm): Post extension by 20 cm

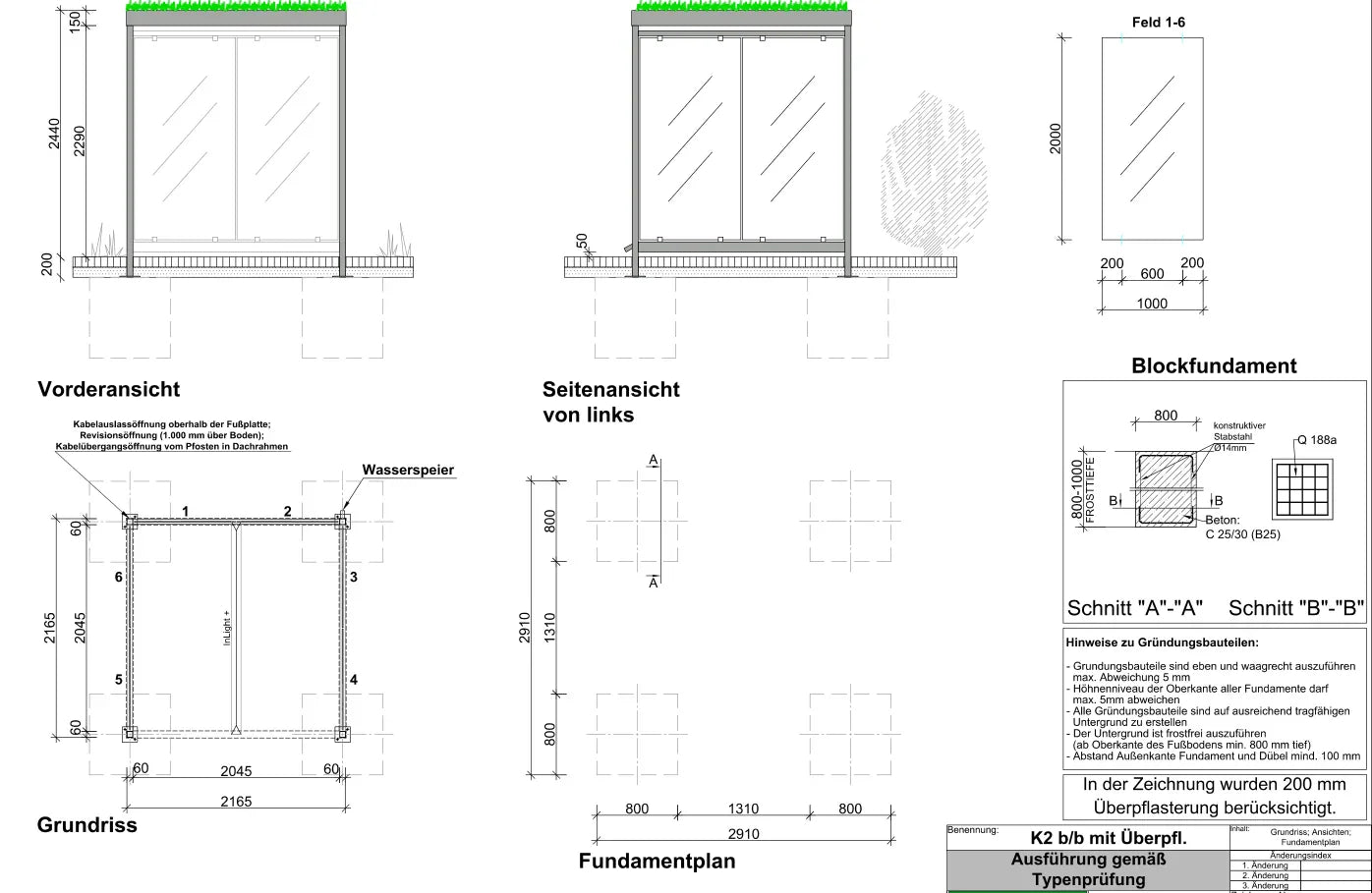

  • Optional delivery including pre-fabricated concrete foundation slab. This eliminates extensive foundation work. The base plate is laid at ground level on a sand or gravel bed prepared by the customer. Structured surface, slip resistance class R13, stone joint grid 300 × 300 mm, smooth formwork end faces, continuous edge break, including statically required reinforcement up to 15 kg/m².

Green Roof

Optional, modular, and sustainable green roof with sedum plants. The modules can be securely integrated into the trapezoidal profile.

Lighting

Standard lighting with InLight, including presence detector, vandal-resistant and integrated into the roof structure. Optionally expandable with a VersoVolt photovoltaic system, for self-sufficient power supply without excavation work.

Notes on assembly by us

  • Foundations must be built by the customer according to our specifications
  • Foundation plan will be provided with the order confirmation
  • Dimensioning for normal soil conditions (2 kg/cm²)
  • Drilling depth at least 100 mm, without reinforcement
  • No supply lines in the area of the floor anchoring
  • No longitudinal or transverse gradient considered in the offer
  • Gradient adjustment possible upon request at an additional cost
  • Foundations horizontal, max. height difference ± 5 mm
  • No anchoring allowed on paved or asphalt surfaces
