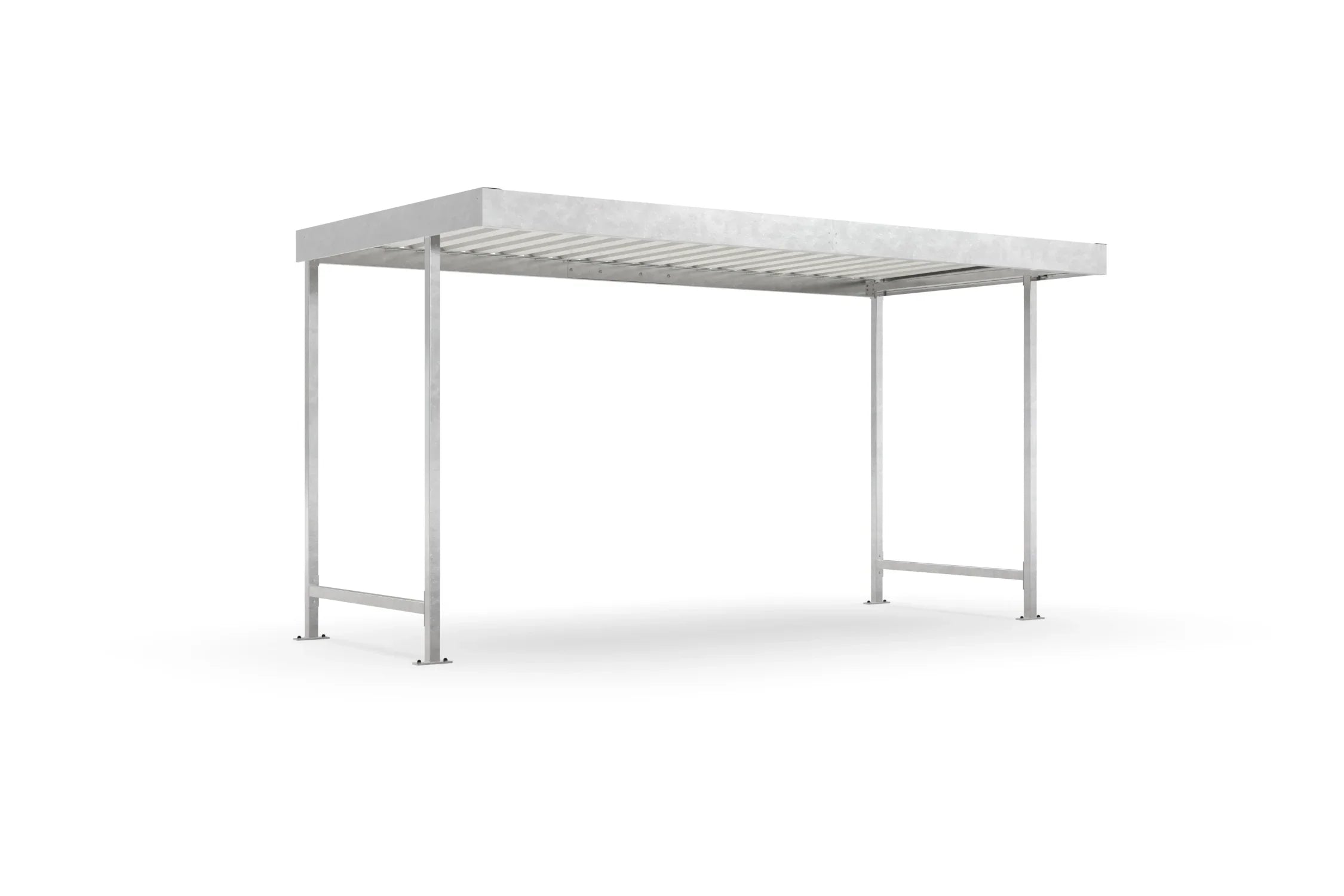

Verzinkter Raucherunterstand Leipzig L14 mit Flachdach und stabilem Metallrahmen, freistehend
Technische Zeichnung einer Überdachung L14 mit Grundriss, Seitenansicht und Fundamentplan.
Technische Zeichnung einer Überdachung mit Fundamentplan, Grundriss und Seitenansicht, Maße und Streifenfundament erklärt

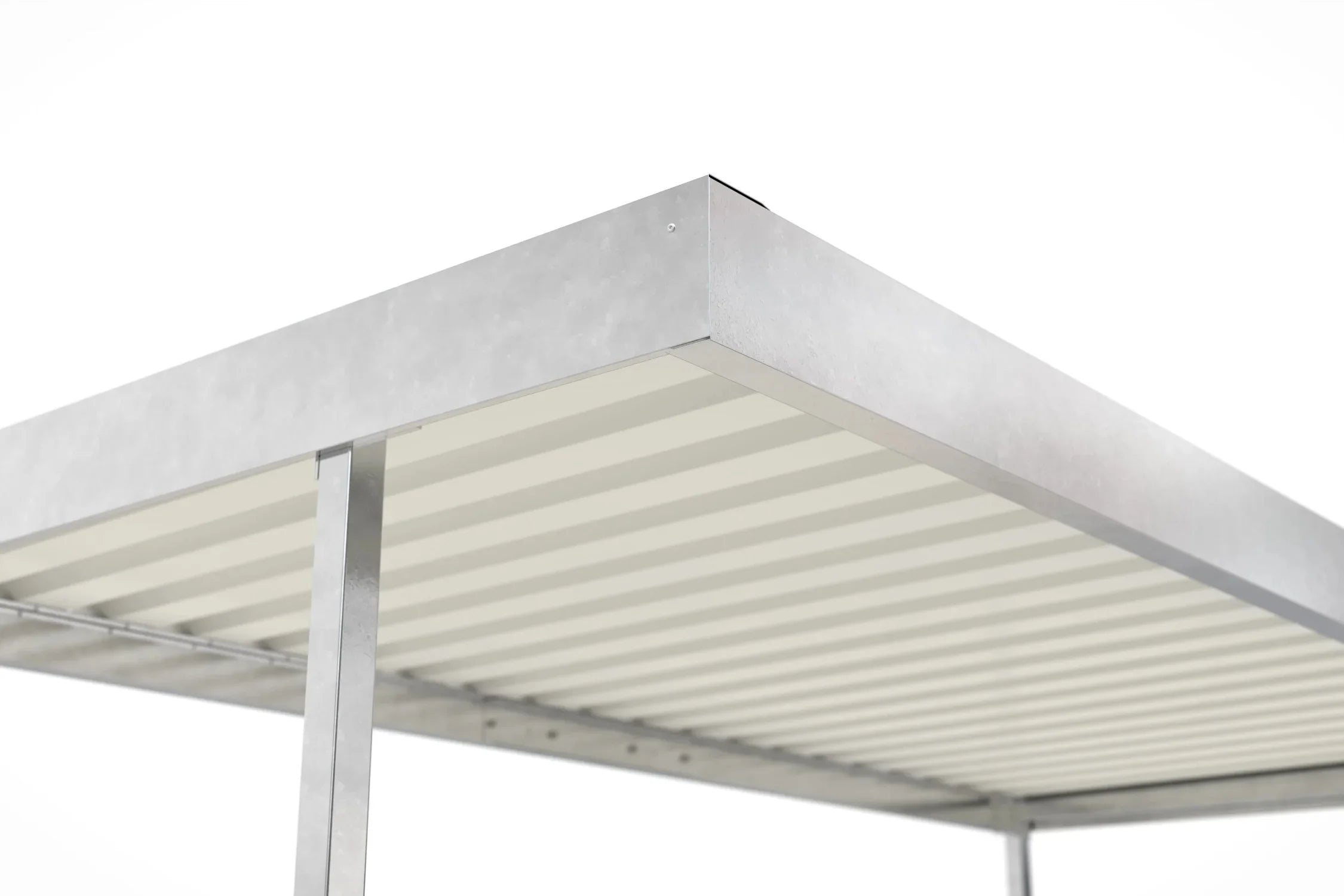

Verzinkter Raucherunterstand mit Flachdach aus Metall, Detailansicht der Überdachung

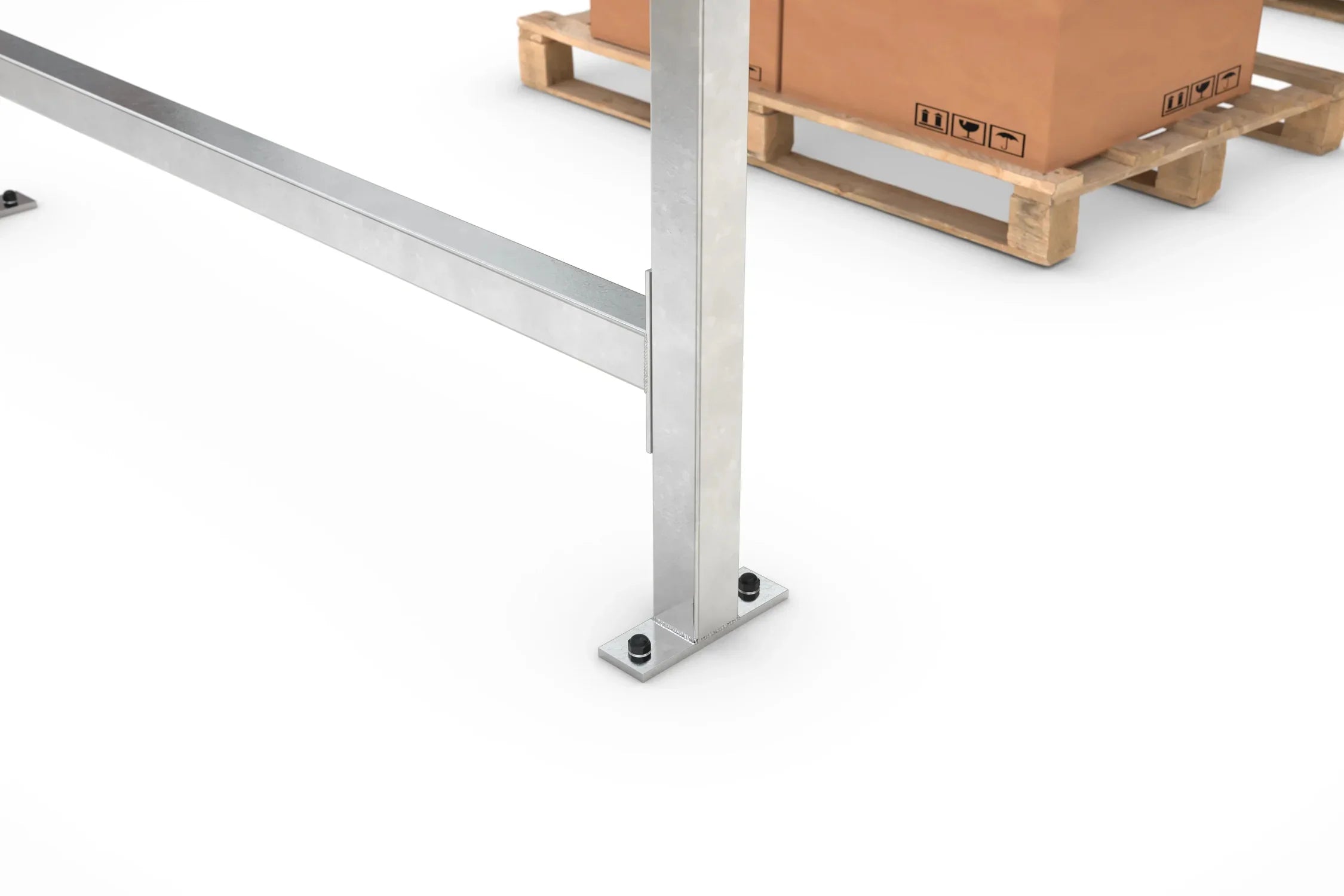

Detail verzinkte Metall-Stütze Raucherunterstand, Bodenmontage, Paletten im Hintergrund

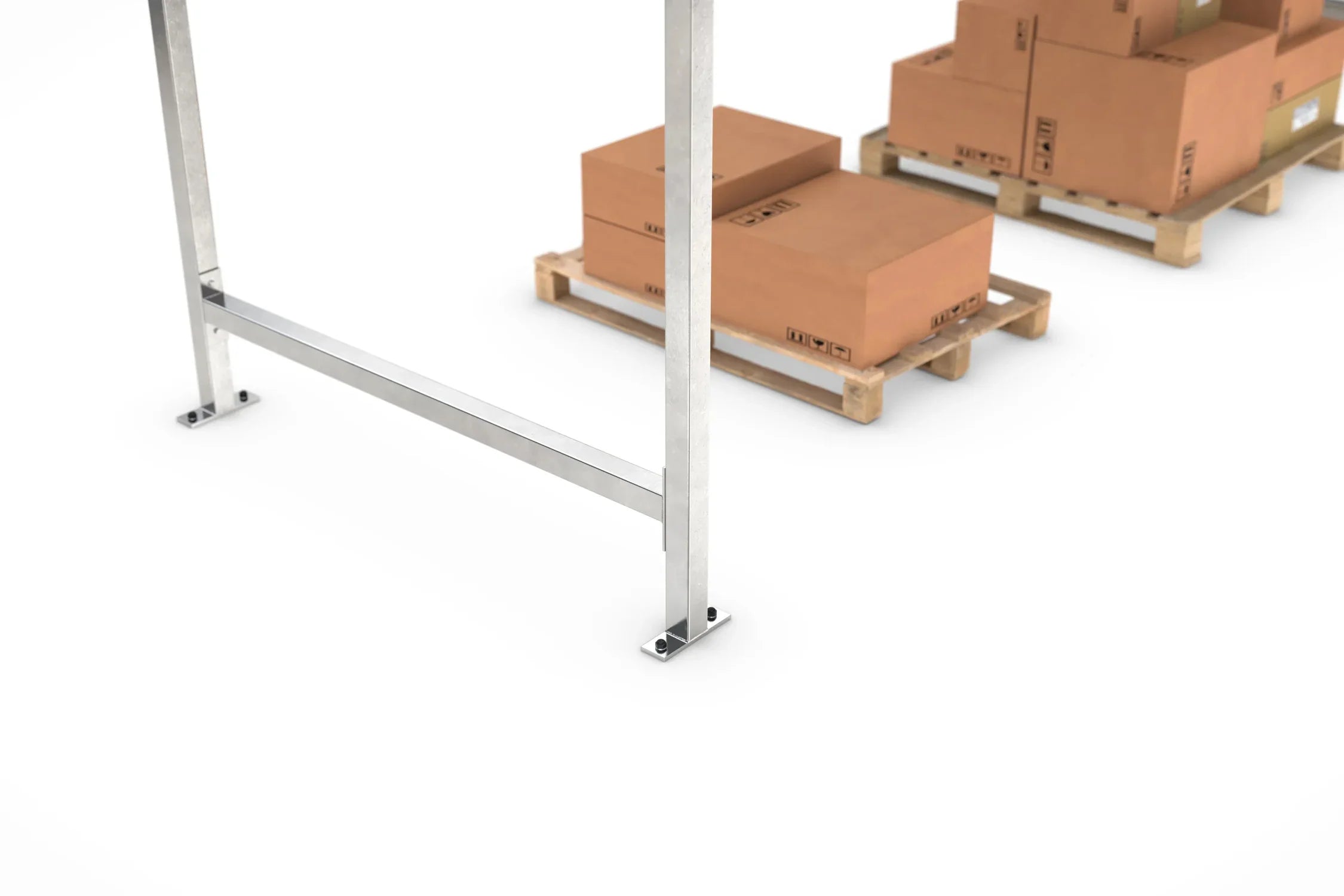

Detailansicht verzinkte Metallstützen mit Paletten im Hintergrund, Überdachung Industrie

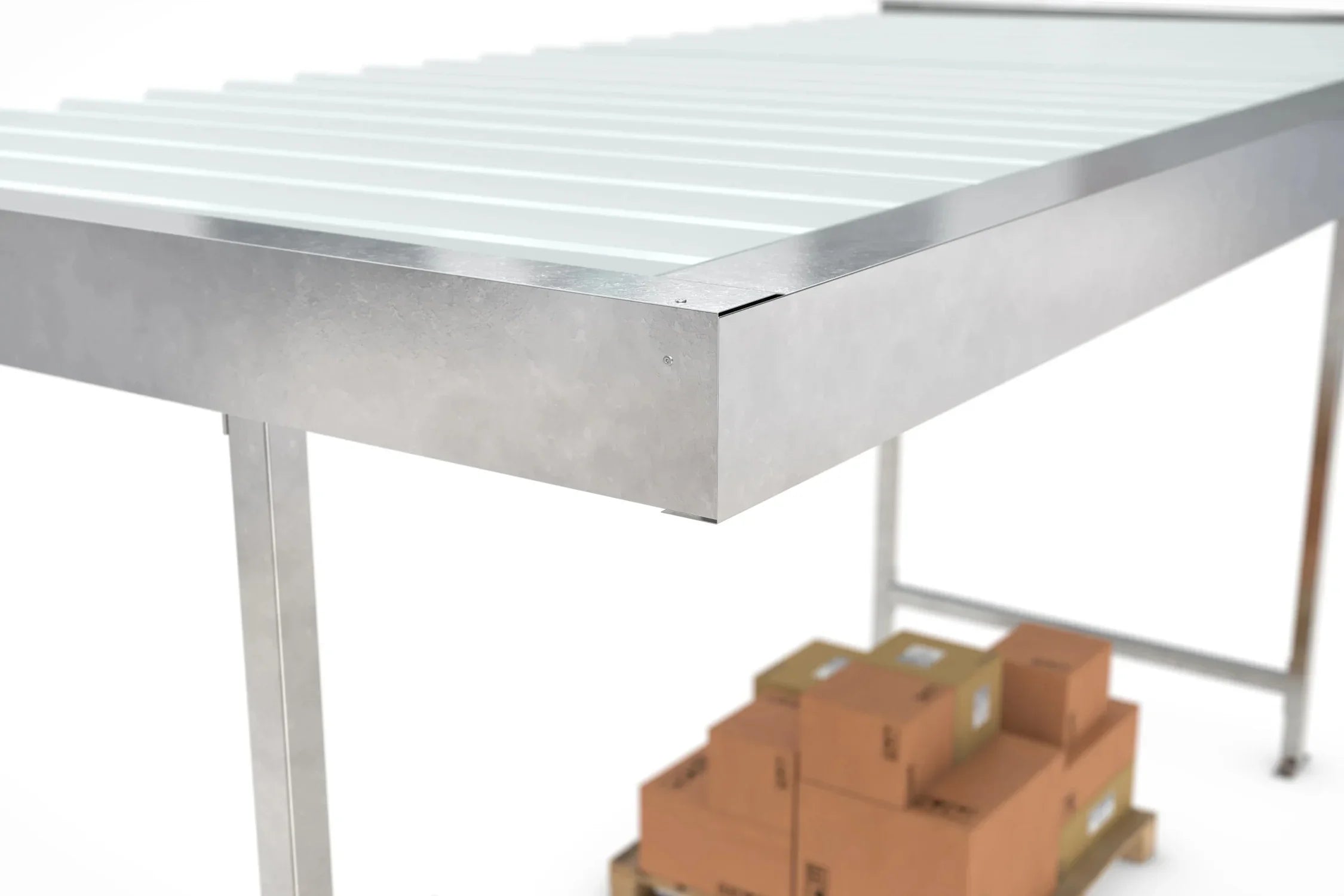

Verzinkte Überdachung aus Metall, Detailansicht, stabil, wetterfest, mit Paketen darunter

Canopy, smoking cabin, material/bicycle shelter model Leipzig L14 - 430cm x 220cm - galvanized

✓ Robust steel construction – hot-dip galvanized & durable

✓ Versatile use as a bicycle or smoking shelter

✓ Modular kit system for easy self-assembly

✓ High stability up to 0.75 kN/m² snow load

✓ Free shipping directly to your home

SKU: 102000132-OHNE-OHNE-OHNE
additional side wall:

additional side wall
additional back panel:

additional back panel
rain gutter:

rain gutter
1.423,24 €

Tax included. Shipping calculated at checkout

Delivery time: 14 to 21 days

Quantity:

Canopy, Smoking Cabin, Material or Bicycle Shelter Model Leipzig L14 - Galvanized Steel

Kit with easy-to-understand assembly instructions for self-assembly from a standardized flat roof basic system with trapezoidal sheet metal walls.
In combination with basic and extension units, and through the possibility of using trapezoidal sheet metal for rear and side walls, a variety of uses arises - open, semi-open or closed. The practical corrugated sheet roofing has a three-sided, screwed-on fascia and drains rainwater to the rear. Gutters and downpipes are available on request.

Dimensions:
Width: 4,300 mm
Depth: 2,200 mm
Height: 2,360 mm
Clearance height: 2,175 mm

Technical data:
Construction: Bolted / Kit
Roof type: Flat roof / Trapezoidal sheet metal
Drainage: Free dripping at the rear, optional with gutter
Surface: Hot-dip galvanized or additionally color-coated - RAL 9002
Pipe diameter: 60 mm
Rear / Side wall: Support frame with trapezoidal sheet metal
Snow load: 0.75 kN/m²
Weight: 210 kg
Wind load zone: Zone 1 to 2
Warranty: 5 years

Applications:

  • Bicycle shelter
  • Smoking cabin
  • Storage area canopy
  • Material canopy
  • Equipment canopy
  • Empty container storage
  • Waste enclosure
  • Recycling shelter
  • and much more.


Canopy, Smoking Cabin, Material / Bicycle Shelter Model Leipzig L14 - 430cm x 220cm - galvanized - Kirchberger Metall Onlinevertrieb GmbH

Delivery:
Delivery as a kit including foundation and assembly plan. Incl. stainless steel floor mounting material (dowels).

Information on construction and assembly:
Assembly instructions Leipzig - Click on the link!
