Waiting Hall & Awning System Oslo – Functionality Meets Design

The modern awning system of the "Oslo" series combines an elegant design, clearly visible from all sides, with high functionality. Thanks to the combination of robust materials and transparent aesthetics, the waiting hall is not only durable but also visually appealing and unobtrusively integrates into any modern environment.

Material and Construction

  • Supporting Structure: The highly stable, hot-dip galvanized steel construction consists of durable steel profiles.
  • Roof & Drainage: Modern flat roof with a covering of powder-coated trapezoidal sheet metal. A special highlight is the effective and concealed water drainage, which occurs invisibly through the rear right corner post.
  • Side and Rear Walls: Large-area glazing made of toughened safety glass (ESG) ensures maximum transparency and wind protection.
  • Paintwork: Individual paintwork in a RAL color of your choice. The coating complies with at least corrosivity protection class C4 medium and offers excellent weather protection.
  • Load Capacity & Installation: The construction is extremely resilient and can withstand a snow load of 1.90 kN/m² even in bad weather. Installation is securely done by concreting into the foundation.
  • Optional Accessories: Adapt the system to your requirements – with a wide range of accessories such as green roofs, lighting, or solar modules.

Model Overview

To flexibly adapt to your available space, the "Oslo" series is available in two widths, each in a standard and a raised (UP) version. All models have a uniform depth of 1800 mm and a clear passage height of 2360 mm.

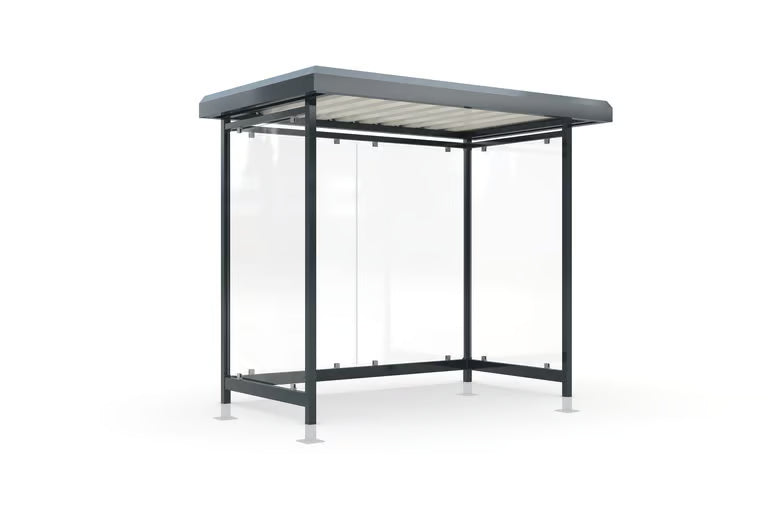

  • Oslo O2 (Compact):
    With a width of 2995 mm, this model offers enough space for small to medium-sized groups of people.
    • Standard Version (Item No. 102000203): Total height 2540 mm.
    • UP / Raised Version (Item No. 102000671): Total height 2740 mm.

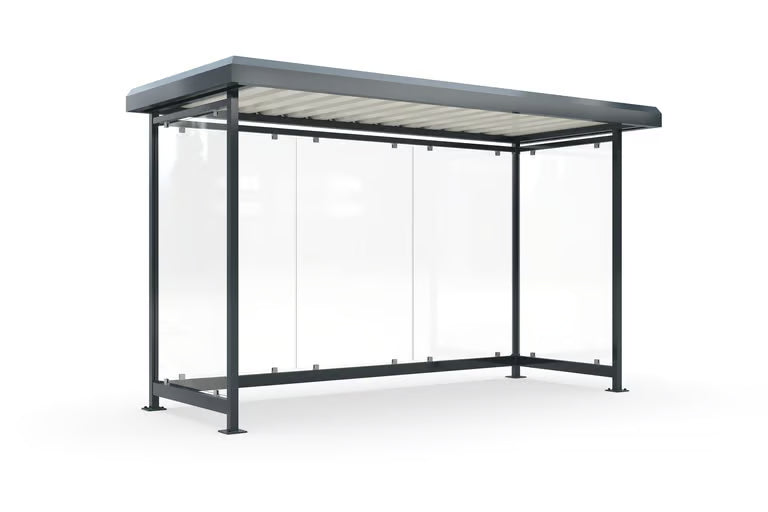

  • Oslo O3 (Medium):
    With a width of 4250 mm, this model is ideal for locations with higher foot traffic.
    • Standard Version (Item No. 102000205): Total height 2540 mm.
    • UP / Raised Version (Item No. 102000687): Total height 2740 mm.
