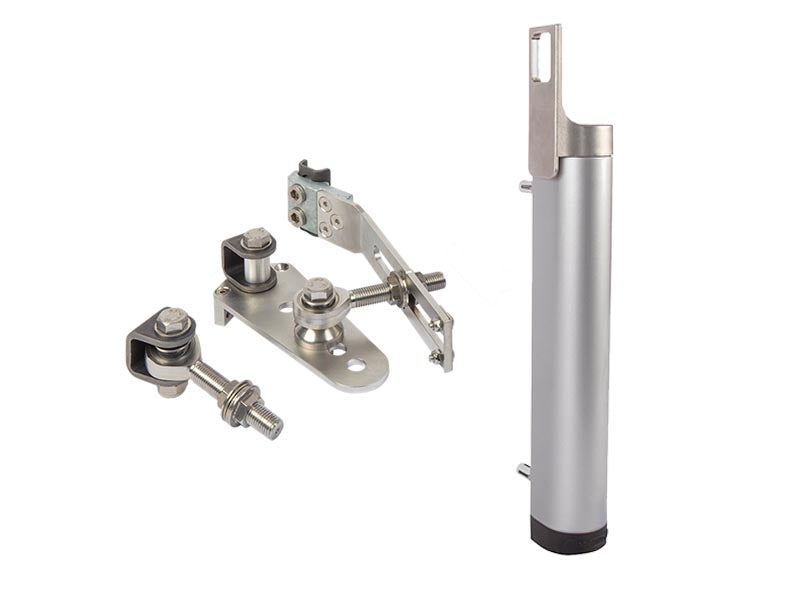

Torbandset EXCENTRO mit steigenden Bändern und Torschließer RHINO

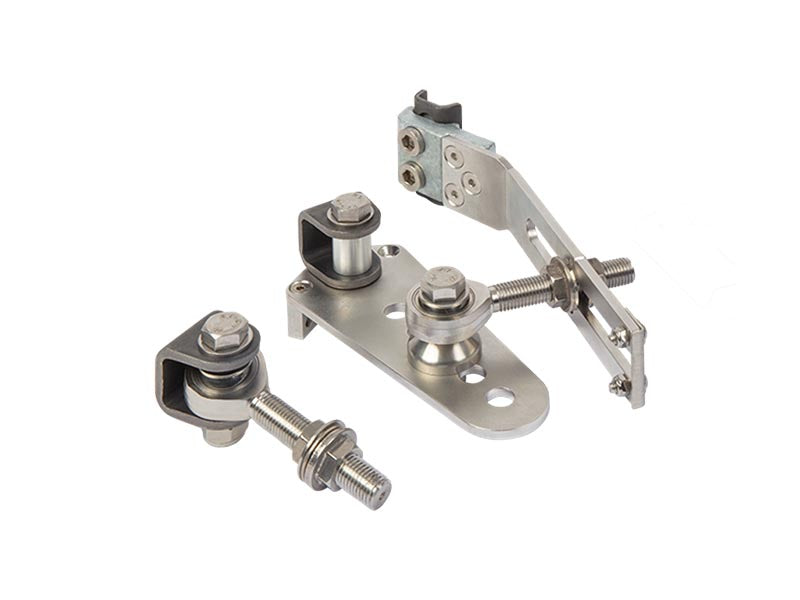

Steigende Torbänder EXCENTRO, feuerverzinkt mit Edelstahlkomponenten

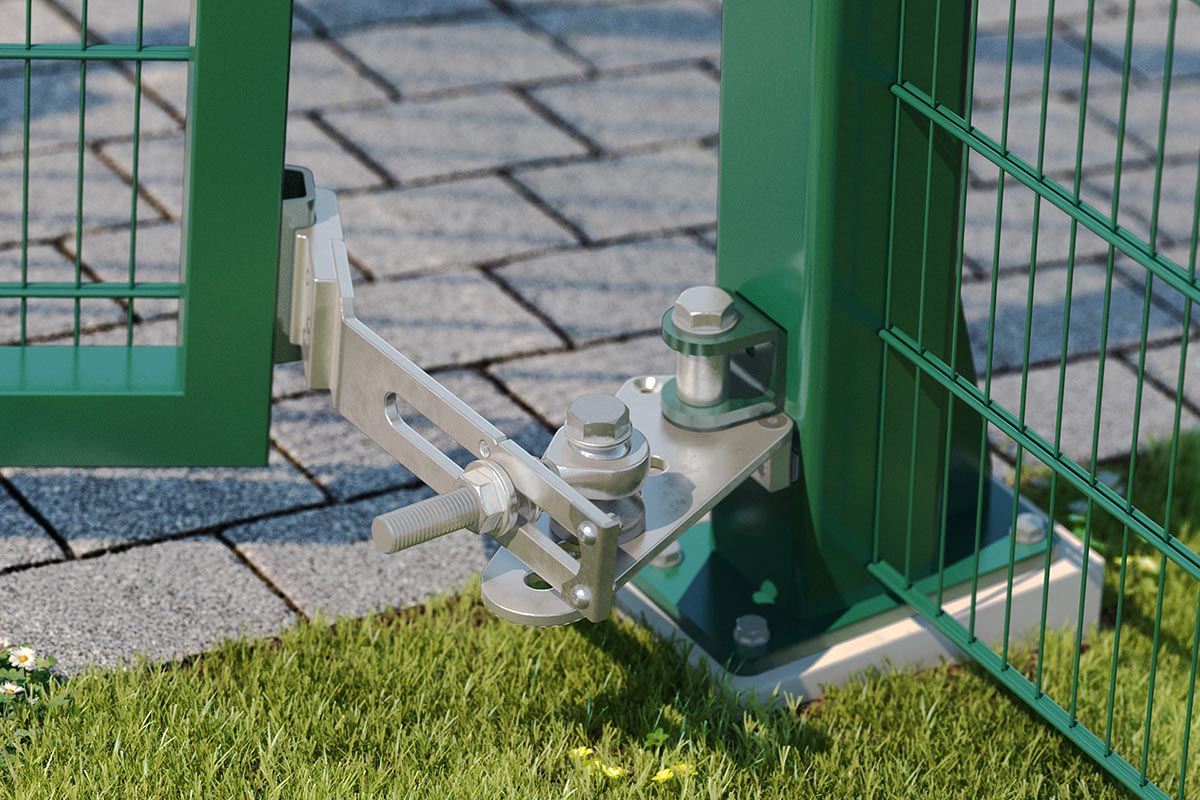

Torbandset EXCENTRO am Torpfosten eines Doppelstabtors montiert

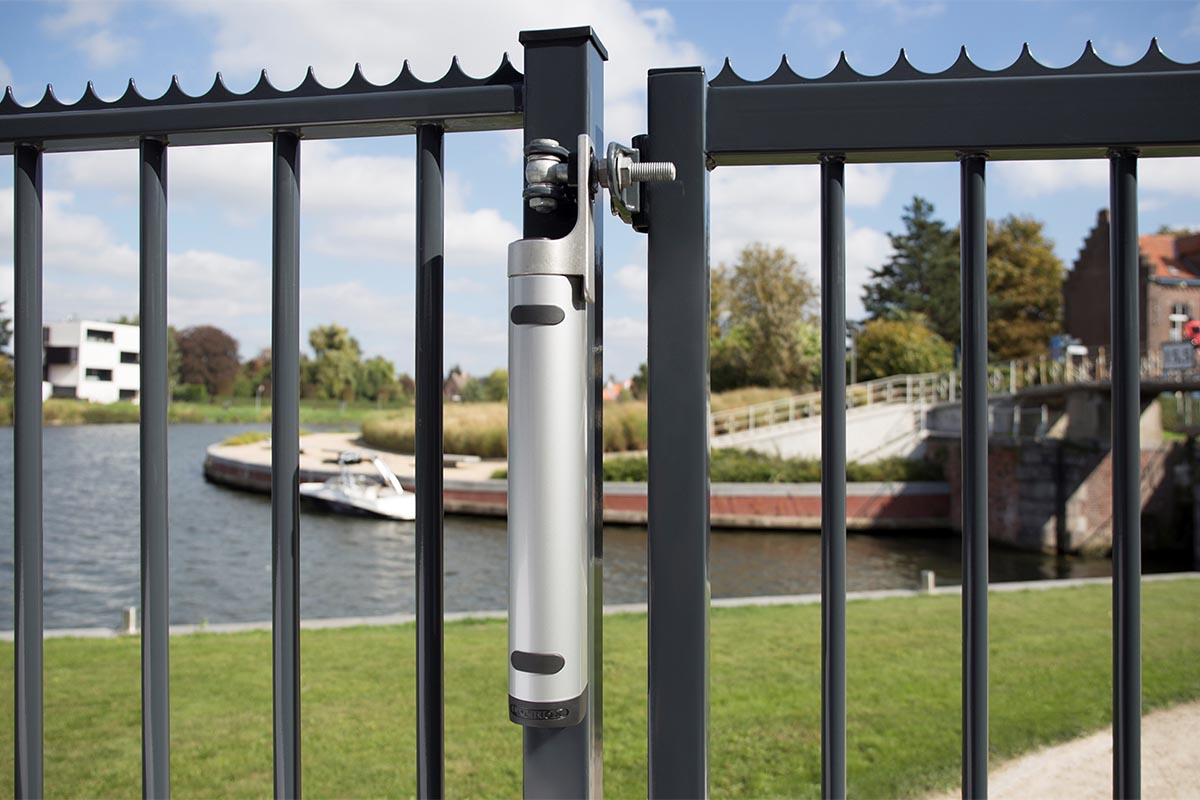

Torschließer RHINO am Tor montiert

EXCENTRO Gate Hinge Set for Gates on a Slope – with RHINO Gate Closer, Adjustable from 2 to 35 %

Black Weeks bis 30.11.: bis zu 400 € Rabatt ab 500 € Warenwert Stufen
SKU: TZ-ZTTBSSTRHINO

Rising hinges for gates on slopes, 2 to 35 %

With RHINO hydraulic gate closer

Opening up to 180°, can be used left and right

Hot-dip galvanized with stainless steel components

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Für Gewerbe und Kommunen: Bis 18.12. bestellen – auf Wunsch stellen wir die Rechnung noch 2026. Eine kurze Nachricht an shop@kirchberger-metall.de genügt.

Quantity:
738,28 €inkl. MwSt.

Parcel or freight item: plus shipping, free shipping within Germany from €1,000 Shipping info

Lieferzeit: 2 to 3 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Satispay Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

EXCENTRO Gate Hinge Set: Opening Gates Cleanly on a Slope

If the path behind the gate rises, a conventionally hinged leaf drags on the ground as it opens. Rising hinges lift the leaf as it swings open. The EXCENTRO set is adjustable for slopes from 2 to 35 %. How much slope is possible depends on the distance between the two hinges.

The manufacturer strongly recommends using the rising hinges together with a hydraulic gate closer for controlled closing. That is why the RHINO gate closer is included in the set.

Scope of Delivery

  • Gate hinge set for rising hinges: hot-dip galvanized hinge with stainless steel components
  • RHINO hydraulic gate closer, silver, including mounting hardware

Technical Data

  • Opening and closing angle: 180°
  • Adjustable for slopes from 2 to 35 %, depending on the hinge spacing
  • For left-hand and right-hand gates
  • RHINO gate closer: gates up to 150 kg, gate width up to 1500 mm, opening up to 180°
  • Mounting on site

The gate closer is also available separately as LION or RHINO. Further hardware under Gate Hardware & Gate Accessories.

Questions and Answers

Each product page states the gate series the manufacturer intends the part for, for example VARIO light, compact, plus or trend. If you bought the gate elsewhere or do not know the series, send us a photo of the fitting together with its dimensions. We check that the part fits before shipping.

All profile cylinders marked KA21 open with the same key. If your garden gate and driveway gate are to open with one key, order the KA21 version for both gates.

On a double-leaf gate one leaf is held in place, the fixed leaf. The other leaf closes against it and is locked there. Without a gate stop the active leaf has no fixed counterpart. If the gate stop works with a bolt into the ground, that bolt needs a socket, for example a ground sleeve.

With a lever handle on both sides the gate can be opened from the inside and the outside without a key. A fixed knob on the outside is only a grip; from that side the gate is opened with the key. This is the usual solution when the gate should not open easily from the street.

This varies from part to part and is stated on the product page under Technical data. The serrated strip comes without screws, the wall mount without bolt anchors, and the aluminum stop for swing gates without accessories.

For the VARIO trend gate series there is a wall mount for this: a plate measuring 150 x 100 mm with four M12 holes for bolt anchors. The bolt anchors are ordered separately.
