Smoking shelter, bicycle shelter, pedestrian shelter model Passau P23 kit - 535cm x 442cm

Smoking Shelter, Bicycle Shelter, People Shelter Model Passau P23 - Galvanized Steel, Powder-Coated in Color of Choice

Hot-dip galvanized steel structure with large glass surfaces and a monopitch roof in variable sizes, with selectable side walls and pre-approved type statics.

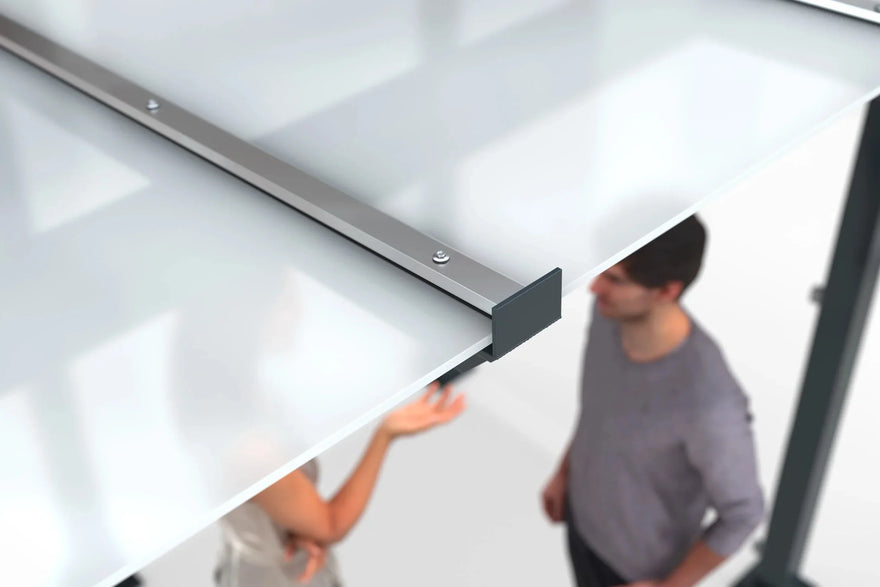

A shapely shelter, easily visible from all sides, ideally suited for people or bicycles, made of galvanized steel profiles and safety glass. Load-bearing frame construction made of profile tubes. Monopitch roof made of laminated safety glass (VSG) with drainage via bitumen-coated edge profiles at the rear of the roof. Drainage is via gargoyles on both sides (water outlet approx. 120 mm above the ground).

Corrosion Protection: The entire structure is galvanized, primed, and color-coated or painted with environmentally friendly two-component paint.
Corrosion protection class: C4 medium (corrosivity in accordance with DIN EN ISO 12944-2)
Roofing: Laminated safety glass (VSG)
Steel construction: RAL of choice (excluding pearl and signal colors)

Variable sizes and numerous options for rear and side walls – including printable ESG – create weather-resistant shelters for vehicles, materials, or comfortable common areas. Individual coloring, implemented in at least C4 medium quality, supports your CI concepts and design wishes.

The existing type statics for high wind and snow loads save you time and money.
Wind and snow loads Sk = 1.9 kN/m2
The characteristic Sk value in the snowiest zones (3) in Germany is greater than or equal to 1.10 kN/m2.
The constructions are also approved for wind load zones I - III and are therefore approved throughout Germany.

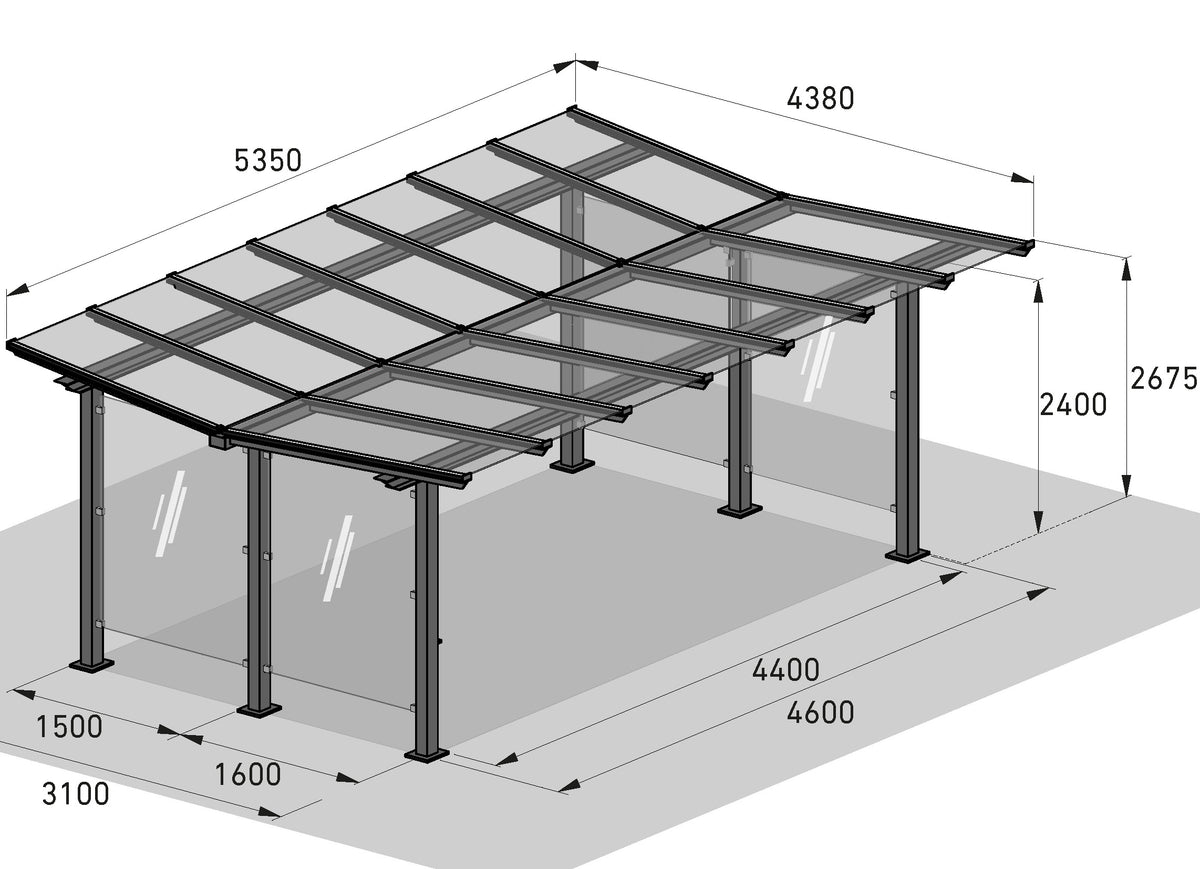

Dimensions:
Width: 5,350 mm
Depth: 4,420 mm
Height: 2,435 mm
Clearance height: 2,200 mm
Height with paving: 2,635 mm

Technical data:
Number of wall elements: 4
Construction: Screwed / Kit
Roof type: Monopitch roof / Laminated safety glass (VSG)
Drainage: Via gargoyles
Surface: Hot-dip galvanized and color-coated - RAL color of choice
Pipe diameter: 100 mm
Rear wall type: Toughened safety glass (ESG)
Side wall type: Toughened safety glass (ESG)
Snow load: 1.90 kN/m²
Wind load zone: Zone 1 to 3
Warranty: 5 years

Glass design screen printing:
The wall elements made of toughened safety glass (ESG) are printed with stripes, grids, ornaments, coats of arms, logos, photos, etc.
There are no limits to your design. They also offer the ideal blank canvas for advertising, notices, pictograms, etc.
Please select the desired glass design in the selection field.

Delivery options:

• Kit delivery - The double-sided models Passau P22, P23, P24 can only be delivered as a kit.

Options for foundation, base plates, fastening:

For fastening to the ground or for the foundation, the following options are available:

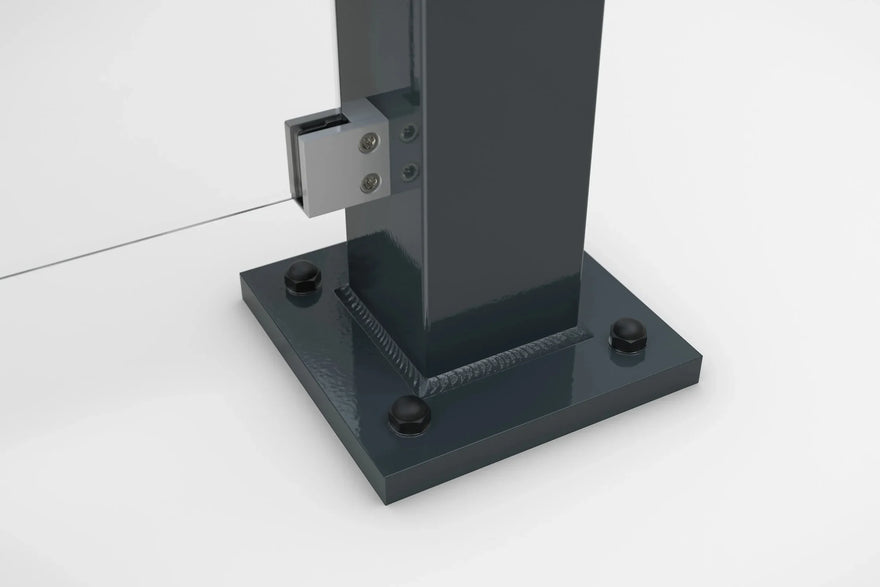

• Fastening to existing foundation (OKF +/-0) - for bolting to foundation points or base plates provided by the customer.
• Paved subsoil (OKF -200) - For this, you receive support pillars extended by 200mm, which are fastened with bolts or high-bond anchors and then paved over. Other lengths than 200mm are also available on request.

Options for unloading and on-site assembly:

• Self-unloading - You have the option of unloading the goods yourself on site, so we do not need a crane truck.
• Unloading by crane truck - Delivery and unloading on site by crane truck, without assembly.
• Unloading by crane truck incl. on-site assembly - Shelter is unloaded by us, positioned, professionally assembled on site, and doweled to the ground.

Frame color of choice: Color of the profiles
Please specify the desired RAL color in the input field. An overview of all RAL colors can be found here - please click on the link.



Matching accessories: (please scroll all the way down)

• Lighting - Toplight LED luminaire - Energy-efficient lighting system with LED technology for more safety in the dark. Uniform illumination of the shelter is achieved by a wide-beam cross prism.
• Lighting with photovoltaics - identical to Toplight LED with solar panel incl. post and base plate for bolting. Independent of the power grid. The built-in battery has a capacity of 432 Wh.
• Heating - Infrared radiant heater, specially designed for roofing systems. The flexibly attachable radio push button (battery-free) simplifies installation. The time control supports the sustainable operation of the heating.
• Ashtrays - Various models and designs
• High table - Various models and designs

Notes on assembly by us:
The necessary foundations are to be constructed by the customer according to our specifications.
With the order confirmation, you will receive a foundation plan, whereby we assume normal ground conditions (2 kg/sqcm) for dimensioning.
It must be ensured that drillings of at least 100 mm can be made into the base plate without reinforcement.
There are no supply lines in the area of the floor dowelling.
The offer assumes no longitudinal or transverse gradient to such an extent that an adaptation of the construction is necessary.
In specific cases, we would be happy to offer you a gradient adjustment (at an additional cost) on request.
Foundations to be constructed must be on the same level and level without a gradient, with a maximum height difference of +/- 5 mm.
Doweling by our assembly team on paved or asphalt surfaces (tar, bitumen, etc.) is not permitted.

Packaging:
The packaging material required for truck transport (wood, PE film, cardboard, etc.) will be disposed of by you on site.

Delivery time:
approx. 6-8 weeks after order confirmation

Exclusion from exchange:
Items coated in RAL colors, custom-made items, or individually manufactured items are excluded from exchange (return).

Manufacturer:
Kirchberger Metall Onlinevertrieb GmbH
Neunburger Str. 2c
92431 Neunburg v. W. / Seebarn
Germany

Contact:
Email: shop@kirchberger-metall.de
Telephone: +49 (0) 9672 9269110
