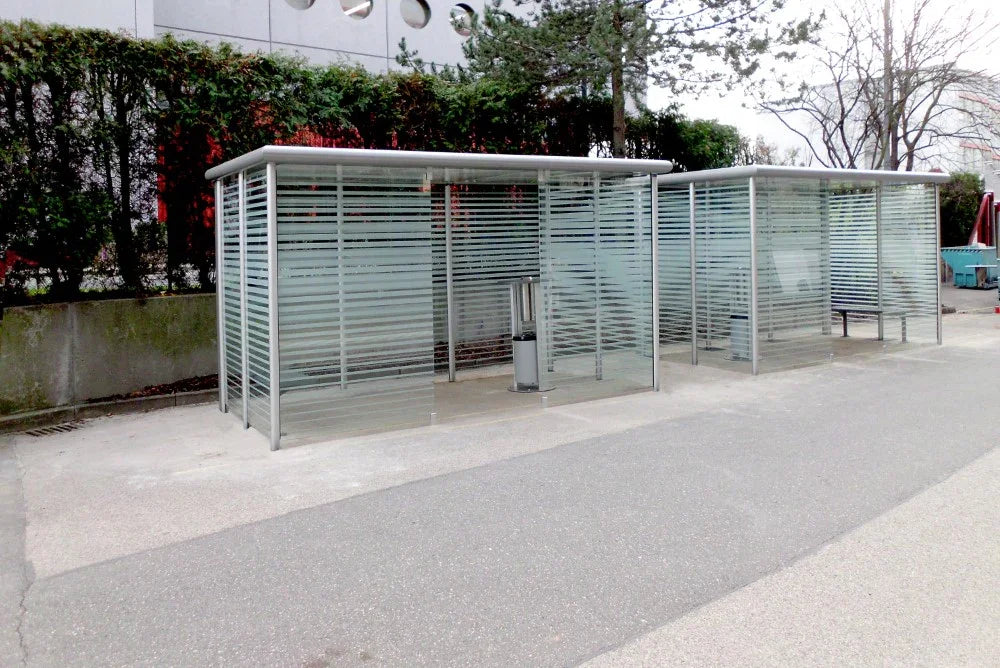

Smoking Shelter R15 2.0 with Foundation – Smoking Shelter & Canopy for up to 15 People

A professional smoking shelter enables clean spatial separation in accordance with non-smoker protection laws without compromising the comfort of employees or guests. It also keeps the company premises clean, as it provides a central gathering point and minimizes uncontrolled littering.

The series comprises four fixed sizes: R6, R10, R12 and R15 for up to 6, 10, 12 and 15 people respectively. All four have the same construction – posts and roof frame made of extruded aluminum profiles in DB 703 iron mica, wall surfaces of 8 mm toughened safety glass, flat roof in sandwich construction. They differ only in floor area and in the number of glass panels.

You are free to choose the lighting, the privacy decor in ceramic screen printing and the delivery zone; both are taken into account at the factory. Special widths, a different number of side walls or open versions are not available within this series. If you are looking for an open canopy, you will find one in the Köln or Passau steel construction ranges.

The smallest model, the R6, measures 2,730 × 1,620 mm; together with the concrete foundation slab of 3,000 × 1,500 mm this gives a footprint of around 4.5 m². It therefore fits on most leftover and peripheral areas, for example next to employee parking spaces or at the rear of the building.

What matters more than the area itself is the access route: the shelter is delivered fully assembled and set down by crane truck. The installation site must be reachable for a 40-tonne vehicle and freely accessible for the crane boom. Because the shelter is not anchored into the ground, it can be moved to another spot at any time by crane or forklift.

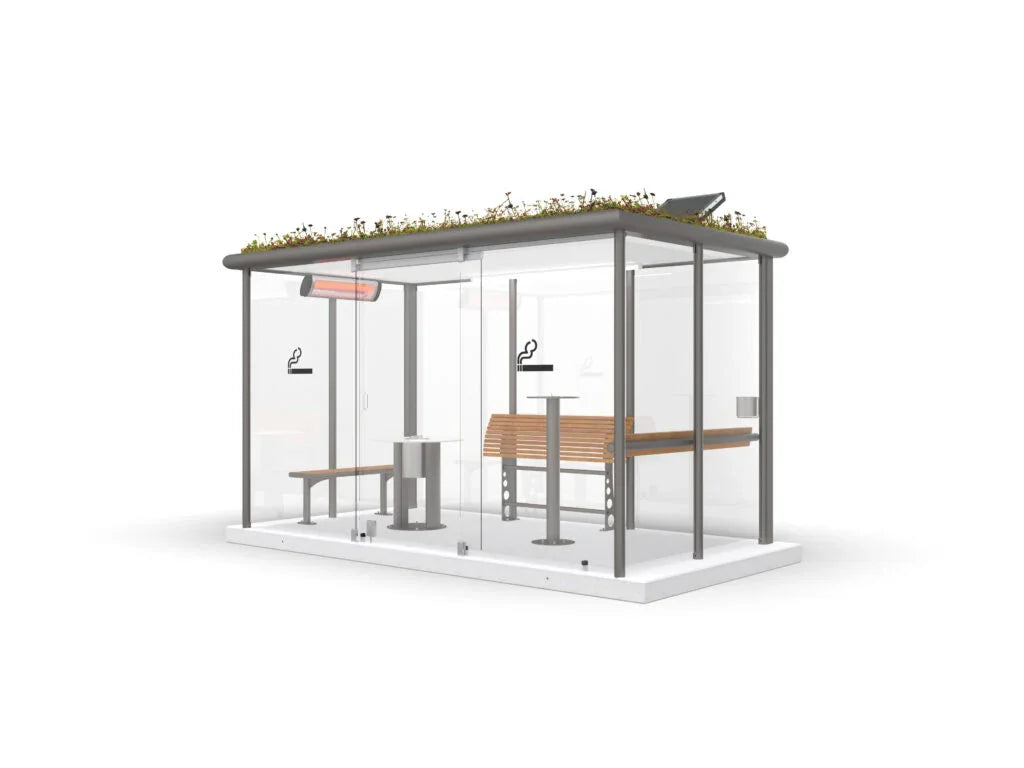

Lighting and privacy decor are installed at the factory. You select both directly in the product options so that they are taken into account during production: available are an LED light bar, a surface-mounted solar light, a solar light recessed into the roof and a privacy decor in ceramic screen printing.

Available separately are benches with an aluminum or wooden-slat seat, EPSI 2.0 ashtray tables with or without a lock, the Smoke-Table Design Line standing smokers' table, leaning benches in 1,000 and 1,500 mm, Kip-Ex stainless steel wall ashtrays, an infrared patio heater with a timer module and a green roof that can be combined with a solar system.

No. The shelters of the RX 2.0 series leave the factory fully assembled and are set down on the prepared ground by crane truck – this usually takes around 30 minutes. On-site assembly is not needed at all, and neither is concreting a foundation.

All you need to prepare on site is a level, compacted bed of sand or gravel and an access route for a 40-tonne vehicle. We are happy to advise you in advance on choosing the location, checking the access route and selecting the right size; you will find a checklist for truck delivery on every product page. Electrical connections for lighting or patio heaters are made on site by a qualified electrician.

The optimal size depends on your desired site capacity and the required level of protection. In practice, around 0.5 to 1 square meter of space per person is usually calculated for a comfortable standing spot.

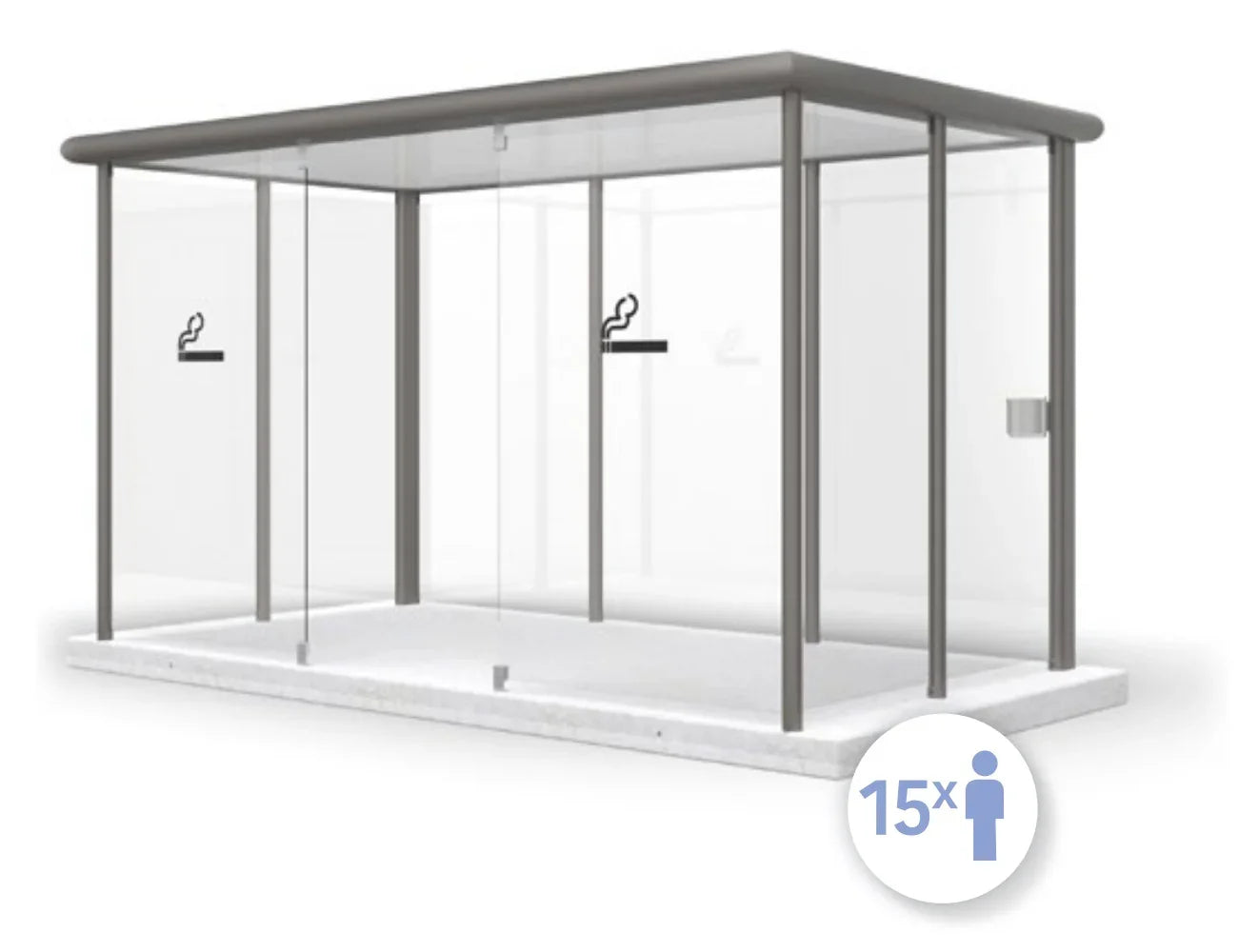

There are four sizes, all 2,280 mm high. The R6 measures 2,730 × 1,620 mm for up to 6 people and weighs around 2,500 kg including the foundation. The R10 measures 3,950 × 1,620 mm for up to 10 people at around 3,000 kg. The R12 measures 2,730 × 2,250 mm for up to 12 people at around 3,500 kg. The R15 measures 3,950 × 2,250 mm for up to 15 people at around 4,000 kg.

In each case the concrete foundation slab is slightly larger than the shelter and determines the footprint required. The capacity figures refer to a short stay in a standing position.

Transport and installation are charged according to the distance between our plant and your site. You simply enter your postal code on the product page – the applicable distance tier is determined automatically and the delivery price is immediately included in the price shown. There are five tiers, from 200 to 1,000 kilometers. If your site lies beyond that, we calculate the transport individually. If you collect the shelter yourself, the transport costs are dropped entirely; we arrange the pickup address and date after the order. Larger shelters with a width of 3,950 mm fall into a higher freight tier than the narrow models because of their transport width.

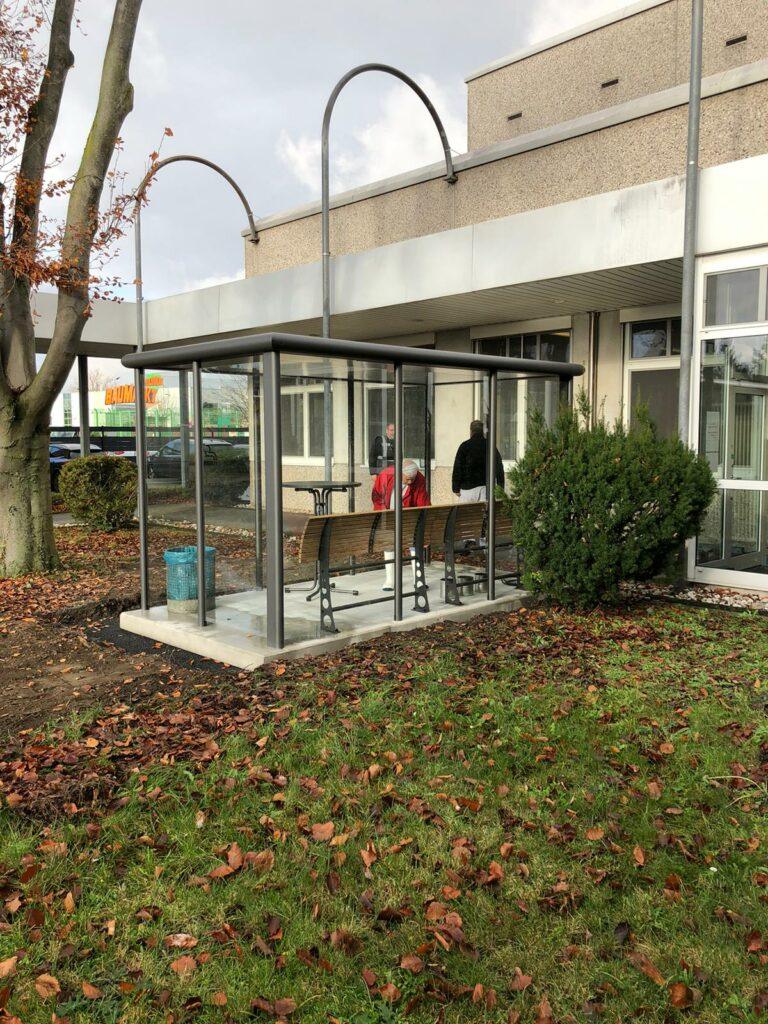

No. The smoking shelters of the RX 2.0 series are delivered fully assembled on a reinforced concrete foundation slab, which is part of the scope of delivery. All you need to provide on site is a level, compacted bed of sand or gravel. There is no need for excavation work, strip foundations or concreting on site. Because the shelter is not anchored into the ground, it can be relocated later by crane or forklift.

That depends on the state building code, the size of the shelter and the location. In several German federal states, free-standing canopies are exempt from approval up to a certain roofed area or enclosed volume; in commercial zones and for structures on the property line, additional requirements often apply. Because the shelter is set up without ground anchoring and can be relocated at any time, it frequently falls under simplified rules. Only the responsible building authority can give binding information – please clarify this in advance.

A continuous gutter runs around the roof frame. The water is collected through a stainless steel strainer and carried downward concealed inside the corner posts. The outlet ends above ground, above the foundation slab. A connection to the sewer system is not required, and there are no visible downpipes.
