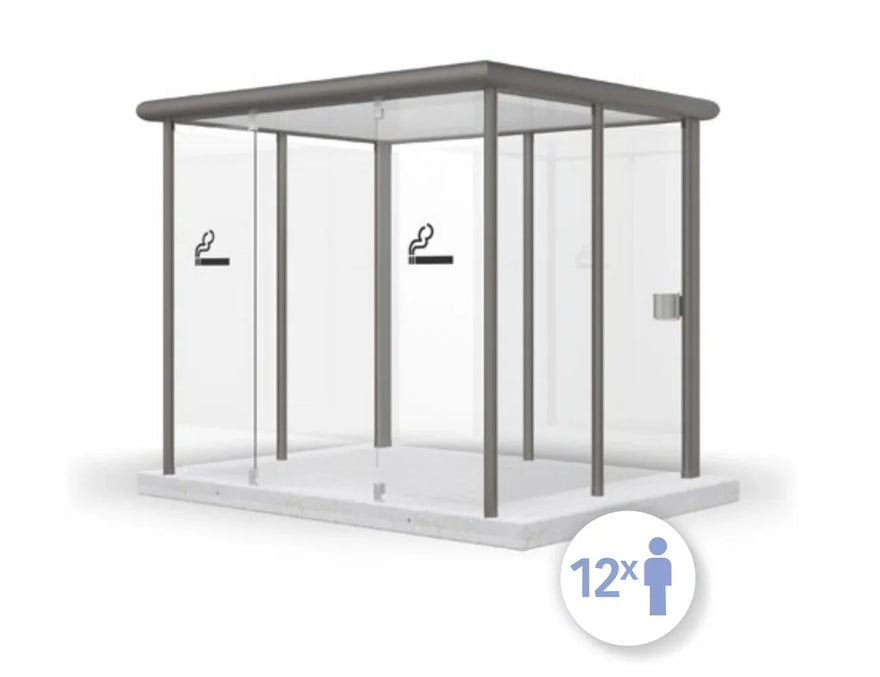

Raucherkabine aus Glas und Metall für 12 Personen, freistehend, mit Rauchersymbolen.

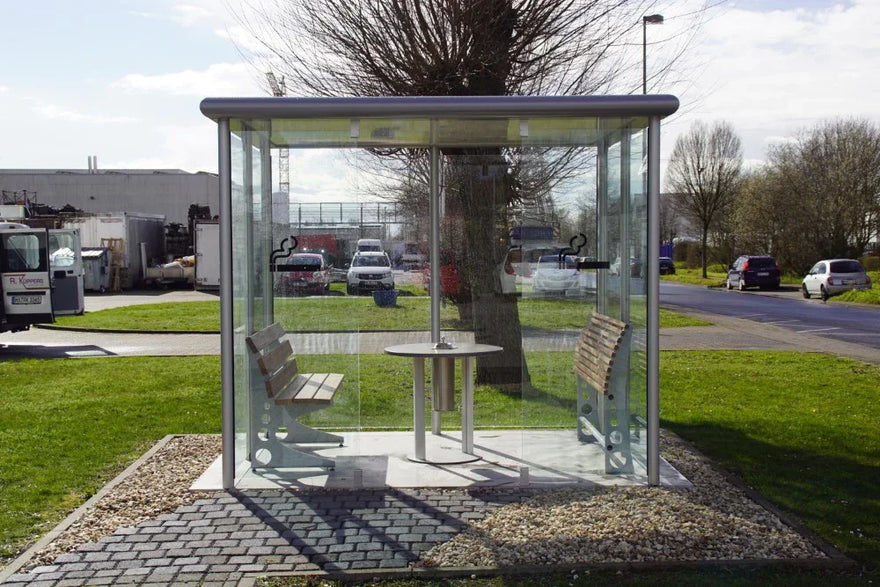

Raucherkabine aus Glas und Metall mit Sitzbänken und Tisch im Außenbereich

Smoking shelter/canopy/smoking cabin with foundation for up to 12 people

✔ Stable, weatherproof aluminum construction with type statics

✔ Delivery includes pre-cast concrete foundation slab

✔ Concealed internal drainage

✔ Seaside anti-graffiti powder coating in DB 703

✔ Double roof covering – no heating of the smoking cabin in summer

✔ Sustainable production: 80% aluminum from recycled profiles

SKU: A2004944-01
lighting:

lighting
Glass decoration:

Glass decoration
Delivery and unloading:

Delivery and unloading
7.830,20 €

Tax included. Shipping calculated at checkout

Delivery time: 4-6 weeks

Quantity:
5,0 82 Google-Bewertungen

Smoking Shelter & Smoking Cabin RX – for up to 12 People incl. Foundation

The smoking cabin model RX in the XXL version offers generous, first-class weather protection for up to 12 people. This model is the ideal solution for larger companies looking to create a central, clean, and weather-independent smoking area. What makes it special: the shelter is delivered fully assembled, including a solid concrete foundation slab. Thanks to delivery by crane truck, lengthy construction work on site is eliminated – the cabin is ready for immediate use as soon as it has been positioned.

Technical dimensions & weight:

  • Cabin (W x D x H): 2730 x 2250 x 2280 mm
  • Foundation (W x D x H): 3000 x 2130 x 140 mm
  • Total weight: approx. 3500 kg (incl. concrete foundation)
  • Entry opening: 1075 mm

Premium materials & protective features:
The construction consists of high-quality aluminum upright profiles in DB703 micaceous iron. A special Seaside anti-graffiti coating ensures an extremely resistant surface and makes cleaning considerably easier. The sandwich-construction aluminum roof (pure white RAL 9010) effectively protects against heat build-up in summer, while the wall elements made of 8 mm single-pane safety glass (ESG) offer maximum safety and transparency.

Your advantages at a glance:

  • Immediate use: Delivered fully assembled on a foundation slab – no kit chaos.
  • Durable & maintenance-free: Rust-free aluminum with anodized and powder-coated surfaces.
  • Intelligent drainage: A continuous rain gutter integrated into the roof drains water invisibly through the corner posts.
  • High flexibility: Thanks to the foundation slab, the entire cabin can be relocated at any time by crane or forklift.
  • Health management: Reduction of sick leave through optimal protection of employees from drafts and moisture.

Downloads & planning aids:
• Raucherunterstand-RX2.0.pdf
• LKW-Anlieferung-Checkliste.pdf
• Route planner to the plant in Hückelhoven (for calculating the delivery costs)

Optional accessories (excerpt from our range):

Item no. Description Net price
A2000013 Safety wall-mounted ashtray Kip-Ex stainless steel 101,00 €
A2002182 Smoke-Table DESIGN LINE – self-extinguishing standing table 955,00 €
A2006203 Bench RX 2.0 aluminum (DB 703) – 3 people 575,00 €
A2000179 Solar LED recessed lighting integrated into the roof 1.575,44 €

Important note on customer-provided services:
A level sand or gravel bed must be prepared on site prior to installation. Site access for a 40-tonne truck must be ensured. Any building permits that may be required must be obtained by the customer in advance.

Purchase on account available for B2B customers. Rely on certified quality directly from the manufacturer for your business!

Questions and Answers

A professional smoking shelter enables clean spatial separation in accordance with non-smoker protection laws without compromising the comfort of employees or guests. It also keeps the company premises clean, as it provides a central gathering point and minimizes uncontrolled littering.

The range extends from simple canopies open on one side to complex smoking pavilions or almost fully enclosed smoking cabins. The choice of the number of side walls directly affects the desired weather protection against wind, rain, or snow.

Yes, thanks to modular construction, the systems can be adapted flexibly. They can be optimally positioned on spacious open areas as well as in confined spaces such as courtyards or on roof terraces.

Functional components are available for the models (such as Modell K, Passau, or R). Combination ashtrays with an integrated waste bin are particularly space-saving and hygienic. To further increase comfort, we also offer weatherproof benches, standing tables, and integrated lighting systems.

From a technical standpoint, a level concrete foundation at the site is mandatory. The smoking shelter is professionally anchored to it using robust base plates to guarantee the necessary stability and structural safety under wind loads.

Yes, we assist you starting with the selection of the right size, taking maintenance and ease of cleaning into account. In addition to detailed documentation for efficient installation, we also offer a professional installation service for a code-compliant setup.

The optimal size depends on your desired site capacity and the required level of protection. In practice, around 0.5 to 1 square meter of space per person is usually calculated for a comfortable standing spot.

Systems such as Modell K, Passau, or R are based on modular constructions and are available in many sizes. The range extends from compact canopies open on one side for small teams to large, almost fully enclosed smoking pavilions or cabins. We are happy to help you select the right capacity for your premises.
