Photovoltaic Carport Solar Cover 2.0

SolarCover 2.0 – The intelligent photovoltaic carport for sustainable mobility

The SolarCover Carport is entering its 2nd generation: Thanks to optimized system components, new partnerships and more efficient production processes, the SolarCover 2.0 now offers even more power with the same number of modules and a sleeker look.

Thanks to the 75% more powerful modules and the new 12 kWp inverter (for up to four parking spaces), you can now generate even more energy

✓ 5550 Wp system output and a 12 kWp inverter

✓ Sleeker look due to minimalist roof frame design

✓ Improved drainage system

✓ Faster assembly thanks to optimized assemblies

✓ Certified double-glazed modules according to EN12600 for overhead mounting

✓ Basic equipment already includes three surface-mounted luminaires incl. presence detector

for interior lighting of the carport.

✓ System statics included! System statics with a proven snow load sk of 2.5 kN/m², for wind load zone 2/terrain category 2.

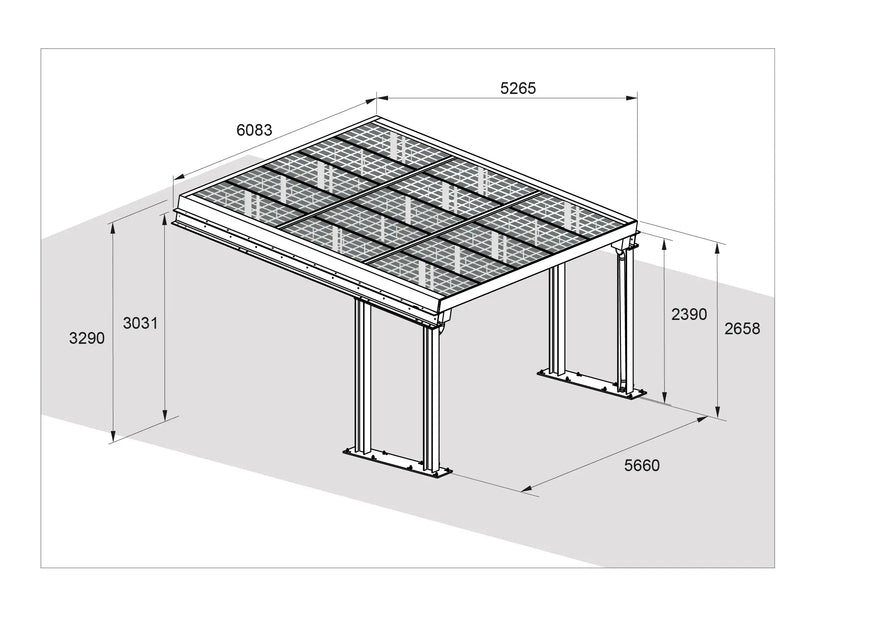

Basic unit dimensions:

Total width: 6,083 mm (grid dimension: 5,840 mm)

Total depth: 5,265 mm

Total height: 3,285 mm without paving, 3,085 mm with paving

Clearance height: 2,390 mm without paving, 2,190 mm with paving

Parking space width: 5,660 mm (2,840 mm per parking space)

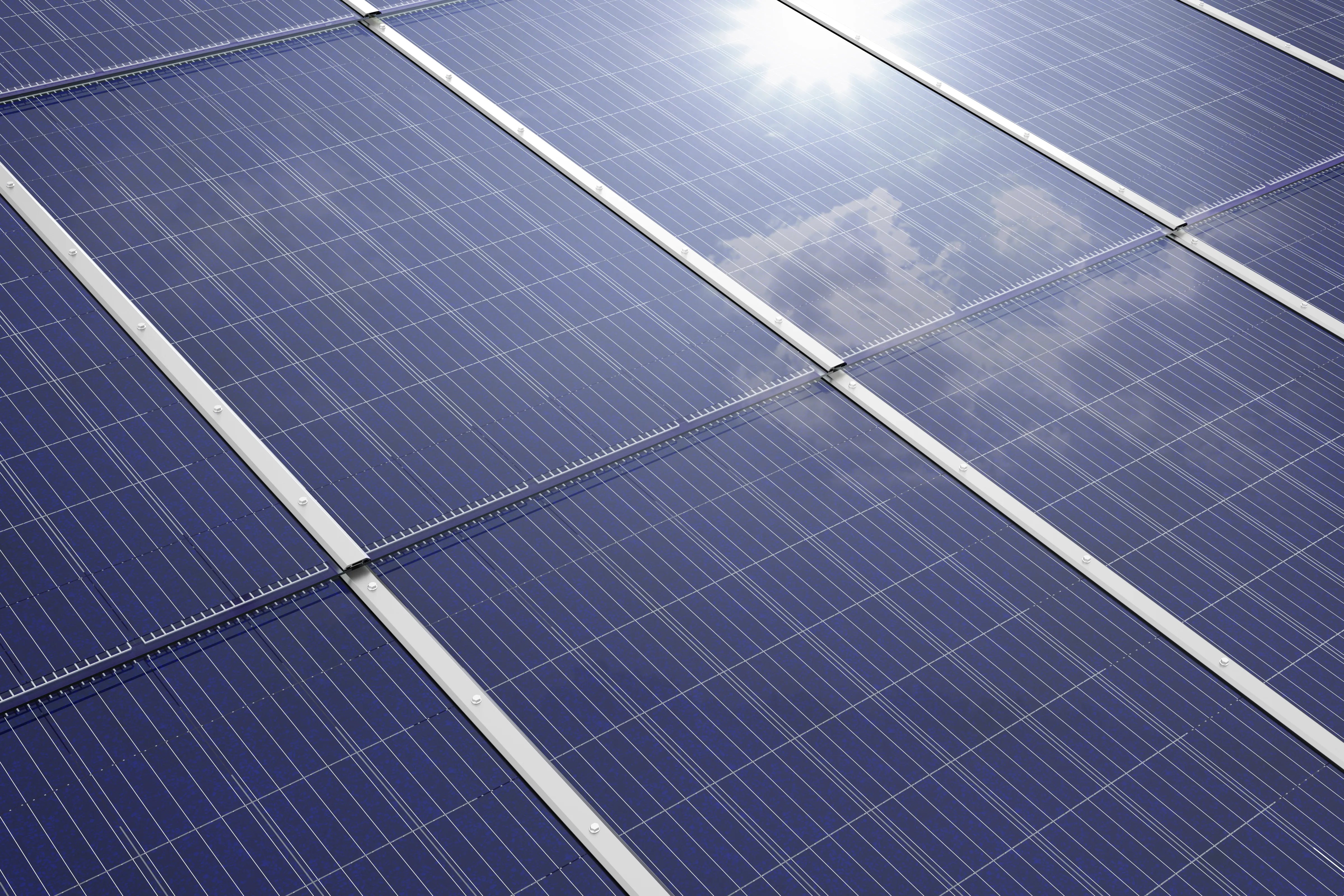

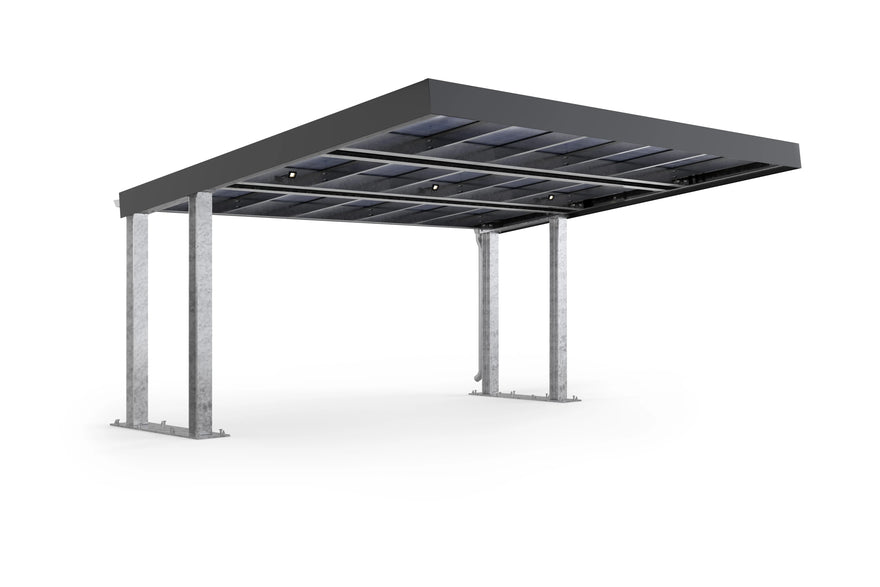

The support structure of the solar carport consists of hot-dip galvanized steel, which is particularly durable and low-maintenance due to its high corrosion resistance. The roof is covered with high-quality glass-glass photovoltaic modules with a thickness of 5 mm, which not only generate electricity but also allow for a pleasant play of light due to their 28% transparency.

The roofing consists of 15 modules per unit, each with a nominal output of 370 Wp, resulting in a total output of 5.55 kWp per module group. The modules are resistant to weathering and mechanical stress and comply with the highest safety standards with overhead and vertical approval according to DIN18008.

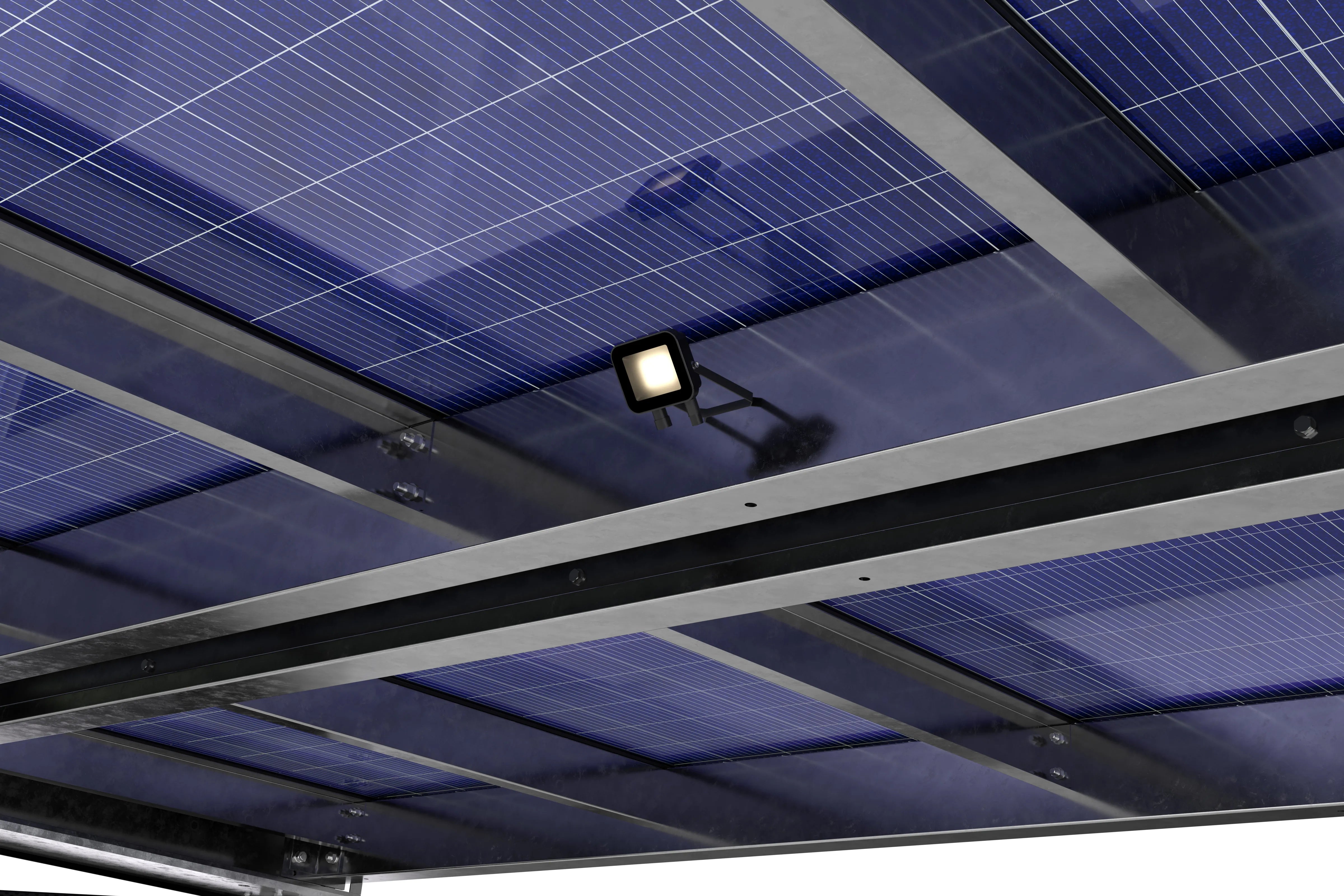

The basic equipment already includes three surface-mounted luminaires including a built-in presence detector for interior lighting of the carport.

Flexibly expandable – for growing requirements

Whether as a single carport with two parking spaces or as a complete row system:

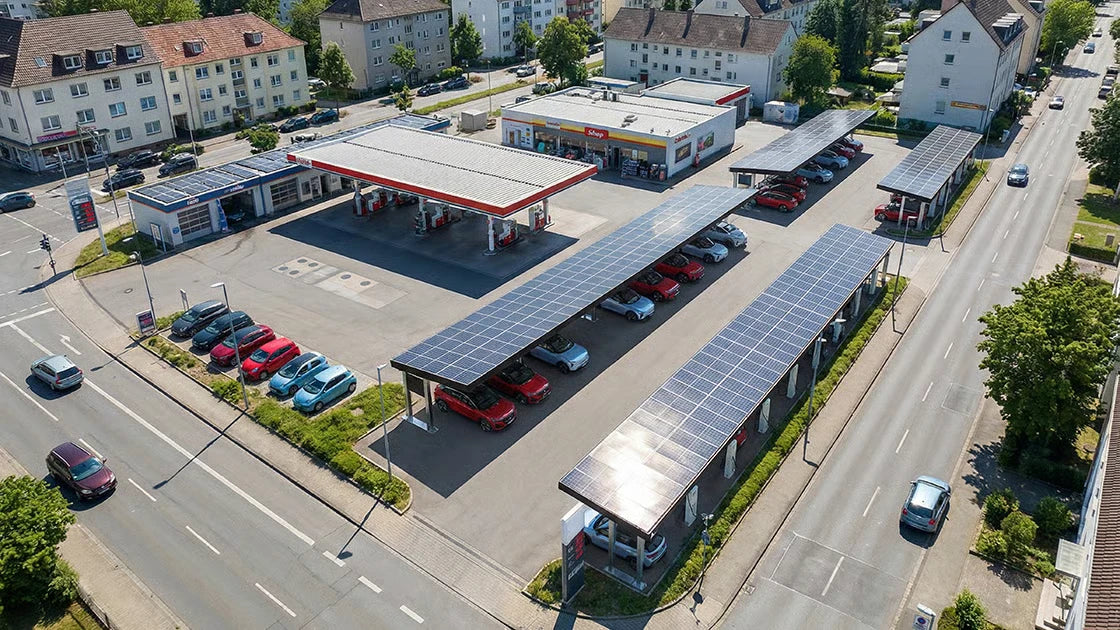

The SolarCover is based on a modular system, where the base module with two parking spaces can be extended by any number of extension units. This allows even large areas to be economically equipped with solar energy – for example, employee parking spaces, customer parking spaces or entire company fleets.

Example sizes (width × height × depth):

• Base module: 2 parking spaces

• Base module + extension module: 4 parking spaces


• Base module + 2 extension modules: 6 parking spaces

• ➕ Infinitely expandable


Optional: Electrical package for Carport Model SolarCover II (12kWp)

Three-phase photovoltaic inverter, sub-distribution and control cabinet. Installation of a control cabinet including a three-phase string inverter and sub-distribution with two MPP trackers for PV systems in the power range up to 12 kW for a maximum of 4 parking spaces. Installation between the two posts of the carport.

Control cabinet dimensions:

• Width: 1,140 mm
• Height: 800 mm
• Depth: 220 mm

Technical data:

• Recommended maximum PV power: 12,000 Wp
• Max. input voltage: 1,100 V
• Operating voltage range: 140–980 V
• Number of MPP trackers: 2
• Max. input current per MPPT: 13.5 A
• Max. short-circuit current: 19.5 A
• Max. efficiency: 98.6 %, EU efficiency: 98.1 %

Output (AC)

• Mains connection: Three-phase
• Rated power: 8,000 W
• Maximum apparent power: 8,800 VA
• Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+ PE
• AC - mains frequency: 50 Hz / 60 Hz
• Maximum output current: 13.5 A

Our inverter and the sub-distribution are protected in a control cabinet made of perforated steel sheet in RAL 9005 mounted between the two posts. The inverter is additionally secured against theft with a padlock. The control cabinet also includes the sub-distribution, which contains all relevant fuses for direct connection to the power grid. The inverter is a hybrid inverter, which optionally allows direct connection to an existing energy storage unit provided by the customer.

Advantages at a glance:

• Sustainable energy generation through high-quality glass-glass solar modules

• Efficient vehicle protection through stable steel construction

• Modularly expandable in steps of 2 (row system)

• Quick assembly in just a few hours thanks to pre-assembled components

• Tested safety according to DIN18008 and system statics for wind load zones

• Intelligent drainage system for dry parking areas

• Integrated lighting & motion detector included

Installation by us – Professional & efficient

You don't want to worry about the assembly yourself? We are happy to take care of the complete installation of your EcoCover carport system for you.

Scope of installation services:

• Professional final assembly by experienced technicians
• Travel to and from the assembly team included
• Assembly is carried out on foundations prepared by the customer by means of floor mounting (bolting down)
• Delivery & installation from a single source – efficient and reliable

Important prerequisites for installation by us:

• Foundations: Must have already been laid by the customer in accordance with the foundation plans provided
• Work equipment: A forklift or crane with at least 2,000 kg lifting capacity and 2.4 meter long forklift shoes or suitable crane rigging must be provided on site
• Work environment: Unhindered access for trucks and sufficient clear space at the installation site are absolutely essential
• Access & safety: Installation is carried out using tested ladders. If other work equipment (e.g., aerial work platforms) is prescribed, these must be provided free of charge
• Foundation plan: solarcover-drawing-foundation-plan.pdf

Note:

Installation does not include earthworks, paving, or foundation work. These must be carried out by the builder in advance.

Delivery & accessories:

• Delivery as a ready-to-assemble kit
• Includes stainless steel floor mounting material (only for use according to foundation plan)
• Optional installation service included – for a stress-free implementation

Manufacturer:
Kirchberger Metall Onlinevertrieb GmbH
Neunburger Str. 2c
92431 Neunburg v. W. / Seebarn
Germany

Contact:
Email: shop@kirchberger-metall.de
Telephone: +49 (0) 9672 9269110
