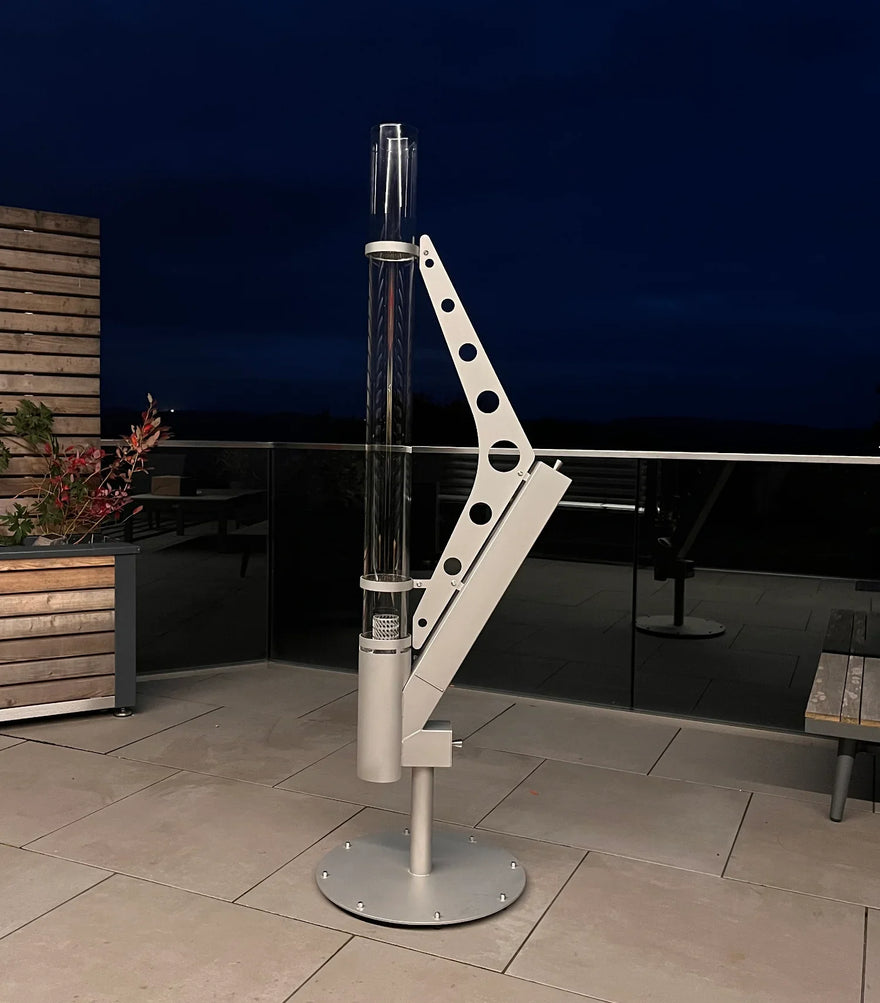

Pellet fire column fire tube heater "magic-pellet-fire" 4.0

Pellet fire column, fire tube, radiant heater "magic-pellet-fire" 4.0 - stainless steel, rustproof

magical - exclusive - ecological

New improved burner in version 4.0 - flame virtually soot-free

Advantages:
- environmentally friendly (fuel: wood pellets)
- rustproof due to material: V2A stainless steel
- Suitable for all open areas
- Operation possible even in rain
- No gas cylinders required
- Easy to use
- Long runtime
- Hardly any smoke
- No odor development
- No mess - ash ends up in the ash shovel
- Cost savings compared to gas
- No electricity required
- Ideal for restaurants, smoking areas, smoking zones and terraces,
- A real eye-catcher for any event such as barbecues, patio parties, birthday parties, weddings,

Various design panels to choose from: (select in the selection box above)

Cheer on:
1. Fill the pellet channel with pellets
2. Lift the glass tube and place it on the first pipe clamp.
3. Pour a squirt of liquid barbecue lighter fluid into the combustion channel from above.
4. Light the solid charcoal grill lighter cube and place it in the combustion channel.
5. Attach the glass tube.
6. Wait until the flame develops (approx. 10-15 min)
Lighting instructions can be found at: https://youtu.be/_mQP5LGMAHI

One pellet filling lasts for approximately 1 hour of fire. - Refilling the pellets during operation is possible!

The flame can reach a height of up to 1.2m.
The built-in pellet stop allows for a controlled combustion stop within 10 minutes.

Cleaning glass:
The glass tube accumulates soot over time and should be cleaned regularly.
The special cleaning brush (see accessories) allows you to clean the glass tube quickly and effectively.

Burner cleaning:
The burner should be cleaned of burnt material and ash after each use to ensure proper airflow and a good flame pattern.

Characteristics:
Base material: Stainless steel V2A
Surface: Stainless steel, ceramic blasted
Height of glass tube: 100cm
Diameter of glass tube: 10cm
Total height: 150cm
Diameter of round base: 46cm

Scope of delivery:
1. Combustion engine base with seal - made of ceramic-blasted stainless steel, without paint
2. Fireproof glass tube - 10cm x 105cm
3. Base - made of stainless steel, ceramic blasted, without paint
4. Ash scraper - made of ceramic-blasted stainless steel, without paint
5. Cover for pellet pipe - made of stainless steel, ceramic blasted, without paint
6. Decorative sheet metal - made of stainless steel, ceramic blasted, without paint
7. 2 pipe clamps - made of stainless steel, ceramic blasted, without paint
9. 4x M6 pan head screws, 8x M6 washers, 4x M6 nuts, 2x grub screws - all in stainless steel


Delivery and setup:
The product arrives as a kit - assembly is completed in just a few steps.
You can find assembly instructions here - please click on the link!

Accessories: (not included in delivery)
- 8 rubberized wheels to easily move the fire column without scratching the patio surface.
- Cleaning brush for cleaning glass tubes
- Protective cap for better heat dissipation and operation in the rain.

Additional paintwork:
- Thermo-coating (customer can paint the fire column himself if a black look is desired)
You can also find the paint in the shop - please click on the link!

Protected design - protected via DPMA and EUIPO!
With kind permission of Feuerrohr.de, where you can find more products and kits.

Free shipping and delivery to Germany and Austria!

Manufacturer:
Kirchberger Metall Onlinevertrieb GmbH
Neunburger Str. 2c
92431 Neunburg v. W. / Seebarn
Germany
