Modernes Edelstahlgeländer Bausatz vorgesetzt, Innenbereich, auf Galerie mit Holzfußboden

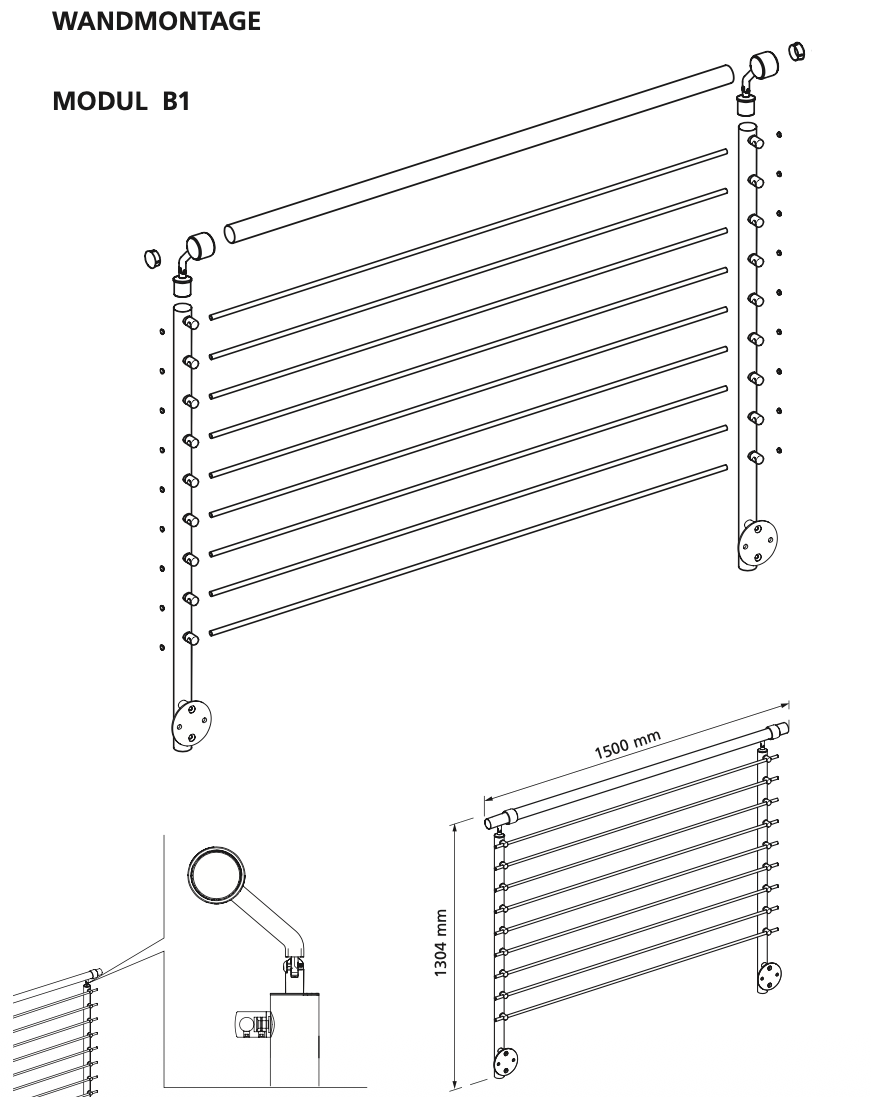

Zeichnung eines Metallgeländers, Wandmontage, Modul B1, Maße 1500x1304 mm, Reling-Geländer.

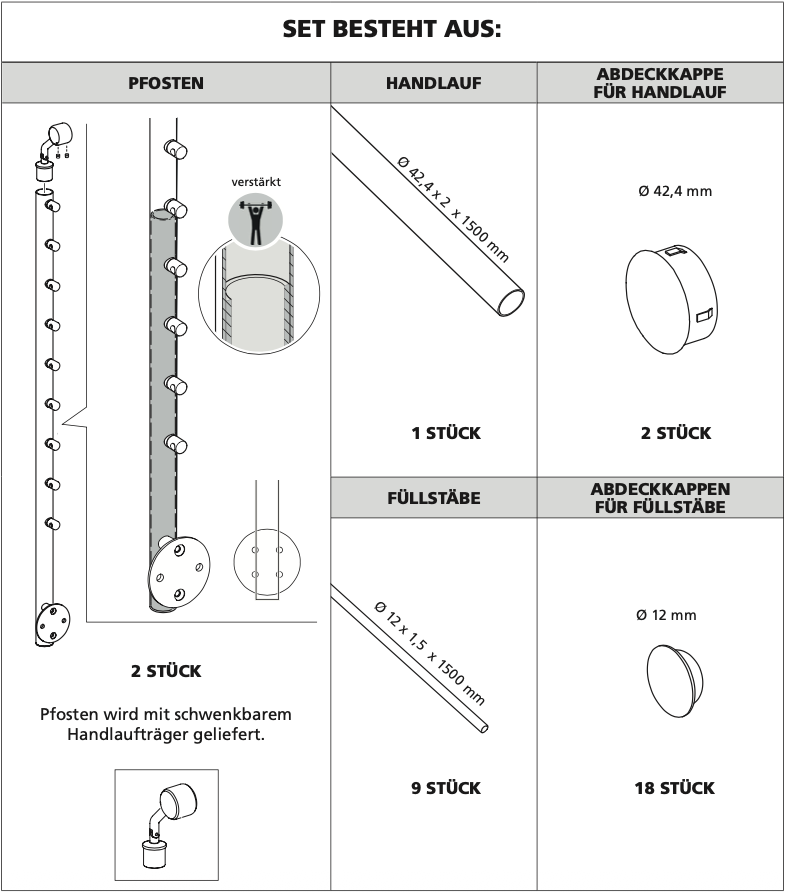

Metallbau Geländer-Set mit Pfosten, Handlauf, Füllstäben und Abdeckkappen, Komponentenübersicht

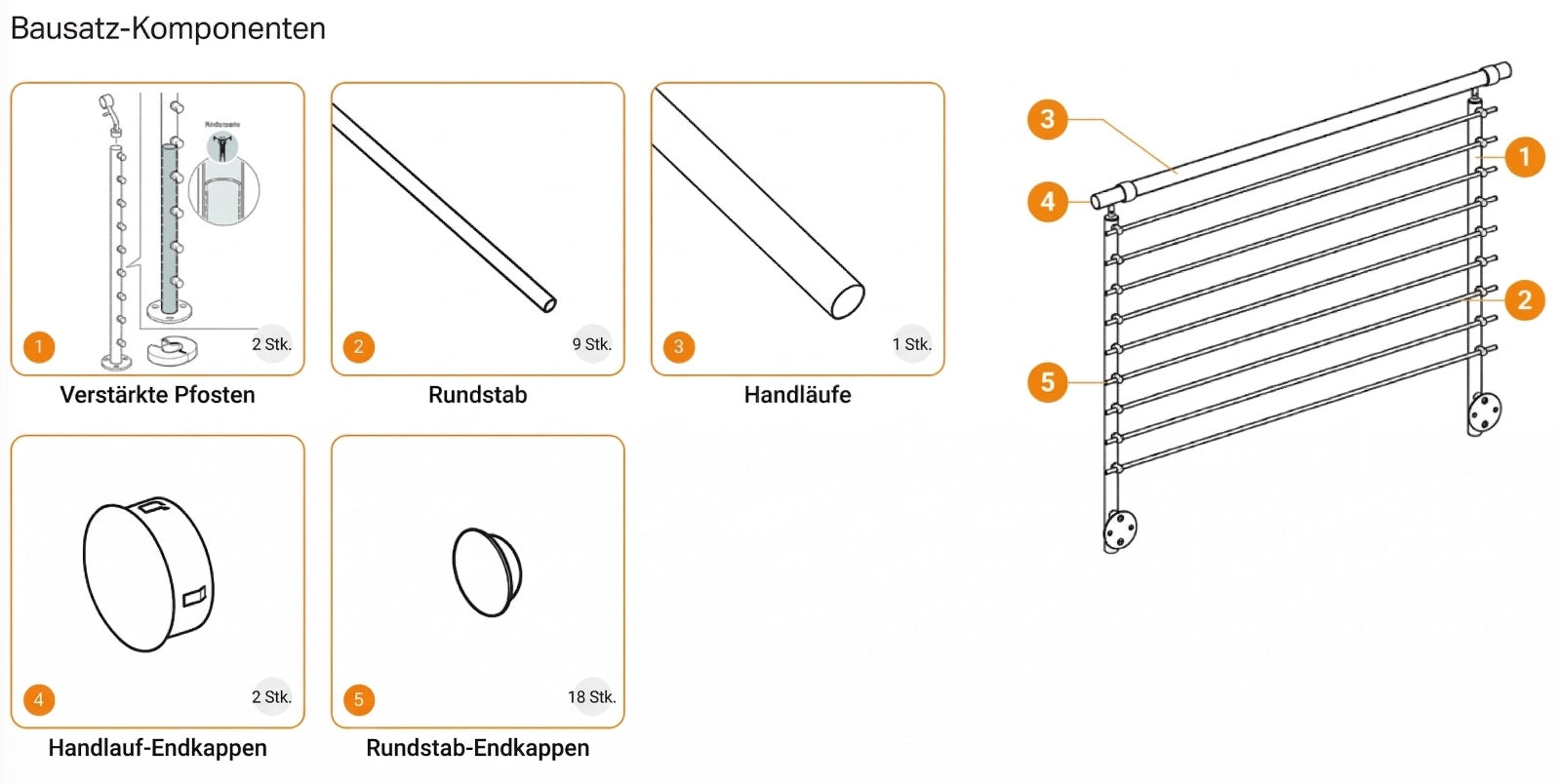

Illustration Bausatz Geländer mit verstärkten Pfosten, Rundstäben, Handlauf, Endkappen.

Balustrade Set "Domus E/S" Stainless Steel 150x110cm - surface-mounted - basic module B1

SKU: E119710040M

 Certified production according to DIN 1090 Made in EU

reinforced posts (2kN/m2)

Stainless steel V2A

Well-thought-out kit system - Easy on-site assembly

Free shipping

Quantity:
615,00 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 1 - 2 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Railing Set Model "Domus E/S" Stainless Steel V2A INOX

Face-mounted (offset) installation - Basic module B1

This high-quality railing is delivered as a ready-to-assemble kit and offers a robust, elegant solution for your construction project. The basic module B1 is designed for face-mounted, offset installation and can be seamlessly extended with module B2.

Scope of delivery and product details:

Basic module:

  • Length: 1500 mm, Height 1104 mm
  • Material: Stainless steel AISI 304, V2A, 1.4301, satin finish
  • Posts: 2 reinforced posts (tube diameter: 42.4 × 2 mm)
  • Handrail: Includes handrail (diameter: 42.4 × 2 mm) with offset handrail supports
  • Infill: 9 rows of round bars (diameter: 12 × 1.5 mm) with corresponding holders
  • Accessories: Includes suitable end caps

Installation and application area:

  • Installation: Face-mounted (offset) installation on the balcony slab (screws and anchors for fastening are not included).
  • Environment: Recommended for installation indoors and outdoors.
  • Expandability: With extension module B2, you can extend the railing as desired. Click here for extension module B2.

Important safety note: For further information on correct installation and safety, please carefully read the technical data sheet available in the "Download documents" section.

Questions and Answers

Each module is 1500 mm long and 1104 mm high. Base modules stand on their own with two posts; extension modules extend a base module by 1500 mm each.

It is made of rust-free stainless steel AISI 304 (V2A, 1.4301) with a satin finish. Posts and handrail measure Ø 42.4 × 2 mm, and the infill consists of 9 rows of round bars Ø 12 mm.

The base module has two posts and can be used on its own. The extension module has one post and is attached to a base module to extend the railing as desired.

With surface-mounted installation (Series A), the posts are screwed onto the top of the floor or balcony slab. With front-side, fascia-mounted installation (Series B), they are attached to the front face of the slab.

No. Since the appropriate type of fastener depends on the substrate, screws and anchors for mounting are not included and are selected to match the on-site conditions.

Yes. With the extension modules, the railing can be extended as desired in 1500 mm increments – ideal for longer balconies, terraces, or stairs.

Yes. Thanks to the rust-free stainless steel AISI 304, the railing is suitable for indoor and outdoor use and permanently weather-resistant.
