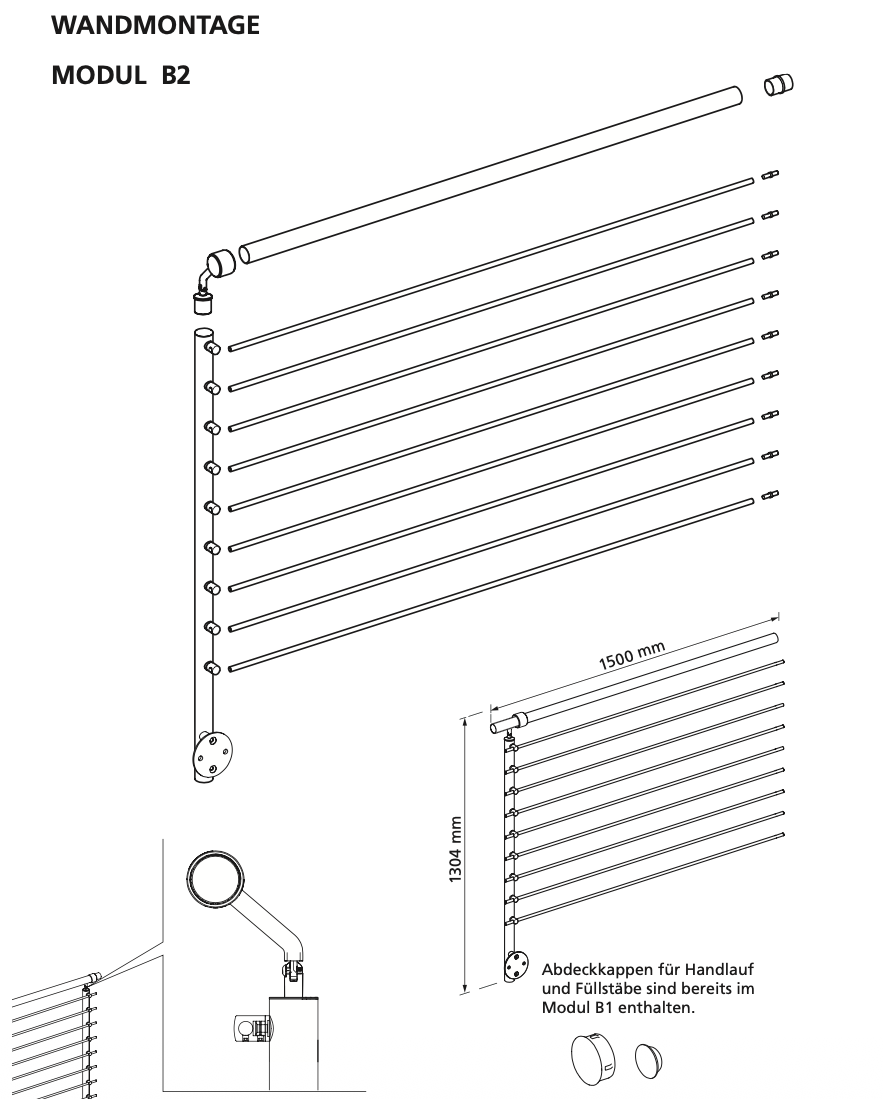

Wandmontage Geländer Modul B2 aus Metall, horizontale Streben, technische Zeichnung, Maße 1500x1304 mm

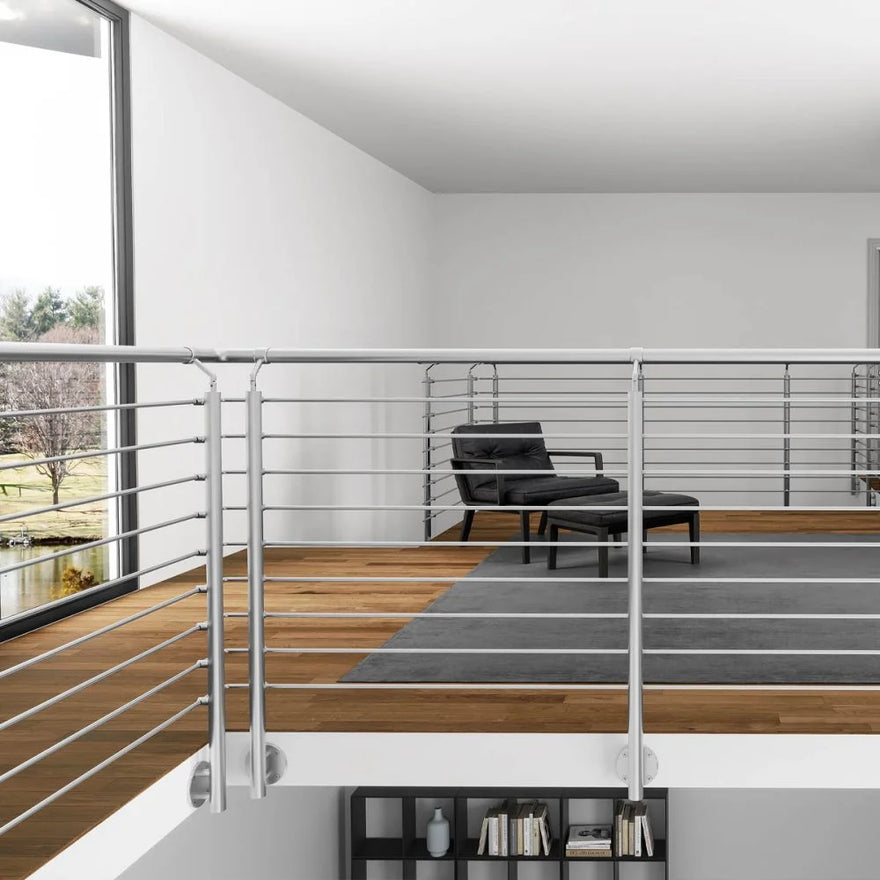

Modernes Edelstahlgeländer Bausatz vorgesetzt, Innenbereich, auf Galerie mit Holzfußboden

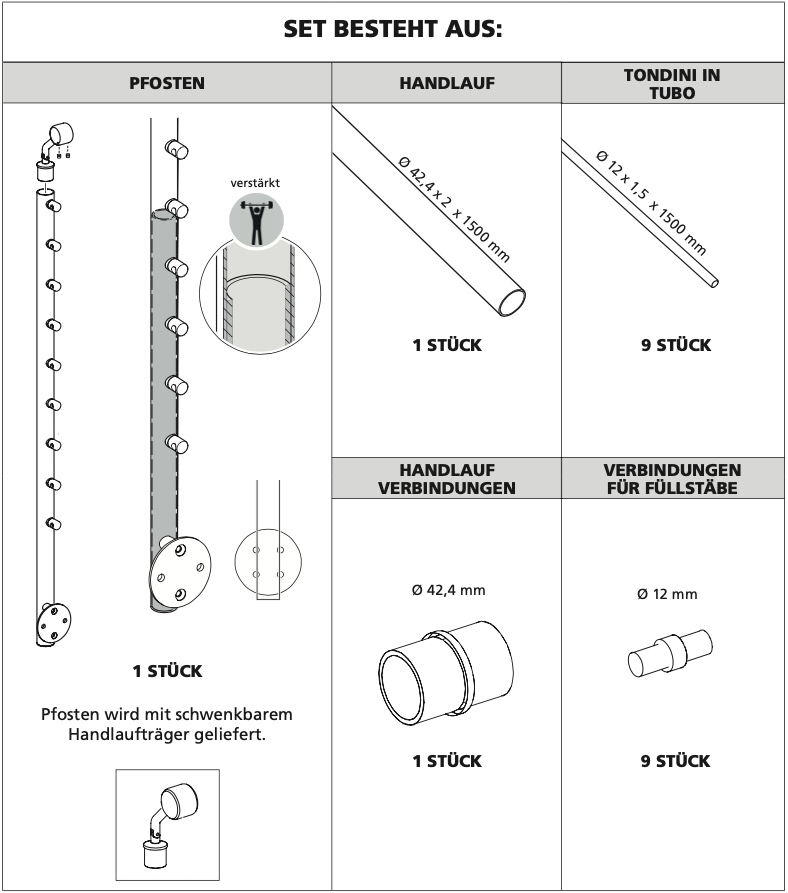

Metall Geländerset mit Pfosten, Handlauf, Füllstäben und Verbindungselementen, technische Zeichnung

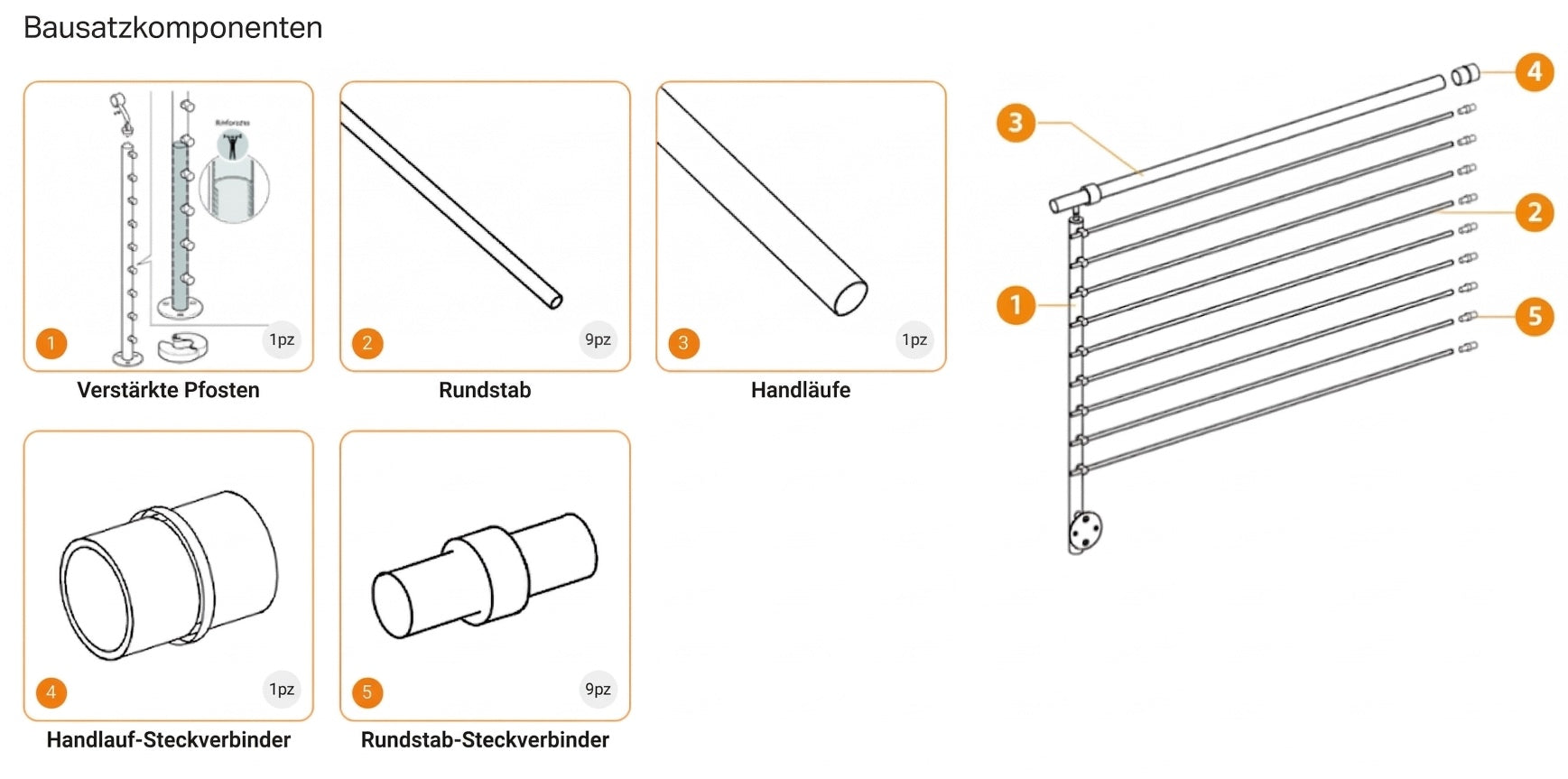

Bausatz-Komponenten für Geländer: verstärkte Pfosten, Rundstab, Handlauf, Steckverbinder

Balustrade Set "Domus E/S" Stainless Steel 150x110cm - Front Mounting - Add-on Module B2

SKU: E119710041M

Certified production according to DIN 1090 Made in EU

reinforced posts (2kN/m2)

Stainless steel V2A

Well-engineered modular system - Easy on-site assembly

Free shipping

Quantity:
507,00 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 1 - 2 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Railing Set Model "Domus E/S" Stainless Steel V2A INOX

Face-mounted (surface-mounted) installation - Extension Module B2

This high-quality railing is delivered as a ready-to-assemble kit and offers a robust, elegant solution for your construction project. Extension module B2 suitable for base module B1.

Scope of Delivery and Product Details:

Extension Module B2:

  • Length: 1500 mm, Height 1104 mm
  • Material: Stainless steel AISI 304, V2A, 1.4301, satin finish
  • Posts: 1 reinforced post (tube diameter: 42.4 × 2 mm)
  • Handrail: Includes handrail (diameter: 42.4 × 2 mm) with offset handrail supports
  • Infill: 9 rows of round bars (diameter: 12 × 1.5 mm) with corresponding holders
  • Accessories: Includes matching end caps

Assembly and Application Area:

  • Installation: Face-mounted (surface-mounted) installation on the balcony slab (screws and anchors for fastening are not included in the scope of delivery).
  • Environment: Recommended for installation both indoors and outdoors.
  • Matching Base Module: The extension module B2 is combined with the base module B1. Click here for the Base Module B1.

Important Safety Notice: For further information on correct installation and safety, please carefully read the technical data sheet available in the "Download Documents" section.

Questions and Answers

Each module is 1500 mm long and 1104 mm high. Base modules stand on their own with two posts; extension modules extend a base module by 1500 mm each.

It is made of rust-free stainless steel AISI 304 (V2A, 1.4301) with a satin finish. Posts and handrail measure Ø 42.4 × 2 mm, and the infill consists of 9 rows of round bars Ø 12 mm.

The base module has two posts and can be used on its own. The extension module has one post and is attached to a base module to extend the railing as desired.

With surface-mounted installation (Series A), the posts are screwed onto the top of the floor or balcony slab. With front-side, fascia-mounted installation (Series B), they are attached to the front face of the slab.

No. Since the appropriate type of fastener depends on the substrate, screws and anchors for mounting are not included and are selected to match the on-site conditions.

Yes. With the extension modules, the railing can be extended as desired in 1500 mm increments – ideal for longer balconies, terraces, or stairs.

Yes. Thanks to the rust-free stainless steel AISI 304, the railing is suitable for indoor and outdoor use and permanently weather-resistant.
