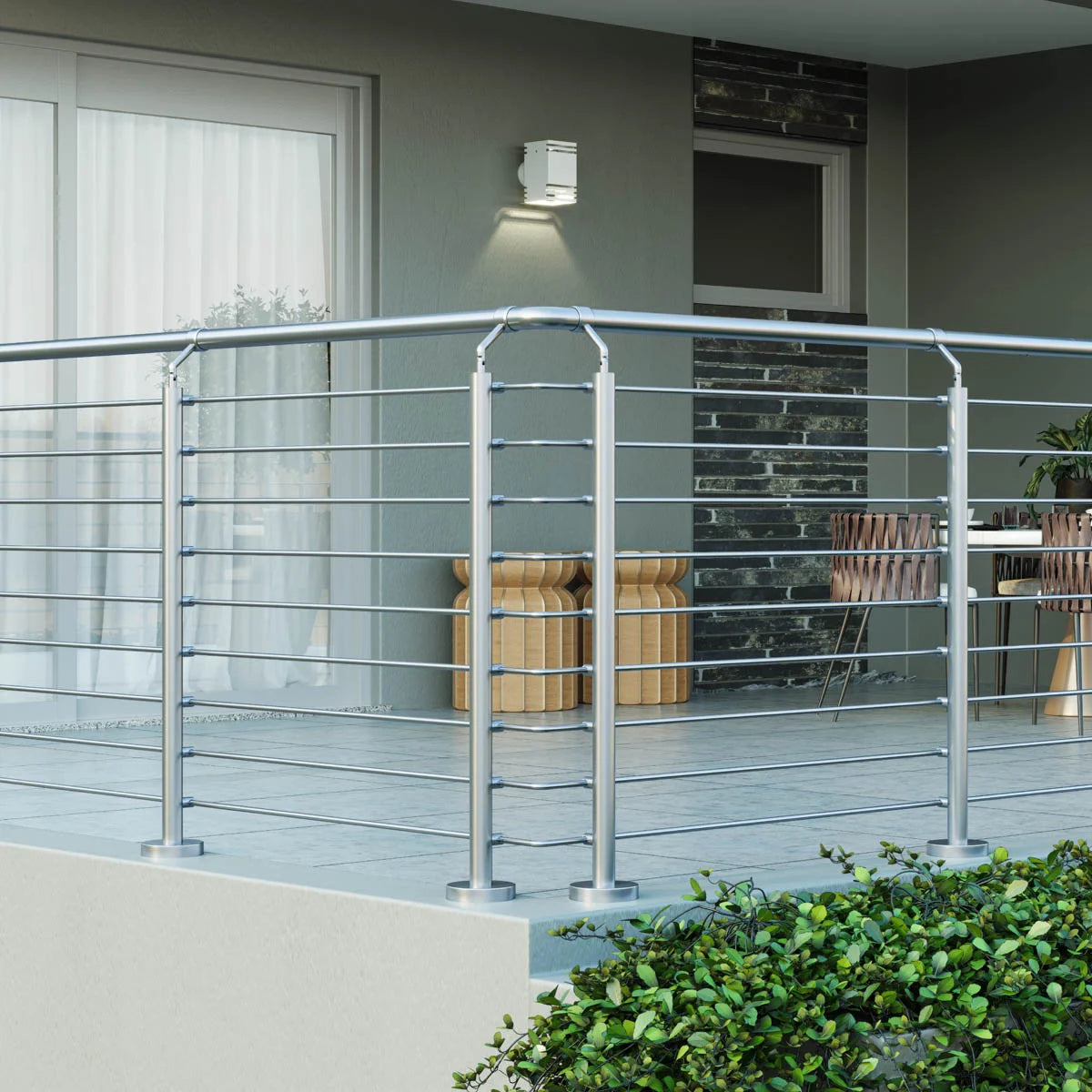

Geländer Set Modell linear 9 Stäbe - Edelstahl

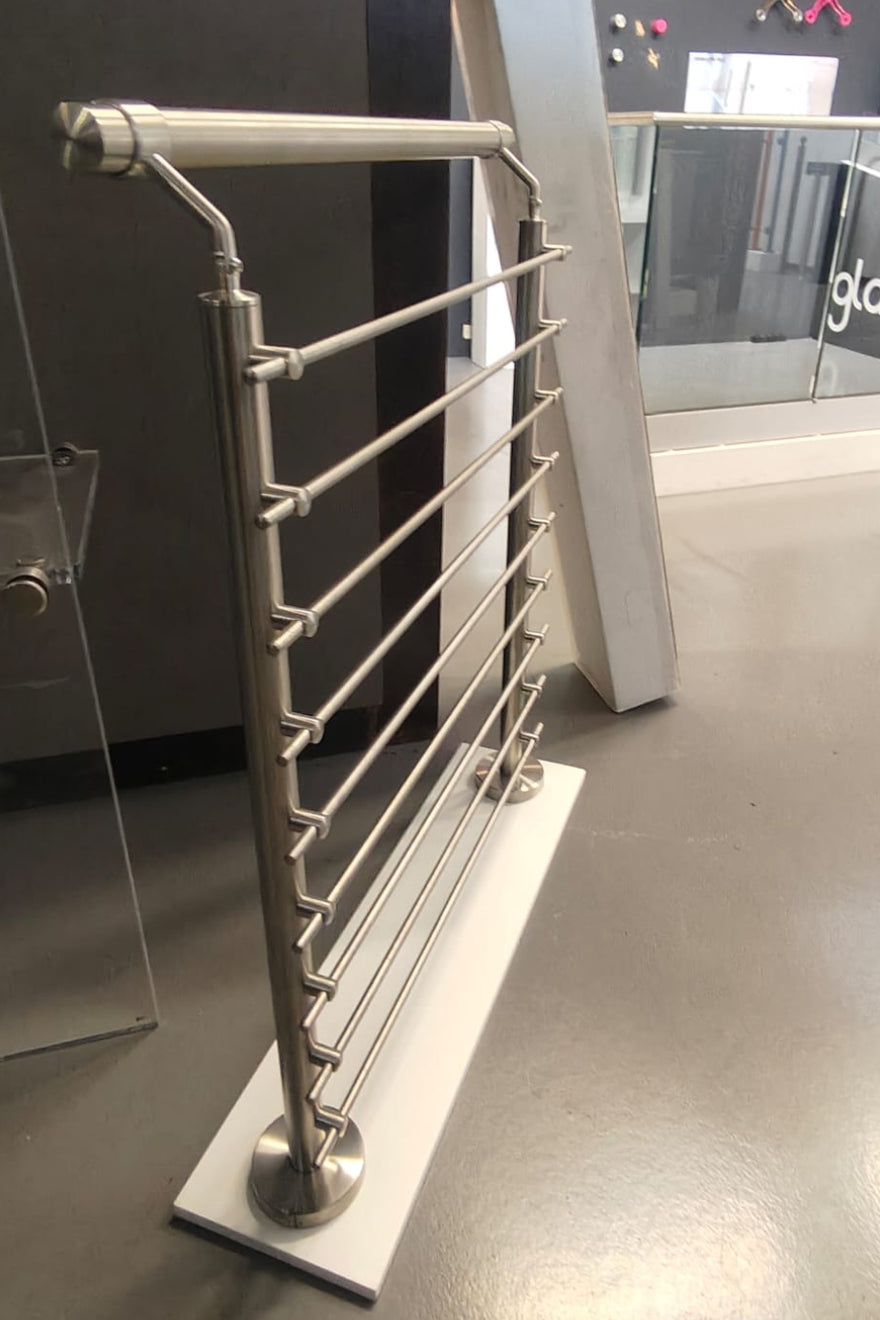

Edelstahl Geländer mit horizontalen Stäben, satiniert, für Innenbereich, modernes Design

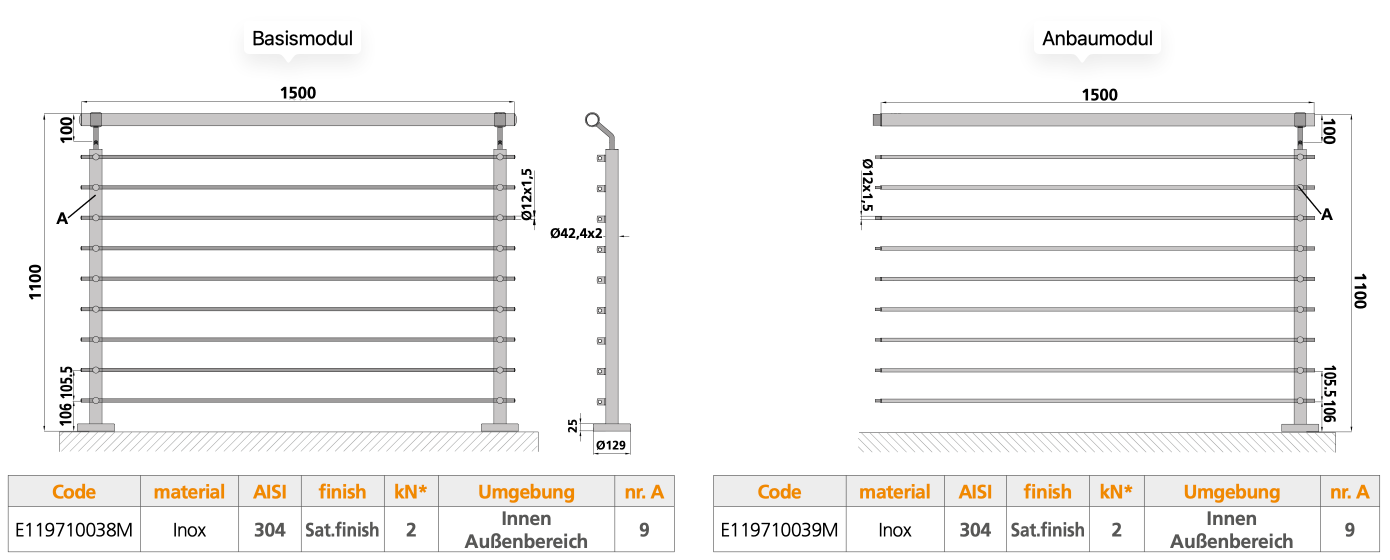

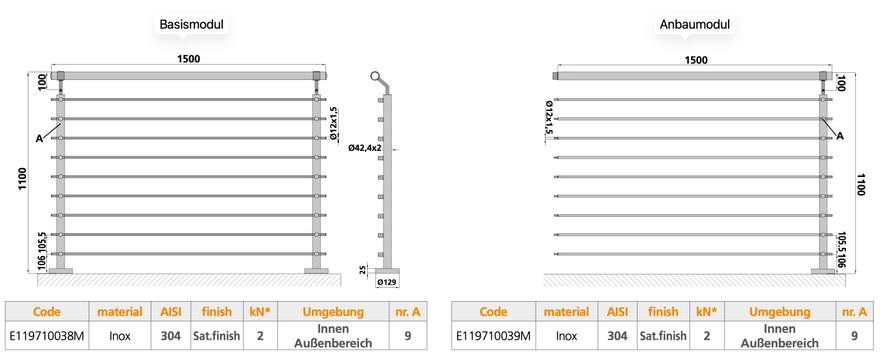

Geländer Set Edelstahl Modell Linear - Basismodul und Anbaumodul

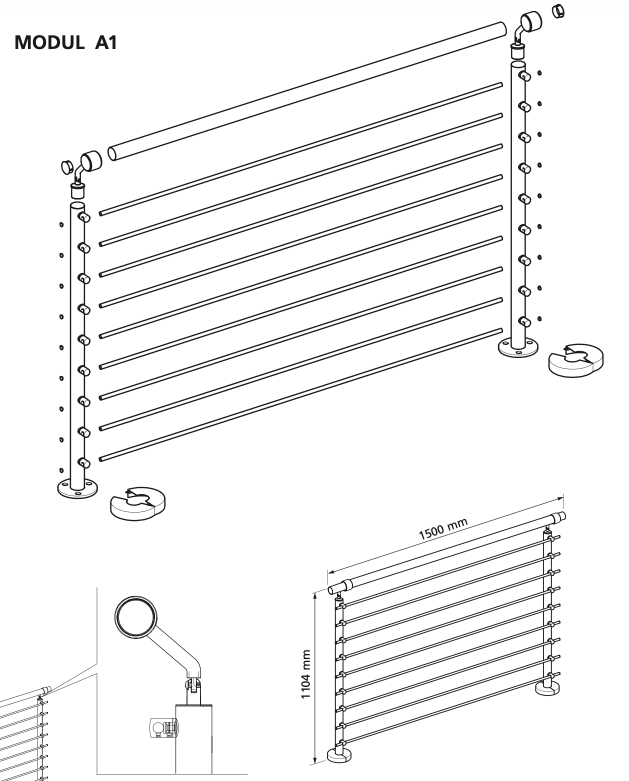

Geländer Set linear Edelstahl Basismodul A1

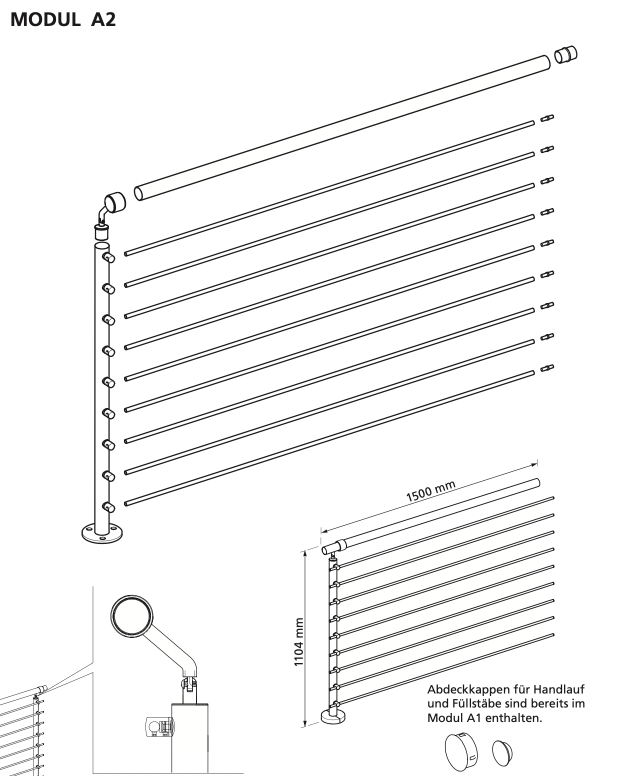

Geländer Set linear Edelstahl Basismodul A2

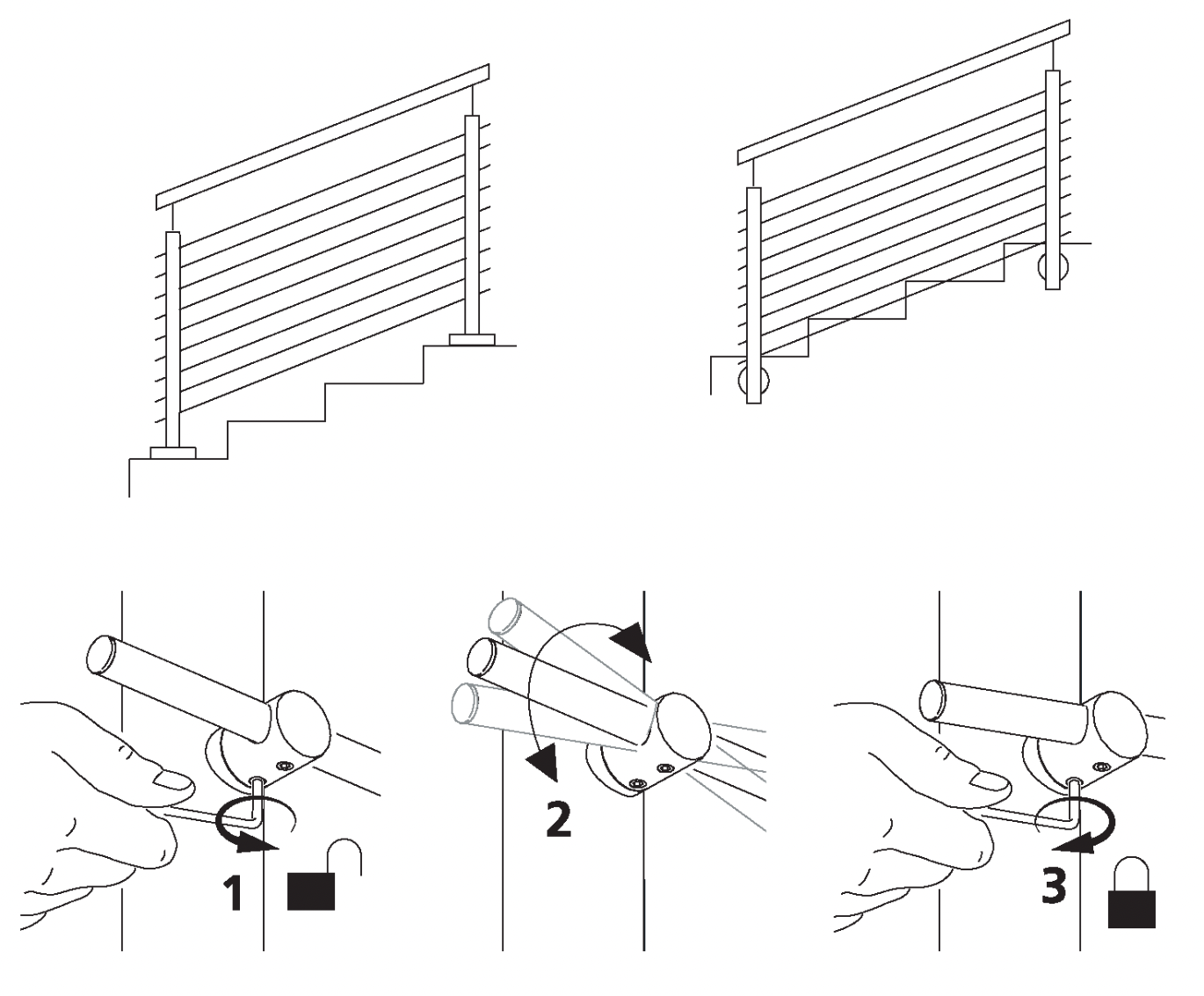

Montageanleitung für Metall-Treppengeländer, schrittweise Demontage und Montage mit Inbusschlüssel.

Railings Set "Domus E/S" Stainless Steel 150x110cm - surface-mounted - Basic Module A1

SKU: E119710038M

 Certified production according to DIN 1090 Made in EU

reinforced posts (2kN/m2)

Stainless steel V2A

Well-designed kit system - Easy on-site assembly

Free shipping

Quantity:
472,00 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 1 - 2 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Railing Set Model "Domus E/S" Stainless Steel V2A INOX

Top-mounted installation - Basic module A1

This high-quality railing is delivered as a ready-to-assemble kit and offers a robust, elegant solution for your construction project. The basic module A1 is specially designed for floor mounting and can be seamlessly extended with module A2.

Scope of delivery and product details:

Basic module:

  • Length: 1500 mm, Height 1104 mm
  • Material: Stainless steel AISI 304, V2A, 1.4301, satin finish
  • Posts: 2 reinforced posts (tube diameter: 42.4 × 2 mm)
  • Handrail: Includes handrail (diameter: 42.4 × 2 mm) with offset handrail supports
  • Infill: 9 rows of round bars (diameter: 12 × 1.5 mm) with the corresponding holders
  • Accessories: Includes matching end caps

Assembly and application area:

  • Installation: Floor mounting (screws and anchors for fastening are not included in the scope of delivery).
  • Environment: Recommended for indoor and outdoor installation.
  • Expandability: You can extend the railing as desired with the add-on module A2. Click here for the add-on module A2.

Important safety note: For more information on correct installation and safety, please carefully read the technical data sheet available in the "Download documents" section.

Questions and Answers

Each module is 1500 mm long and 1104 mm high. Base modules stand on their own with two posts; extension modules extend a base module by 1500 mm each.

It is made of rust-free stainless steel AISI 304 (V2A, 1.4301) with a satin finish. Posts and handrail measure Ø 42.4 × 2 mm, and the infill consists of 9 rows of round bars Ø 12 mm.

The base module has two posts and can be used on its own. The extension module has one post and is attached to a base module to extend the railing as desired.

With surface-mounted installation (Series A), the posts are screwed onto the top of the floor or balcony slab. With front-side, fascia-mounted installation (Series B), they are attached to the front face of the slab.

No. Since the appropriate type of fastener depends on the substrate, screws and anchors for mounting are not included and are selected to match the on-site conditions.

Yes. With the extension modules, the railing can be extended as desired in 1500 mm increments – ideal for longer balconies, terraces, or stairs.

Yes. Thanks to the rust-free stainless steel AISI 304, the railing is suitable for indoor and outdoor use and permanently weather-resistant.
