Garden fence, metal railing - Basic - galvanized, powder-coated

Garden Fence Metal, Fence, Railing, Basic Model, Custom Made, Direct from Manufacturer, Galvanized, Powder Coated in Color of Choice

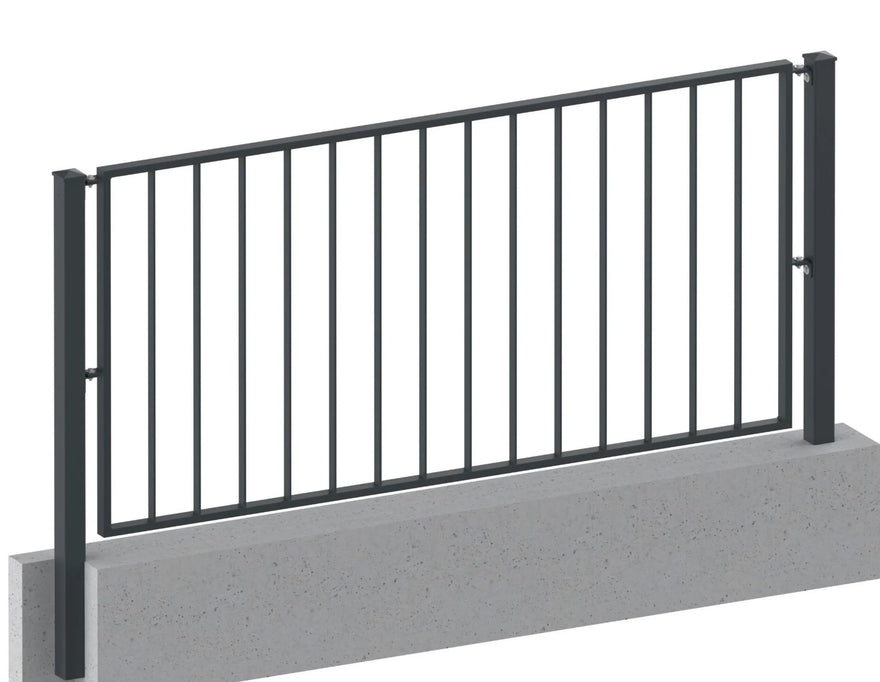

Our Basic model fence is a modern, sturdily welded metal steel fence that can also be used as a railing for fall protection.
With its hot-dip galvanized and additionally powder-coated surface, it is rust-free and weather-resistant for many years.
The fence is easy to assemble, so assembly can be handled by anyone with DIY skills.
Assembly instructions, advice and service come directly from the manufacturer Kirchberger Metall.
A fence Made in Germany at the best price-performance ratio.
Custom manufacturing according to customer requirements and short delivery times complete the offer.

Details:
- all connections fully welded according to DIN EN 1090
- Material steel 235JR, hot-dip galvanized surface + powder coated in color of choice
- Frame made of 40x20 mm rectangular tube
- Bar infill made of 30 x 6mm flat steel
- Angled bracket 40 x 6mm
- Through elongated holes in the mounting bracket, +/-10mm post spacing deviation can be compensated.
- Incl. screws, nuts, washers for fastening to the M8 stainless steel bracket.
- Incl. self-tapping screws for fastening the brackets to the steel posts
or alternatively concrete screws for fastening to existing stone posts.

Use as a fence or railing?
- as a fence: Field length up to max. 2500 mm possible, height up to 1500 mm
- as a railing: Field length up to max. 1500 mm, height up to 1100 mm (withstands 1kN/m handrail load)

Selecting length and height:
Please enter the fence element length and fence element height in the selection field above

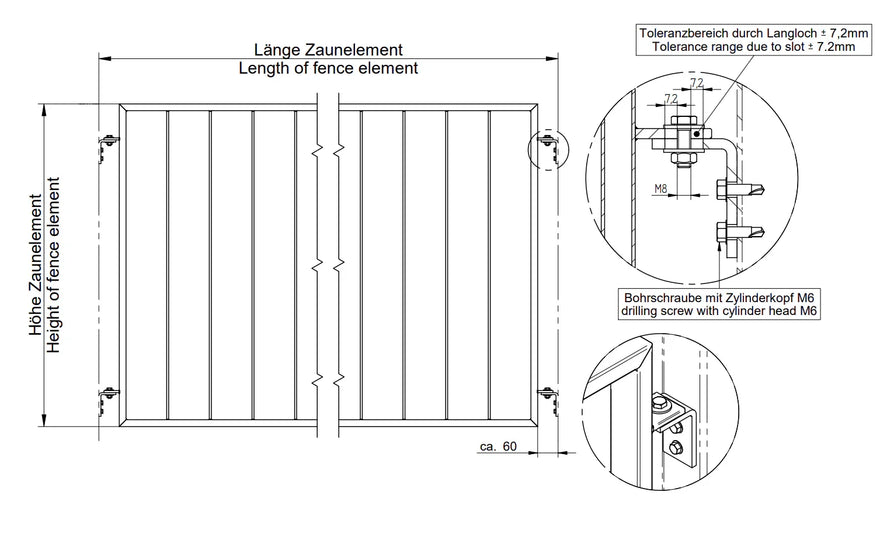

Specify fence panel length including tab and bracket in mm! (see illustration)

Selecting powder coating color:
Please provide RAL or DB number
You can find an overview of all RAL colors here - please click on the link.

Scope of delivery:
- Fence elements in the selected length, height and quantity
- 4x mounting brackets for connection to fence posts or walls, stone columns
- 8x self-tapping screws for fastening to steel posts or concrete screws for existing stone posts

Selection and number of posts:
You can find the suitable posts for the fence element here. (please click)


Additional information:
Often, when fencing, walls or certain fall heights also need to be considered.
A simple mesh panel fence no longer offers sufficient static strength here and is impermissible!

The regulations for railings and fall protection vary slightly from state to state, so please inform yourself beforehand.
We have summarized the essential general regulations here:

• The production of railings may only be carried out by companies certified according to the European standard DIN EN 1090.
• From a fall height of already 100cm (Bavaria 50cm), a railing of at least 90cm height is necessary.
• From a fall height of 12m, a railing of at least 110cm height is necessary.
• All railing openings may not exceed 12cm, therefore bar spacing clear dimension max. 12cm
• Handrail loads of 0.5 kN/m without significant public traffic (private area), 1.0 kN/m with significant public traffic (public area)
