Garden fence, metal railing - Basic - Stainless steel

Metal Garden Fence, Fence, Railing, Model Basic, Custom-Made, Directly from the Manufacturer, in Stainless Steel Finish

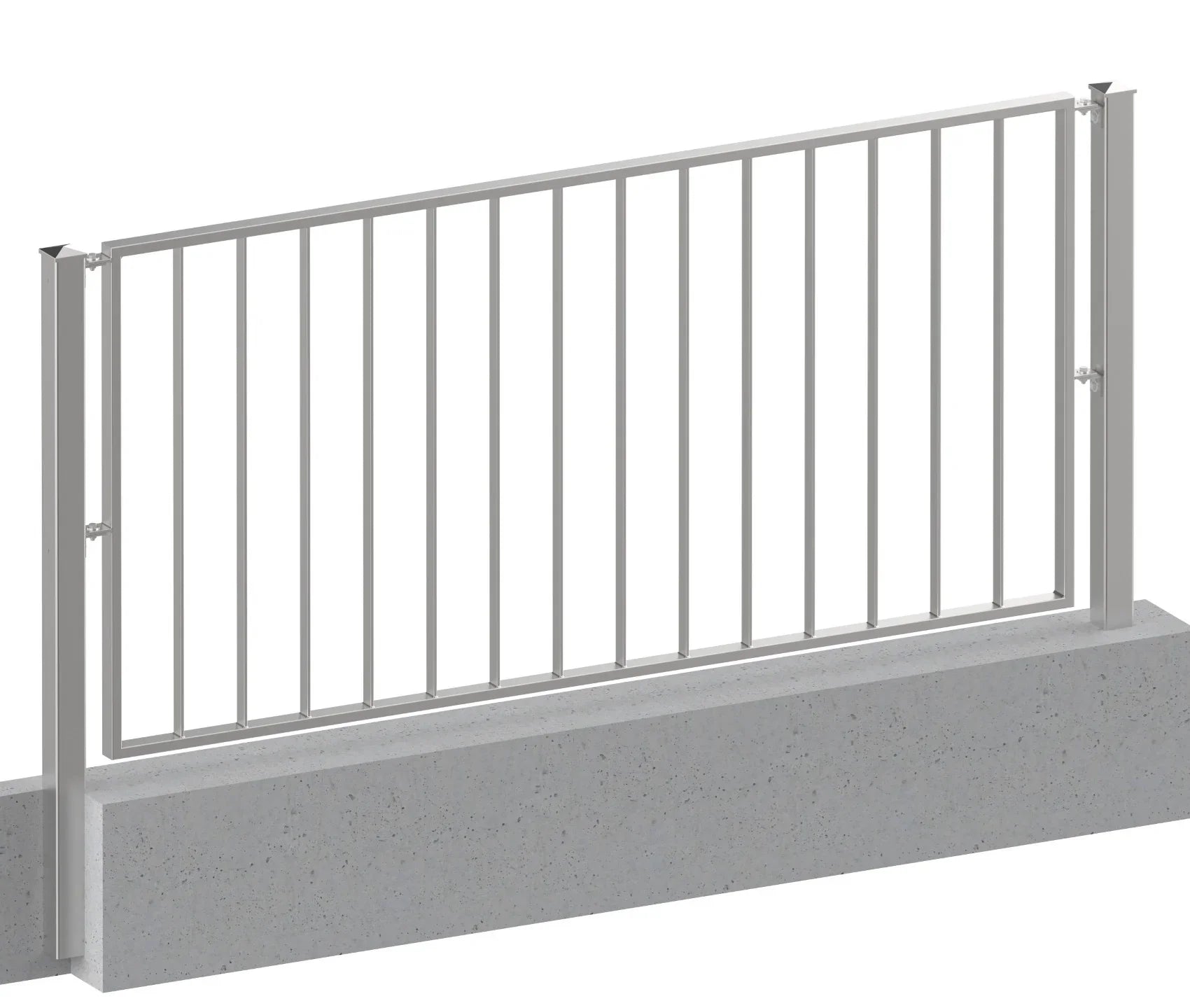

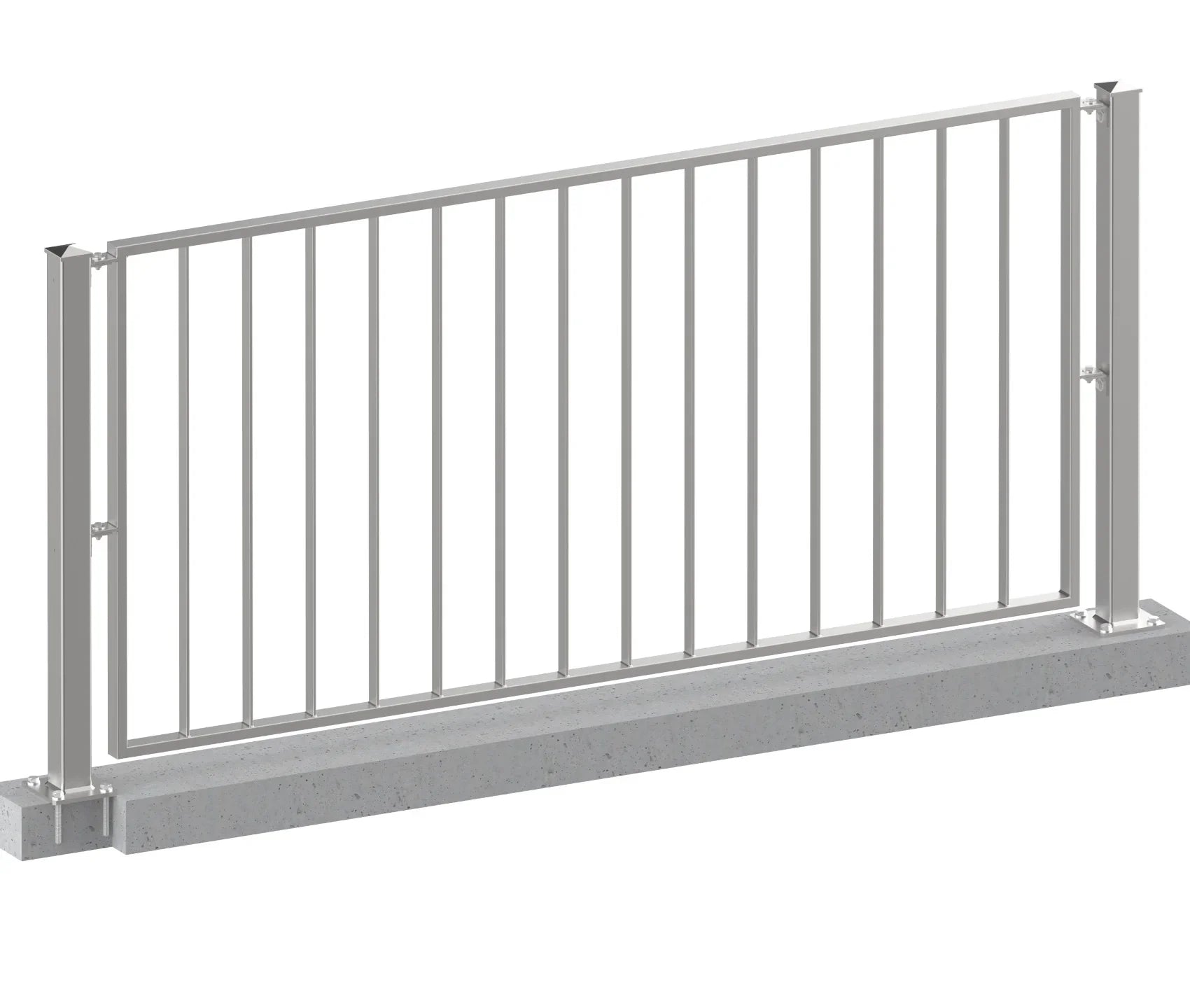

Our Basic model fence is a modern, stably welded metal stainless steel fence that can also be used as a railing for fall protection.
Made of stainless steel, it is rust-free and weather-resistant for many years.
The fence is easy to assemble, so anyone with handyman skills can handle the installation.
Assembly instructions, advice, and service come directly from the manufacturer Kirchberger Metall.
A "Made in Germany" fence with the best price-performance ratio.
Custom manufacturing according to customer requirements and short delivery times complete the offer.

Details:
- all connections fully welded according to DIN 1090
- Material: V2A stainless steel, ground surface
- Frame made of 40x20 mm rectangular tube
- Bar infill made of 30 x 6mm flat steel
- Angled bracket 40 x 6mm
- Through slotted holes in the mounting bracket, a post-spacing deviation of +/-10mm can be compensated.
- incl. stainless steel screws, nuts, washers for fastening to the M8 bracket.
- incl. self-tapping screws for fastening the brackets to the stainless steel posts
or alternatively concrete screws for fastening to existing stone posts.

Use as a fence or railing?
- as a fence: field length up to max. 2500 mm possible, height up to 1500 mm
- as a railing: field length up to max. 1500 mm, height up to 1100 mm (withstands 1kN/m top rail load)

Selection of length and height:
Please enter the length of the fence element and the height of the fence element in the selection field above.

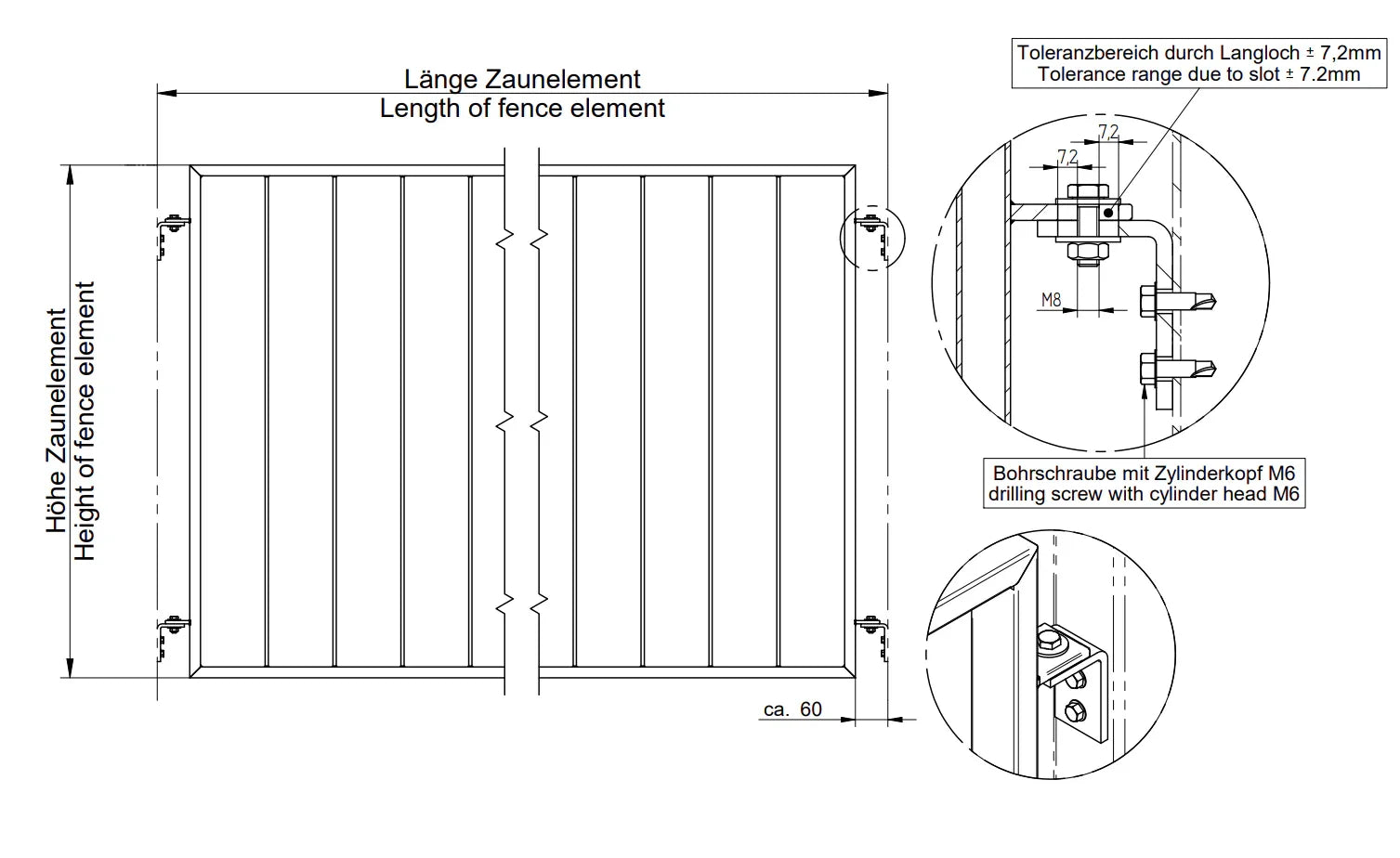

Please specify the length of the fence panel including tab and bracket in mm! (see illustration)

Scope of delivery:

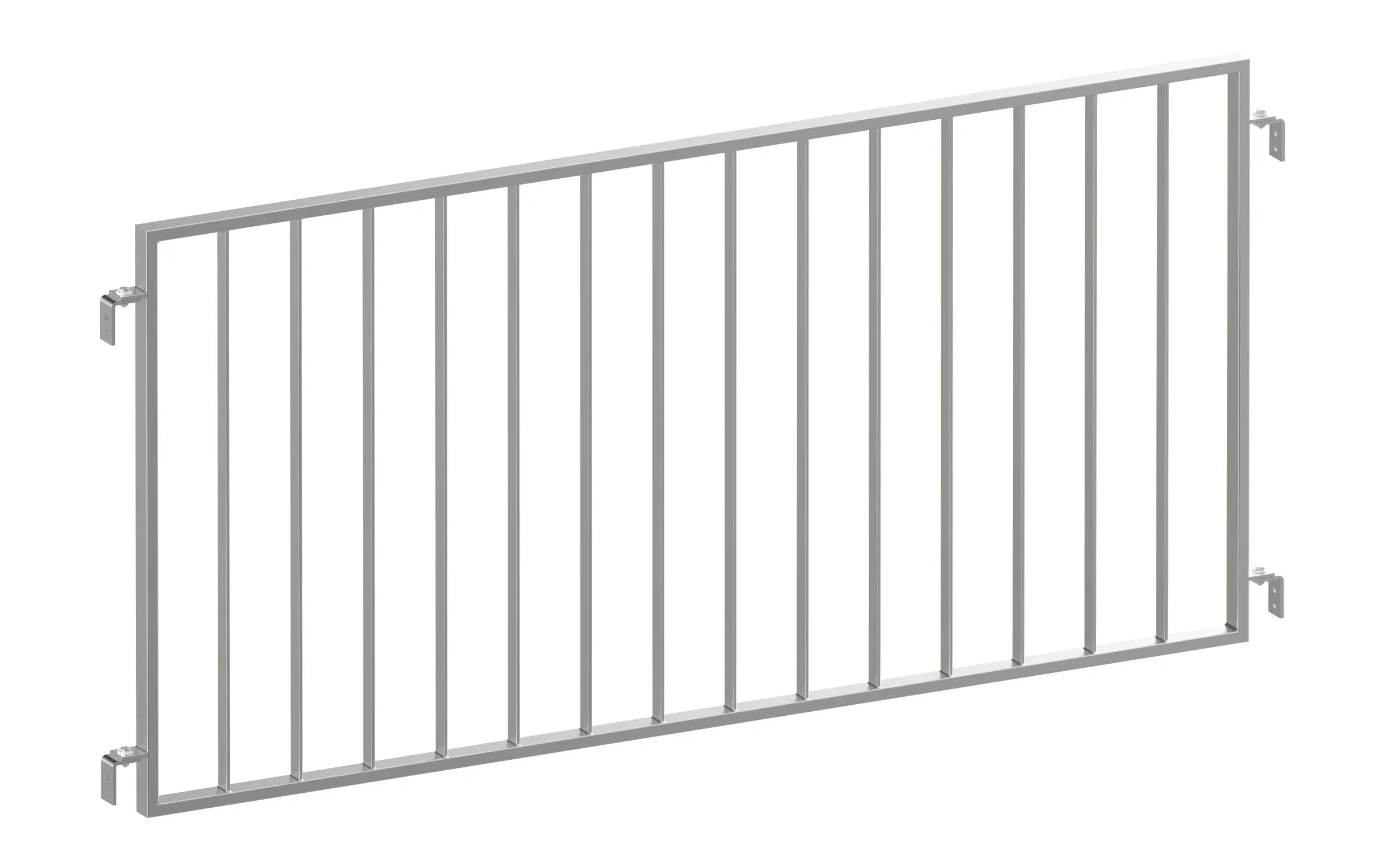

- Fence elements in the selected length, height, and quantity
- 4x mounting brackets for connection to fence posts or wall, stone column
- 8x self-tapping screws for fastening to the stainless steel post or concrete screws for existing stone posts

Selection and number of posts:
You can find the suitable posts for the fence element here. (please click)


Additional information:
Often there are walls or certain fall heights to consider when fencing.
A simple mesh fence no longer offers sufficient statics here and is impermissible!

The regulations for railings and fall protection vary slightly from state to state, so please inform yourself beforehand.
We have summarized the essential general regulations here:

• The production of railings may only be carried out by companies certified according to the European standard DIN EN 1090.
• From a fall height of already 100cm (Bavaria 50cm), a railing of at least 90cm height is necessary.
• From a fall height of 12m, a railing of at least 110cm height is necessary.
• All railing openings must not exceed 12cm, therefore bar spacing clear dimension max. 12cm
• Top rail loads of 0.5 kN/m without significant public traffic (private area), 1.0 kN/m with significant public traffic (public area)
