Garden fence, metal railing - Basic 2 - stainless steel

Garden fence made of metal, fence, railing, Basic 2 model, custom-made, directly from the manufacturer, in stainless steel version

Our fence model Basic is a modern, stably welded metal stainless steel fence that can also be used as a railing for fall protection.
Made of stainless steel, it is rust-free and weather-resistant for many years.
The fence is easy to assemble, so anyone with DIY skills can manage the installation.
Assembly instructions, advice and service come directly from the manufacturer Kirchberger Metall.
A "Made in Germany" fence with the best price-performance ratio.
Custom-made production according to customer requirements and short delivery times round off the offer.

Details:
- all connections fully welded according to DIN 1090
- Material: V2A stainless steel, ground surface
- Frame made of 40x8 mm flat steel
- Bar infill made of 30 x 6mm flat steel
- Angle bent 40 x 6mm
- Due to elongated holes in the mounting bracket, a post distance deviation of +/-10mm can be compensated.
- incl. screws, nuts, washers for mounting on the M8 stainless steel angle.
- incl. self-tapping screws for mounting the angles on the stainless steel posts
or alternatively concrete screws for mounting on existing stone posts.

Usage as a fence or railing?
- as a fence: field length up to max. 2500 mm possible, height up to 1500 mm
- as a railing: field length up to max. 1500 mm, height up to 1100 mm (withstands 1kN/m top rail load)

Selection of length and height:
Please enter the length of the fence element and the height of the fence element in the selection field above.

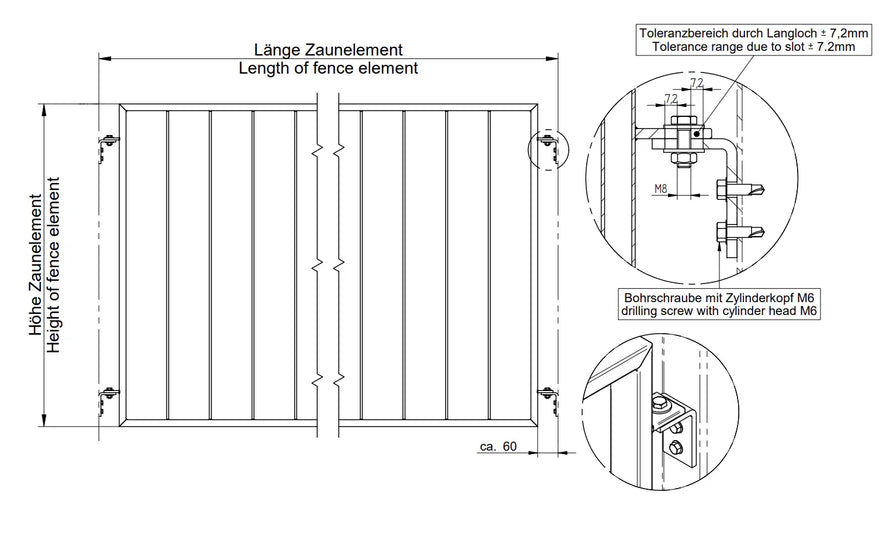

Please specify the length of the fence panel including bracket and angle in mm! (see illustration)

Scope of delivery:
- Fence elements in the selected length, height and quantity
- 4x mounting brackets for connection to fence posts or walls, stone columns
- 8x self-tapping screws for mounting on stainless steel posts or concrete screws for existing stone posts

Selection and number of posts:
The matching posts for the fence element can be found here. (please click)


Additional information:
Often, when fencing, there are also walls or certain drop heights to consider.
A simple mesh fence no longer offers sufficient structural integrity here and is not permitted!

The regulations for railings and fall protection vary slightly from state to state, so please inform yourself beforehand.
We have summarized the essential general regulations here:

• The production of railings may only be carried out by companies certified according to the European standard DIN EN 1090.
• From a drop height of already 100cm (Bavaria 50cm), a railing of at least 90cm height is necessary.
• From a drop height of 12m, a railing of at least 110cm height is necessary.
• All railing openings must not exceed 12cm, therefore the clear bar spacing is max. 12cm.
• Top rail loads of 0.5 kN/m without significant public traffic (private area), 1.0 kN/m with significant public traffic (public area)
