French balcony model Marseille stainless steel

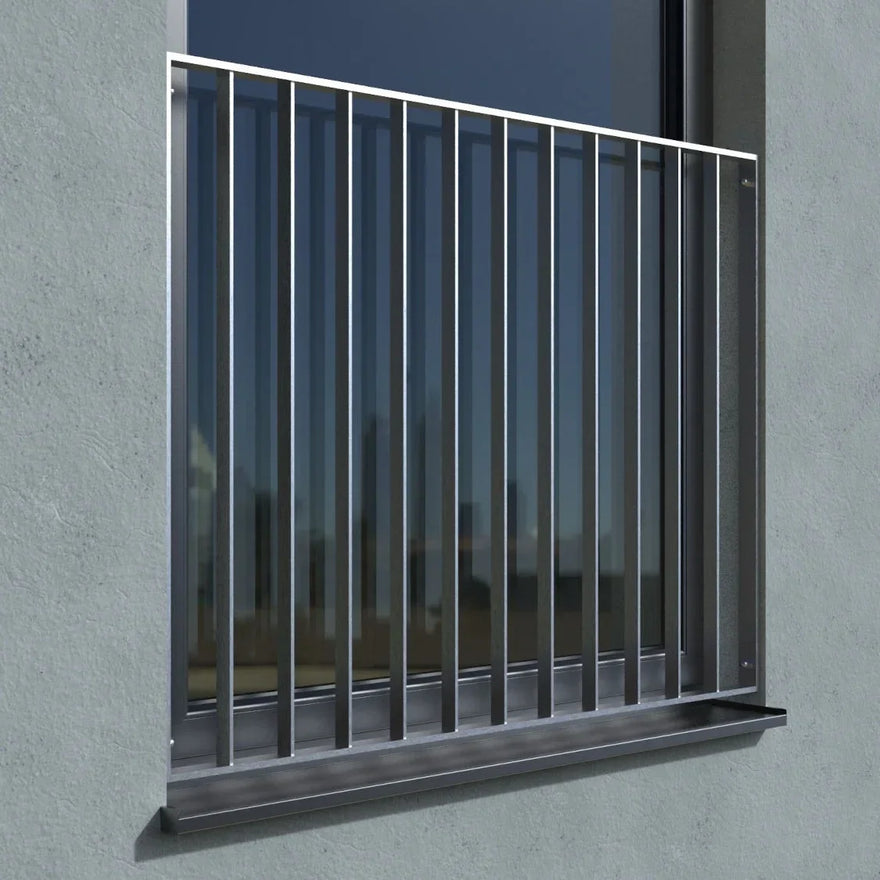

French Balcony / Fall Protection / Window Grille - Model Marseille Made of Stainless Steel

High-quality French balcony made of stainless steel - MADE IN GERMANY - directly from the manufacturer. All connections are stable and professionally welded.

• Manufacturing: according to DIN EN 1090
• Material: Stainless steel V2A
• Surface: ground grit 320
• Railing frame: Flat steel 40x10 mm
• Infill bars: Flat steel 30x6 mm
• Spacing between infill bars varies depending on total length: maximum 120 mm
• Height: 1000 mm (other heights on request)
• Feel free to contact us for a possible bulk discount for orders of 3+ balconies

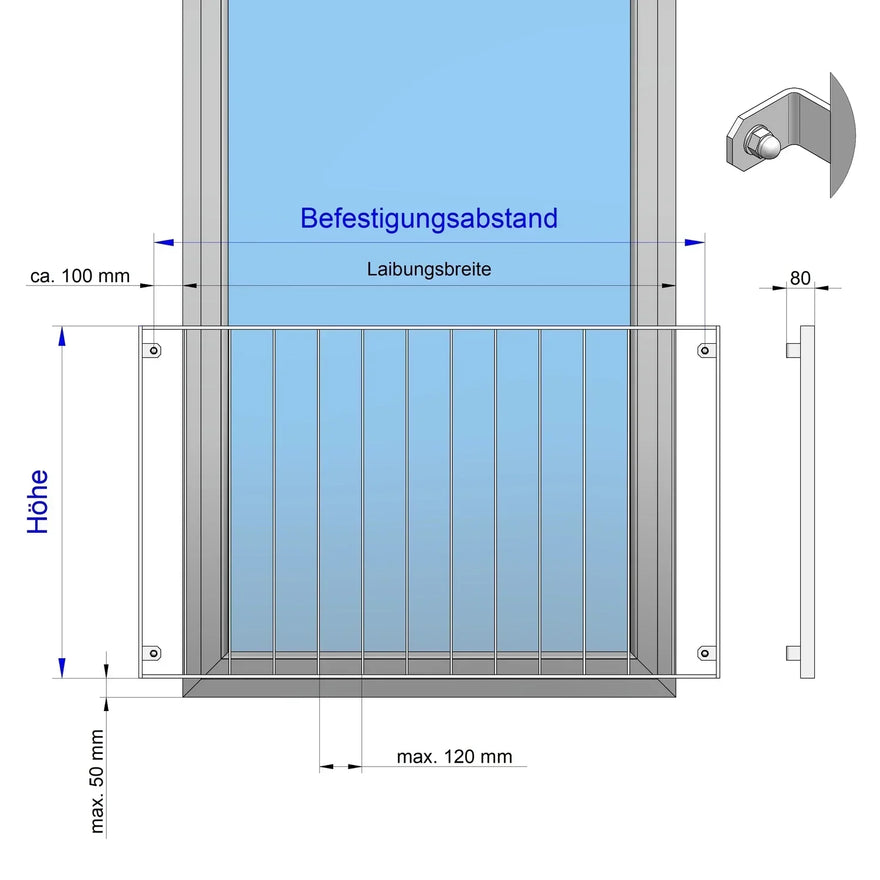

Determine mounting distance:
Enter the value in mm in the selection field above.
Mounting distance = mounting width
A distance of approx. 10 cm from the edge of the wall should be maintained, otherwise the masonry may break out.

Example calculation of mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Mounting distance for installation in the reveal:
Mounting distance = dimension of the window reveal

Mounting set - installation material:
Depending on the nature of the wall, different installation material is required for the French balcony.

• Mounting on masonry (brick, aerated concrete)
• Mounting with thermal insulation (ETICS) with thermal break
• Mounting on timber frame constructions


In the configurator, you can add the mounting material depending on the type of wall.

For professional installation, please observe the applicable building regulations. Please inform yourself in advance at the responsible building authority. The installer on site is responsible for the selection of the correct mounting material and proper fastening.
