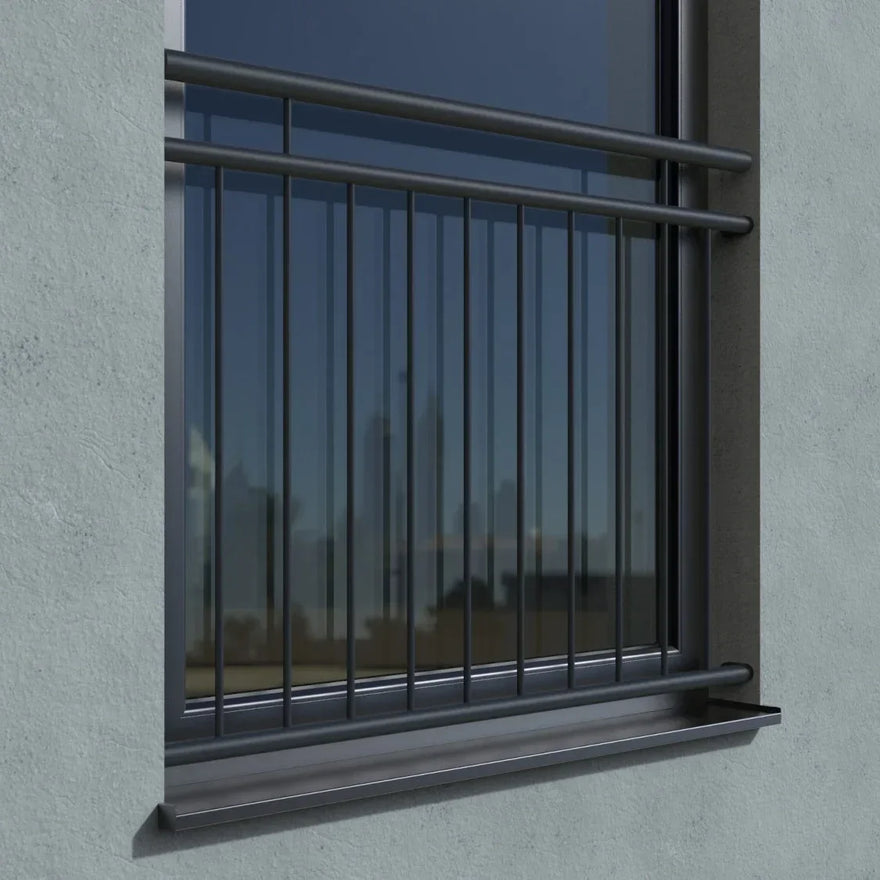

Modernes Fenstergitter für französischen Balkon in Anthrazit an Fensterlaibung montiert

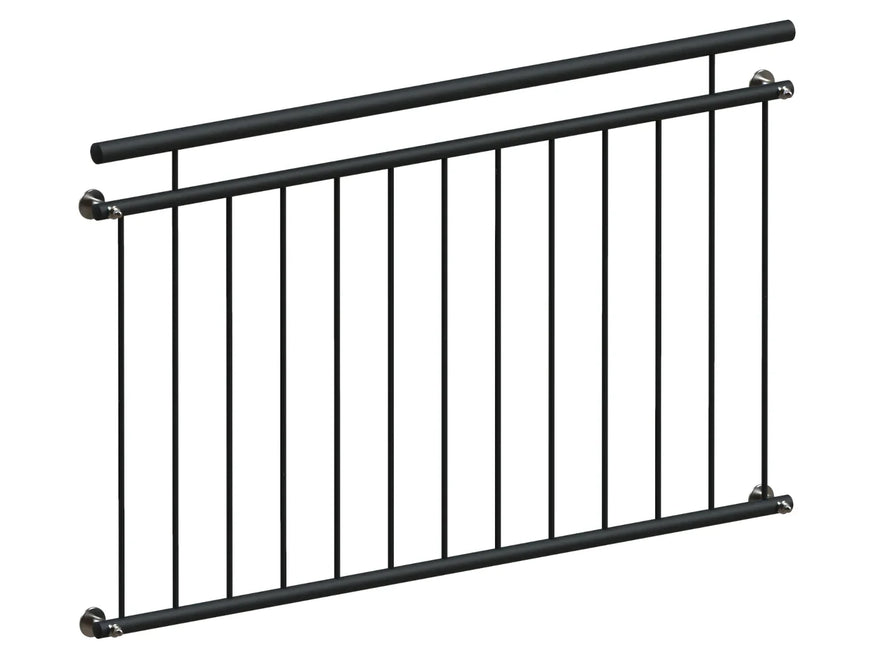

Schwarzes Fenstergitter für französischen Balkon aus Metall mit modernen senkrechten Stäben
Absturzsicherung für französischen Balkon aus Metall vor bodentiefem Fenster, anthrazitgrau.
Französischer Balkon aus Metall mit vertikalen Stäben vor Fenster an weißer Fassade
Technische Zeichnung eines Metall-Fensterbalkongeländers mit Maßen und Befestigungsdetails.
Technische Zeichnung französischer Balkon aus Metall mit Maßangaben, Fenster, Geländer, Halterung
Technische Zeichnung französischer Balkon aus Metall mit Maßen und Befestigungsdetails.
Konstruktionszeichnung Metallgeländer mit Detailansichten, Einschiebling, Verschweißung, Madenschraube

French balcony model Lyon, powder-coated in various colors

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 13005
537,50 €

Tax included. Shipping calculated at checkout

Delivery time: 28 to 42 days

Sicher bezahlen
American Express
Apple Pay
Bancontact
EPS
Google Pay
Klarna
Maestro
Mastercard
PayPal
Visa
Rechnung
Vorkasse

French balcony / fall protection / window grille - Lyon model powder-coated in color of your choice

High-quality French balcony made of galvanized steel with powder coating – MADE IN GERMANY – directly from the manufacturer. All connections are sturdy and professionally welded. We use only solid 12 mm diameter material for the balusters. Cheap Chinese products are often made from inferior round tubing.

  • Manufacturing: according to DIN EN 1090
  • Material: Steel (S235JR)
  • Surface: hot-dip galvanized with powder coating
  • Handrail: Tube Ø 42.4 mm - Wall thickness: 2 mm (optionally available in stainless steel)
  • Top and bottom frame: Tube Ø 33.7 mm - Wall thickness: 2 mm
  • Filler rods: Ø 12.0 mm - solid material
  • The spacing between the infill bars varies depending on the overall length: maximum 120 mm
  • Height: 1000 mm (other heights available on request)
  • Stainless steel wall mounting elements
  • Please contact us for a possible quantity discount starting from a quantity of 3+ balconies.


Determine the mounting distance:
Enter the value in mm in the selection box above.
Mounting distance = Mounting distance = Mounting width
A distance of approximately 10 cm from the edge of the wall should be maintained, otherwise the masonry may break out.

Example calculation of mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Mounting distance for fixing in the reveal:
Mounting distance = dimension of the window reveal

Select handrail variant:

  • Handrail in galvanized steel
  • Handrail in stainless steel 1.4301 - ground

Select color: Please specify in the selection field!
All DB iron mica colors and RAL colors are possible.
An overview of all RAL colors can be found here - please click on the link.

Mounting kit - Mounting material:
Depending on the condition of the wall, different mounting materials are required for the French balcony.

  • Fastening in masonry on brick, aerated concrete
  • Fastening in masonry - brick, aerated concrete with thermal insulation ETICS
  • Mounting on wooden stand

In the configurator, you can add the fastening material depending on the type of wall.

For proper installation, please observe the applicable building regulations. Please check with the relevant building authority beforehand. The installer on site assumes liability for selecting the correct mounting materials and ensuring proper fastening.
