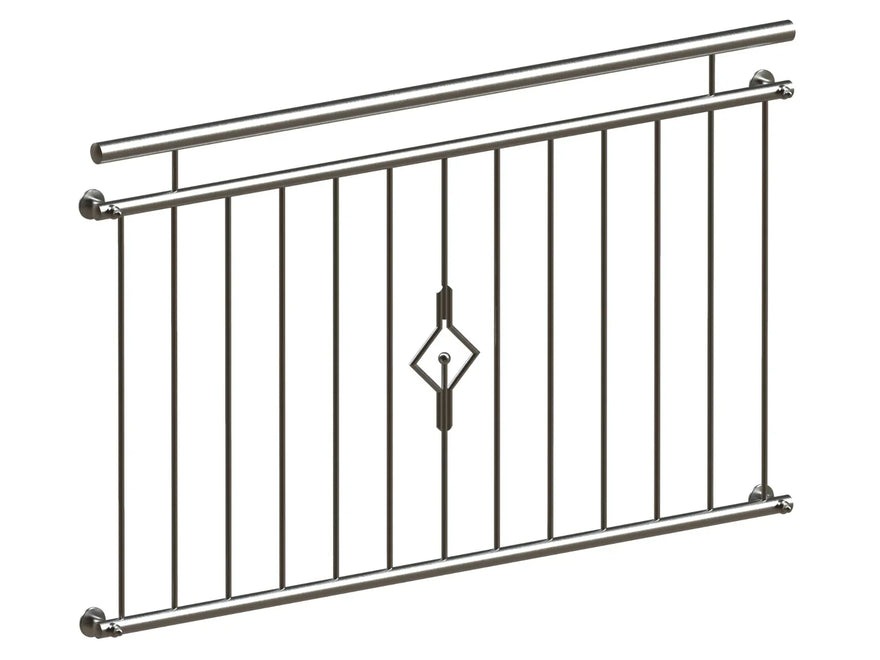

Fenstergitter aus Edelstahl für französischen Balkon mit modernem Design und Rautenmuster

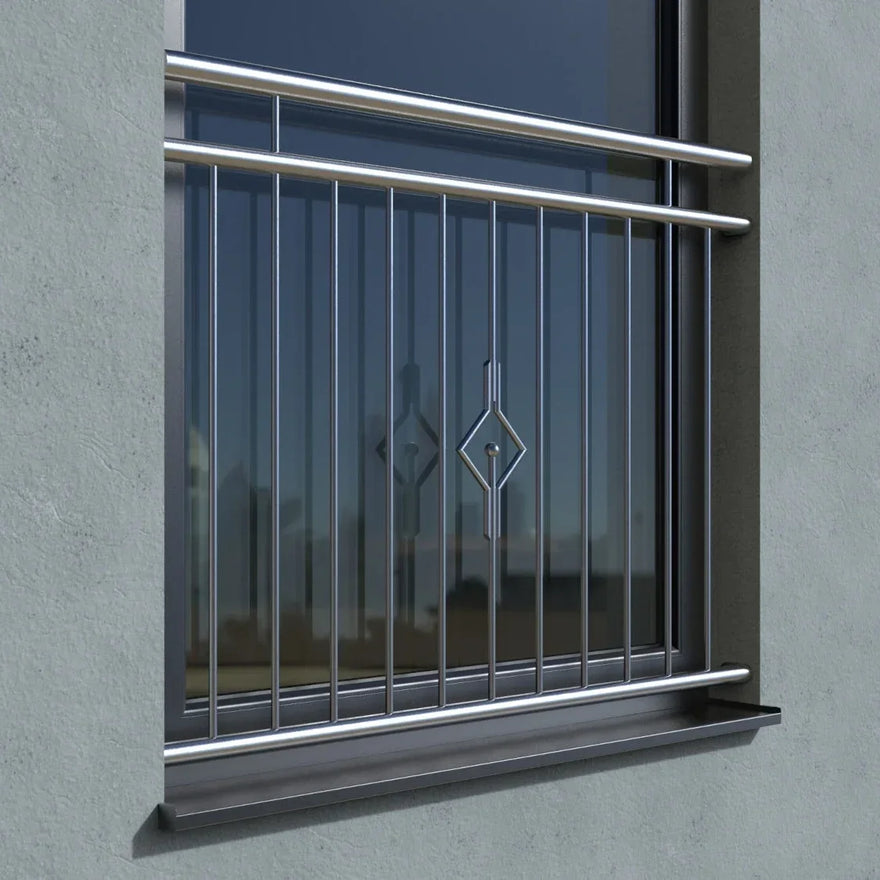

Fenstergitter Edelstahl für französischen Balkon mit geometrischem Muster, moderne Optik
Technische Zeichnung eines französischen Balkongeländers aus Metall mit Maßangaben.
Technische Zeichnung eines französischen Balkon Geländers aus Metall mit Maßangaben und Befestigungselement.
Technische Zeichnung eines Metall-Fenstergitters mit Maßangaben, Laibungsbreite, Befestigungsabstand.
Technische Zeichnung einer Metalltor-Laibung mit Beschriftung, beweglich, fest verschweißt, Madenschraube

French balcony model Dijon stainless steel

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 11011
532,50 €

Tax included. Shipping calculated at checkout

Delivery time: 14 to 21 days

French Balcony / Fall Protection / Window Grille - Model Dijon Made of Stainless Steel

High-quality French balcony made of stainless steel - MADE IN GERMANY - directly from the manufacturer. All connections are stable and professionally welded. For the infill bars, we only use solid material Ø 12 mm. Cheap Chinese goods are often made from inferior round tubes.



  • Manufacturing: according to DIN EN 1090
  • Material: Stainless steel V2A
  • Surface: ground grain 320
  • Handrail: Tube Ø 42.4 mm - Wall thickness: 2mm
  • Top and bottom chord frame: Tube Ø 33.7 mm - Wall thickness: 2 mm
  • Infill bars: Ø 12.0 mm - solid material
  • Spacing between infill bars varies depending on total length: maximum 120 mm
  • Height: 1000 mm (other heights on request)
  • Stainless steel wall mounting elements
  • Feel free to contact us for a possible quantity discount for orders of 3+ balconies


Determine mounting distance:
Enter the value in mm in the selection field above.
Mounting distance = mounting width
A distance of approx. 10 cm from the wall edge should be maintained, otherwise the masonry may break out.

Example calculation of mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Mounting set - assembly material:
Depending on the nature of the wall, different mounting materials are required for the French balcony.

In the configurator, you can add the mounting material according to the type of wall.

For professional installation, please observe the applicable building regulations. Please inform yourself in advance at the responsible building authority. The installer on site assumes liability for the selection of the correct mounting material and proper fastening.
