Bicycle Box Diamond Premium - Pitched Roof Hinged, 1 Parking Space, Extendable Entry Rail, Steel RAL 7016

Hinged flat roof with gas struts – convenient access from above

Robust, color-coated steel construction in RAL 7016 (anthracite gray)

Reliably protects against theft, weather, and vandalism

Extendable entry rail with integrated bike stand – convenient parking in and out

Passage width 790 mm – also for mountain bikes up to 55 mm tire width

Lockable with high-quality profile cylinder lock

Modular design – expandable into complete row systems

SKU: FAB-3/1 GE/D B
Sample:

Sample
Quantity:
3.471,23 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 4 - 5 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

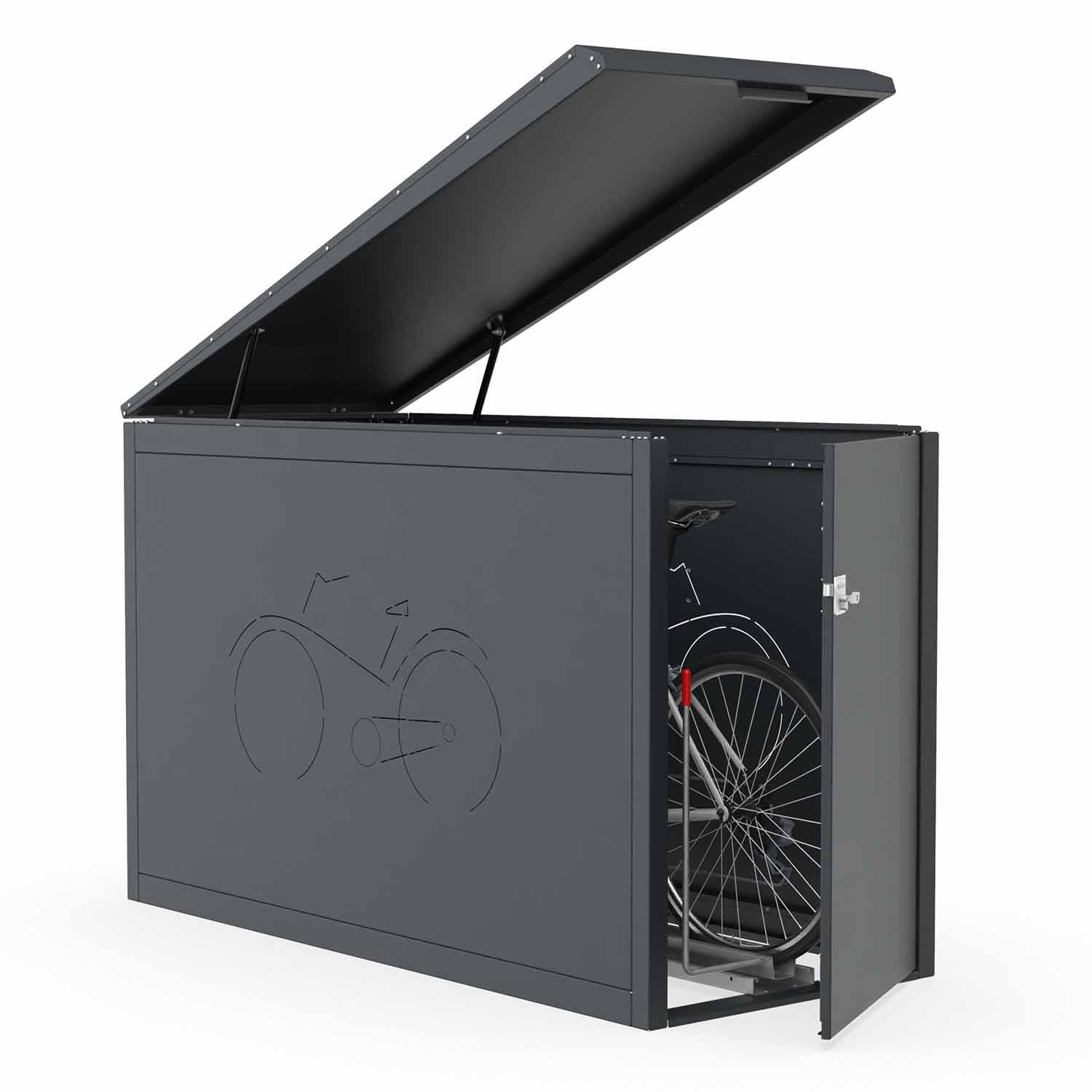

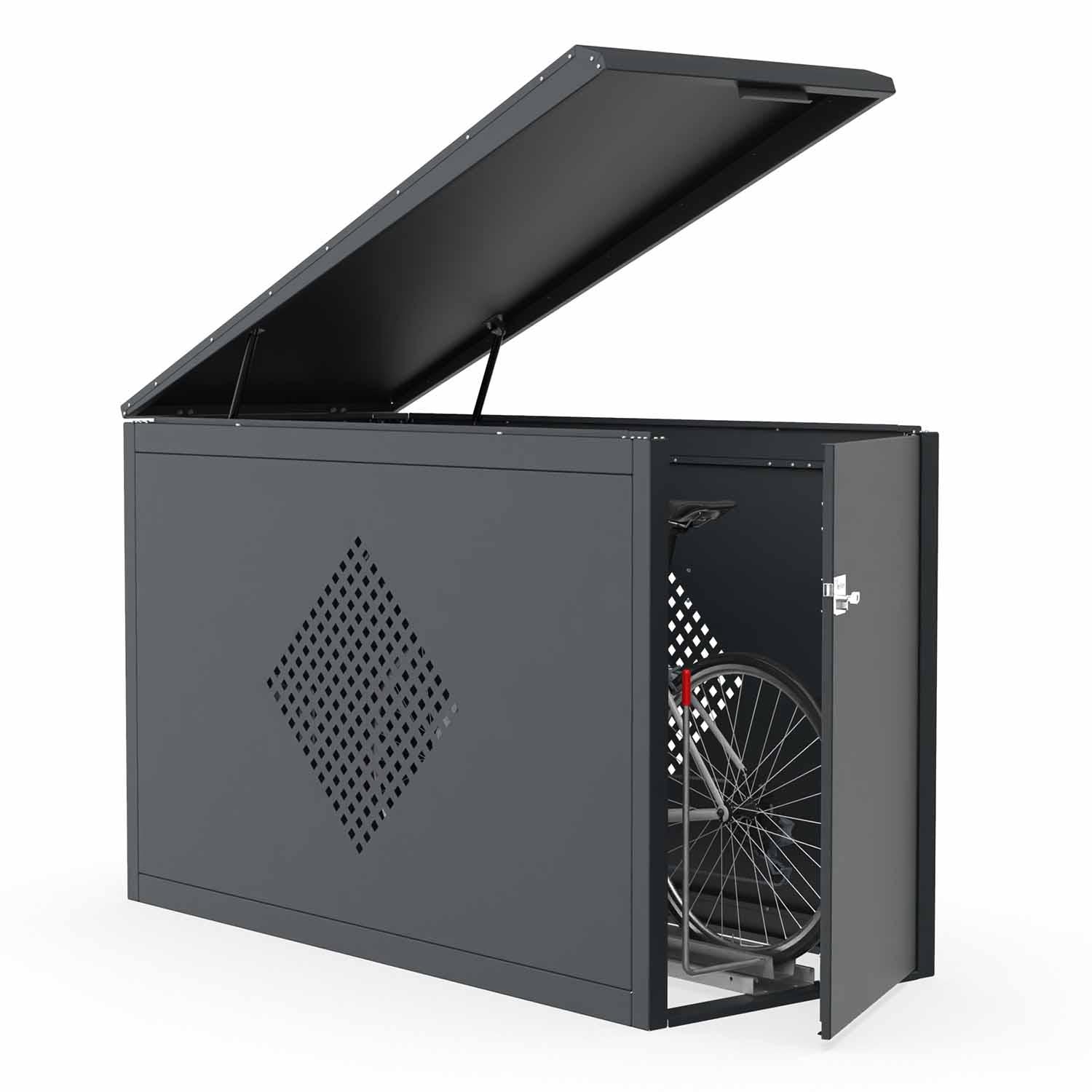

Diamond Premium Bike Box with Hinged Pent Roof – Comfortable Top Access

The Diamond Premium Bike Box is the comfort variant for those who appreciate additional ease of use. Its hinged pent roof can be opened with a handle; two gas struts effortlessly lift the roof and hold it securely in position. This provides convenient top access to your bicycle, pedelec, or e-bike – ideal for loading bags or baskets.

Like all Diamond boxes, the Premium is made of robust, color-coated steel in anthracite grey (RAL 7016) and reliably protects against weather, theft, and vandalism. The extendable entry rail with integrated bike stand makes parking and unparking easier, and the clear width of 790 mm accommodates wider mountain bikes. The side ventilation holes – in a rectangle or bicycle pattern – ensure air circulation and prevent condensation.

Thanks to its modular design, the Premium can be combined into expandable row systems, and individual components can be replaced if needed.

Your Benefits

  • Hinged pent roof with gas struts and handle – comfortable top access
  • All-round protection against theft, weather, and vandalism
  • Robust, color-coated steel construction in RAL 7016 (Anthracite Grey)
  • Extendable entry rail with integrated bike stand for comfortable parking and unparking
  • Clear width 790 mm – also for mountain bikes up to 55 mm tire width
  • Lockable via an integrated profile cylinder lock
  • Modularly expandable into entire row systems

Technical Data

  • External dimensions (L×W×H): 2,200 × 950 × 1,400 mm
  • Material: Steel, color-coated
  • Color: RAL 7016 Anthracite Grey (other colors upon request)
  • Roof: Hinged steel pent roof, with gas struts and handle
  • Entry rail: Extendable, with integrated bike stand
  • Parking spaces: 1 wheelbase (for 1 bicycle)
  • Tire width: up to 55 mm
  • Clear width: 790 mm
  • Door: 1 hinged door, right-hand opening, opening angle approx. 90°
  • Lock: Profile cylinder lock
  • Ventilation: Side walls with ventilation holes (rectangle or bicycle pattern)
  • Mounting: For bolting onto on-site foundations
  • Delivery: Pre-assembled, final assembly on-site

Questions and Answers

The Premium version has a hinged pent roof with two gas pressure cylinders and a handle. This makes the roof easy to open, so you can conveniently access your bike from above as well – for example, for loading. The standard box has a fixed flat roof.

The Premium accommodates one bicycle, pedelec, or e-bike with a tire width of up to 55 mm. Thanks to the passage width of 790 mm, mountain bikes and bikes with wide handlebars also fit in comfortably.

Yes. Every Diamond Premium comes with an integrated profile cylinder lock as standard, reliably securing your bike against theft.

The pent roof is opened via a handle. Two gas pressure cylinders lift the roof easily and lock it securely in the open position, so you can conveniently reach your bike from above.

The extendable loading rail with integrated bike stand can be pulled out. This lets you place the bike in at ground level and roll it out again – without lifting or carrying.

Yes. Thanks to the modular design, several bike boxes can be combined into an expandable row system – ideal for residential complexes, companies, schools, or bike-and-ride stations.

As standard, the Diamond Premium is color-coated in anthracite gray (RAL 7016). Other RAL colors and special coatings are available on request.
