Bicycle charging station, charging point for e-bikes / pedelecs

E-bike/pedelec charging station, charging column

The e-bike/pedelec charging station is a compact and universal charging solution for bicycle parking spaces.

• Dimensions: 1460 x 390 x 340 mm (W x H x D)
• Material: Aluminum square tube (80 x 80 mm)
• Color: powder-coated in RAL 7016 anthracite grey

Features, design, charging infrastructure

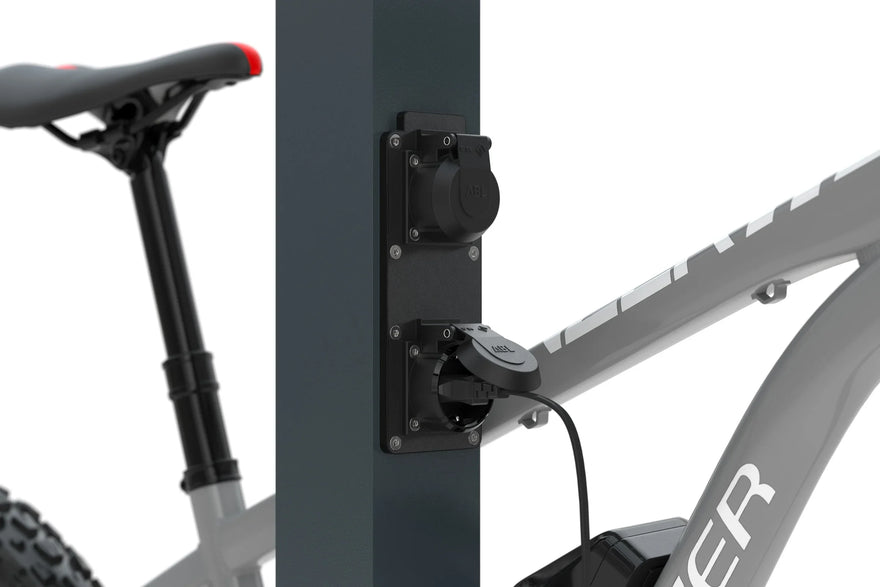

Equipped with four integrated outdoor sockets (IP54), this charging station is ideal for both indoor and outdoor use. Its functional and aesthetically pleasing design makes it the perfect solution for public and private spaces. The 230V grounded sockets (IP54) allow for easy and safe charging of e-bikes and pedelecs. This charging station is an ideal addition to bicycle parking facilities and promotes electromobility.

Installation and connection

The power supply runs through a conduit within the post, protected by a cover plate (150 x 300 mm) and a junction box. Connection is made using pre-assembled WAGO electrical connectors. The supply cable is 3 x 2.5 mm² and equipped with a 16 A fuse and a 30 mA residual current device (Type A), allowing for a maximum power output of up to 3,500 W.
Important note: The mains connection must only be carried out by a qualified electrician.

Optional accessories

Foundation anchor basket

• For embedding in concrete
• Ideal for mounting and aligning the e-bike/pedelec charging station
• Dimensions: approx. 260 x 110 x 500 mm
• With two galvanized steel cross braces
• Includes four M12 stainless steel threaded rods

Manufacturer:
Kirchberger Metall Onlinevertrieb GmbH
Neunburger Str. 2c
92431 Neunburg v. W. / Seebarn
Germany

Contact:
Email: shop@kirchberger-metall.de
Telephone: +49 (0) 9672 9269110
