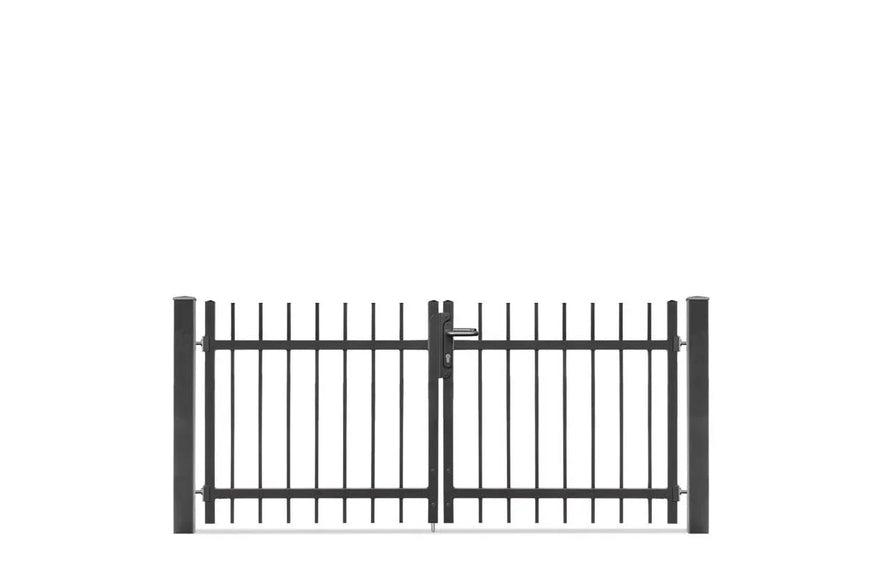

Doppelflügeliges Metallzauntor in Anthrazit mit senkrechten Stäben, moderner Look Detail

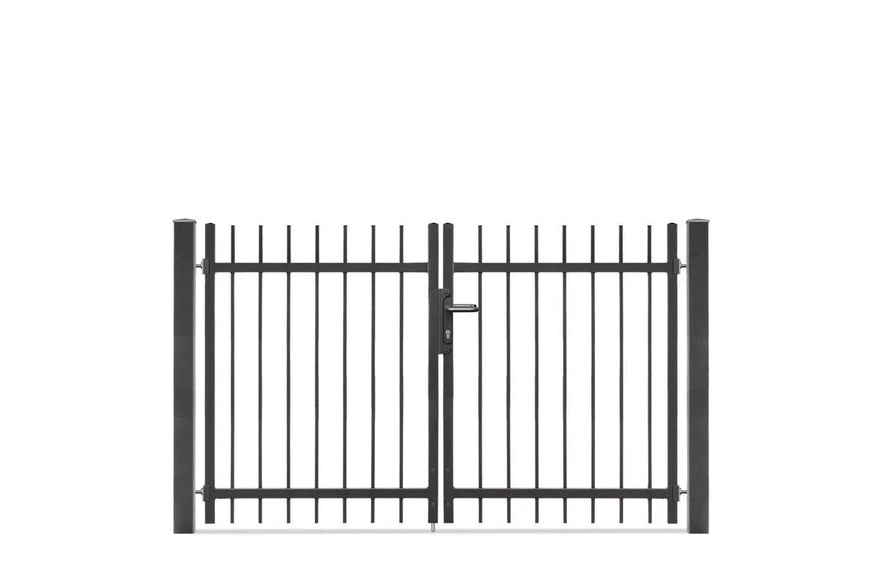

Doppelflügeliges Metallzaun Tor in Anthrazit, modern, mit senkrechten Stäben und Schloss
Doppel-Flügeltor aus Metall, modern, pulverbeschichtet, für Zaunanlage, gerade Streben
Doppelflügeliges Schmuckzaun Tor aus Metall, anthrazit, mit senkrechten Stäben

Entrance gate Residenz select+ BRIENZ double-leaf - Color: Iron Mica DB703

Classic BRIENZ design with plastic caps

Hot-dip galvanized & DB703 powder-coated for long-lasting protection

2-leaf swing gate for convenient access

Solid 80x80 mm gate posts for high stability

Flexible opening direction, DIN left or right

SKU: MTRSBZP2-2009DB703
Height:

Height
Width:

Width
Quantity:
1.080,00 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 14 to 21 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Residenz select+ BRIENZ – Premium Driveway Gate with Plastic Caps

The Residenz select+ BRIENZ swing gate impresses with clean lines, durable materials and an appealing design. Perfectly matched to the fence models Residenz select+ BRIENZ and BASEL, this double-leaf driveway gate offers an elegant solution for private and commercial properties.

Thanks to the variable mounting of the gate posts, the opening direction can be flexibly set to DIN left or DIN right. The gate is delivered including lock and handle; an optional profile cylinder provides additional security.

This model is available in a hot-dip galvanized finish with a high-quality powder coating in DB703 (iron mica), directly from stock. Special RAL colors are available on request. Thanks to the galvanizing and coating, the gate is optimally protected against corrosion and retains its refined appearance for decades.

Product Details at a Glance:

  • Heights: Choice of 900 mm or 1200 mm
  • Design: Sturdy double-leaf gate system
  • Opening angle & clear width:
    • Variant 1: 90°: 2095 mm | 180°: 2075 mm
    • Variant 2: 90°: 3215 mm | 180°: 3195 mm
  • Infill: BRIENZ decorative fence with robust plastic caps and slatted plugs (15x15 mm)
  • Surface: Hot-dip galvanized & powder-coated (color: DB703 iron mica)
  • Gate posts: Sturdy square tube 80/80 mm
  • Scope of delivery: Complete set including matching gate posts and accessories

Gate post specifications:
Profile: 80 x 80 mm | Installation: for setting in concrete
Length: 1500 mm (for 900 mm gate height) / 1700 mm (for 1200 mm gate height)

You will find the exact scope of delivery and technical details in the parts list of the manual:
Montageanleitung.pdf

Frequently Asked Questions (FAQ):

Are the posts only available for setting in concrete?
As standard, the posts are supplied for setting in concrete. However, they can be shortened on site to dowel-mount them with a base plate adapter.
>> Order the matching base plate 80x80 here <<

How are the fence panels connected to the gate post?
The fence connection is made easily with the standard mounting elements, just as with regular fence posts.
>> Click here for the matching mounting element set <<

Is an assembly manual included?
Yes, a printed manual is included with every shipment. Alternatively, you can view it digitally here at any time:
Montageanleitung.pdf

Shipping note:
Delivery is made by freight carrier, securely strapped to a one-way pallet. The price includes shipping and curbside delivery!

Questions and Answers

The hinges should be firmly welded so they cannot simply be unscrewed. An anti-lift device also prevents the closed gate from being pried upward off its hinges with a crowbar.

• Dig a rectangular hole at least 80 cm deep (frost-free).• Place the post in perfectly plumb and secure it with wooden battens.• Pour in moist C25/30 concrete, compact it well, and let it cure for a few days.

A clear passage width (distance between the posts) of at least 3.00 meters is recommended for comfortably driving through with a standard passenger car. If the approach is at an angle, more generous dimensions should be planned.

With asymmetrical gates (e.g. a wide leaf for cars and a narrow one for pedestrians), the wider leaf exerts significantly greater leverage. The gate post for this leaf must therefore be sized more heavily and anchored in a larger concrete foundation.

For maximum longevity, metal is the best choice. Powder-coated aluminum or hot-dip galvanized steel cannot rot, are extremely stable, and, unlike wood, do not warp with fluctuations in temperature and humidity.

Enclosures such as fences and gates are usually permit-free up to a height of approx. 1.50 to 2.00 meters (depending on the state building code). A building permit is rarely necessary, but municipal development plans should be observed.

Yes, with stable gate leaves, retrofitting is easily possible. Special brackets are screwed onto the gate leaves and posts, into which the electric linear drives or articulated arms are then mounted.

Modern electric gate operators offer a wide range of smart home integrations. They can easily be retrofitted with modules for Bluetooth app control, Wi-Fi gateways, or biometric fingerprint scanners.

No, this is prohibited for traffic safety reasons. Gates must open inward (into the property) so as not to endanger pedestrians and cyclists on the public sidewalk.
