Mounting kit for ETICS thermal insulation - DIMOS anchors - for French balconies

Fixing set for standoff mountings with thermal break in external thermal insulation composite systems (ETICS) - Set for French balconies

• Insulation thickness up to 200 mm
• Length: 302 mm
• Outer diameter of sealing ring: 42 mm
• Outer diameter of thermal break module: 30 mm
• Diameter of connection thread: 12 mm
• Core diameter of thermal separation module: 26 mm
• Length of thermal break module: 60 mm
• Sealing ring material: Ethylene-propylene-diene terpolymer rubber (EPDM)
• Material of connection thread: Stainless steel A4
• Material thermal separation modulus: Polyamide PA 6 with glass fibers
• Connection thread: M12
• Through hole in the component to be connected (df): 13 mm

Advantages:

• Approved for use with hollow and solid bricks as well as concrete
• Suitable for medium to heavy loads
• High flexibility
• Simple, quick and safe assembly
• Effective thermal separation
• Pre-assembled and weather-resistant EPDM seal
• External parts made of corrosion-resistant materials such as polyamide and A4 stainless steel
• Adjustable

You can find the assembly video here! (click here)
https://media.witglobal.net/stmedia/reca/videos/std.lang.all/577381537.mp4

You can find the approval and assembly instructions here (please click)
https://media.witglobal.net/stmedia/reca/documents/LANG_de/09112_BEW_ZUL_ETA-23-0482_dimos_UNI-RT_12_16_gueltig_ab_20230905.pdf

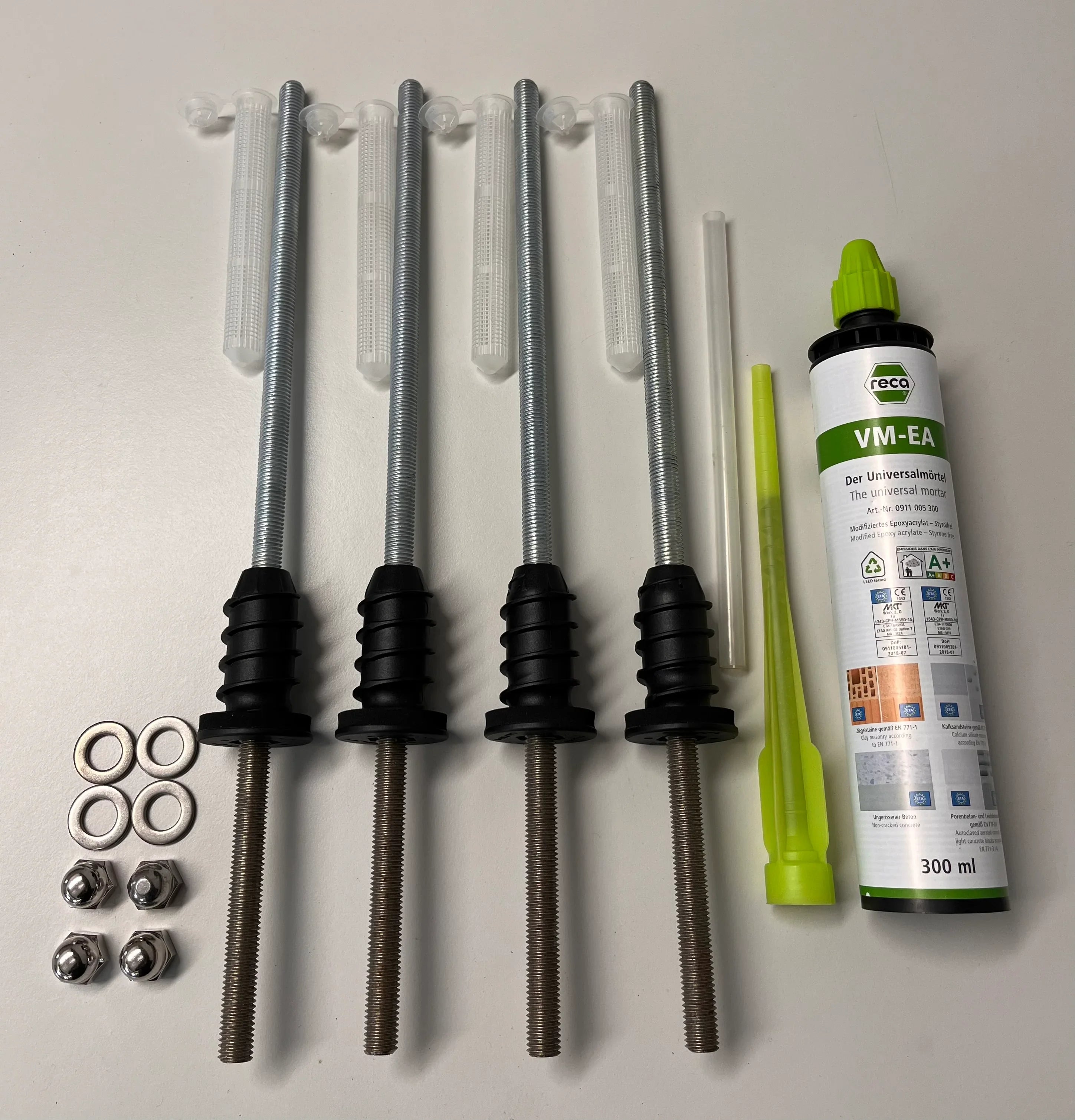

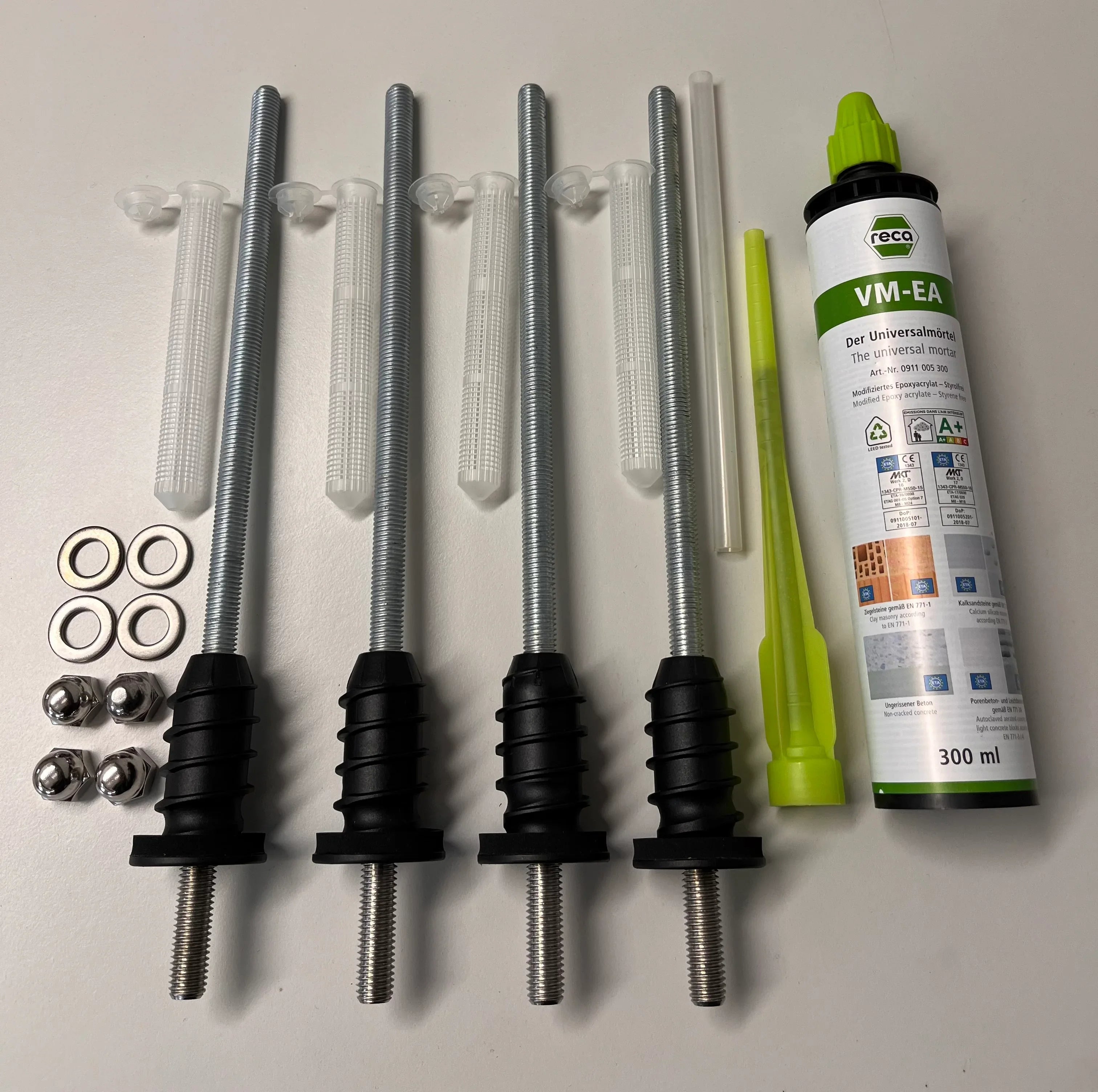

Scope of delivery:
4x Dimos anchor M12 - 302mm length
4x sieve sleeves
1 extension hose for static mixer
1x Mounting adhesive
4x threaded rod 140mm pre-installed during fastening
4x threaded rod 60mm for fastening in the reveal or with angle brackets
4x cap nut
