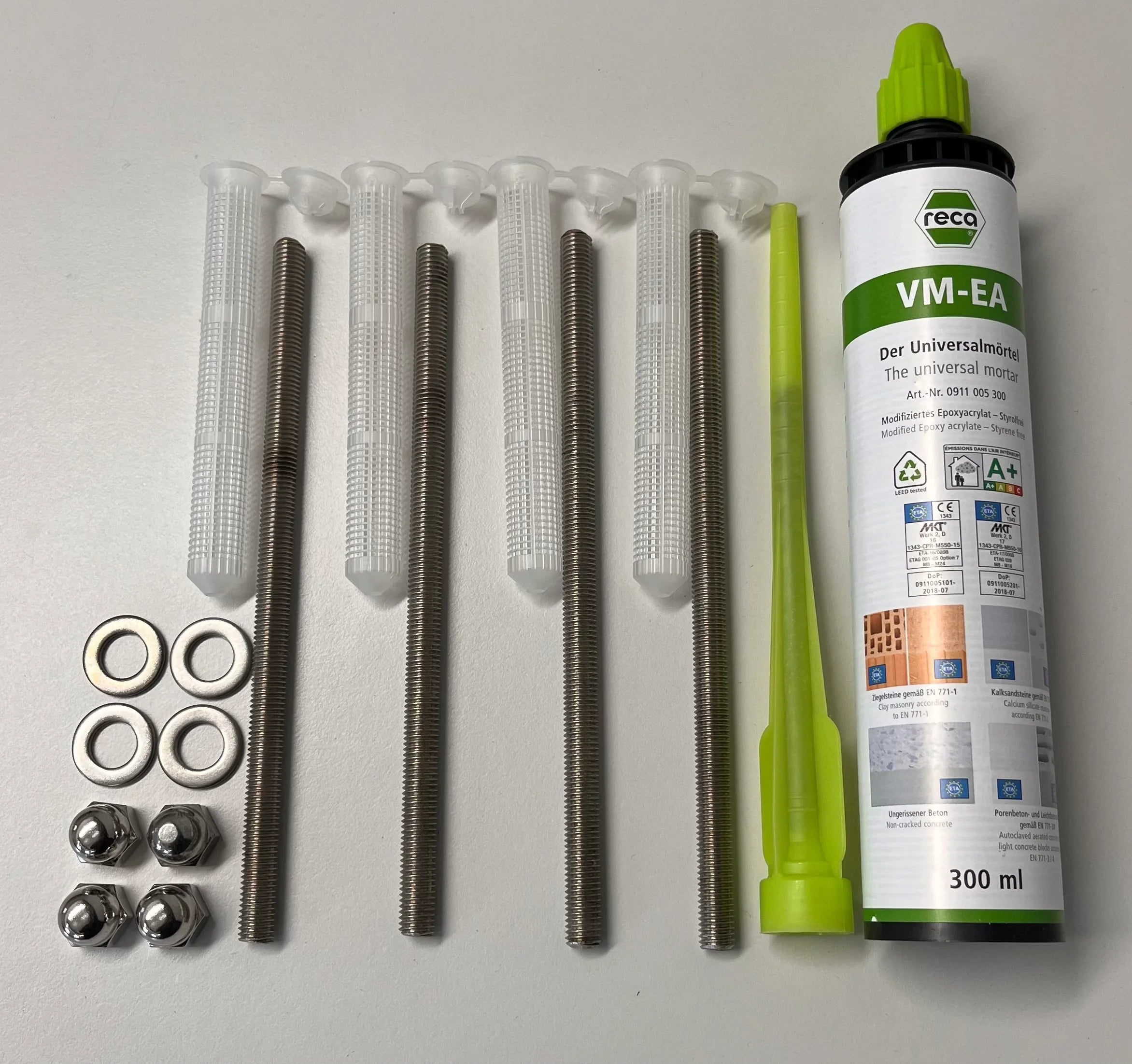

Set für Geländer Befestigung an Mauer mit Klebeanker, Gewindestangen, Muttern, Unterlegscheiben und Injektionsmörtel

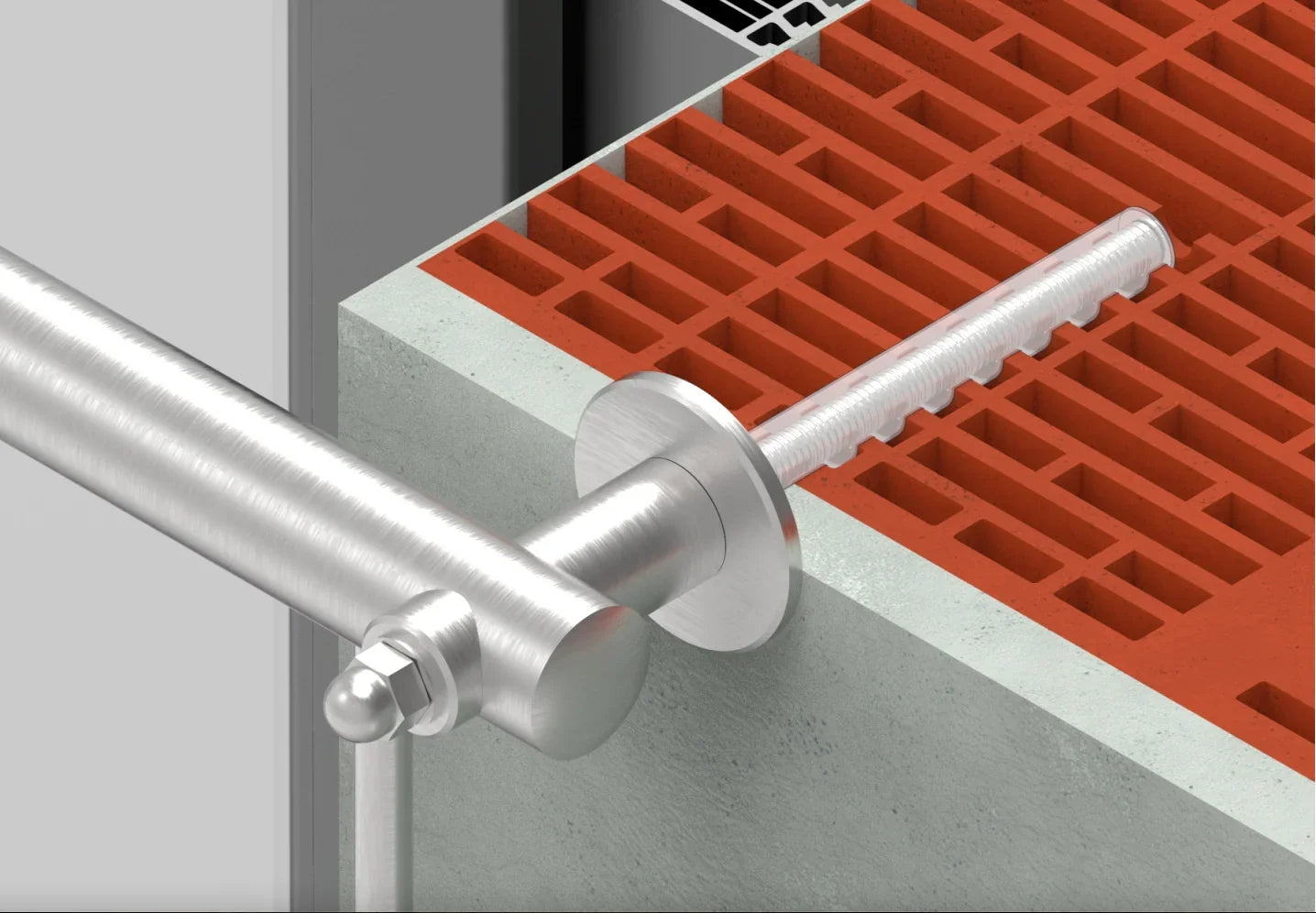

Befestigung eines Edelstahl-Geländers an Mauerwerk und Fenster, Detailansicht

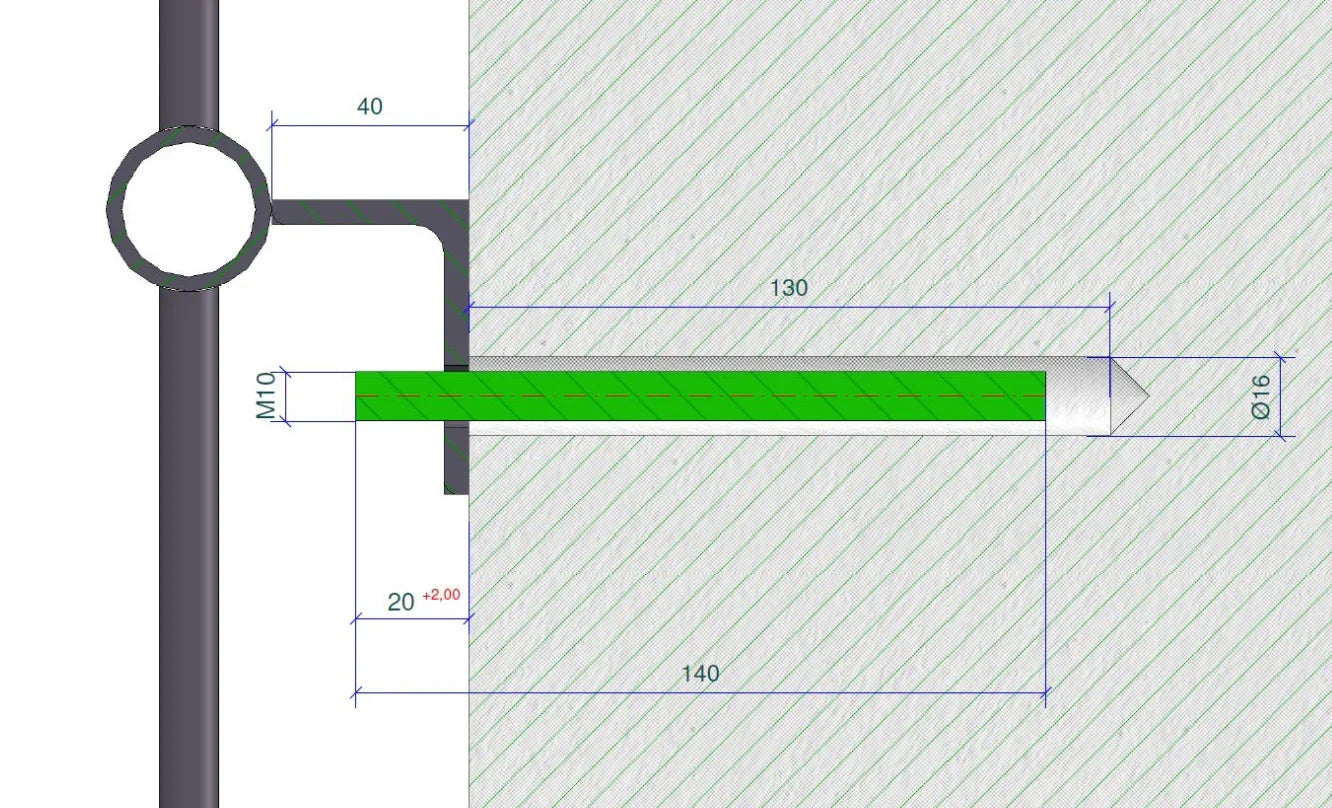

Detailzeichnung Geländerbefestigung am Fenster, Metallstab mit M10 Gewinde in Mauer verankert

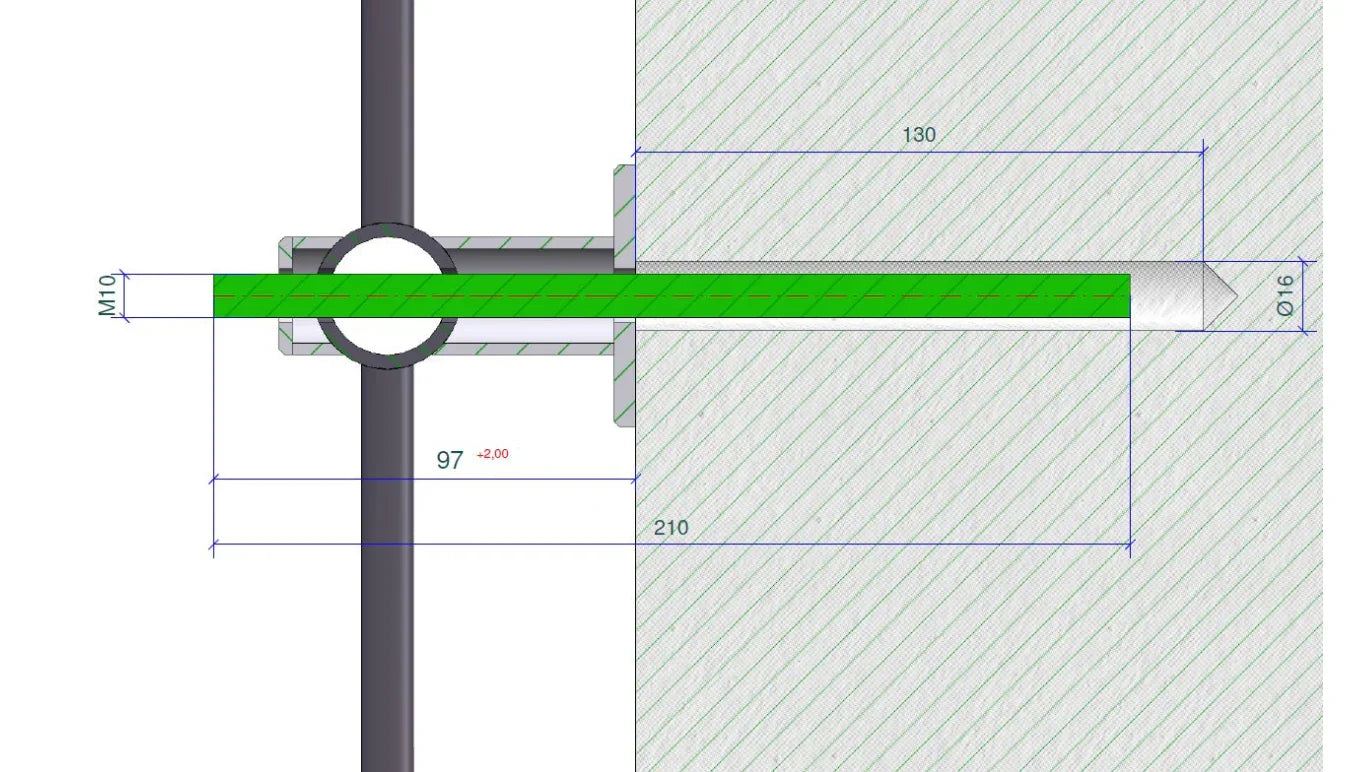

Detailzeichnung Geländerbefestigung Fenster in Mauer, Maße und Montage sichtbar

French balcony mounting kit for masonry

SKU: 100201-INDERLAIBUNGODERMITWINKEL
fastening:

fastening
47,60 €

Tax included. Shipping calculated at checkout

Delivery time: 3 to 8 days

Quantity:

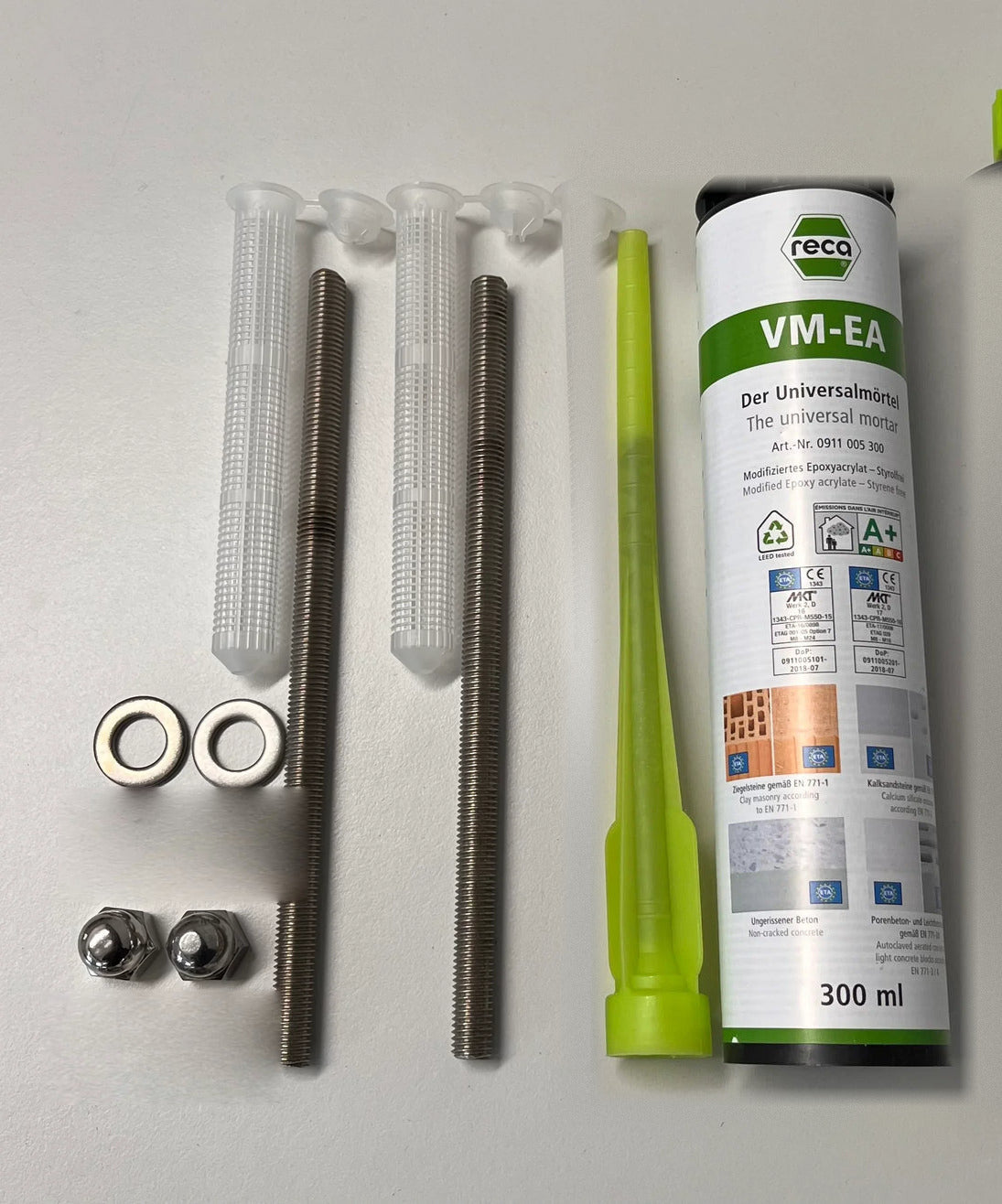

Mounting set for attaching French balconies to masonry

Suitable for all models offered in the online shop!
Please select according to the type of fastening:

Mounting set for fastening option 1:
"Pre-mounted wall installation":
4x M10x210mm threaded rod stainless steel
4x sieve sleeve
1x mounting adhesive (may differ from illustration)
4x M 10 nut stainless steel
4x M 10 cap nut stainless steel

Mounting set for fastening option 2:
"Pre-mounted with bracket or installation in the reveal"
4x M10x140mm threaded rod stainless steel
4x sieve sleeve
1x mounting adhesive (may differ from illustration)
4x M10 nut stainless steel
4x M10 cap nut stainless steel

Approval and installation instructions can be found here (please click)
https://media.witglobal.net/stmedia/reca/documents/LANG_de/DE_09110_IS_VM-EA_BEW_ZUL-ETA-16-0898_MKT_Beton_IS_VM-EA_20200425.pdf
