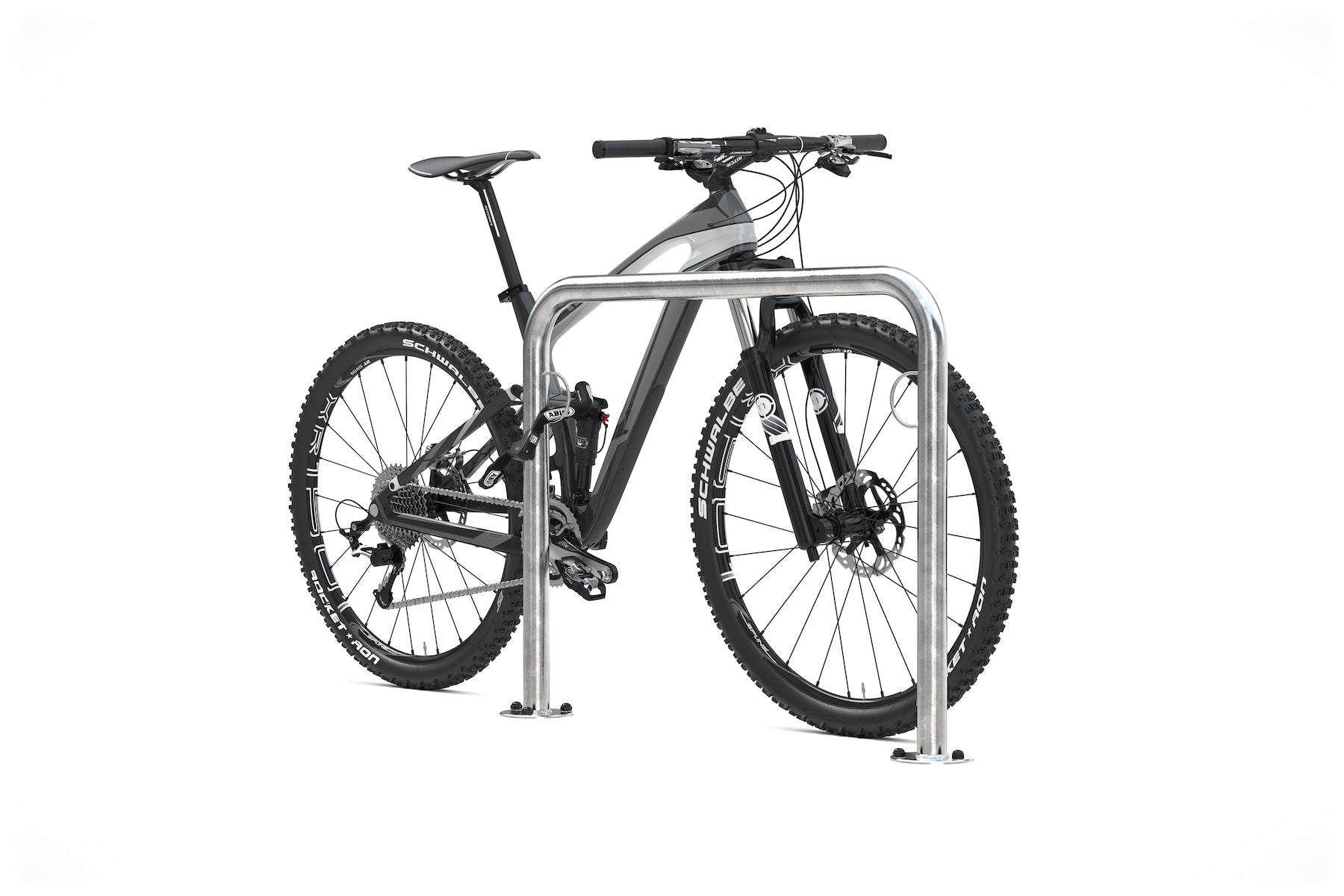

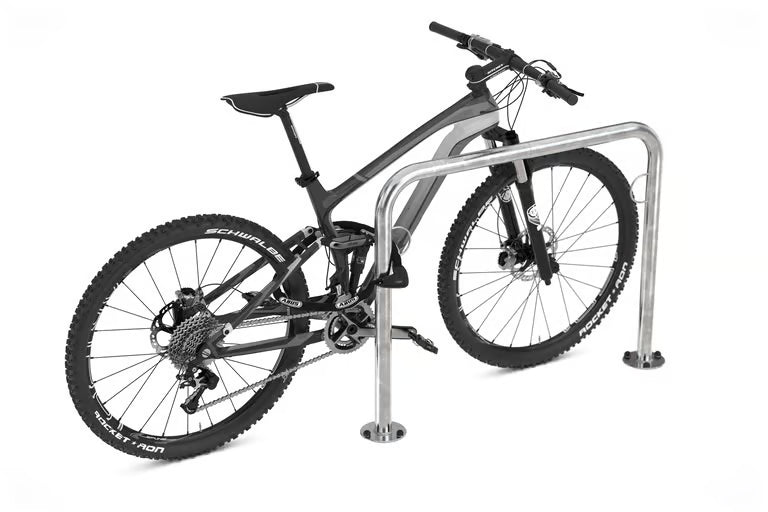

Bicycle lean-to hoop TRUST – Secure hold for all bike types
The TRUST lean-to and barrier hoop is the ideal solution for secure and flexible bicycle parking systems. Made from corrosion-protected, 48 mm thick galvanized steel tubing, the system offers a stable parking space for all bicycle types and can be mounted at individual distances. Thanks to the dismountable frame, shipping is particularly economical and environmentally friendly via parcel service.
Technical data & product highlights:
Material & Construction: Stable, fully galvanized steel tube construction with a tube diameter of 48 mm.
Compatibility: Suitable for every bicycle size and type, from mountain bikes to e-bikes.

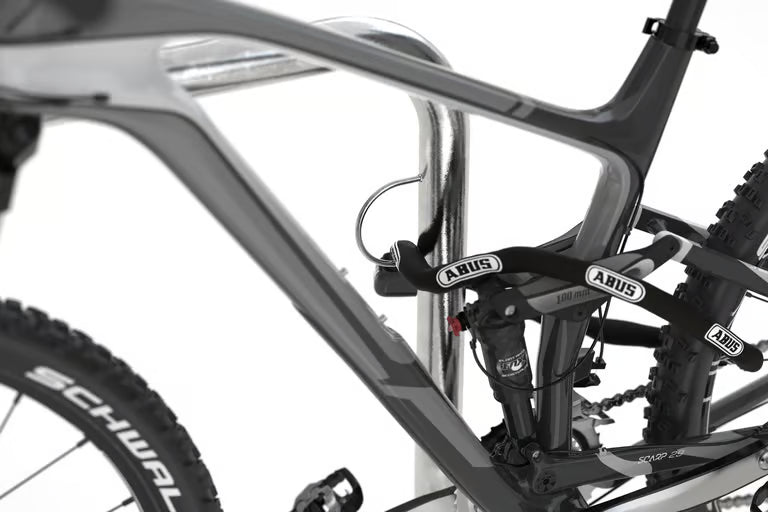

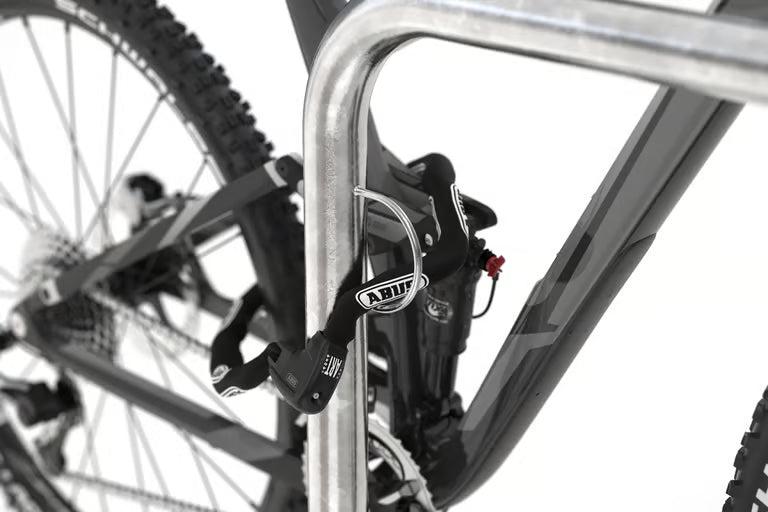

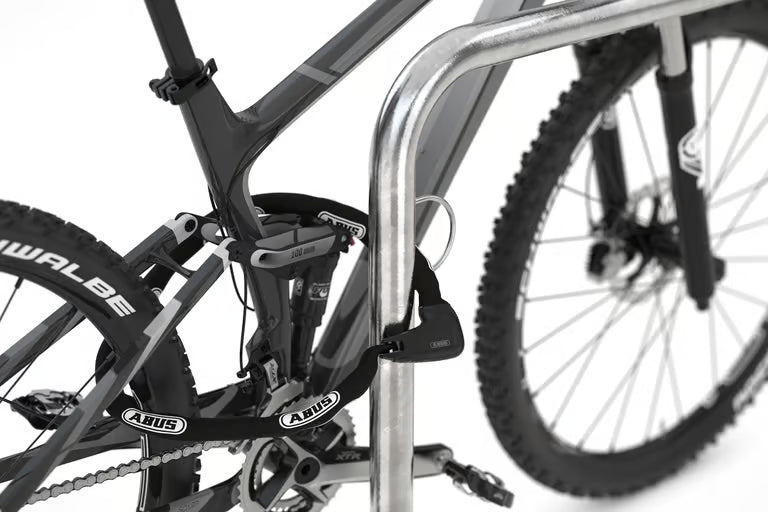

Integrated anti-theft protection: Steel eyelets integrated into the frame allow for complete securing of the bicycle frame with a lock.
Flexibility: The hoops can be mounted at freely selectable distances and can be easily extended or removed at any time.
Shipping optimized: The dismountable frame enables fast and cost-effective delivery via parcel service in recyclable packaging.
Mounting types: The system is available in versions for embedding in concrete or for surface mounting (bolting down).
Model variants & dimensions:

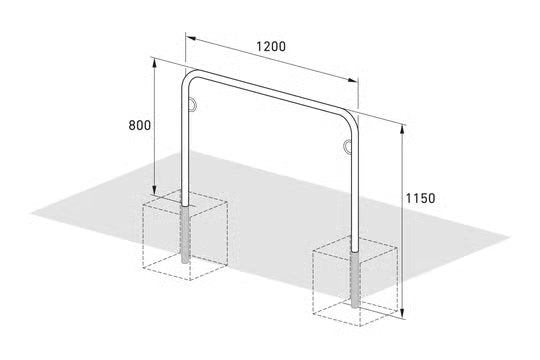

Version for embedding in concrete:
Model Trust 10 (Item no. 105500001) – 2 parking spaces – Dimensions (WxHxD): 750 x 1150 x 48 mm
Model Trust 20 (Item no. 105500002) – 2 parking spaces – Dimensions (WxHxD): 1000 x 1150 x 48 mm
Model Trust 30 (Item no. 105500003) – 2 parking spaces – Dimensions (WxHxD): 1250 x 1150 x 48 mm

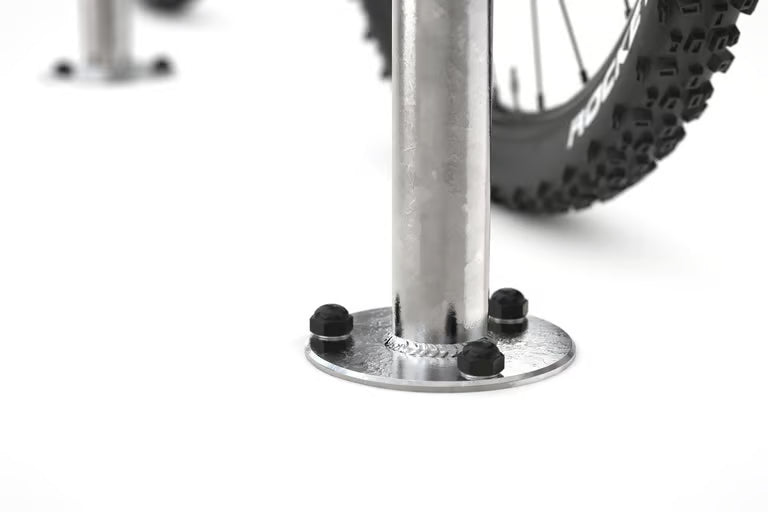

Version for surface mounting / bolting down:
Model Trust 11 (Item no. 105500083) – 2 parking spaces – Dimensions (WxHxD): 750 x 800 x 48 mm
Model Trust 21 (Item no. 105500010) – 2 parking spaces – Dimensions (WxHxD): 1000 x 800 x 48 mm
Model Trust 31 (Item no. 105500082) – 2 parking spaces – Dimensions (WxHxD): 1250 x 800 x 48 mm
