✅ Sicherheit: Eindeckung mit VSG-Milchglas nach DIN 18008 und Seitenwände aus ESG-Glas.

✅ Korrosionsschutz: Feuerverzinktes Tragwerk mit einer hochwertigen C4-medium Lackierung (ideal für Stadtklima und industrielle Umgebungen).

✅ Stabilität: Typengeprüfte Statik für eine hohe Schneelast von 2,50 kN/m2.

✅ Funktionalität: Integriertes Entwässerungssystem

SKU: 102100393
variant:

variant
5.658,45 €

Tax included. Shipping calculated at checkout

Delivery time: 3-6 weeks

Quantity:

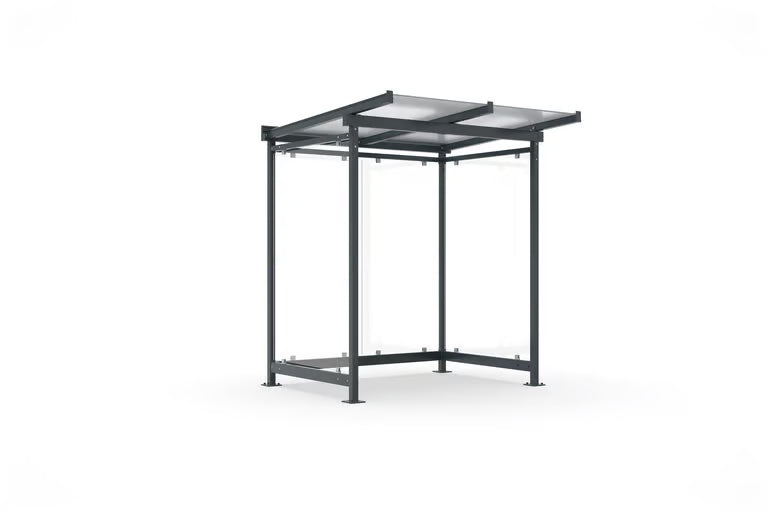

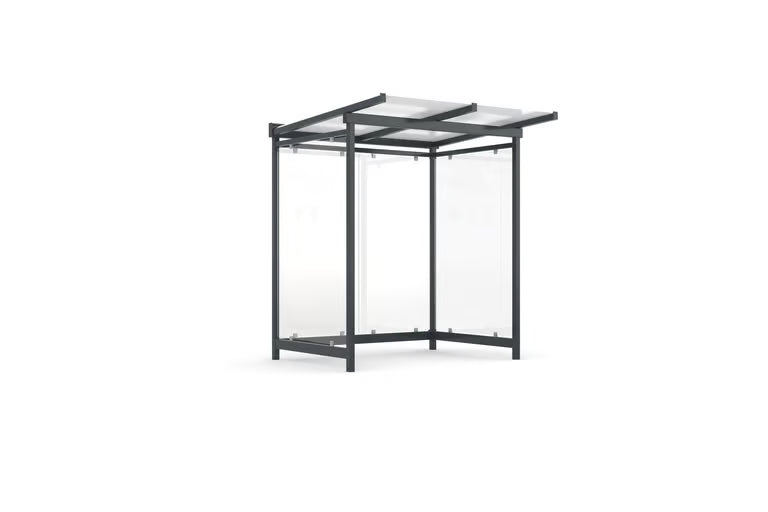

Dresden Model Waiting Shelter – Heavy-Duty Bus Shelter & Smoking Shelter

The Dresden canopy system combines functionality with modern design. Whether as a weather-protected bus shelter in public spaces or as a robust smoking shelter, a breaktime canopy for employees & students – the type-tested steel construction withstands harsh weather conditions with a snow load of 2.50 kN/m².

Model Overview

    Detailed technical data sheets can be found under the Documents tab.

    • Dresden D2: Width 2230 mm, Depth 1510 mm | Area 3.00 m² | Height 2600/2730 mm
    • Dresden D3: Width 3305 mm, Depth 1510 mm | Area 4.30 m² | Height 2600/2730 mm
    • Dresden D4: Width 4380 mm, Depth 1510 mm | Area 5.70 m² | Height 2600/2730 mm

    Material and Construction

    • Framework: The heavy-duty steel construction consists of five square tube supports with base plates for secure ground mounting by bolting down. The entire construction is hot-dip galvanized.
    • Roof: Elegant lean-to roof with composite safety glass (VSG) in a frosted glass look according to DIN 18008.
    • Side and Rear Walls: The walls are made of clear single-pane safety glass (ESG) and are securely fastened with high-quality glass holders. They are included in the scope of delivery.
    • Drainage: An integrated water box made of multi-folded and stiffened sheet steel with an integrated rain gutter ensures clean water drainage.
    • Paint Finish: Environmentally friendly two-component paint with corrosion protection class C4 medium. Standard delivery in RAL 7016 (Anthracite Grey), individual RAL colors are available upon request (excluding pearl and signal colors).
    • Load Capacity: The system has a preliminary static test and is designed for a snow load of 2.50 kN/m².



    Important Installation Notes

    • Fastening: Installation is carried out by bolting down the base plates onto a customer-provided foundation.Foundation plans: Foundation plans will be provided after order confirmation.

    • Delivery Form: You have the choice between a practical kit (BS) for self-assembly or fully assembled delivery ex works (standard for the UP version).

    • Color Scheme: While RAL 7016 is standard, the waiting shelter can be colored to match almost any corporate design or urban landscape.

    Please feel free to contact us with any questions. We would also be happy to provide individual offers!
