Fenstergitter Edelstahl für französischen Balkon an Fenster montiert, modern, sicher

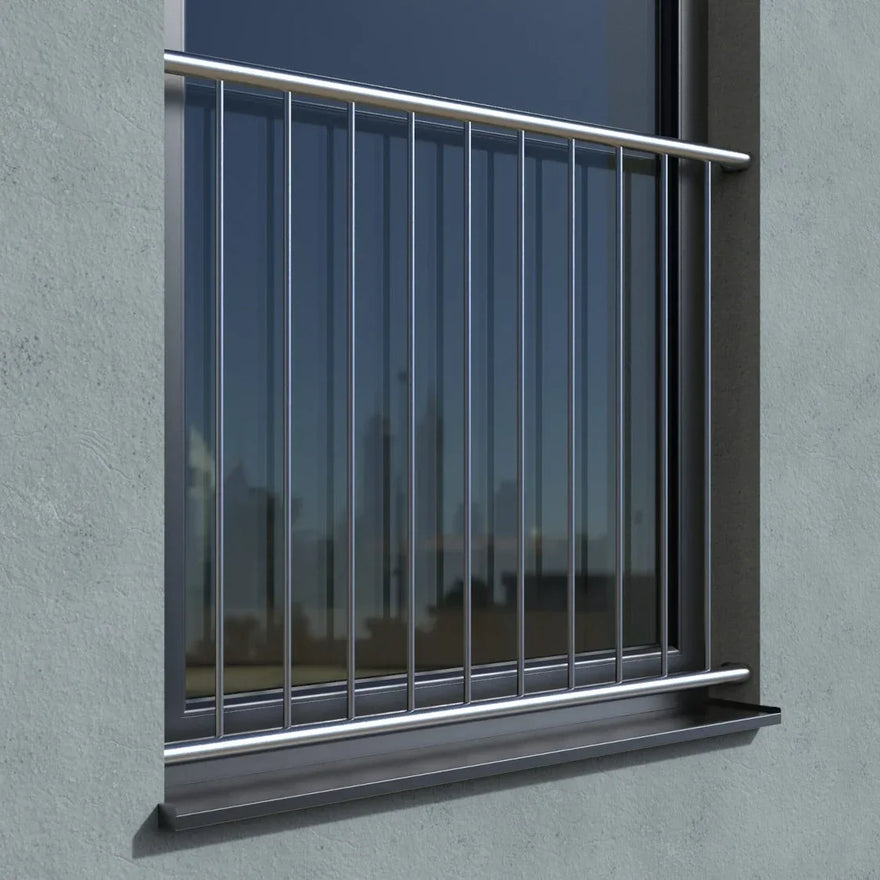

Fenstergitter aus Edelstahl für französischen Balkon in moderner Laibung am Fenster

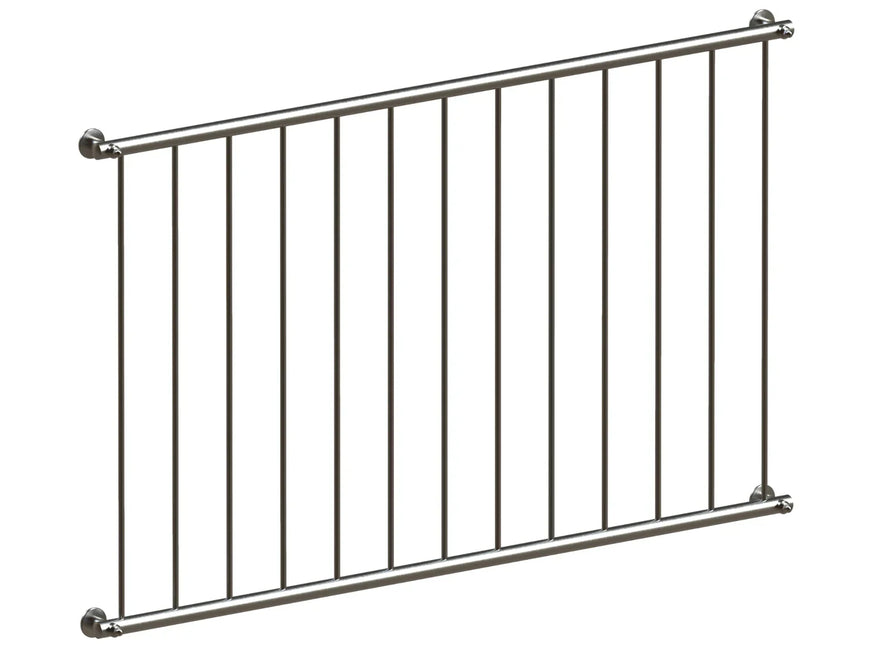

Fenstergitter aus Edelstahl für französischen Balkon, schlichtes Design, waagerechte Montage
Zeichnung französischer Balkon aus Metall, Maße und Befestigung für Fenster, Standardmodell
Technische Zeichnung eines französischen Balkons aus Metall mit Wandbefestigung und Maßangaben.
Technische Zeichnung einer Fensterlaibung mit Metallgeländer und Maßangaben, Befestigungsabstand, Laibungsbreite, Höhe.
Technische Zeichnung eines Metallgeländers mit Einschiebling, Madenschraube und Schweißverbindung.

French balcony model Basic stainless steel

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 11002
Ab
317,50 €

Tax included. Shipping calculated at checkout

Delivery time: 14 to 21 days

French Balcony Model Basic – Stainless Steel Fall Protection

Secure floor-to-ceiling windows with style: Our French Balcony (Model Basic) made of high-quality stainless steel impresses with maximum safety and timeless design. As a true quality product MADE IN GERMANY, you purchase this window grille directly from the manufacturer. All connections are stable and professionally welded. While cheap imports often rely on inferior round tubes, we exclusively use solid 12 mm solid material for the infill bars.

  • Certified Production: According to DIN EN 1090 for the highest safety standards.
  • Material & Design: Rust-free V2A stainless steel, elegantly ground (grain 320).
  • Sturdy Frame: Top and bottom rails made of tube Ø 33.7 mm (wall thickness 2 mm).
  • Solid Infill Bars: Ø 12.0 mm solid material for optimal stability.
  • Standard-compliant Spacing: Maximum 120 mm infill bar spacing (varies depending on total length).
  • Dimensions: Standard height 1000 mm (individual custom heights available upon request).
  • Scope of Delivery: Includes high-quality stainless steel wall mounting elements.

Feel free to contact us for attractive quantity discounts for 3+ balconies.

How to determine the correct mounting distance:
Enter the desired value in mm in the selection field above. To prevent the masonry from breaking out, a minimum edge distance of approx. 10 cm from the wall edge should be maintained.

Example calculation for the mounting distance:
1000 mm window width (reveal measurement)
+ 100 mm overhang left
+ 100 mm overhang right
= 1200 mm mounting distance

Mounting set - Installation material:
Depending on the nature of the wall, different installation materials are required for the French balcony.

Important notes on mounting material:
The choice of fastening depends on your facade. When mounting on walls with external insulation (ETICS), observe the use of special anchors and the applicable building regulations.
You can find suitable mounting accessories in our shop here.

Free shipping by freight forwarder to Germany and Austria!
