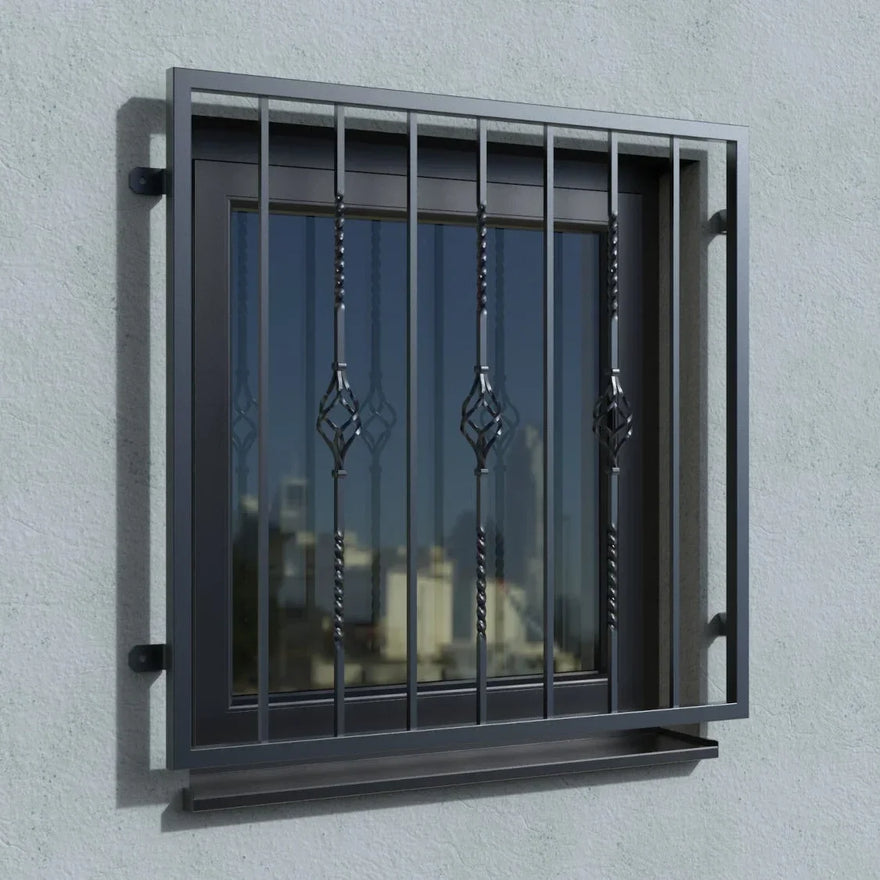

Fenstergitter RAL7016 aus Metall mit Zierstäben und Fensterbrett an Hauswand

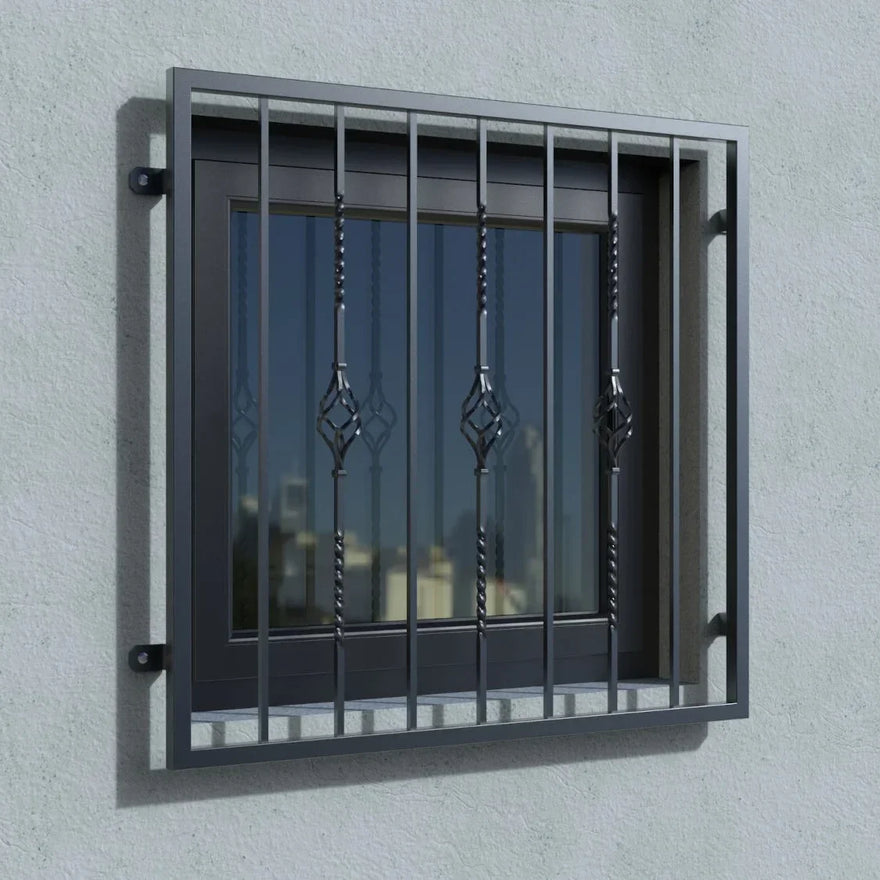

Modernes Fenstergitter RAL 7016 anthrazit aus Metall mit Zierelementen, an Hauswand montiert
Fenstergitter RAL 7016 aus Metall, dekorativ, montiert in Fensterlaibung
Fenstergitter aus Metall mit dekorativen, gedrehten Stäben und Ornamenten, pulverbeschichtet
Verzinktes Fenstergitter in Anthrazitgrau mit Zierelementen vor Fenster, Einbruchschutz
Zeichnung Fenstergitter vorgesetzt mit Fensterbank, Maße und Schnittansicht sichtbar
Technische Zeichnung Fenstergitter vorgesetzt ohne Fensterbrett, Maße und Schnittansicht
Zeichnung Fenstergitter Laibung mit Maßen, Detail- und Schnittansicht, Metallbau

Window grille model Milan 2, galvanized, powder-coated

Certified manufacturing according to DIN 1090

Kirchberger weld quality

Made in Germany, from our own production

Solid rods

Free shipping

Quantity discount from 3 pieces

SKU: 90019
Ab
457,10 €

Tax included. Shipping calculated at checkout

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt - Angebot anfordern
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Window Grille Model Mailand 2 Galvanized & Powder-Coated – Custom-Made Burglary Protection

The Mailand 2 window grille effectively protects your windows from burglary and, with its timeless, simple design, discreetly blends into any facade. All connections are stable and professionally welded; we manufacture individually to measure.

Design & Technical Details

  • Material: Steel (S235JR)
  • Surface: Hot-dip galvanized and powder-coated (color of your choice)
  • Frame: 30 × 30 × 2 mm
  • Infill bars: Square 12 mm
  • Distance between infill bars: max. 120 mm

Configure to Measure

In the online configurator, you define all features and dimensions:

  • Size: Specify the reveal width and height in mm – we will determine the grille dimensions.
  • Mounting type: on the exterior wall without a windowsill, on the exterior wall with a windowsill, or in the reveal.
  • Opening function: optionally with hinge and lock (one or two locks depending on size).

Mounting Material

Matching fastening set can be added in the configurator: security screws 7 × 105 mm including anti-dismantling protection with star bits for Torx and wall plugs. We adjust the quantity to the number of fastening points.

Questions and Answers

Very sturdy: the frame measures 30 × 30 × 2 mm, the infill bars are 12 mm thick, the spacing is a maximum of 120 mm, and all joints are professionally welded. The grilles are also fastened tamper-proof using security screws with knock-in stars.

Depending on the version: hot-dip galvanized steel (S235JR), hot-dip galvanized and additionally powder-coated steel (color of your choice), or rust-free V2A stainless steel, brushed. All versions are professionally welded and weather-resistant.

Yes, on request we manufacture the grille with a hinge and lock (one or two locks depending on the size). This allows it to be opened when needed – e.g. for cleaning the window or as a second escape route – and securely locked again.

You choose the mounting type in the configurator: on the outer wall without a windowsill, on the outer wall with a windowsill, or in the reveal. Matching mounting material (7 × 105 mm security screws with removal protection and wall anchors) can be added directly.

Yes. You enter the reveal width and height in mm in the configurator; we then determine the exact grille dimensions and manufacture individually for your window – Made in Germany.

Available models include Turin, Pisa, Venedig, Mailand, Florenz, and Caorle – from plain (square or round bars) to decorative with ornamental bars. Each model is available galvanized and powder-coated; Turin and Pisa also come in stainless steel.
