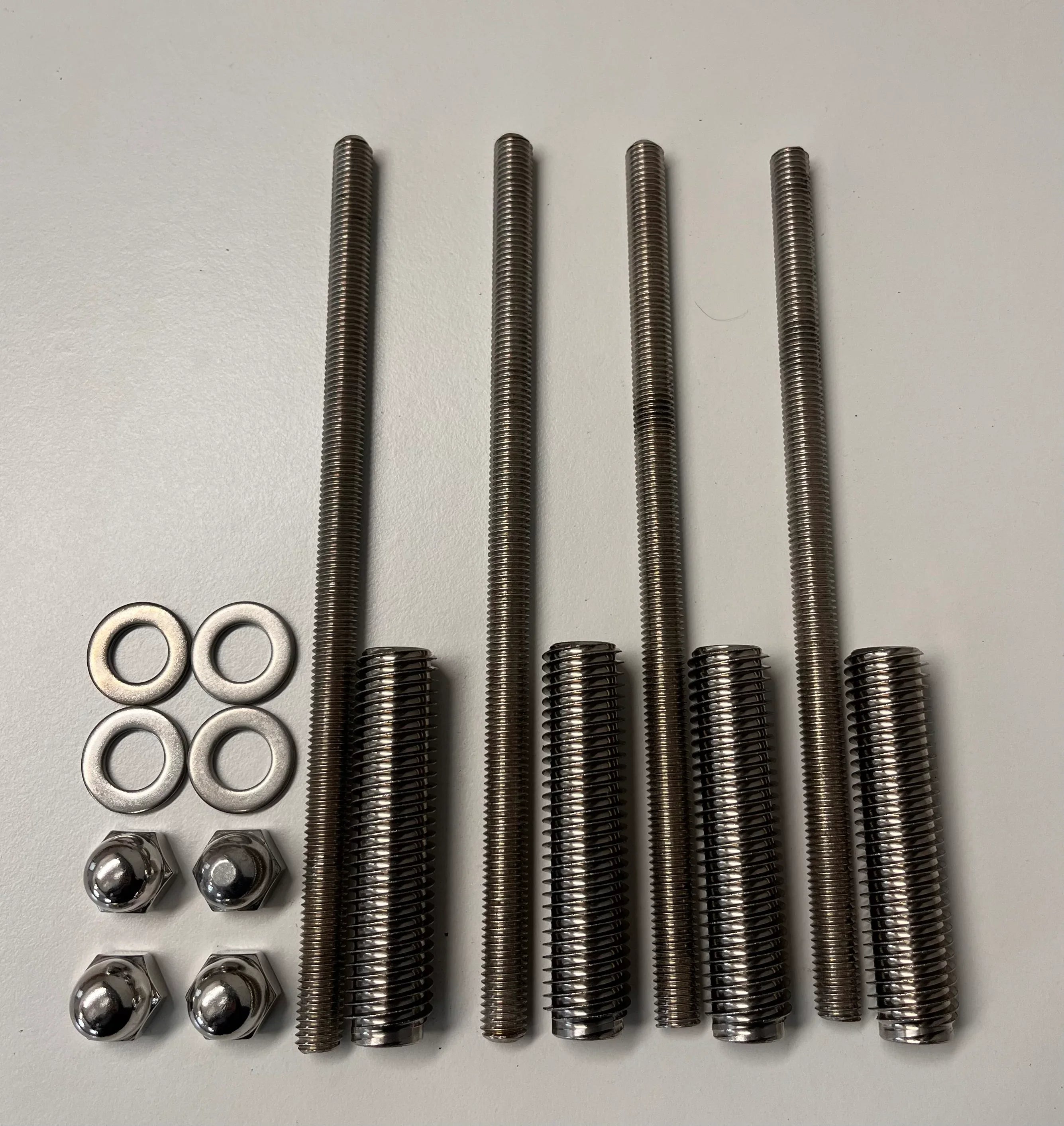

Edelstahl Gewindestangen, Unterlegscheiben und Hutmuttern für Holz-Mauer-Befestigung
Montage von Edelstahl-Handlauf an Holzständerwand mit Dämmung, Detailansicht Befestigung

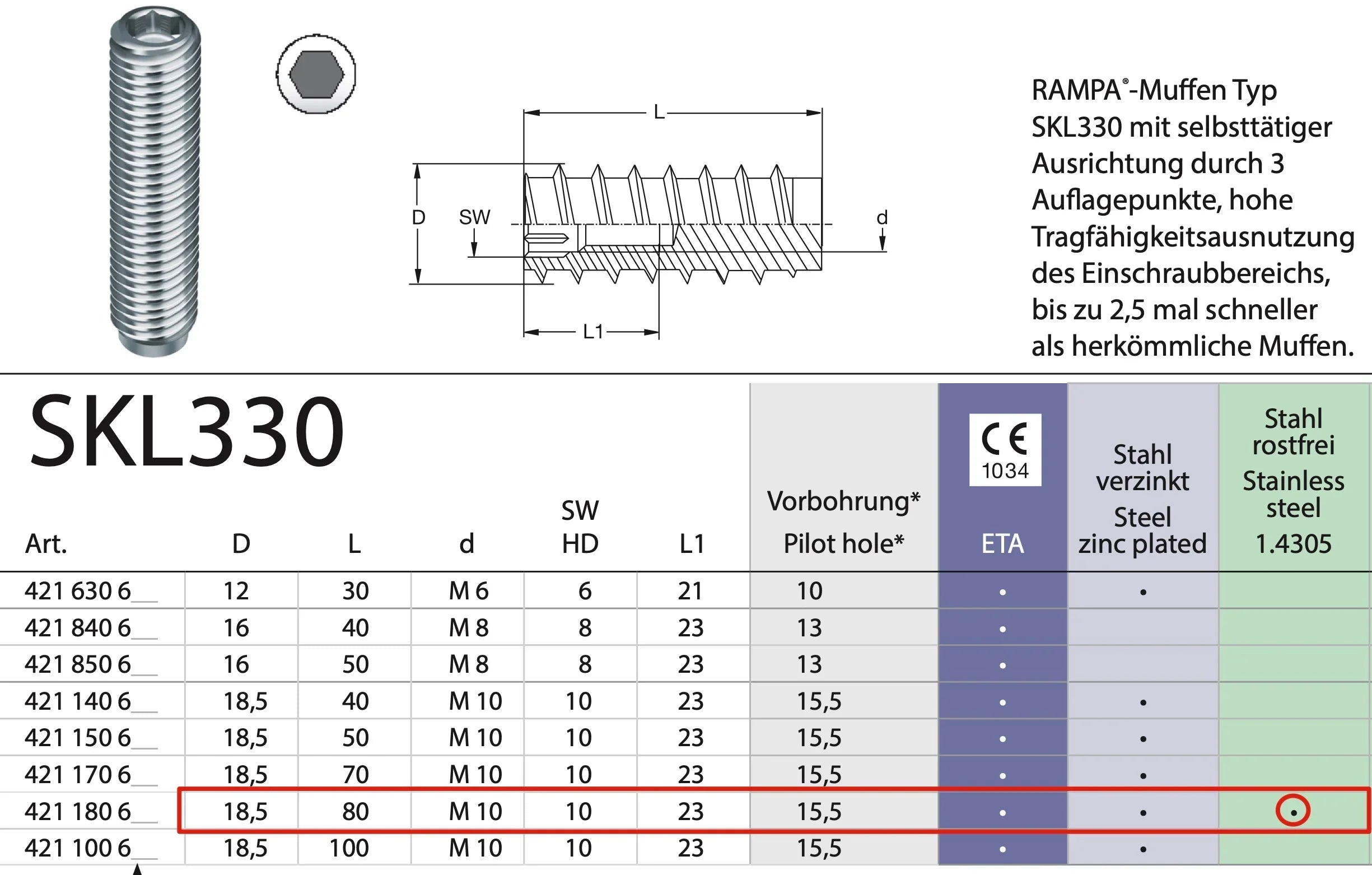

SKL330 Muffe aus Edelstahl und verzinktem Stahl, technische Zeichnung und Größentabelle für Holzständerbefestigung

French balcony mounting kit for wooden substructure / timber frame construction

Perfectly matched to French balconies from Kirchberger Metall

Complete set including required fastening material

Specifically developed for timber frame construction

Free delivery!

SKU: 100202-INDERLAIBUNG
fastening:

fastening
Quantity:
69,02 €

Tax included. Shipping calculated at checkout

Lieferzeit: 3 to 8 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt - Angebot anfordern
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Fastening set for Juliet balconies on wooden substructures / timber frame construction

Suitable for all Juliet balconies offered in our shop. The extremely stable special Rampa insert nut is first screwed into the wooden structure using an Allen key. The M10 threaded rod is then screwed in and the Juliet balcony is attached to it.

The insert nut and threaded rod are made of high-quality stainless steel and are approved for outdoor use. Never use cheap galvanized fastening materials; we also advise against simple hanger bolts.

Select variant by fastening type

  • In the reveal: Threaded rod M10, length 80 mm
  • Front-mounted wall installation: Threaded rod M10, length 150 mm
  • Depending on the construction, the length of the threaded rod can be adjusted on-site

Scope of delivery

  • 4x Rampa insert nut SKL 330 M10 x 80, stainless steel
  • 4x Stainless steel threaded rod
  • Mutter M10
  • Cap nut M10

Questions and Answers

The mounting kits fit all French balconies and fall protection products offered in our shop. What matters is not the balcony model but the substrate: choose the kit to match your wall – masonry/concrete or timber substructure – and the mounting type (face-mounted or in the reveal).

The difference lies in the length of the anchor rod or threaded rod. With face-mounted wall installation, the balcony sits in front of the facade and requires the longer rod; for installation in the reveal (on the sides of the window niche), the shorter version is sufficient. Select the appropriate option in the selection field.

Yes. All anchor, sleeve, and threaded parts are made of high-quality stainless steel and are approved for outdoor use. For safety reasons, never use cheap galvanized mounting materials; we also advise against simple hanger bolts.

For a wall with external insulation (ETICS), you need a special kit with thermally separated standoff anchors so the load is safely transferred into the load-bearing masonry and no cold bridge is created. You will find this ETICS kit separately in our shop.

Each kit is designed for four mounting points and accordingly contains 4 anchor rods or threaded rods along with nuts and cap nuts (the masonry kit additionally includes sieve sleeves and mounting adhesive, the wood kit the Rampa sleeves). This corresponds to the standard four-point mounting of a French balcony.
