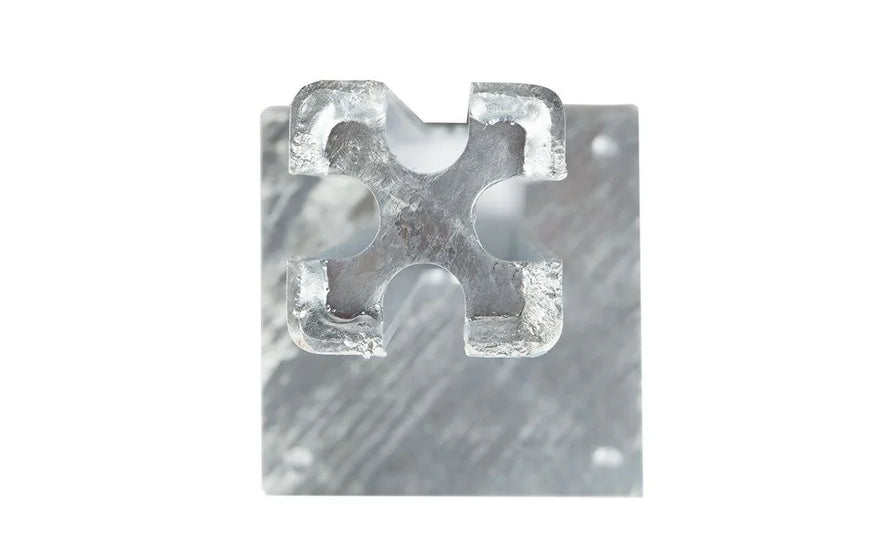

Metall Fussplatte Universal 80x80 mm für Torprofile, verzinkt, Lochbohrungen sichtbar

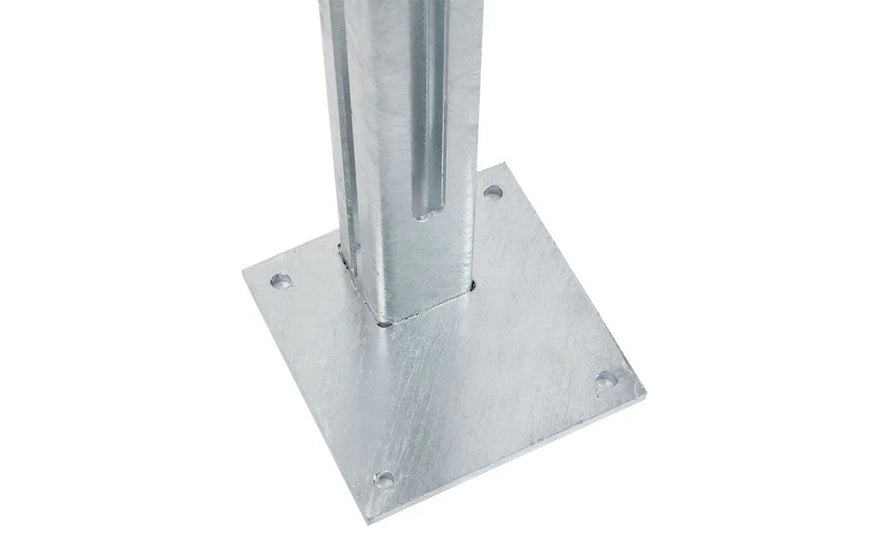

Verzinkte Universal-Fußplatte 80x80 mm mit vier Befestigungslöchern für Metallpfosten
Verzinkte Universal-Fußplatte 80x80 mm für Metallbau, mit Montagebohrungen

Universal base plate for 80x80 mm gate posts

Suitable for gate posts 80x80 mm

Sturdy base plate for secure dowel mounting on concrete

Galvanized & DB703 for long-lasting corrosion protection

SKU: ZP50ZG80-DB703-OHNE-(ZPS5B->2x)
Color:

Color
Anchor bolts:

Anchor bolts
self-drilling screw:

self-drilling screw
Quantity:
128,23 €

Tax included. Shipping calculated at checkout

Lieferzeit: 14 to 21 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt - Angebot anfordern
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Universal Base Plate for Gate Posts 80x80 mm

The Universal Base Plate for gate posts measuring 80x80 mm offers a robust, long-lasting solution for securely fastening your gate posts. Ideal for bolting onto concrete or other solid substrates, this base plate ensures maximum stability and durability. For a perfect color match with your fence, matching spray paints are available in anthracite, moss green, pure white and iron mica, so you can paint the plate yourself if needed.

Product features:

  • Available finishes: Galvanized, anthracite RAL7016, iron mica DB703 (further colors for painting available as spray paint under >> Accessories << in moss green and pure white)
  • Mounting type: For bolting down, with 4 holes Ø 13 mm in the base plate
  • Fence height: Ideal for mesh panel fences up to a height of 1800 mm
  • Dimensions: Base plate: 200x200x10 mm, shaft height: 610 mm

Easy installation:

  1. Preparation: Connect the gate post to the base plate adapter using one or two self-drilling screws.
  2. Positioning: Align both on the foundation. Use a spirit level to make sure the alignment is perfect.
  3. Drilling: Mark the drill holes and use a suitable hammer drill to bore the holes into the solid substrate. Be sure to choose the correct depth to match the bolt length.
  4. Fastening: Clean out the drill holes and set the base plate in place. Insert the anchor bolts through the holes and drive them in with a hammer. Then align the post once more using the spirit level and tighten the nuts evenly.

Benefits:

  • High corrosion resistance thanks to hot-dip galvanizing
  • Flexible use with a wide range of fence types and substrates
  • Quick and easy installation

The Universal Base Plate for gate posts 80x80 mm is the perfect solution for DIY enthusiasts and professionals who need a stable, long-lasting mount for their fence. Whether you choose the galvanized, anthracite or moss green version, this base plate delivers a secure hold on every fence installation.

Questions and Answers

Classic metal fences primarily serve as a pure boundary. Ornamental fences, on the other hand, combine this protective function with high architectural standards and act as a design element that underlines the character and value of a property.

DB703 is a dark gray shade with fine micaceous iron oxide particles that creates a matte, deep metallic look. This finish is particularly resistant to dirt, scratches, and fingerprints and offers additional UV protection.

For a service life of decades, all steel profiles and flat steel frames are first hot-dip galvanized and then given a high-quality powder coating. This guarantees extreme corrosion protection and mechanical resilience in any weather.

Installation is carried out using structurally dimensioned fence posts that are either set firmly in concrete or bolted onto a foundation via a base plate. Connections to existing masonry or pillars are also easily possible.

Yes, for complex structural situations or difficult terrain, special solutions beyond standard dimensions can be developed. Technical sketches and expert advice support precise preliminary planning.
