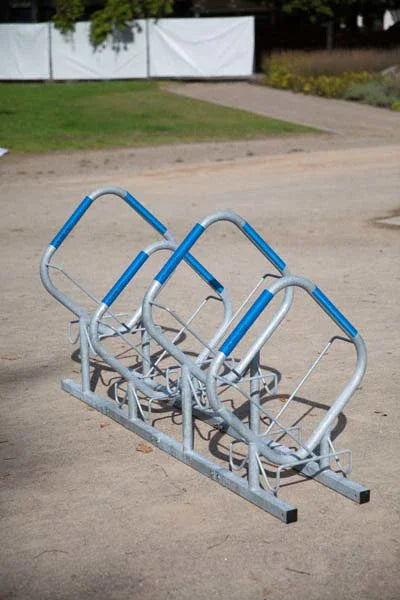

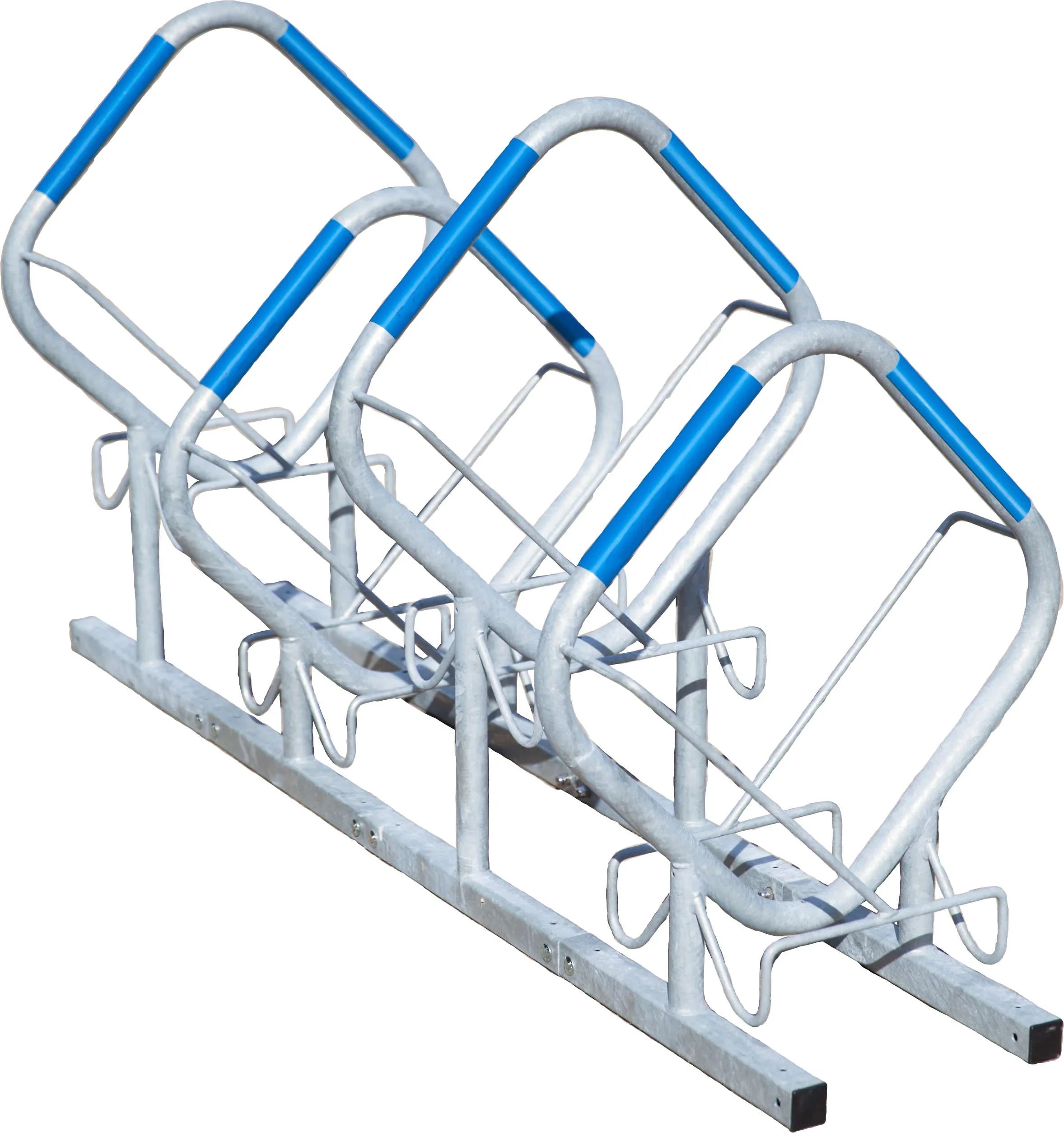

Bicycle rack, Prisma series model - hot-dip galvanized

Bicycle rack, frame bicycle parking - Prisma model - galvanized version

Advantages:
Thanks to the rounded, rectangular leaning bar, all common bicycles and bicycle sizes can be parked safely and conveniently.
Heavy pedelecs and e-bikes are reliably protected from damage caused by being knocked over. This prevents costly consequential damage to rims and frames.
Wheel spacing 500 mm according to ADFC recommendation and certified according to DIN 79008 (standard for requirements for bicycle parking systems).
The system is prepared for floor mounting and series connection.

• Certified according to DIN 79008 Stationary bicycle parking facilities. Manufactured to the quality standards recommended by the ADFC (German Cyclists' Association).

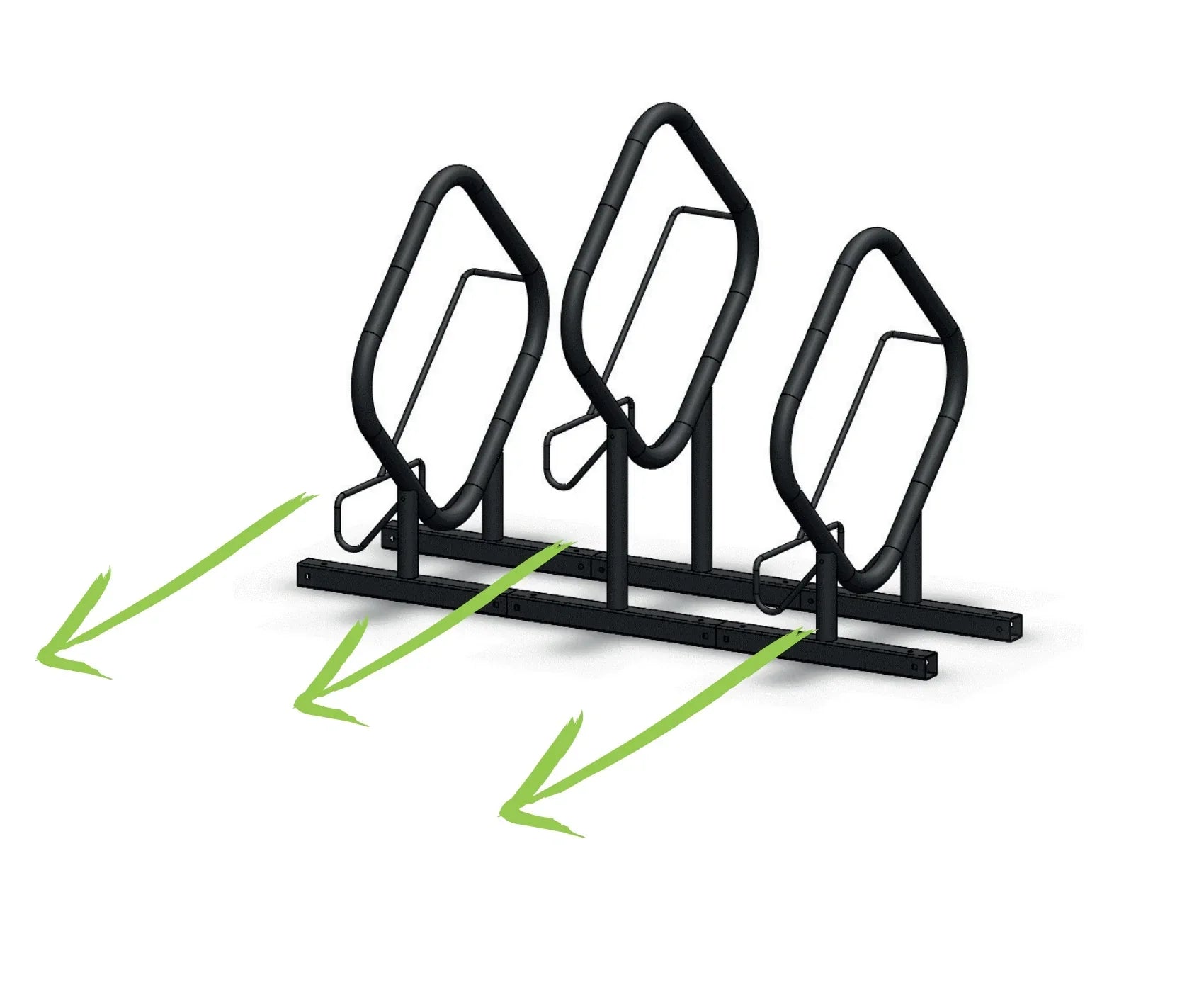

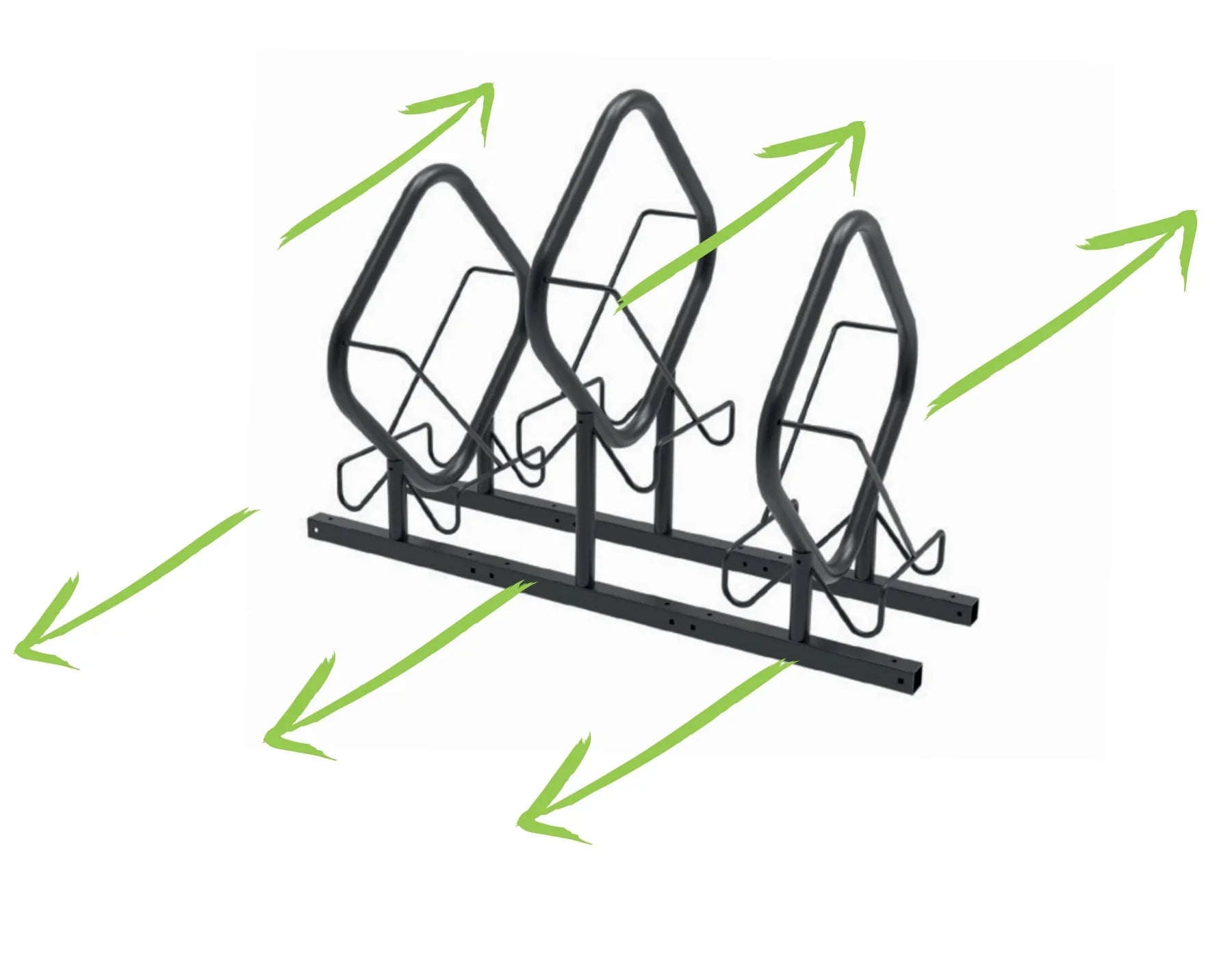

• Optionally for single- or double-sided wheel positioning
• Large rectangular rounded all-around leaning bar
• Additional plastic pads prevent frame damage from scratching.
• Protects the bicycle from vandalism and consequential damage to the rims.
• Suitable for all tire sizes: up to 70 mm (including children's bikes and wide-tire e-bikes)
• Corrosion-protected and retains its value thanks to hot-dip galvanizing.
• Space-saving storage thanks to alternating up/down adjustment.
• Very robust steel construction made of round tubing paired with a square tube frame
• Infinitely expandable, prepared for series connection and floor mounting
• End caps for visual enhancement included.
• Available as an inclined position with a 45-degree setting

Technical information:

• Dimensions per module: (Width x Depth x Height) 500 mm x 775 mm x 1085 mm (885 mm)
• Weight per module: 12 kg
• Steel round tube, diameter 42.4 mm
• Wheelbase: 500 mm
• Tire width: up to 70 mm

Dimensions of the variants: (select in the dropdown selection field)
High module height 1085mm, low module height 885mm

single-sided, L 500 mm, high module - 1 bicycle
single-sided, L 500 mm, low module - 1 bicycle
single-sided, L 1000 mm, 1x high module, 1x low module - 2 bicycles
single-sided, L 1500 mm, 1x high module, 2x low module - 3 bicycles
single-sided, L 2000 mm, 2x high module, 2x low module - 4 bicycles
single-sided, L 2500 mm, 2x high module, 3x low module - 5 bicycles
single-sided, L 3000 mm, 3x high module, 3x low module - 6 bicycles
single-sided, L 3500 mm, 3x high module, 4x low module - 7 bicycles
single-sided, L 4000 mm, 4x high module, 4x low module - 8 bicycles
single-sided, L 4500 mm, 4x high module, 5x low module - 9 bicycles
single-sided, L 5000 mm, 5x high module, 5x low module - 10 bicycles

double-sided, L 500 mm, high module - 2 bicycles
double-sided, L 500 mm, low module - 2 bicycles
Double-sided, L 1000 mm, 1x high module, 1x low module - 4 bicycles
Double-sided, L 1500 mm, 1x high module, 2x low module - 6 bicycles
Double-sided, L 2000 mm, 2x high module, 2x low module - 8 bicycles
Double-sided, L 2500 mm, 2x high module, 3x low module - 10 bicycles
Double-sided, L 3000 mm, 3x high module, 3x low module - 12 bicycles
Double-sided, L 3500 mm, 3x high module, 4x low module - 14 bicycles
Double-sided, L 4000 mm, 4x high module, 4x low module - 16 bicycles
Both sides, L 4500 mm, 4x high module, 5x low module - 16 bicycles
Double-sided, L 5000 mm, 5x high module, 5x low module - 20 bicycles

Variant with additional powder coating in your choice of RAL color - find it here! (click here)
